North America’s Largest Inventory of CNC Gear Machinery, Production Machinery, and Machine Tools
Sale Type: Negotiated
Date: Ongoing
Preview: By Appointment
Address: USA
Contact Name: Nick Gibbs
Email: nick@gibbsmachinery.com
Description: Integrated manufacturing lines designed for high-precision, high-volume production of discs, friction rings, and rotors, combining CNC machining, in-line inspection, and dynamic balancing in a single, efficient process.
EQUIPMENTDETAILS
AVAILABLE ASSETS

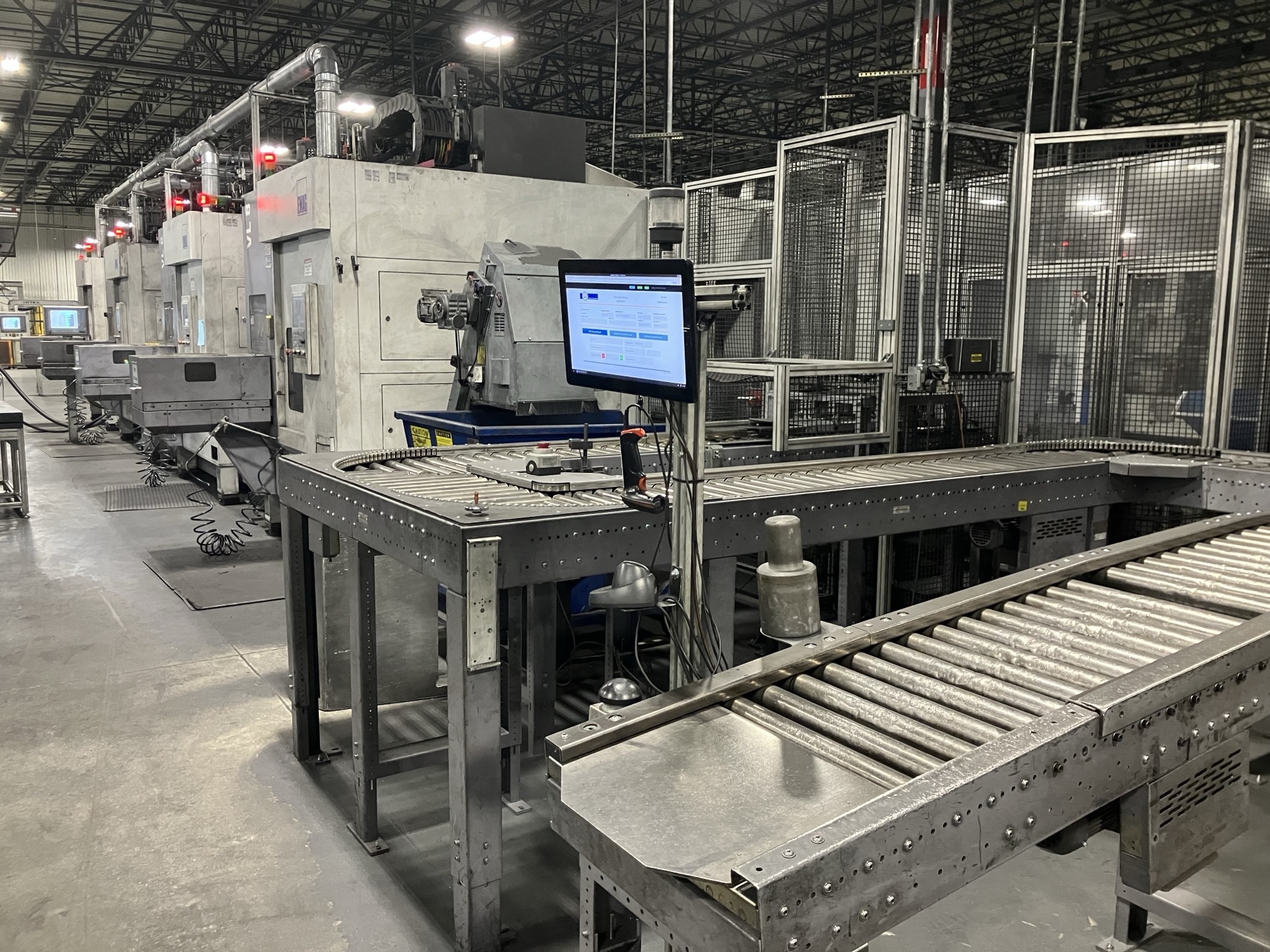

Machining Line 1

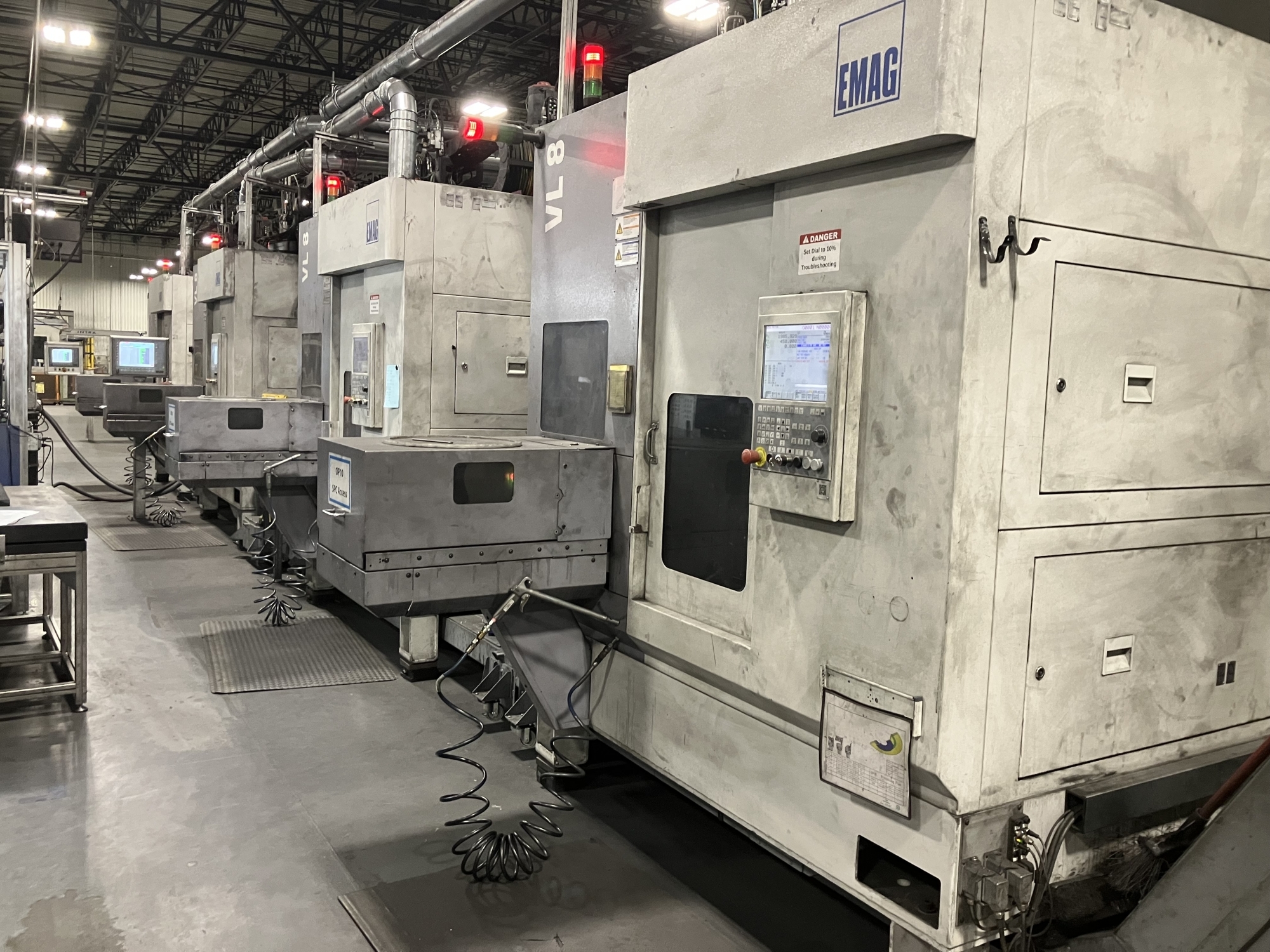

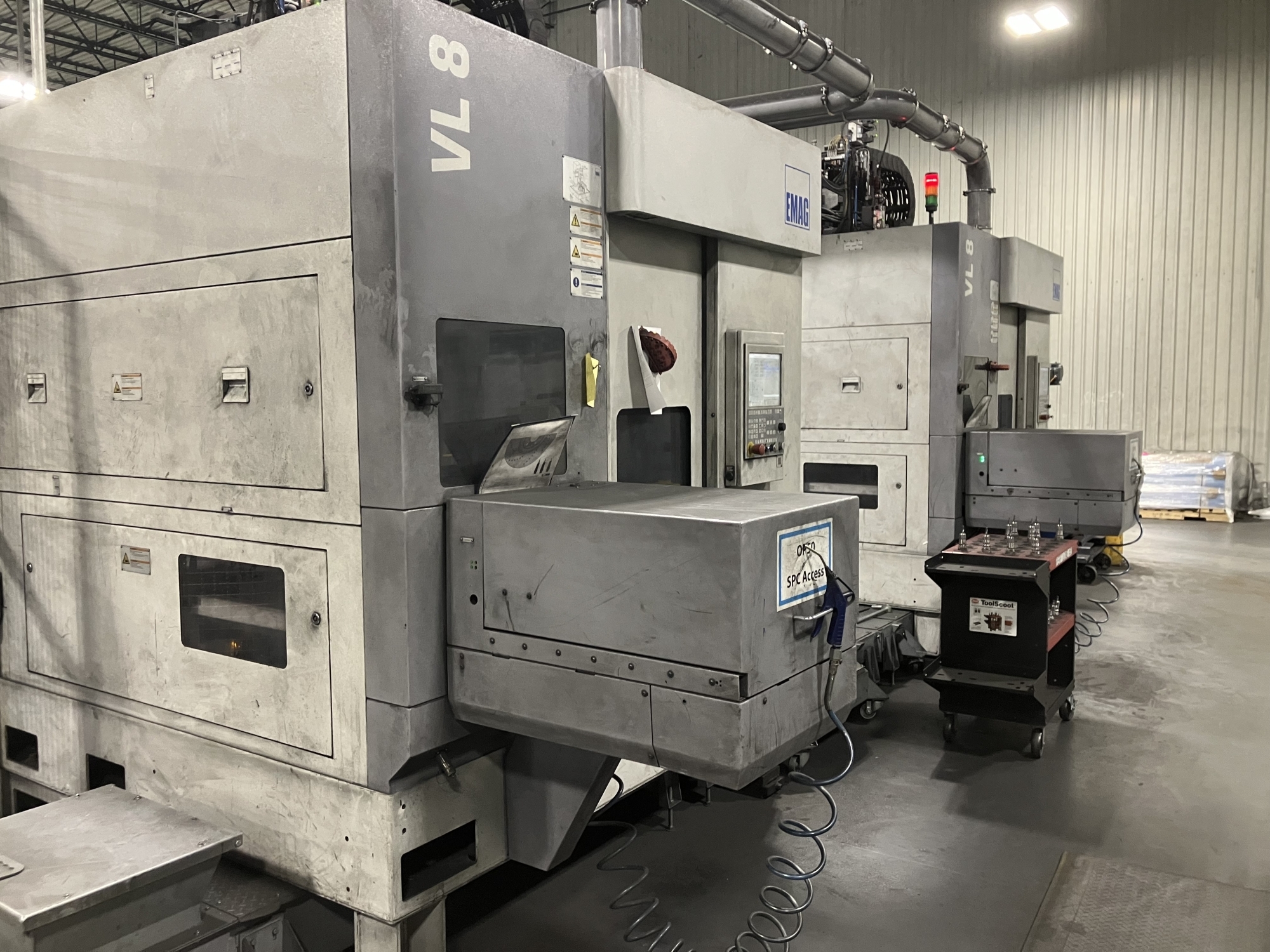

- (4) EMAG VL8 CNC VERTICAL TURNING CENTER: Fanuc CNC Control, Load Table, Stacklight, 15.5" (400mm) Maximum Workpiece Diameter, 12" (300mm) Maximum Workpiece Length, 19.5" (500mm) Maximum Chuck Diameter, 19.5" (520 mm) Maximum Swing Diameter, 43.5" (1,110 mm) X-Axis Travel, 23.5" (595 mm) Z-Axis Travel, 64 hp (47.5 kW) Main Spindle Power, 2,850 rpm Main Spindle Speed, 12 Position Turret, Central Chip Conveyor System
- (1) INTRA IN-LINE MEASURING MACHINE: 22kg Maximum Workpiece Weight, 9"-16.5" (230-420 mm) Part Diameter, 1" - 4.7" (25-120 mm) Part Heights, <32 Second Cycle Time, <2 Minute Automated Calibration Time

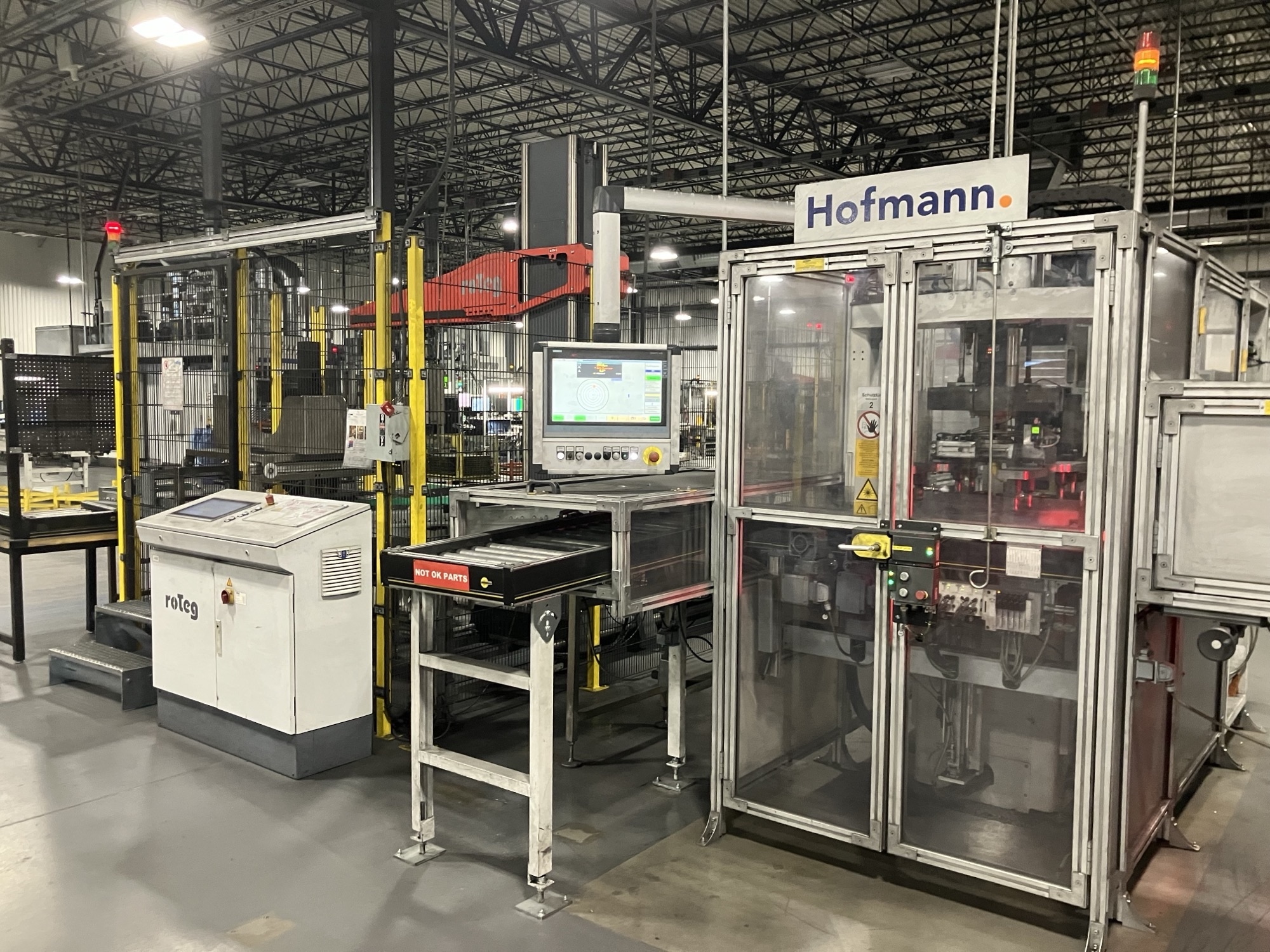

- (1) HOFFMAN IN-LINE BALANCING MACHINE: 22kg Maximum Workpiece Weight, 9"-16.5" (230-420 mm) Part Diameter, 5" (125mm) Drill Head Diameter, 70 Degrees Maximum Drill Angle, 5" (125 mm) Drill Head Diameter, <3500 gmm Initial Imbalance, 20gcm Remaining Imbalance
Machining Line 2
- (4) EMAG VL8 CNC VERTICAL TURNING CENTER: Fanuc CNC Control, Load Table, Stacklight, 15.5" (400mm) Maximum Workpiece Diameter, 12" (300mm) Maximum Workpiece Length, 19.5" (500mm) Maximum Chuck Diameter, 19.5" (520 mm) Maximum Swing Diameter, 43.5" (1,110 mm) X-Axis Travel, 23.5" (595 mm) Z-Axis Travel, 64 hp (47.5 kW) Main Spindle Power, 2,850 rpm Main Spindle Speed, 12 Position Turret, Central Chip Conveyor System
- (1) INTRA IN-LINE MEASURING MACHINE: 22kg Maximum Workpiece Weight, 9"-16.5" (230-420 mm) Part Diameter, 1" - 4.7" (25-120 mm) Part Heights, <32 Second Cycle Time, <2 Minute Automated Calibration Time
- (1) HOFFMAN IN-LINE BALANCING MACHINE: 22kg Maximum Workpiece Weight, 9"-16.5" (230-420 mm) Part Diameter, 5" (125mm) Drill Head Diameter, 70 Degrees Maximum Drill Angle, 5" (125 mm) Drill Head Diameter, <3500 gmm Initial Imbalance, 20gcm Remaining Imbalance
Perforation Line 1
- (2) EMAG VL8 CNC VERTICAL TURNING CENTER: Fanuc CNC Control, Load Table, Stacklight, 15.5" (400mm) Maximum Workpiece Diameter, 12" (300mm) Maximum Workpiece Length, 19.5" (500mm) Maximum Chuck Diameter, 19.5" (520 mm) Maximum Swing Diameter, 43.5" (1,110 mm) X-Axis Travel, 23.5" (595 mm) Z-Axis Travel, 64 hp (47.5 kW) Main Spindle Power, 2,850 rpm Main Spindle Speed, 12 Position Turret, Central Chip Conveyor System, Milling
