North America’s Largest Inventory of CNC Gear Machinery, Production Machinery, and Machine Tools
Sale Type: Negotiated
Date: Ongoing
Preview: By Appointment Only
Address: North America
Contact Name: Nick Gibbs
Email: Email Me
Description: Comprehensive high-production gear manufacturing and inspection package featuring Liebherr CNC gear hobbers, Sicmat gear shavers, Reishauer CNC generating grinders, Faessler gear honing machines, Federal Broach broaching equipment, Gleason M&M analytical gear inspection systems, and Zeiss CMM/metrology equipment. Configured for production and inspection of reaction, input, output and final-drive pinions, sun gears, internal helical gears, and associated transmission components.
EQUIPMENT DETAILS
AVAILABLE ASSETS
Gear Machinery

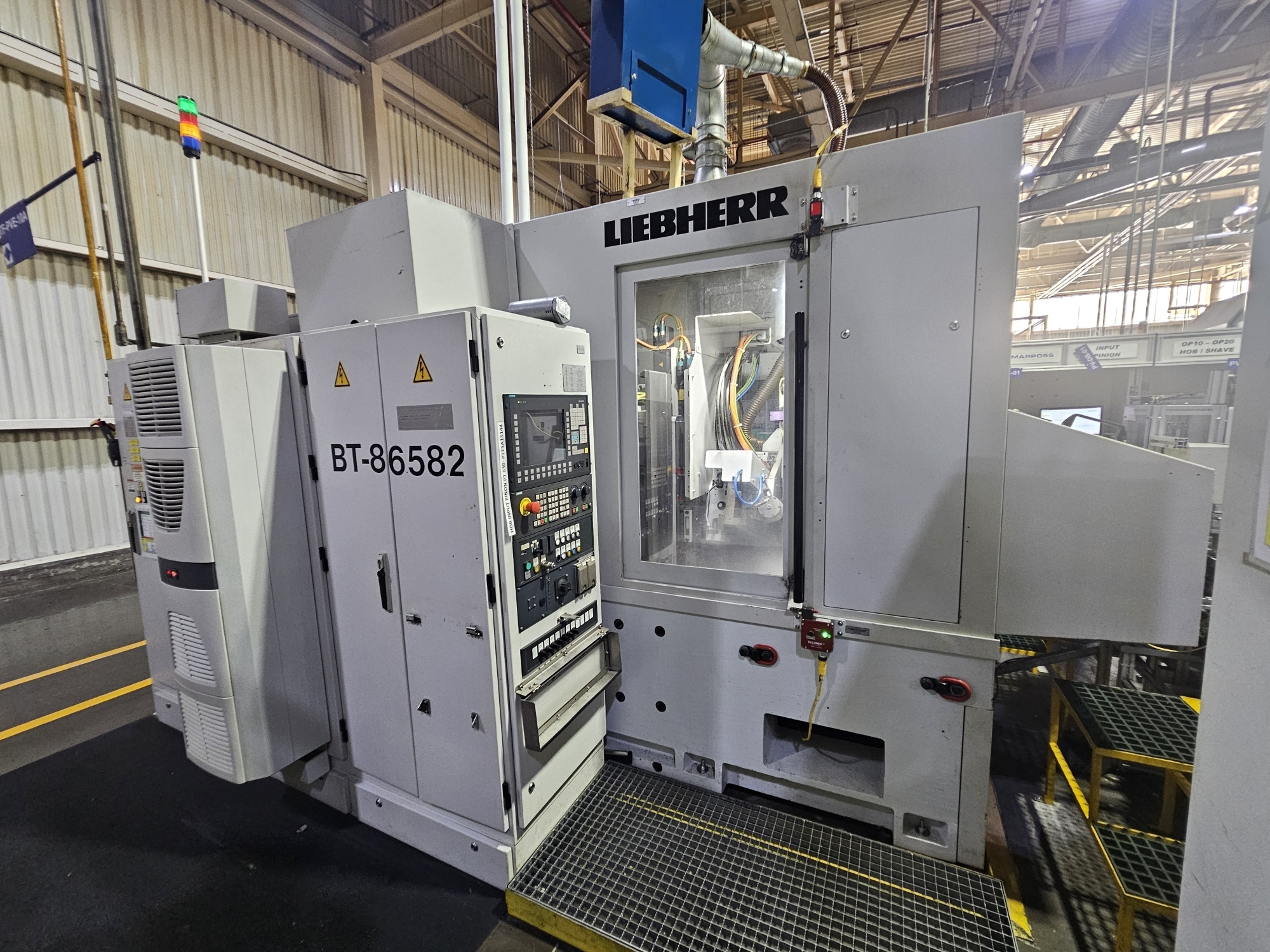

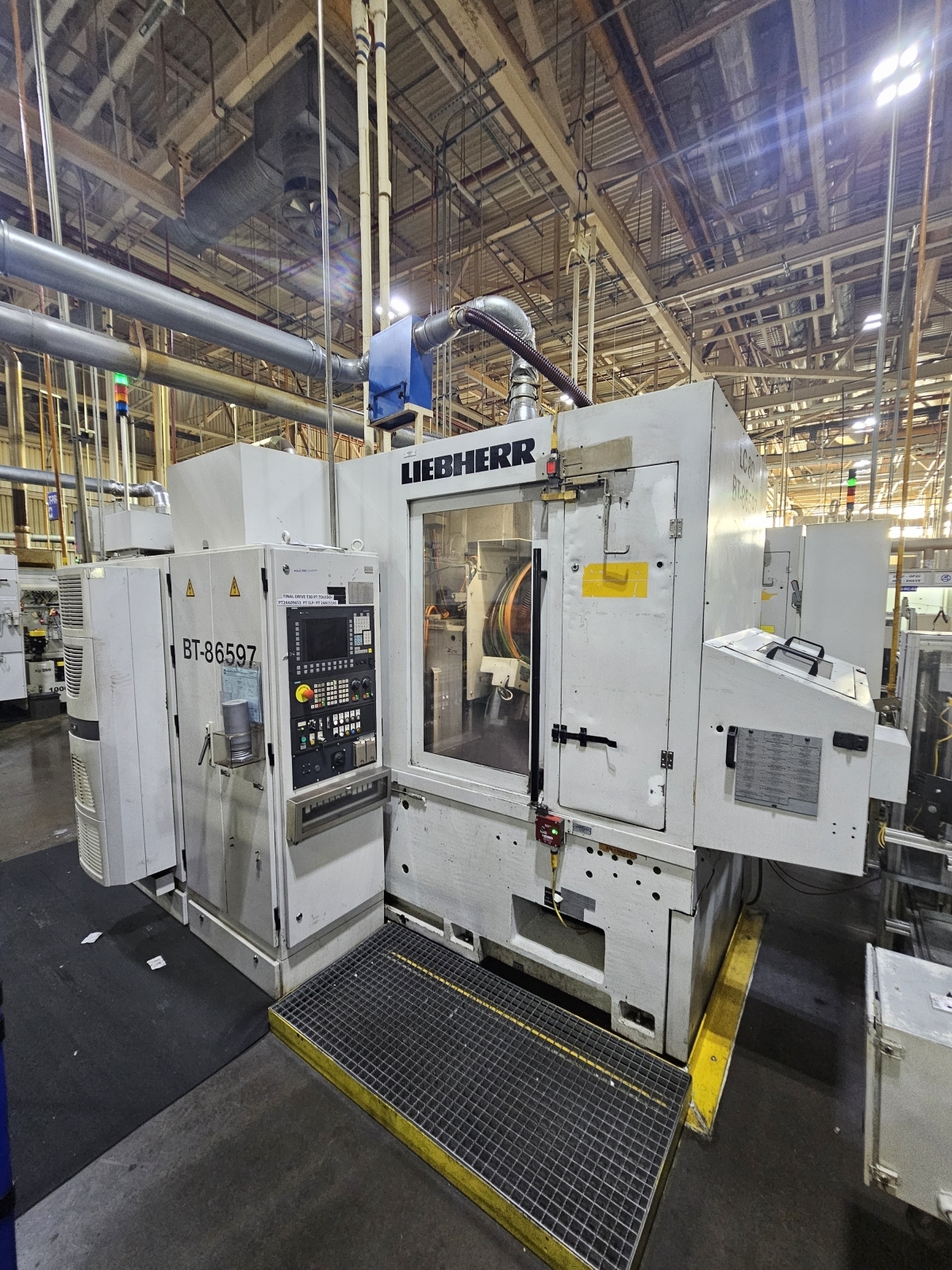

- (9) LIEBHERR LC80 CNC Gear Hobber (2008, 2023): Siemens 840D CNC Control, Hydraulic Work Clamping, Auto Loader, 120 Degrees Ring Loader, Deburr Tool, Tailstock, Chip Conveyor, Dry Cutting, Hydraulic System, Vogel Lubrication, CE Mark, 80 mm (3.15") maximum workpiece diameter, approximately 3 module capacity, 15 kg (33 lb.) maximum workpiece weight, 250/400 mm (9.84"/15.75") axial hob-head travel, 180 mm (7.09") tangential hob shift, 90 mm (3.54") maximum hob diameter, 220 mm (8.66") maximum hob length, ±45° hob-head swivel, 10–200 mm (0.39"–7.87") hob-to-worktable center distance, 145 mm (5.71") diameter worktable, table speeds up to approximately 800 RPM, and hob spindle speeds up to approximately 6,000 RPM

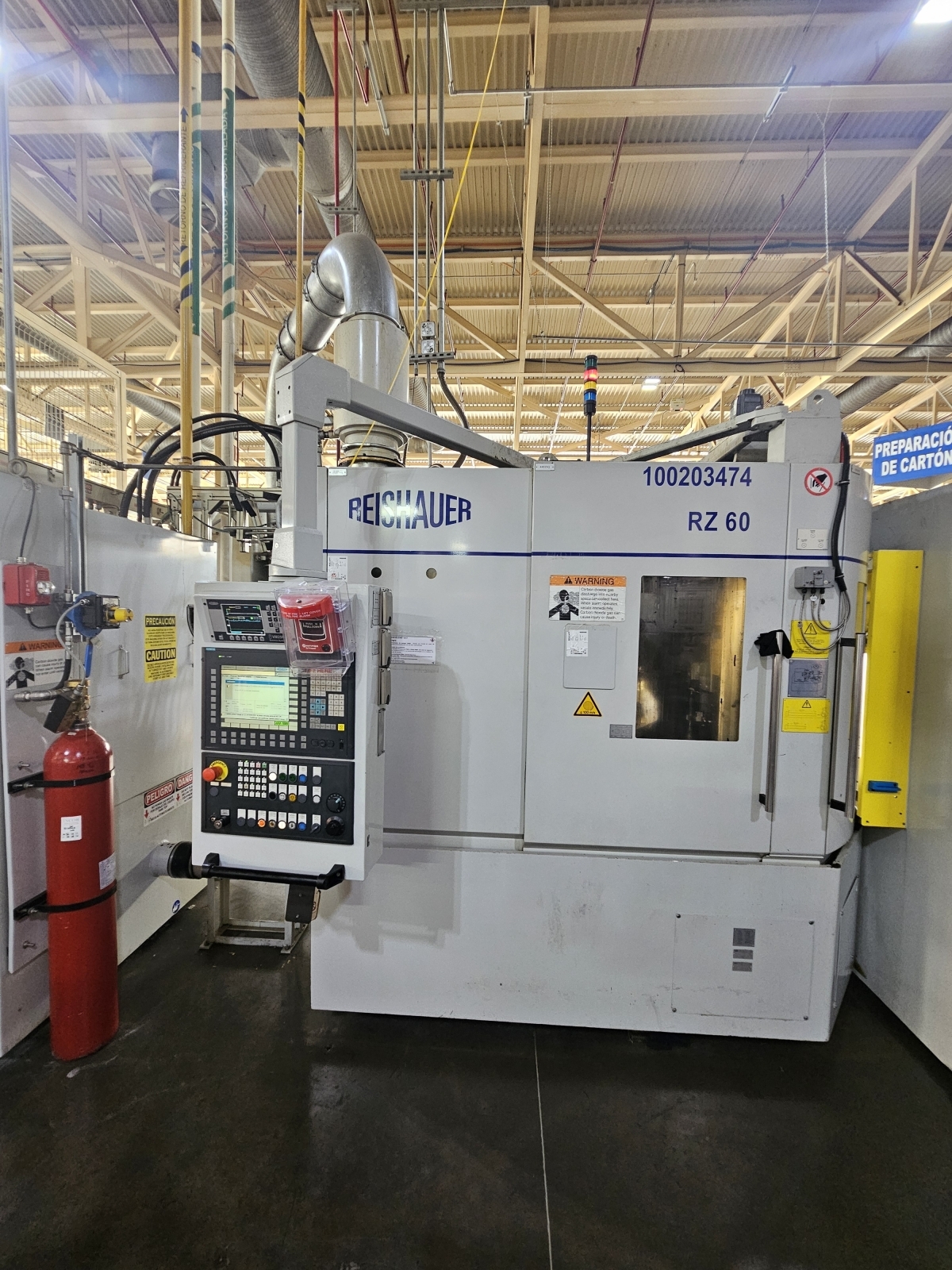

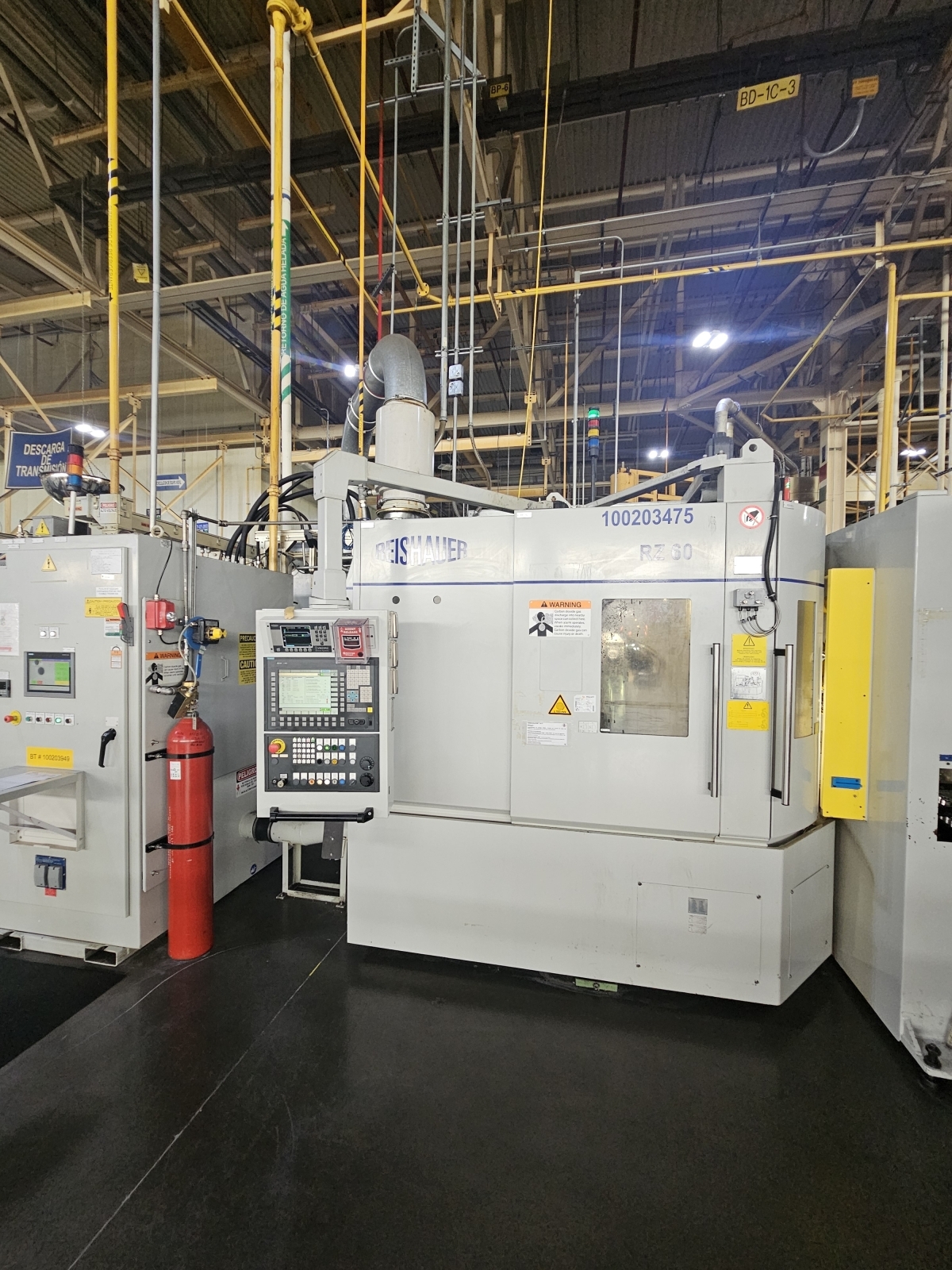

- (2) REISHAUER RZ60 CNC Gear Grinders (2015): Siemens Sinumerik 840D Control, Exchangeable Tooling, Automatic Balancing, Twin Work-Spindle, CNC Tailstocks (W1 & W2 Axis), Two Meshing Sensors, Rotary Dresser, Fire Suppression System, Filtra Skid Boost Filter, CE Mark, 94 mm (3.70") maximum gear outside diameter, 1–4 module capacity, 180 mm (7.09") maximum grinding stroke, 490 mm (19.29") maximum shaft length, 30 kg (66 lb.) maximum workpiece weight including fixture, ±48° grinding head swivel, work spindle speeds up to 3,000 RPM, grinding speeds up to 100 m/s (19,685 SFPM), 275 mm (10.83") maximum grinding wheel diameter, 125/160 mm (4.92"/6.30") maximum grinding wheel face width, and 123/140 mm (4.84"/5.51") dressing tool diameters

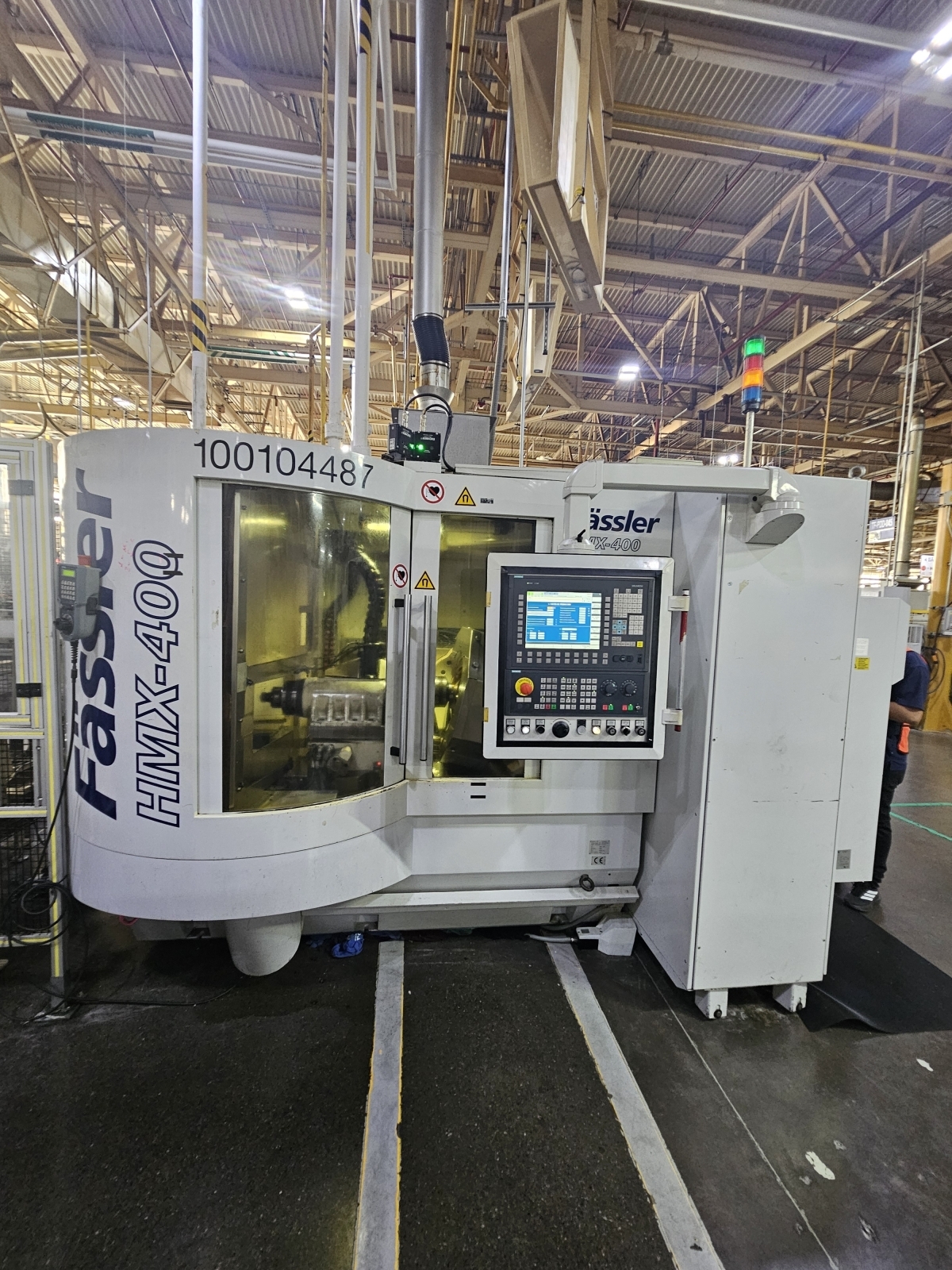

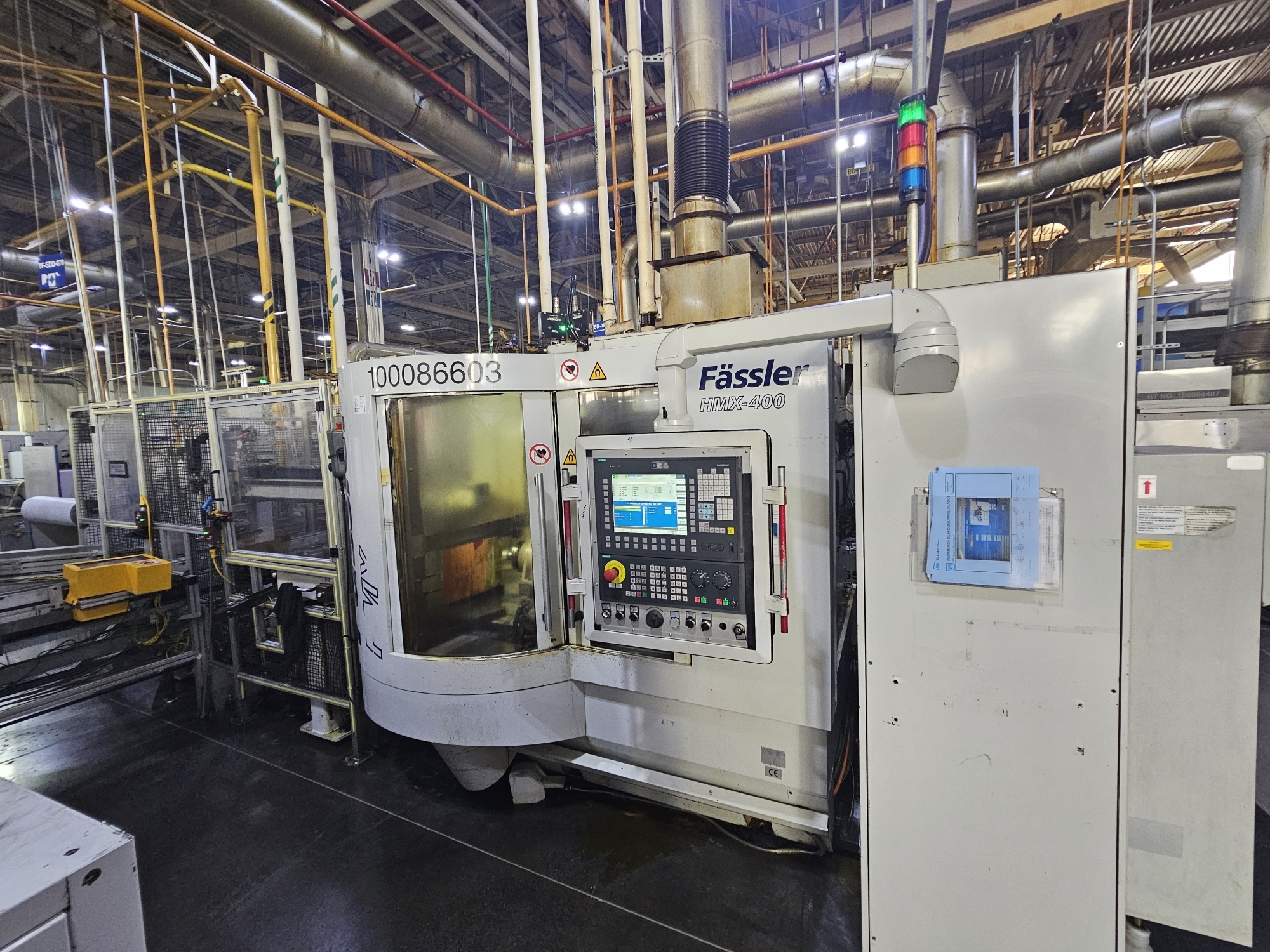

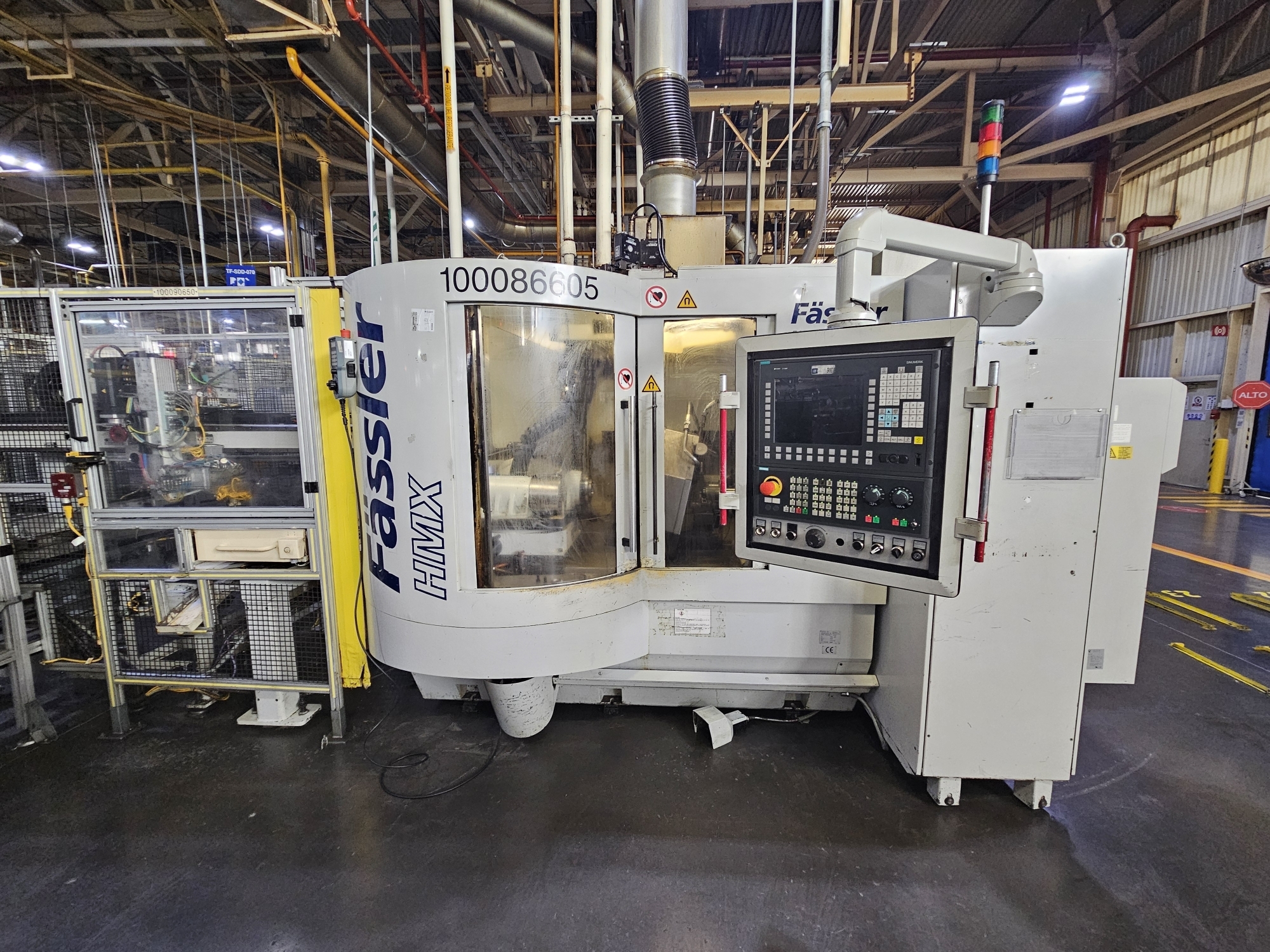

- (4) FASSLER HMX400 CNC Gear Honing Machines (2008-09): Siemens Sinumerik 840D CNC Control, Headstock, Footstock, Hydraulic System, Stacklight, CE Mark, 0.5–8 module capacity, 20–320 mm (0.79"–12.60") external gear diameter capacity, 50–350 mm (1.97"–13.78") internal gear diameter capacity, up to approximately 120 mm (4.72") maximum gear face width, up to 450 mm (17.72") part length between centers, 400 mm (15.75") diameter honing stone, 1,500 RPM maximum honing-stone speed, 6,000/9,000 RPM maximum workpiece spindle speed, ±45° A-axis swivel range, ±10° B-axis swivel range, and approximately 10,500 kg (23,150 lb.) machine weight

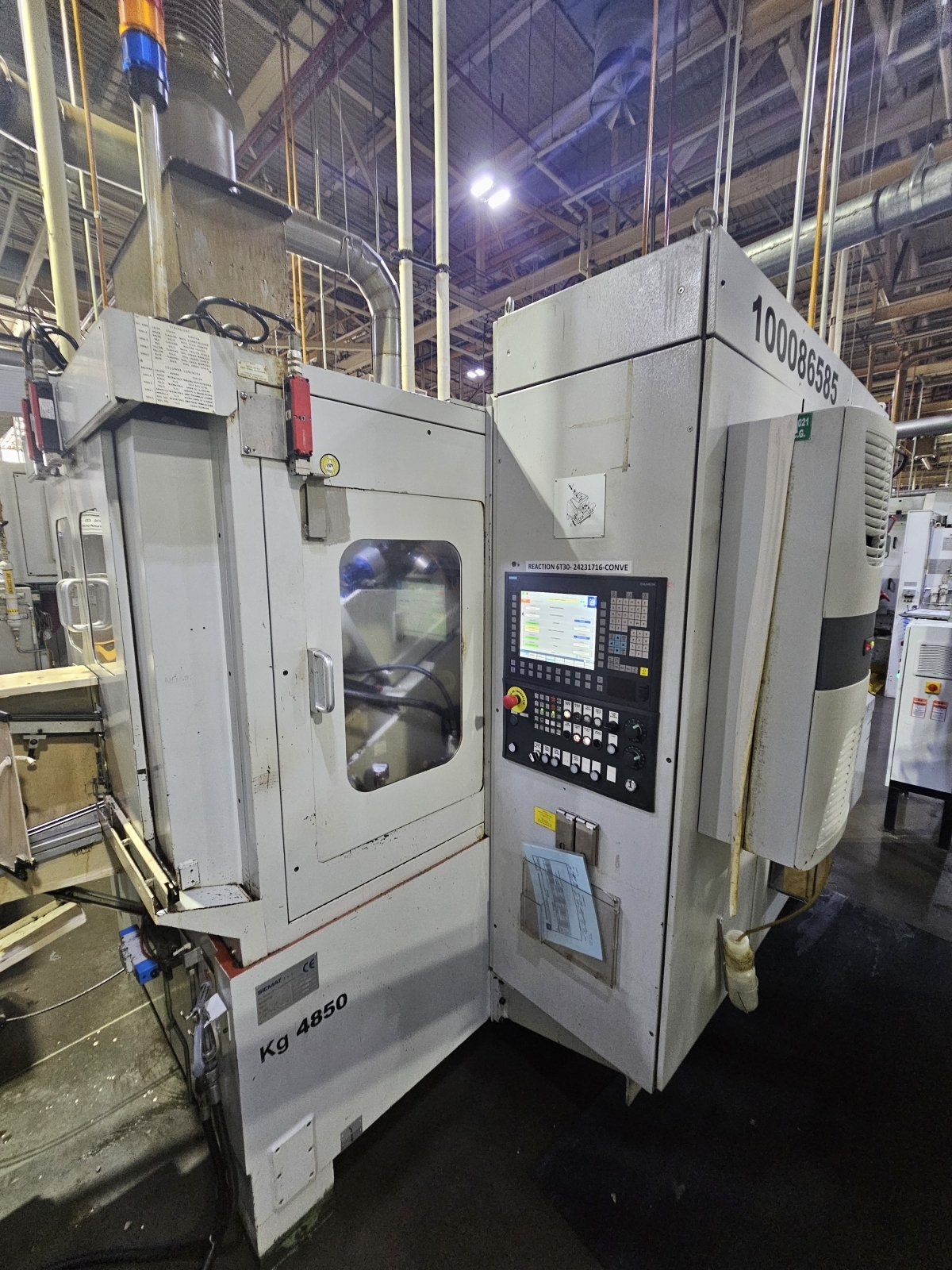

- (9) SICMAT RASO 200 (2008) CNC Gear Shavers: Siemens Sinumerik 840D CNC Control, Hydraulic System, Crowning, Headstock, Tailstock, Cutter Head, Coolant Tank, Magnetic Separator, Auto Loading, 200 mm (7.87") maximum workpiece outside diameter, 0.5–5 module capacity, 100 mm (3.94") maximum workpiece face width, 178–245 mm (7.01"–9.65") shaving cutter diameter range, 19–50.8 mm (0.75"–2.00") shaving cutter width range, 110–202 mm (4.33"–7.95") tool-to-workpiece center distance, 10–400 RPM shaving cutter spindle speed, and approximately 4,200 kg (9,260 lb.) machine weight
Broaching Machines

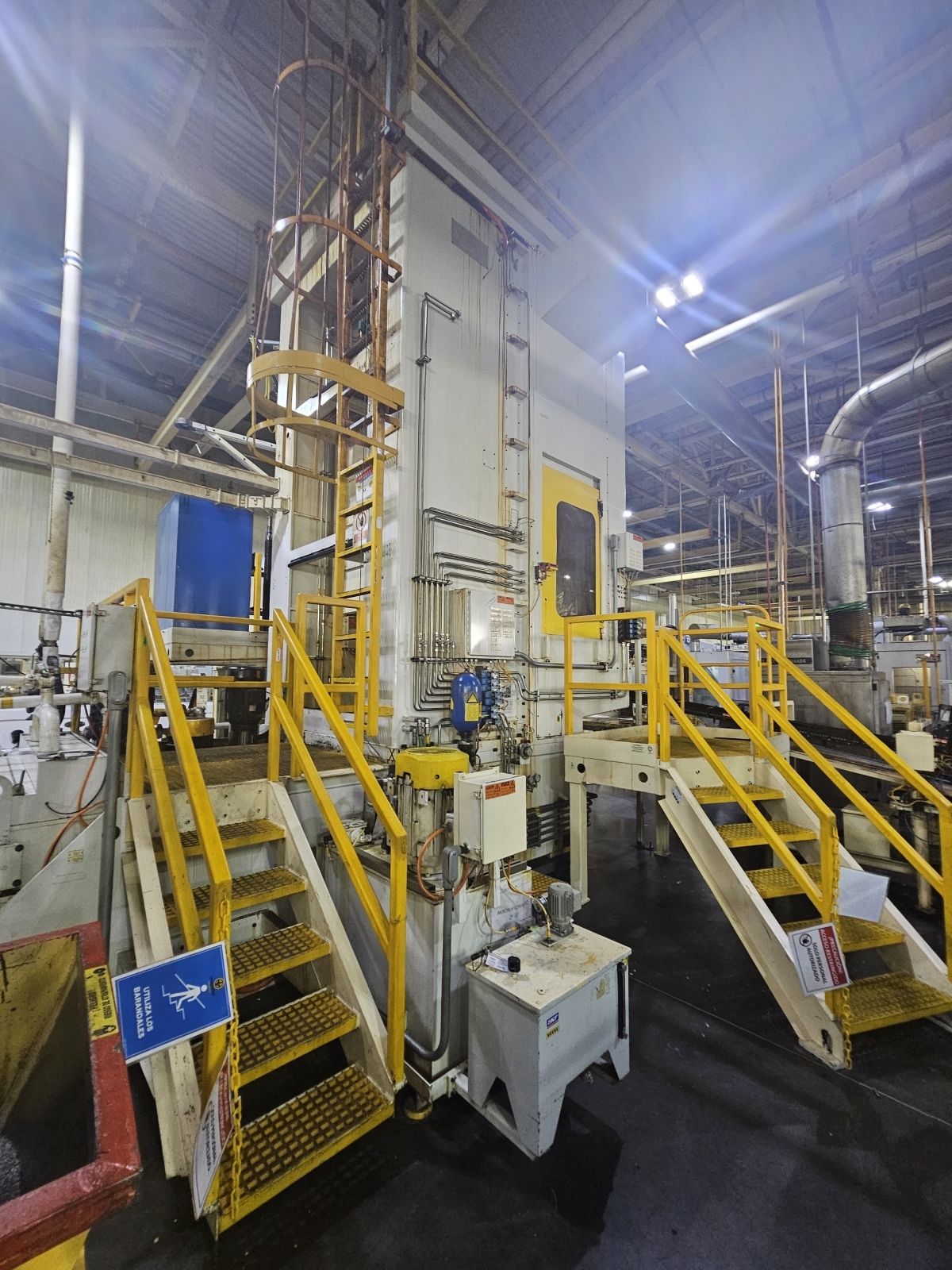

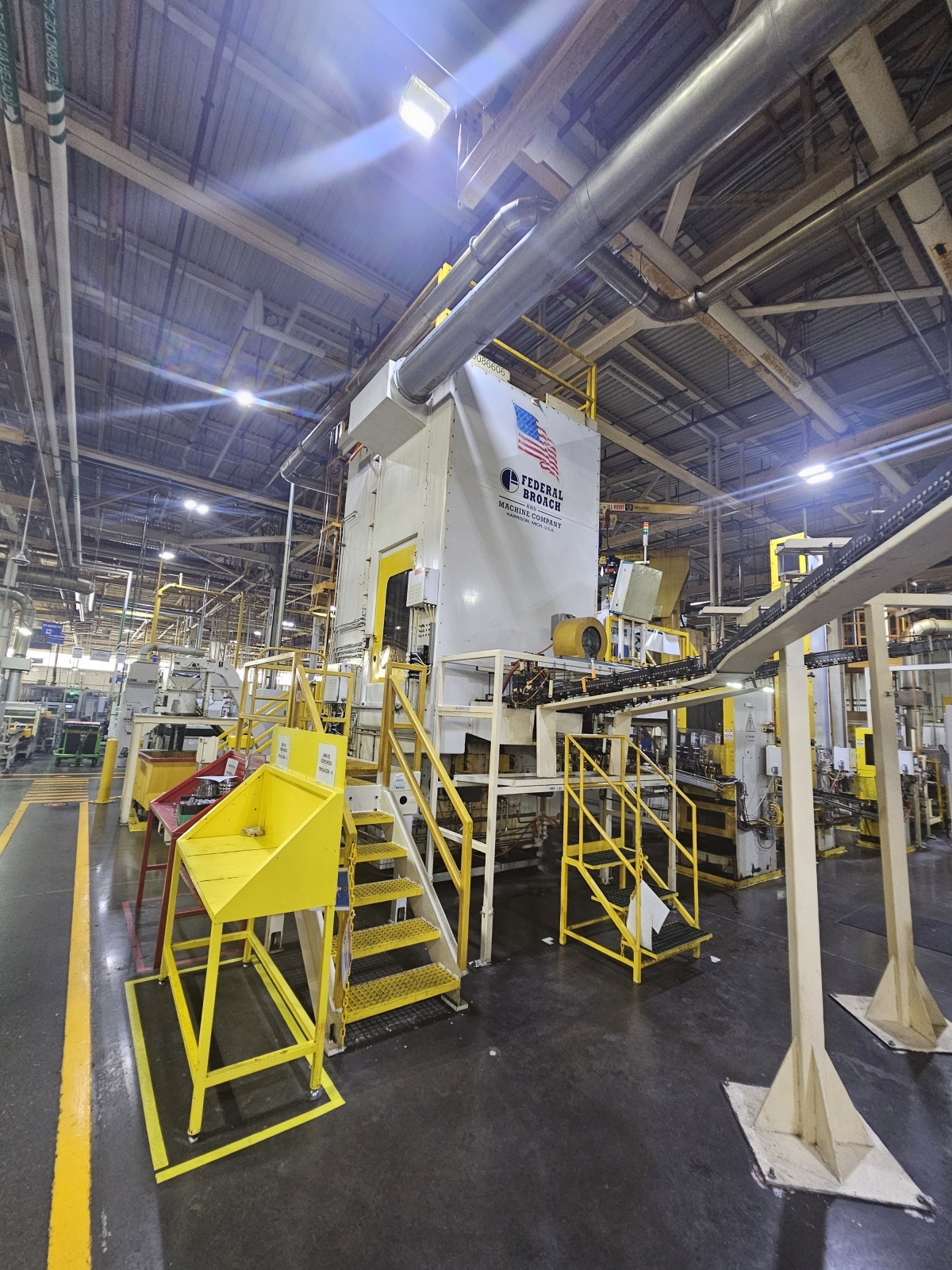

- (2) FEDERAL MVRT 50 Ton Vertical Rising Table Helical Broaching Machines (2008-09): Siemens CNC Control, Helical Broaching, Shuttle Table, Chip Conveyor, Temperature Control System, 50 Ton (450 kN) Force, 100" (2250 mm) Stroke, (2) Station, 44 Second Cycle Time, 60"- 99" (1500 - 2500 mm) Broaching Tool Length

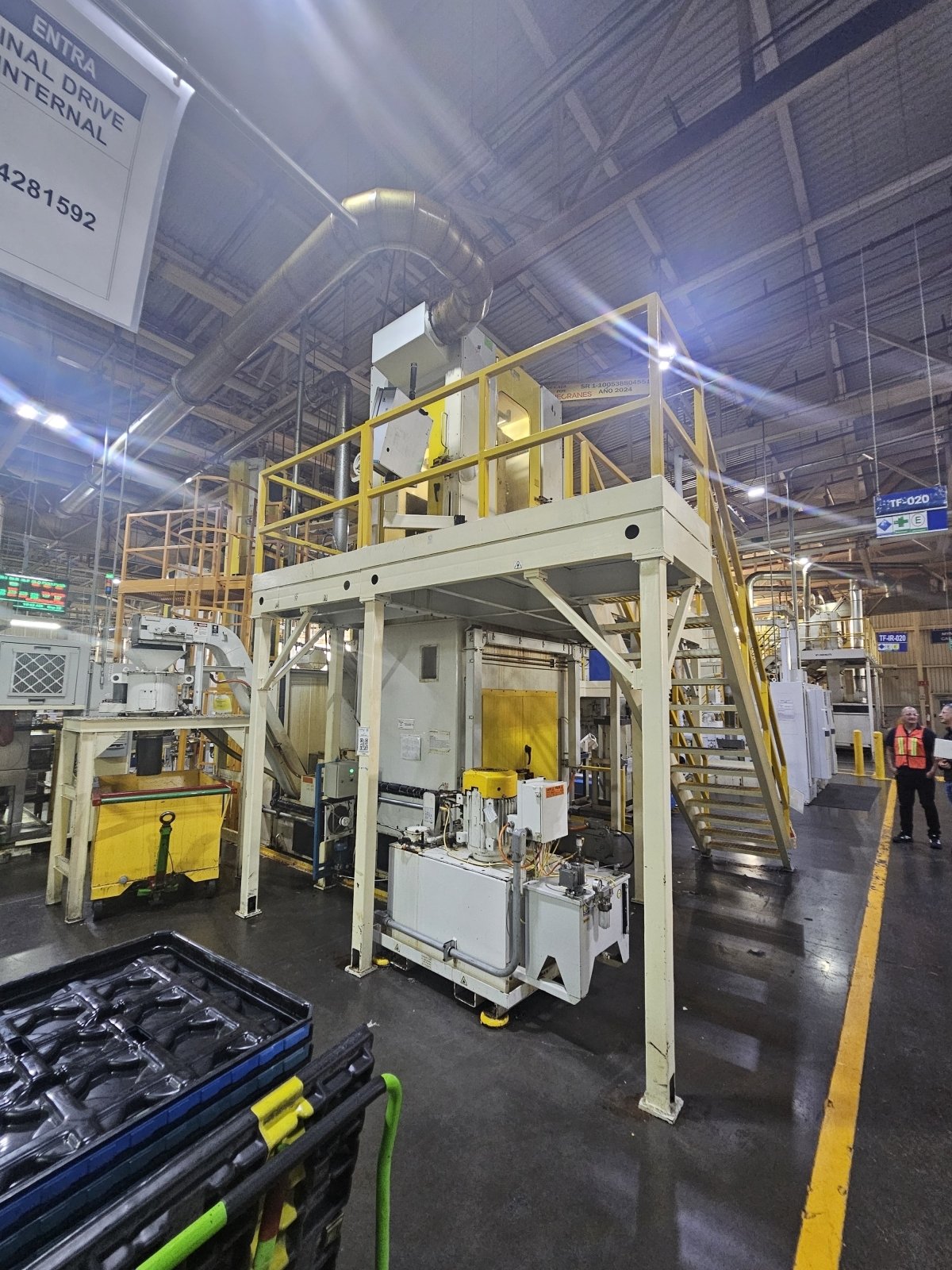

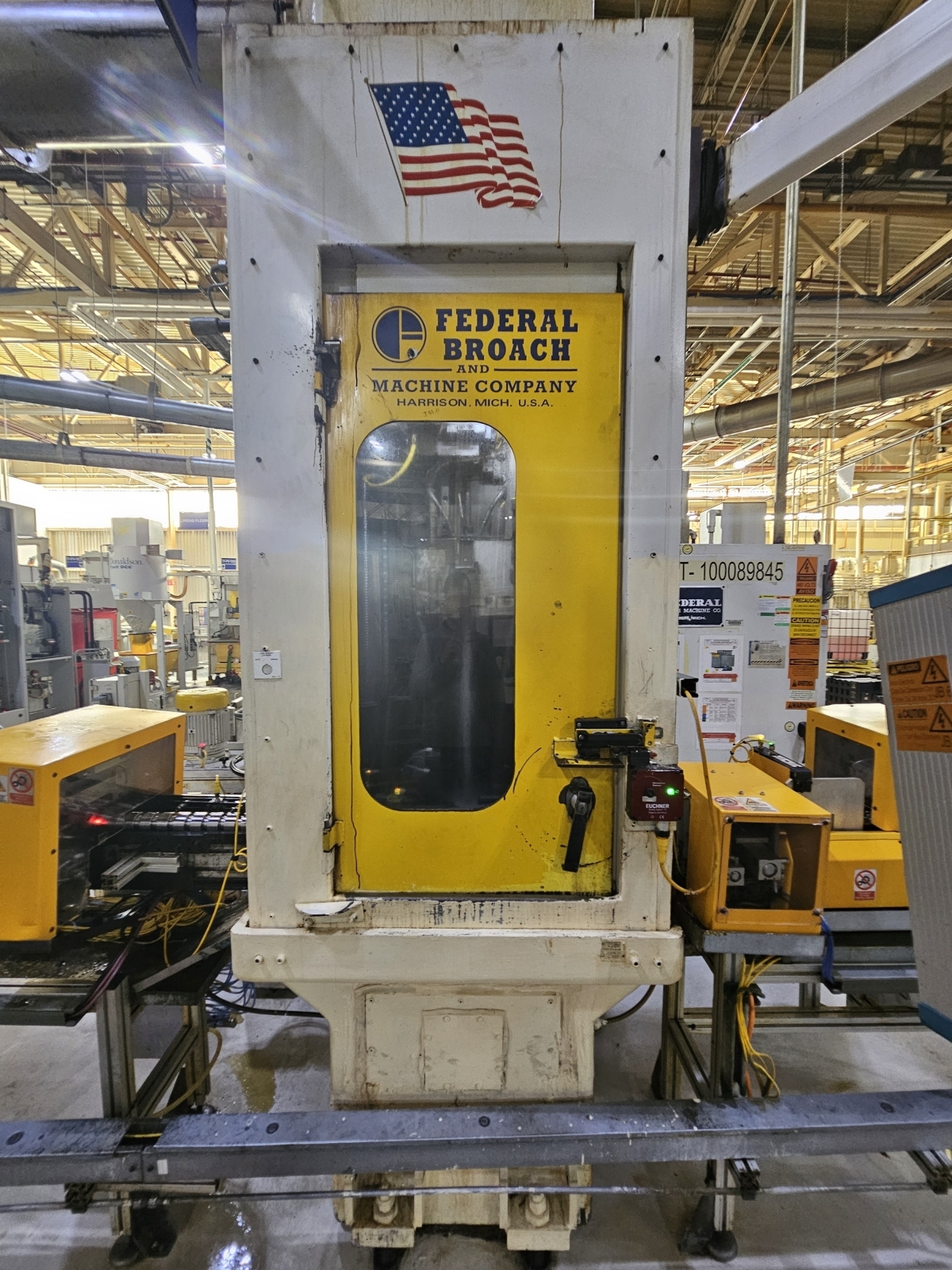

- FEDERAL MVRT 10 Ton Vertical Rising Table Broaching Machine (2008): Siemens CNC Control, Incoming/Outgoing Conveyor, Stacklight, Chip Conveyor, Hydraulics, Safety Guarding, 10 Ton (90 kN) Force, 40" (1000 mm) Stroke
Inspection

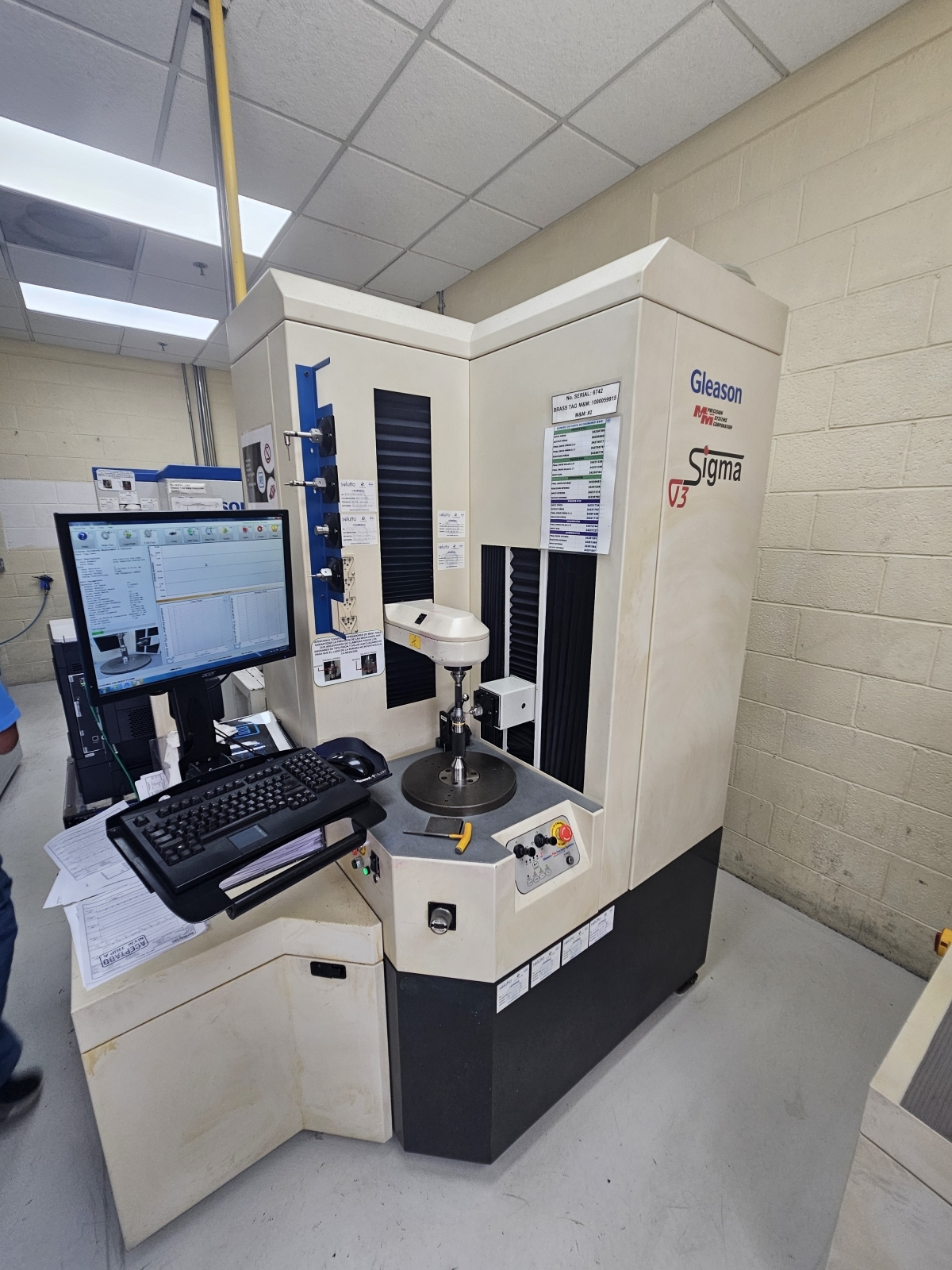

- (4) GLEASONS SIGMA V3 Gear Measuring System: 356 mm (14.00") maximum gear diameter, 300 mm (11.81") diameter rotary table with 360° rotation, 184 mm (7.25") X-axis measuring slide travel, 502 mm (19.75") Y-axis measuring slide travel, 470 mm (18.50") Z-axis vertical measuring slide travel, 673 mm (26.50") maximum workpiece length between centers, and 181 kg (400 lb.) maximum workpiece weight

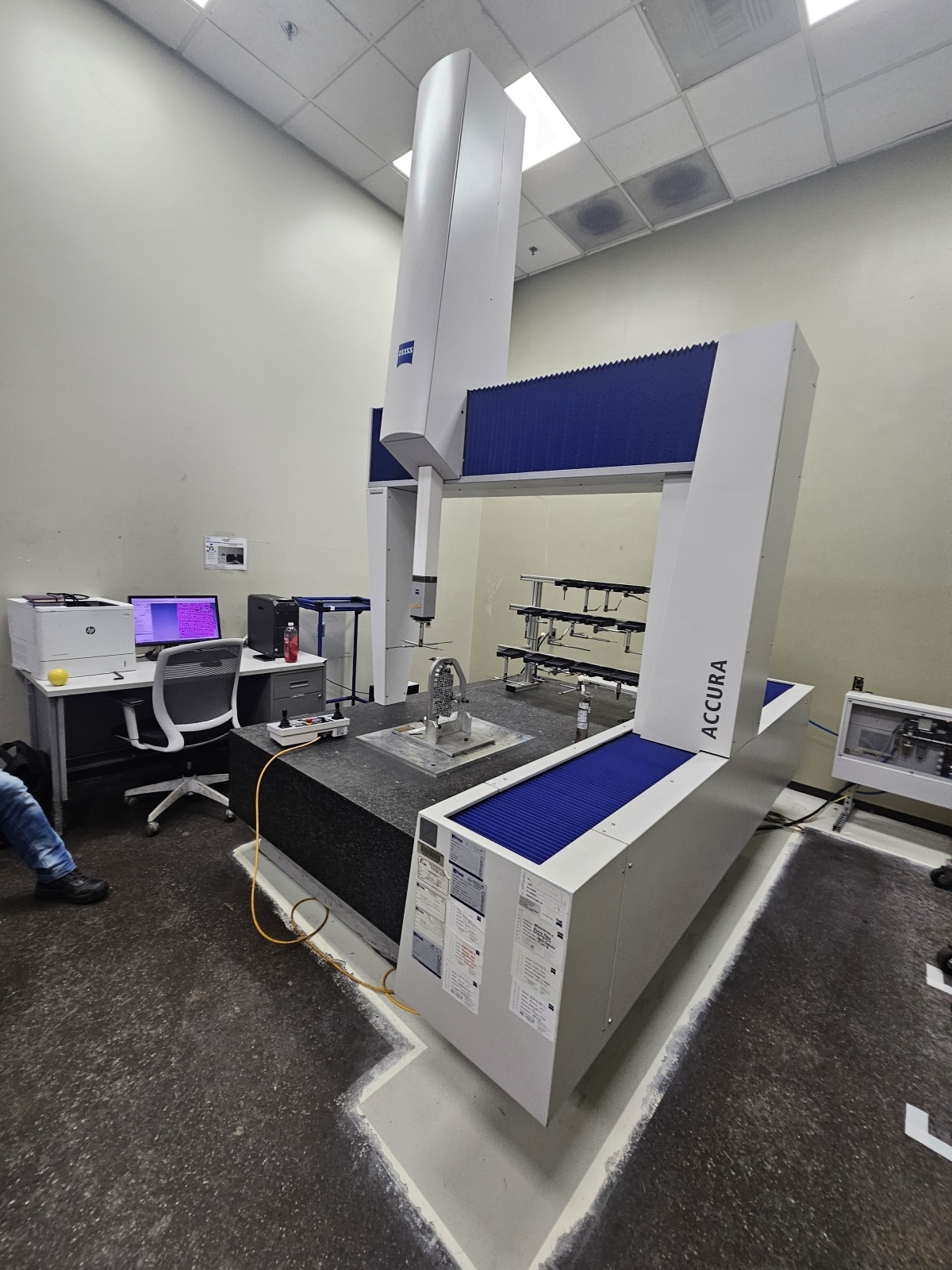

- ZEISS ACCURA 12/18/10 Coordinate Measuring Machine (2012): 1,200 mm (47.24") X-axis measuring range, 1,800 mm (70.87") Y-axis measuring range, 1,000 mm (39.37") Z-axis measuring range, 2,000 kg (4,409 lb.) maximum workpiece weight, 604 mm (23.78") working table height, and maximum scanning speeds up to approximately 200 mm/sec (7.87"/sec)

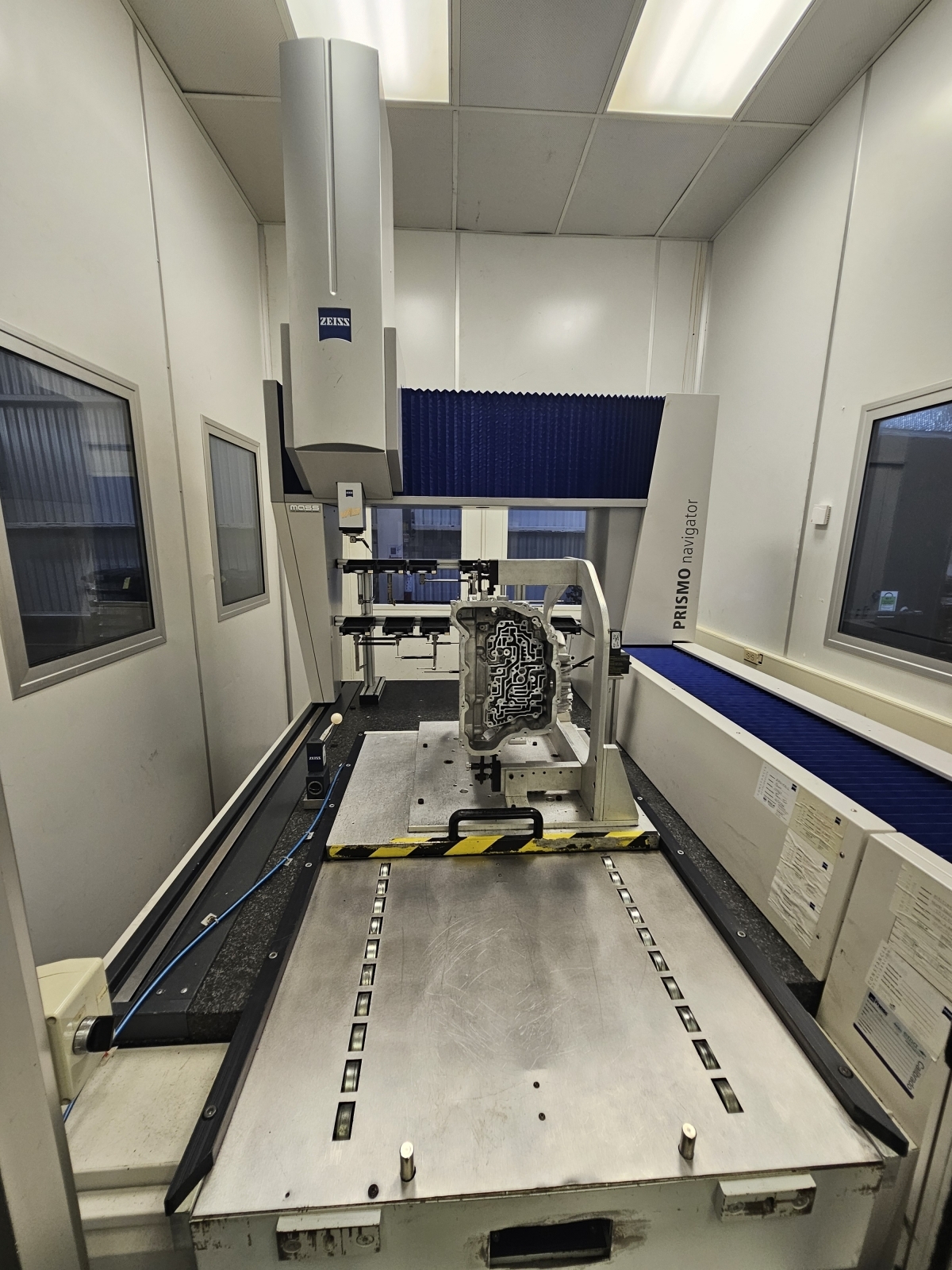

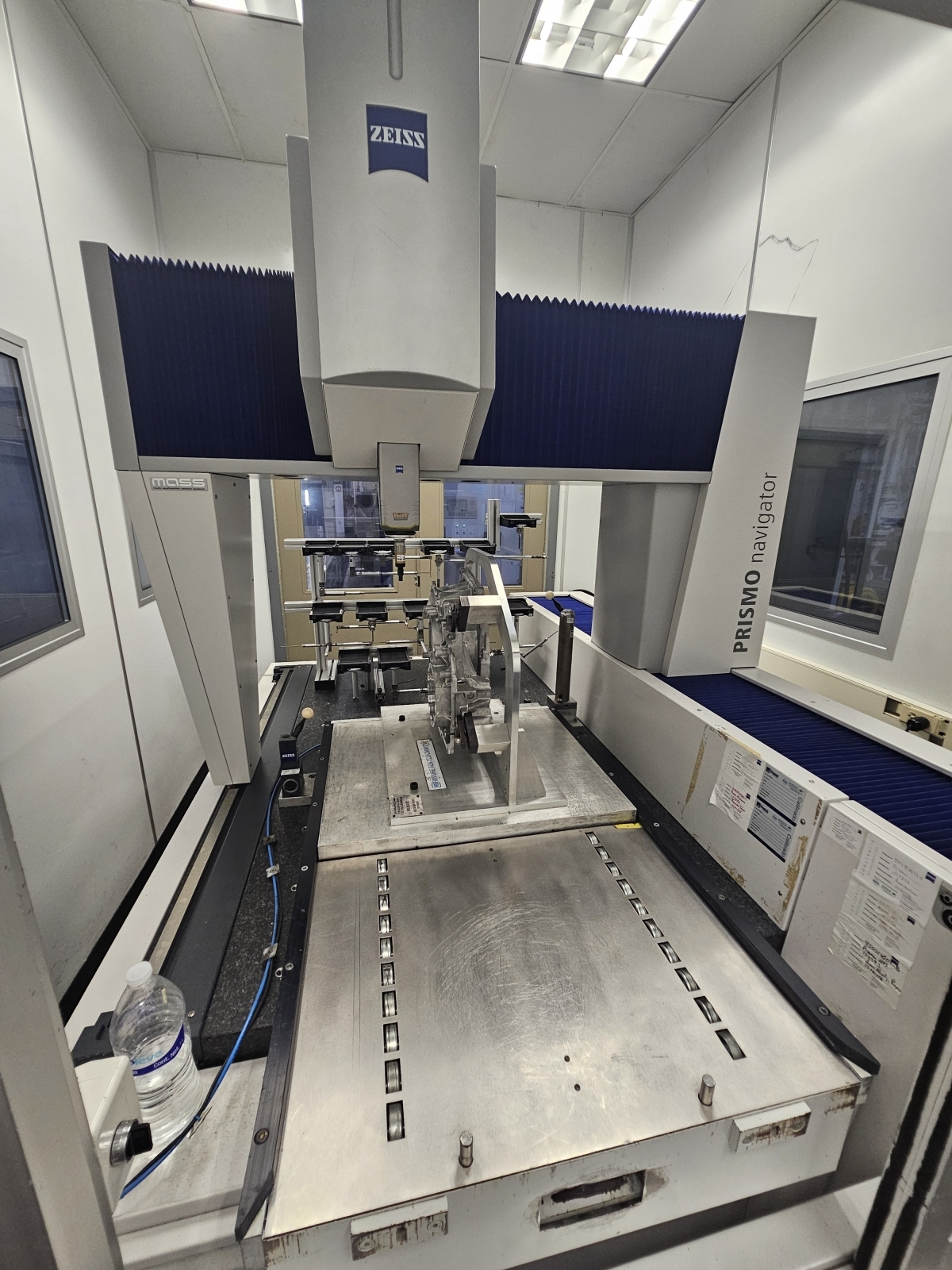

- (3) ZEISS PRISMO NAVIGATOR 9/15/7 Coordinate Measuring Machine (2008): 900 mm (35.43") X-axis measuring range, 1,500 mm (59.06") Y-axis measuring range, 650 mm (25.59") Z-axis measuring range, 860 mm (33.86") table height, and maximum permissible length measurement error (MPE E0) of approximately 0.9 + L/350 µm at 19–21°C
