Sale Type: Negotiated
Date: Ongoing
Preview: By Appointment
Address: Findlay, OH
Contact Name: Nick Gibbs
Email: nick@gibbsmachinery.com

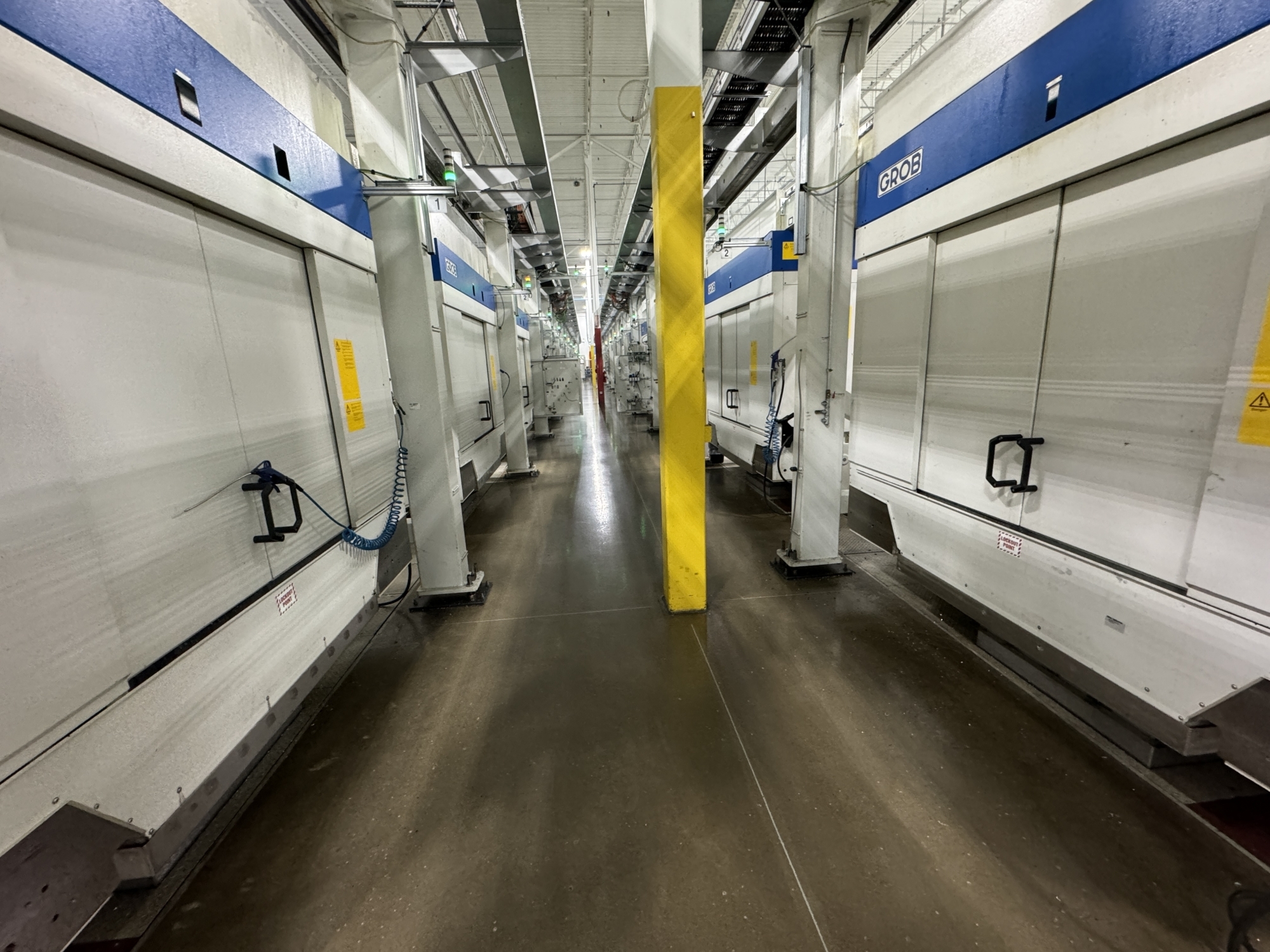

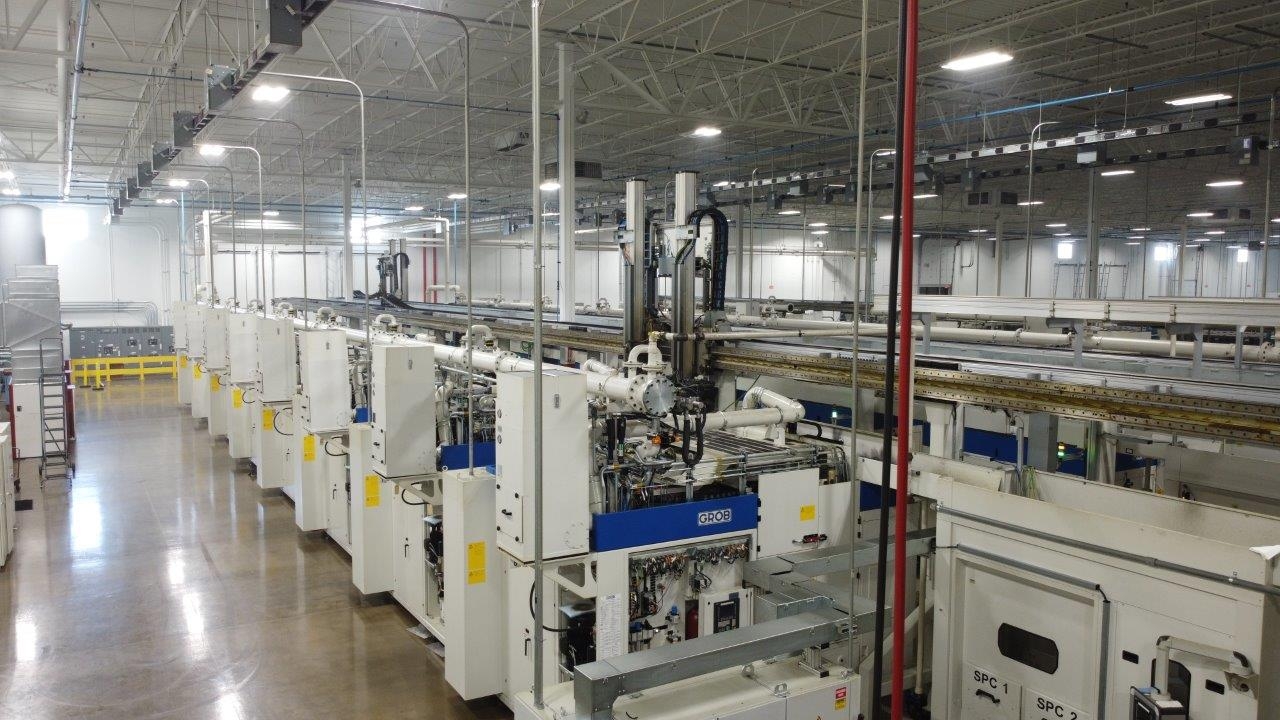

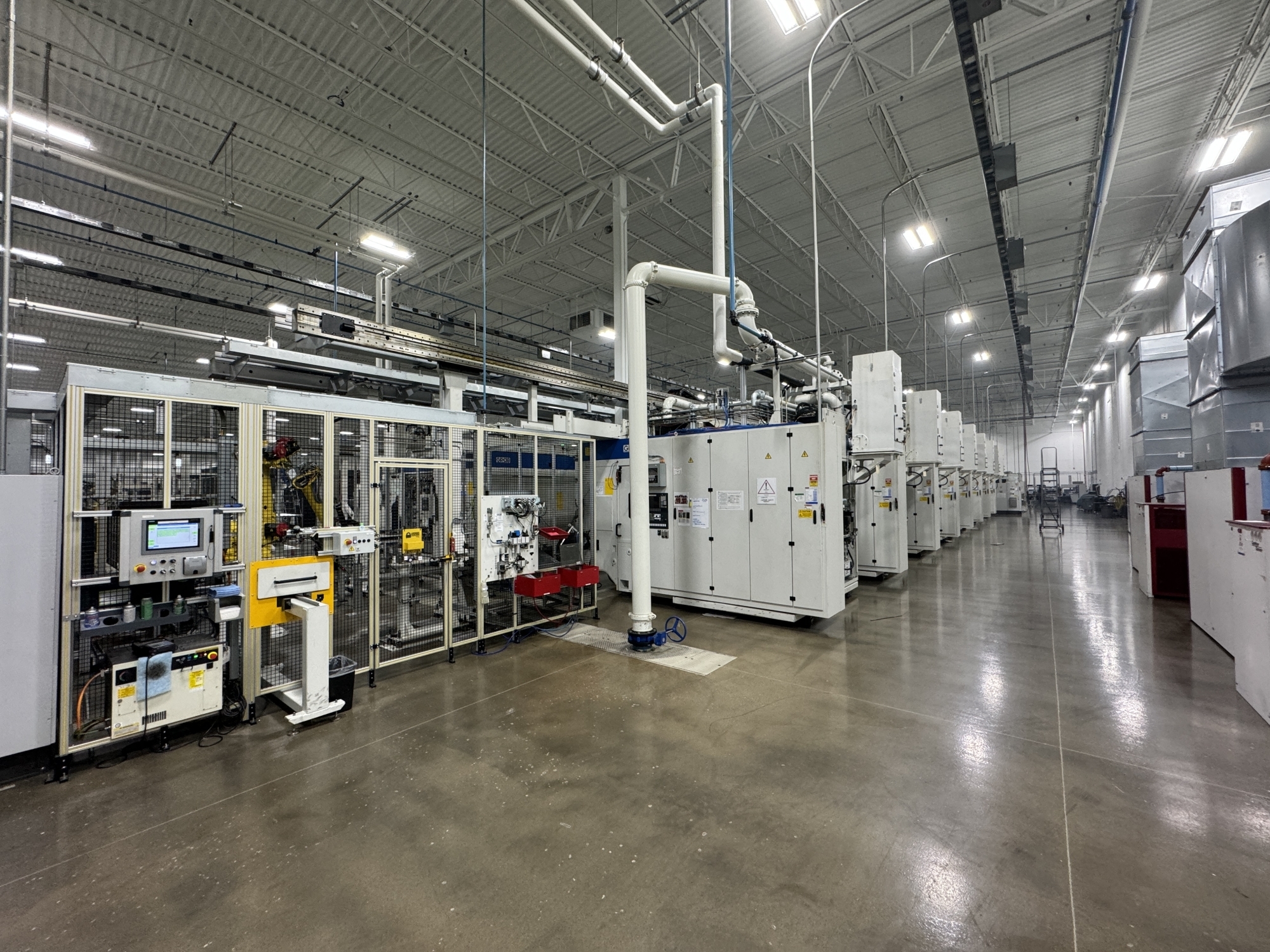

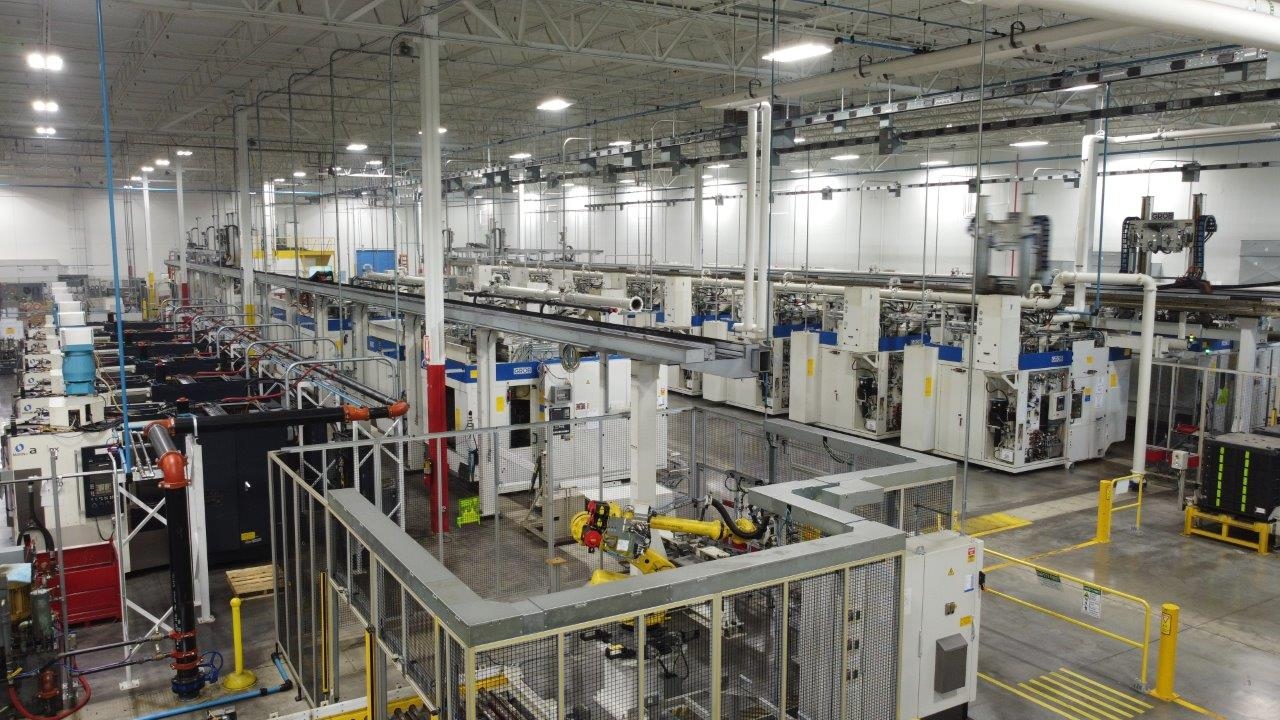

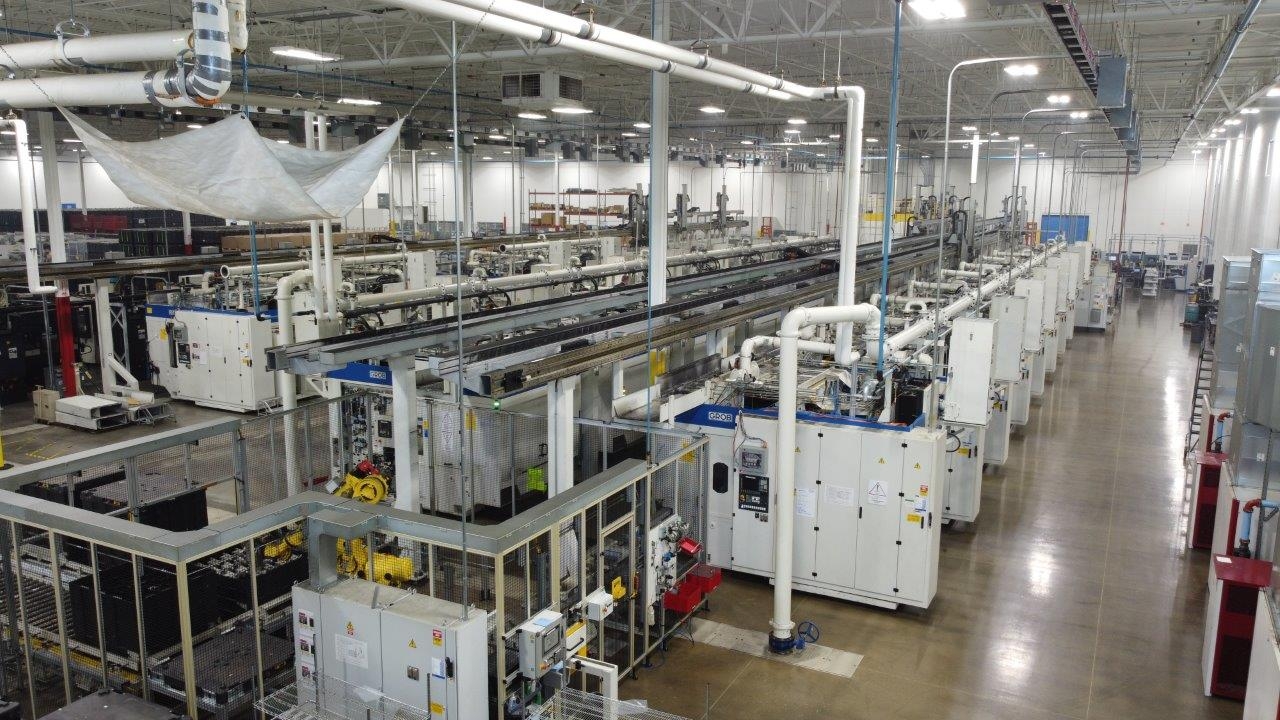

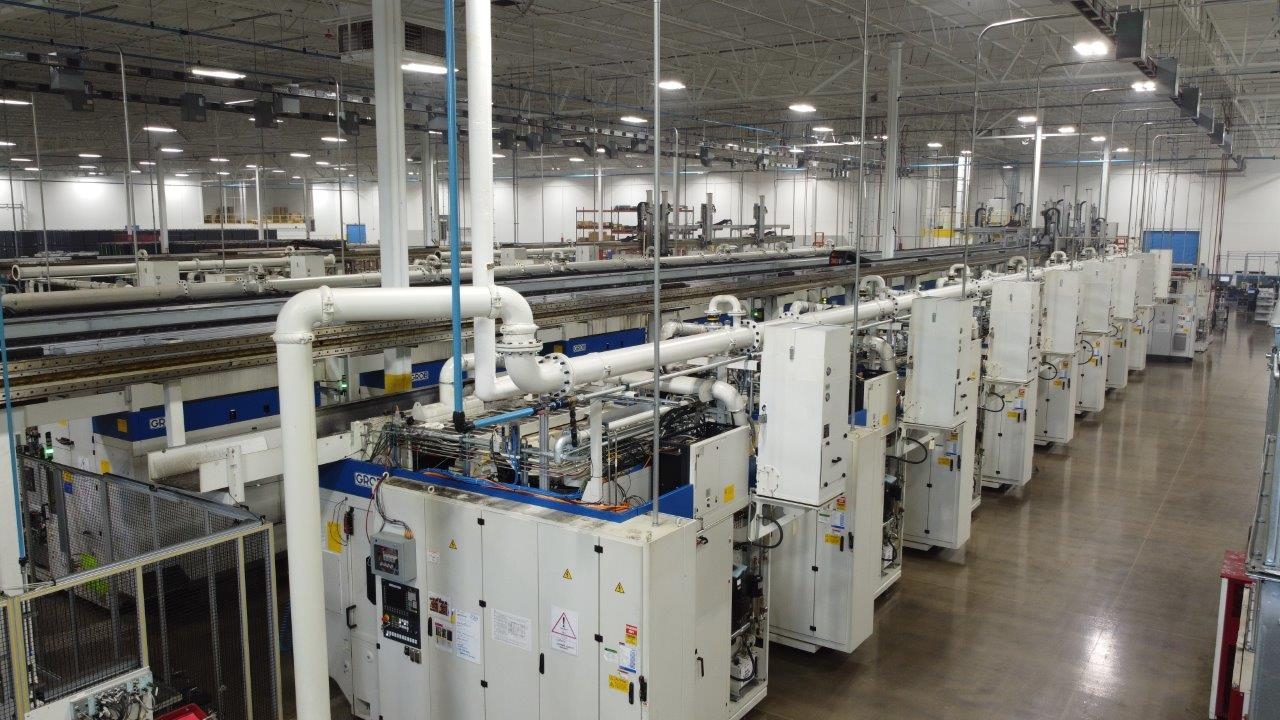

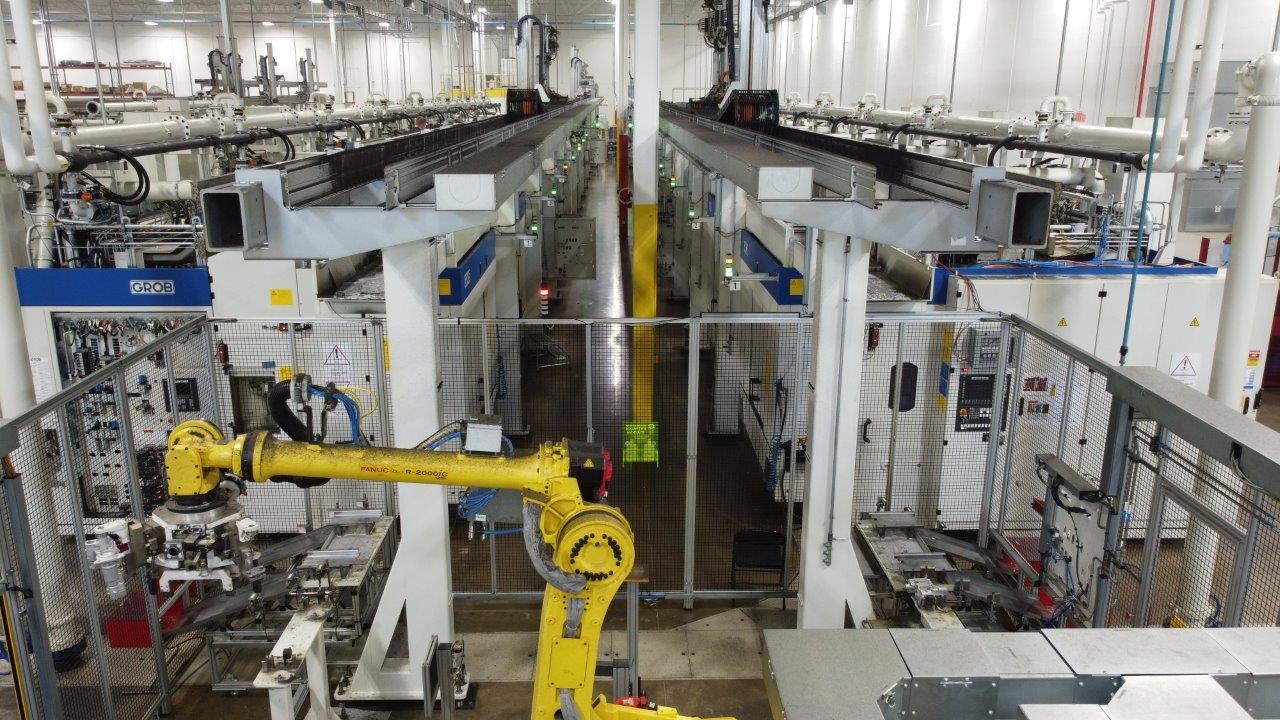

Description: Two complete and one partial 5-Axis CNC high production flexible machining lines manufactured by Grob are available for negotiated sale. Each line has a Fanuc Robot "load-in" station where the part is introduced to the Grob integrated gantry system. The gantry system has two traveling arms for loading/unloading parts in to the (8) Grob G326 Dual Spindle 5-Axis CNC Machining Centers and (3) Sugino JCC-W6650TE Jet Clean Center CNC Washing and Deburring Machines. Parts are then removed and placed in dunnage by a Fanuc Robot "load-out" station.
SYSTEMDETAILS
AVAILABLE ASSETS
Line 1

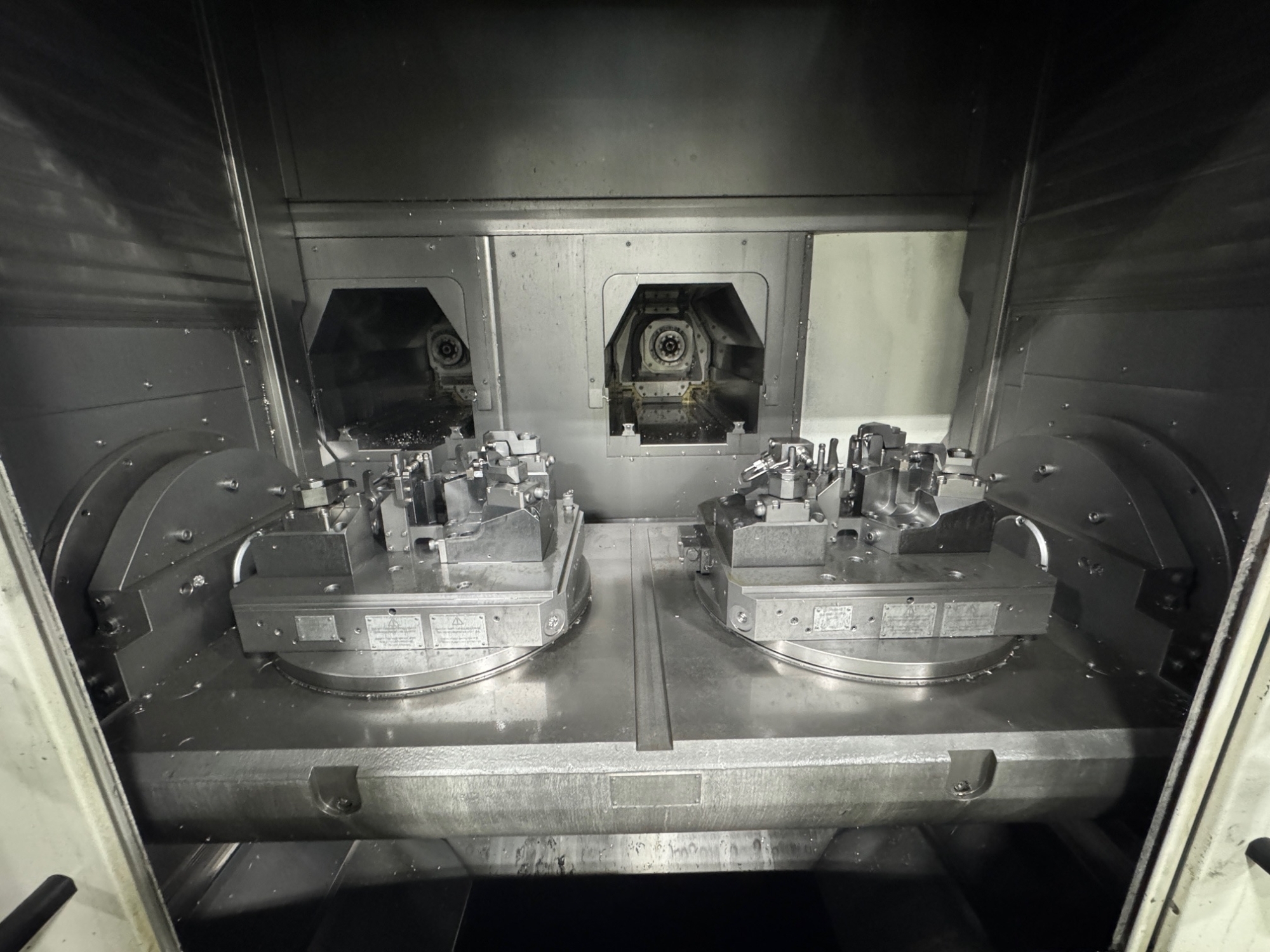

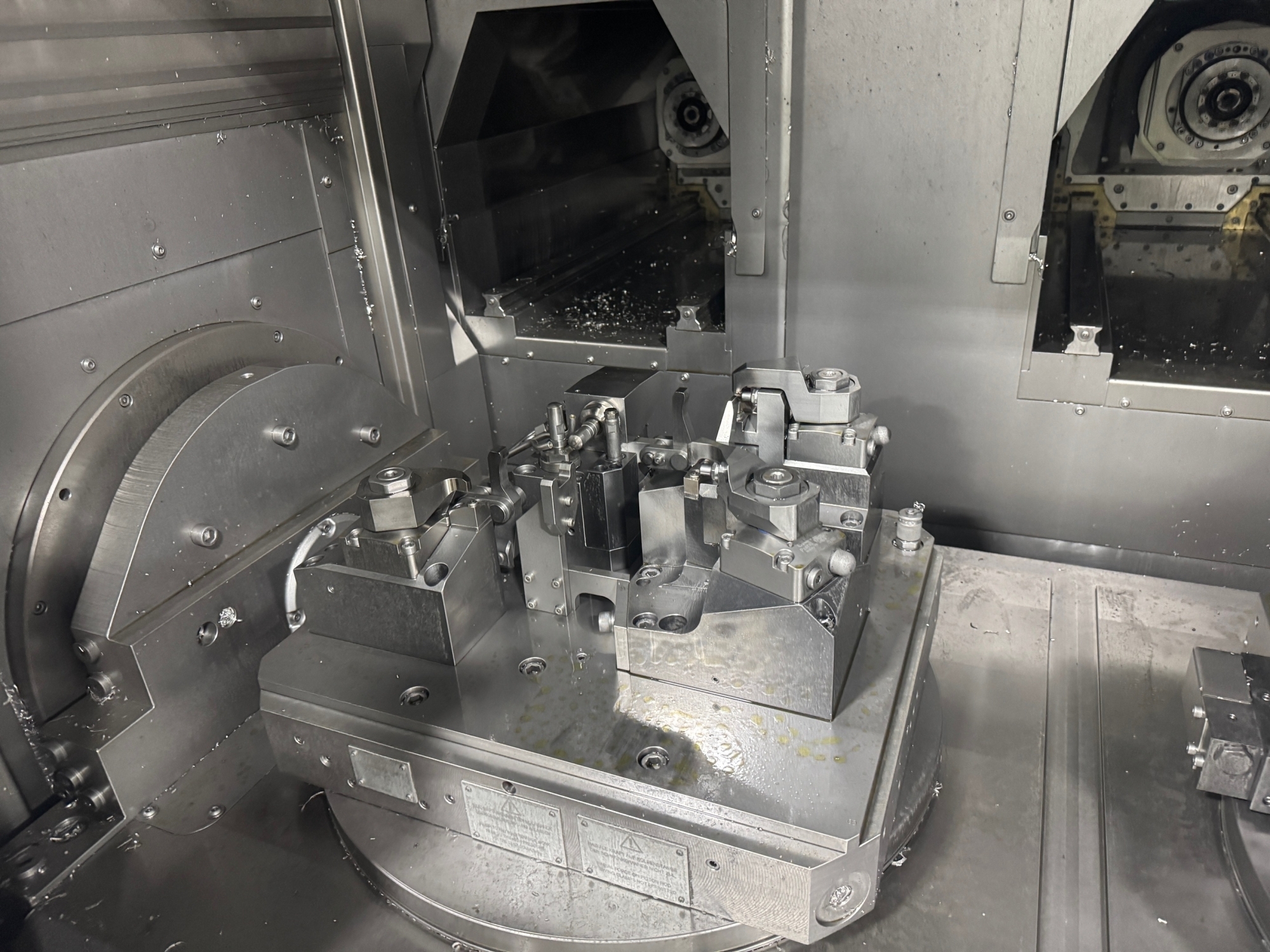

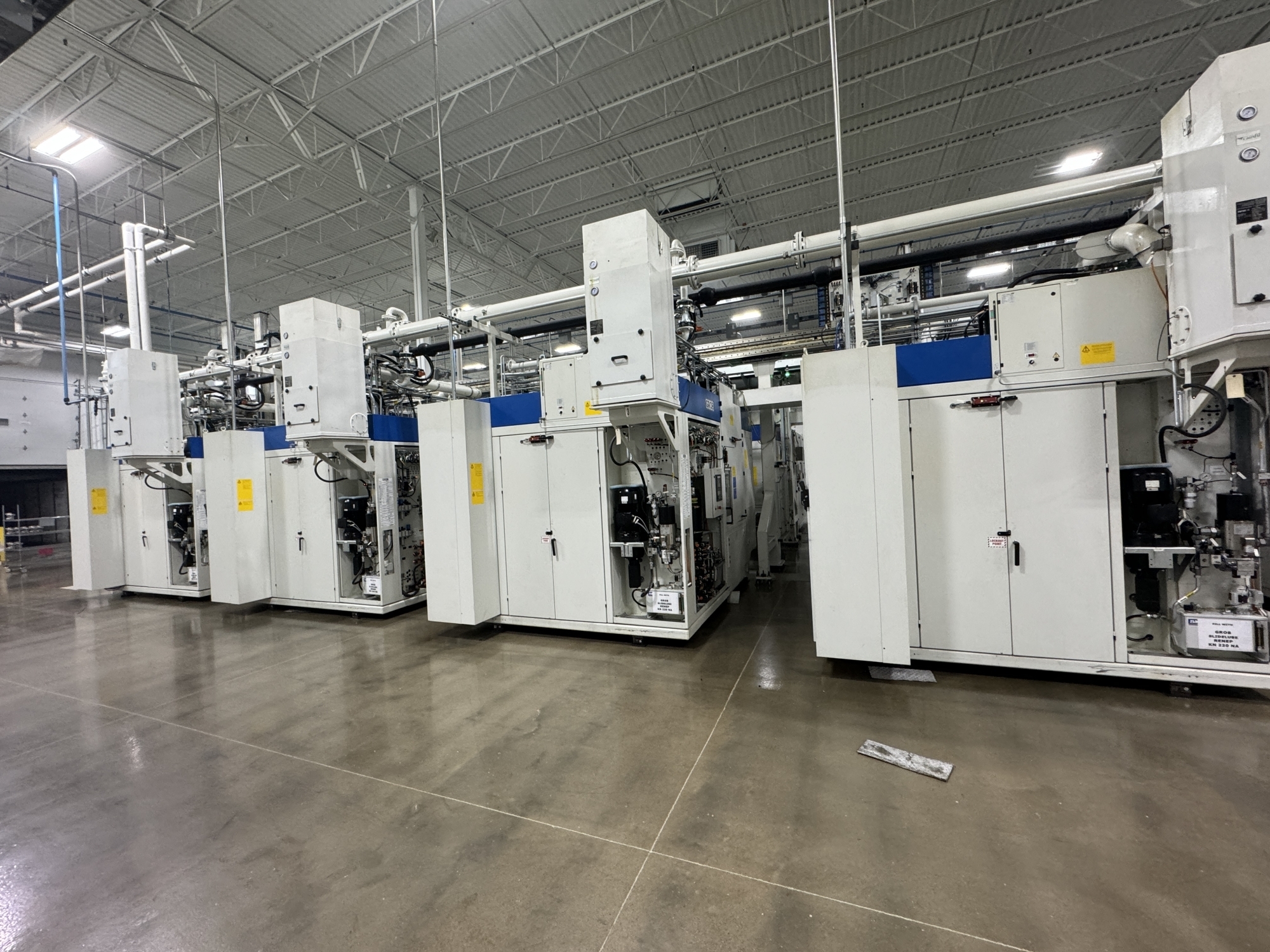

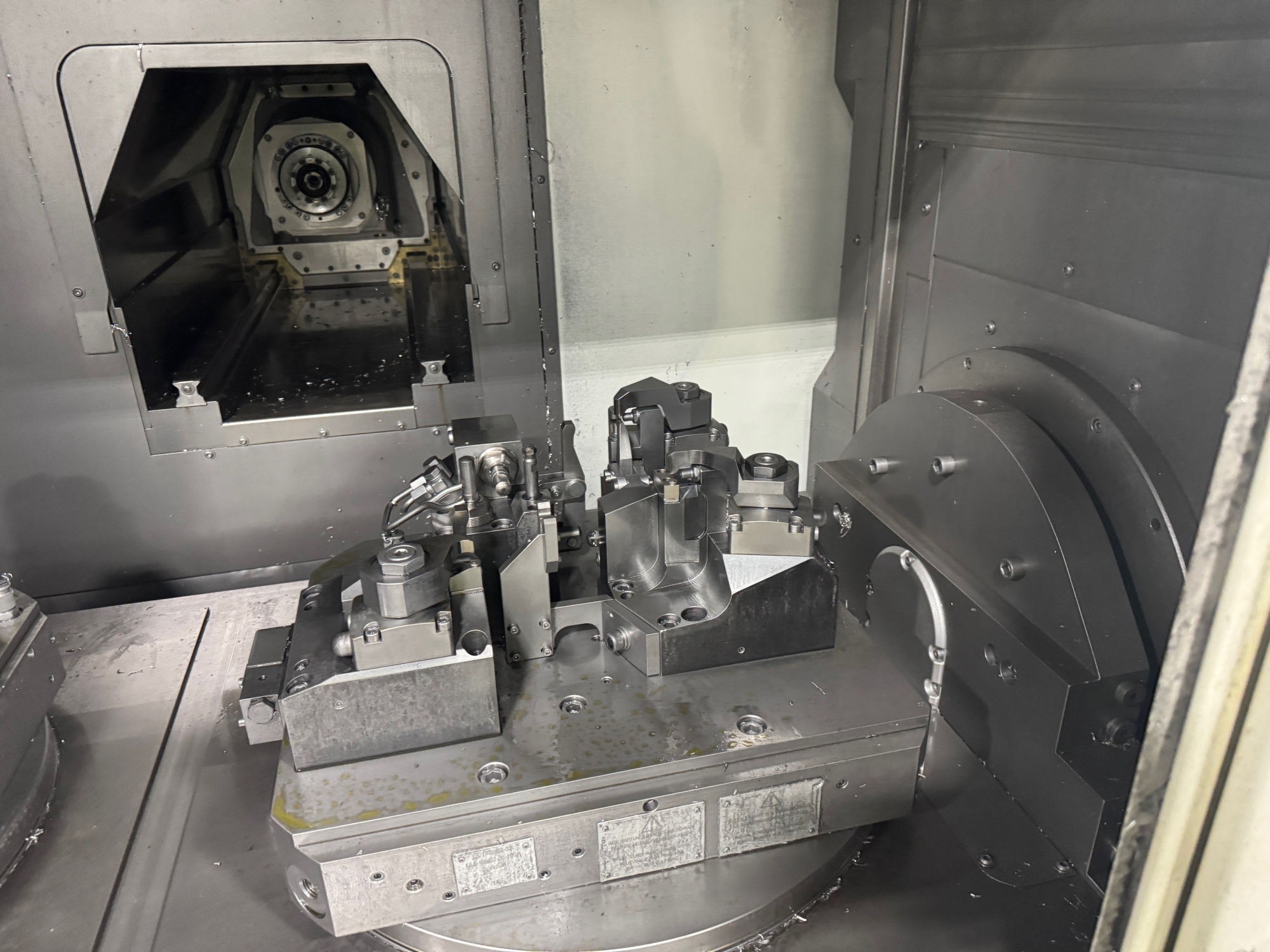

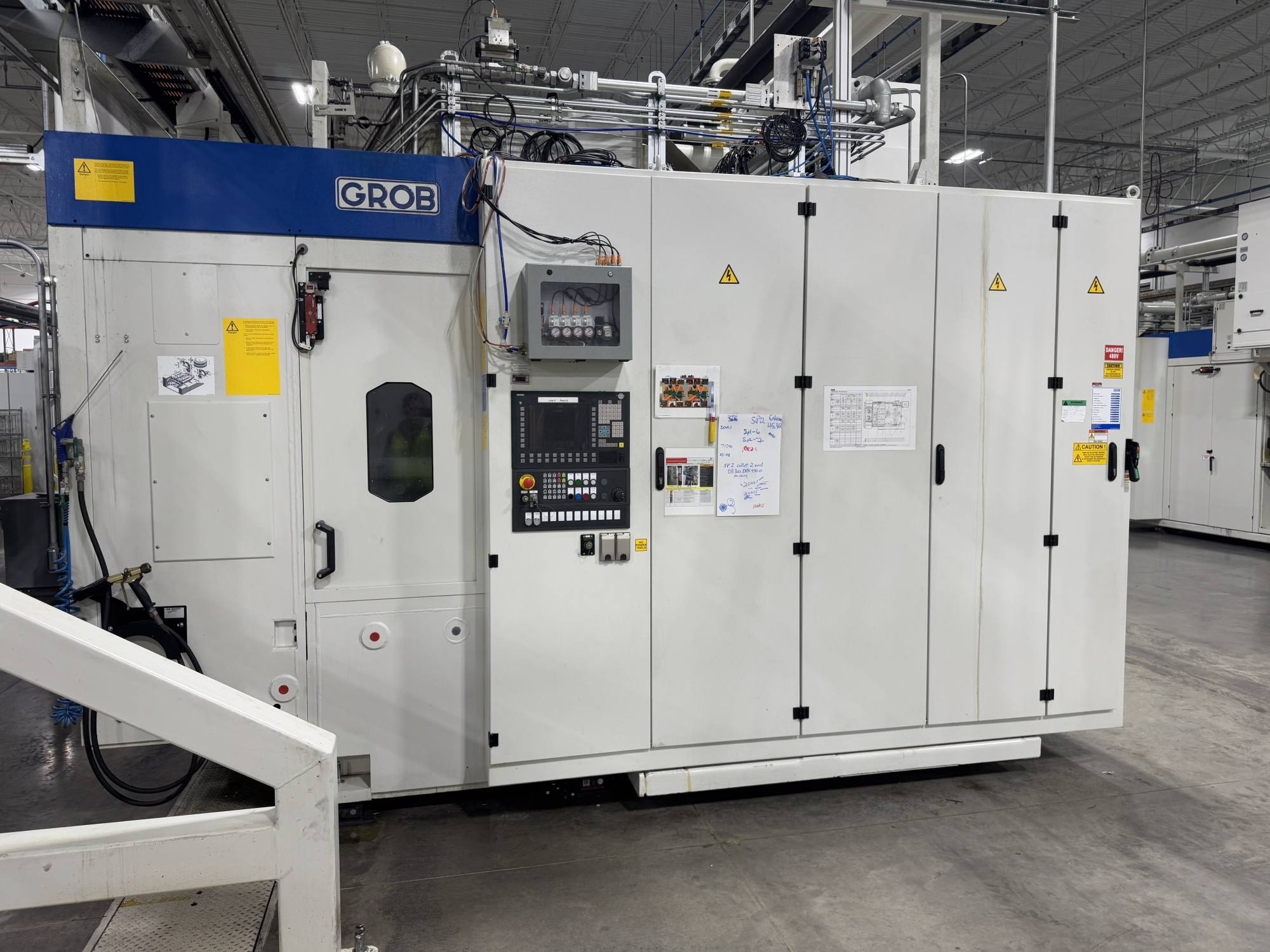

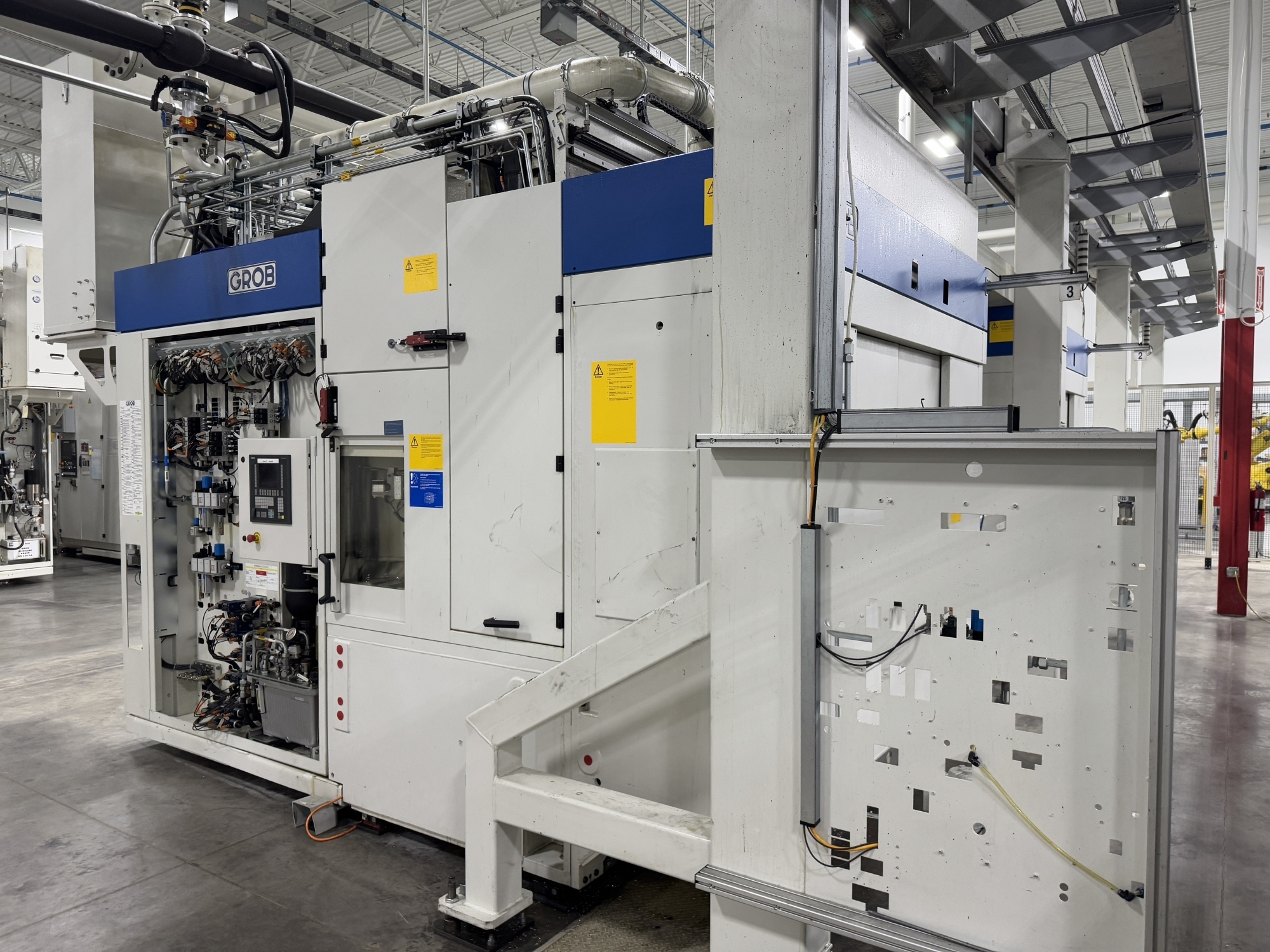

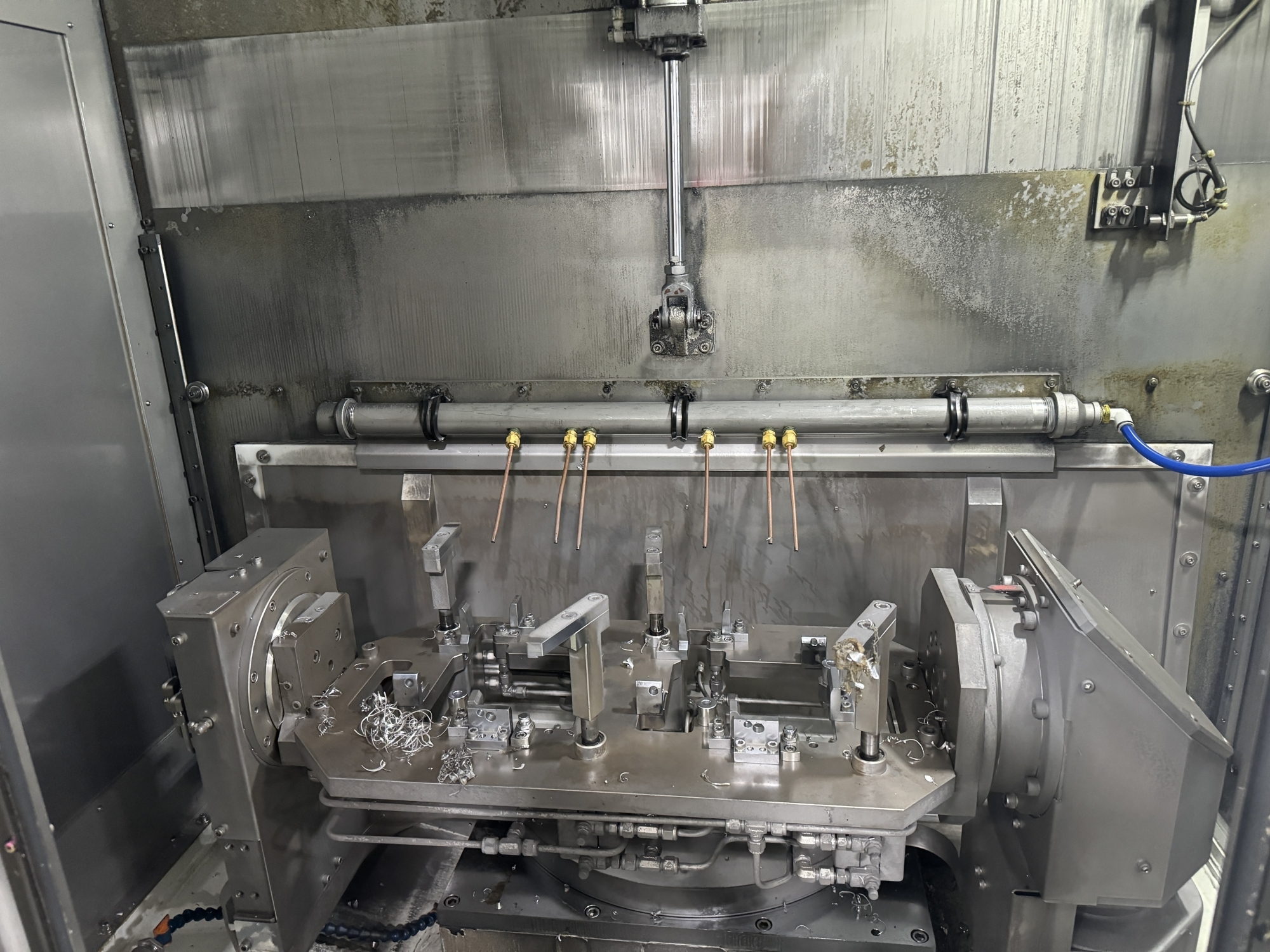

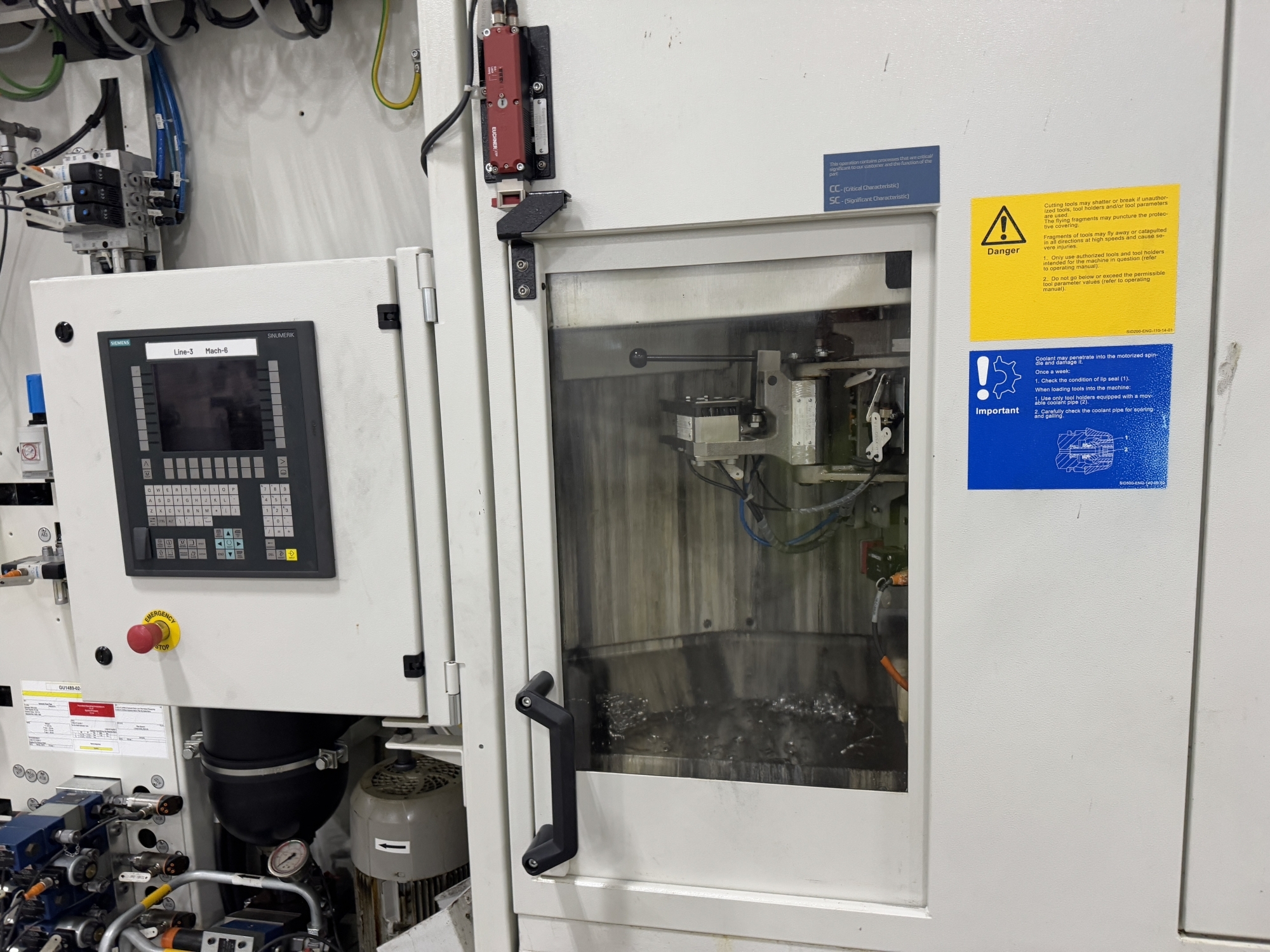

- (8) GROB G326 Dual Spindle 5-Axis CNC Horizontal Machining Centers (2018 - 2021): Siemens Sinumerik 840 D CNC Controls, (2) HSK-A63 18,000 rpm Spindles per Machine, (2) 80 Pocket ATC per Machine, Independent Z-Axis, Independent X-Axis, XV-Axis, Spindle/Tool Seating, Spindle No Load Monitoring, Gantry Top Door Loading, 600 mm X-Axis, 655 mm Y-Axis, 750 mm Z-Axis, 700 mm Distance Between Spindles, 2.3 Seconds Chip-to-Chip Time, 1070 kg Max Table Load ***Spindles Replaced 2022

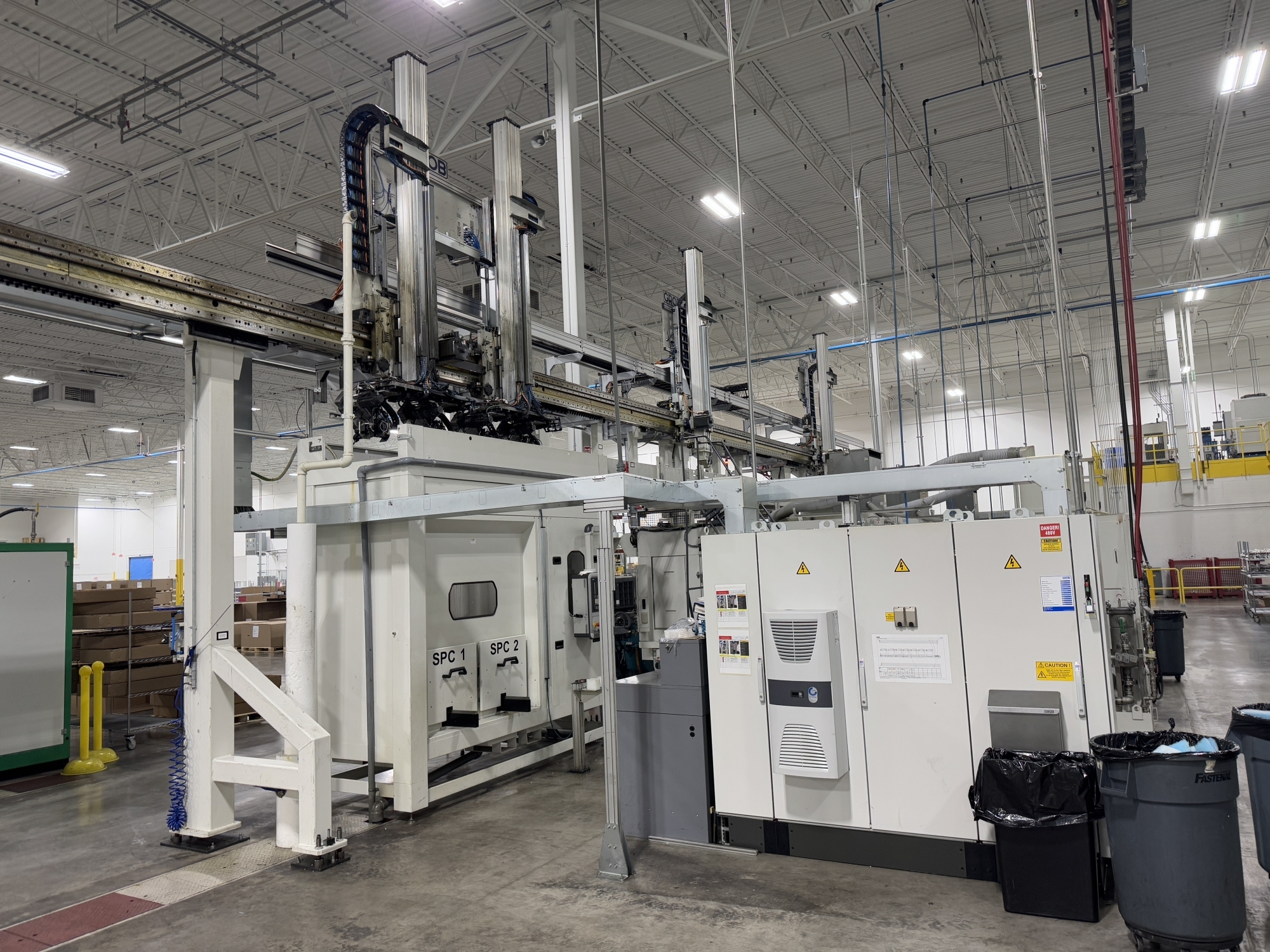

- GROB SPC: Part Handling Transfer Station

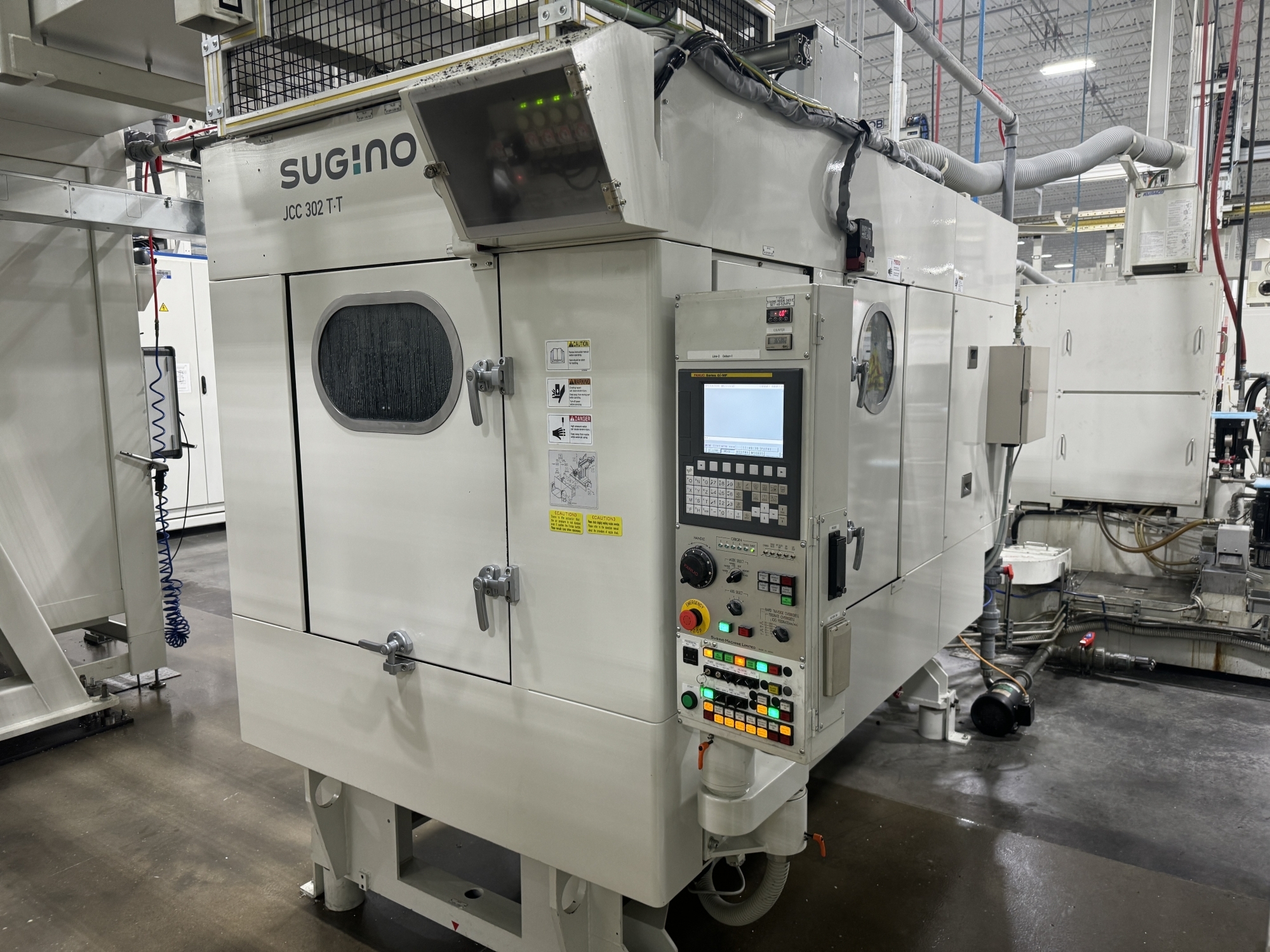

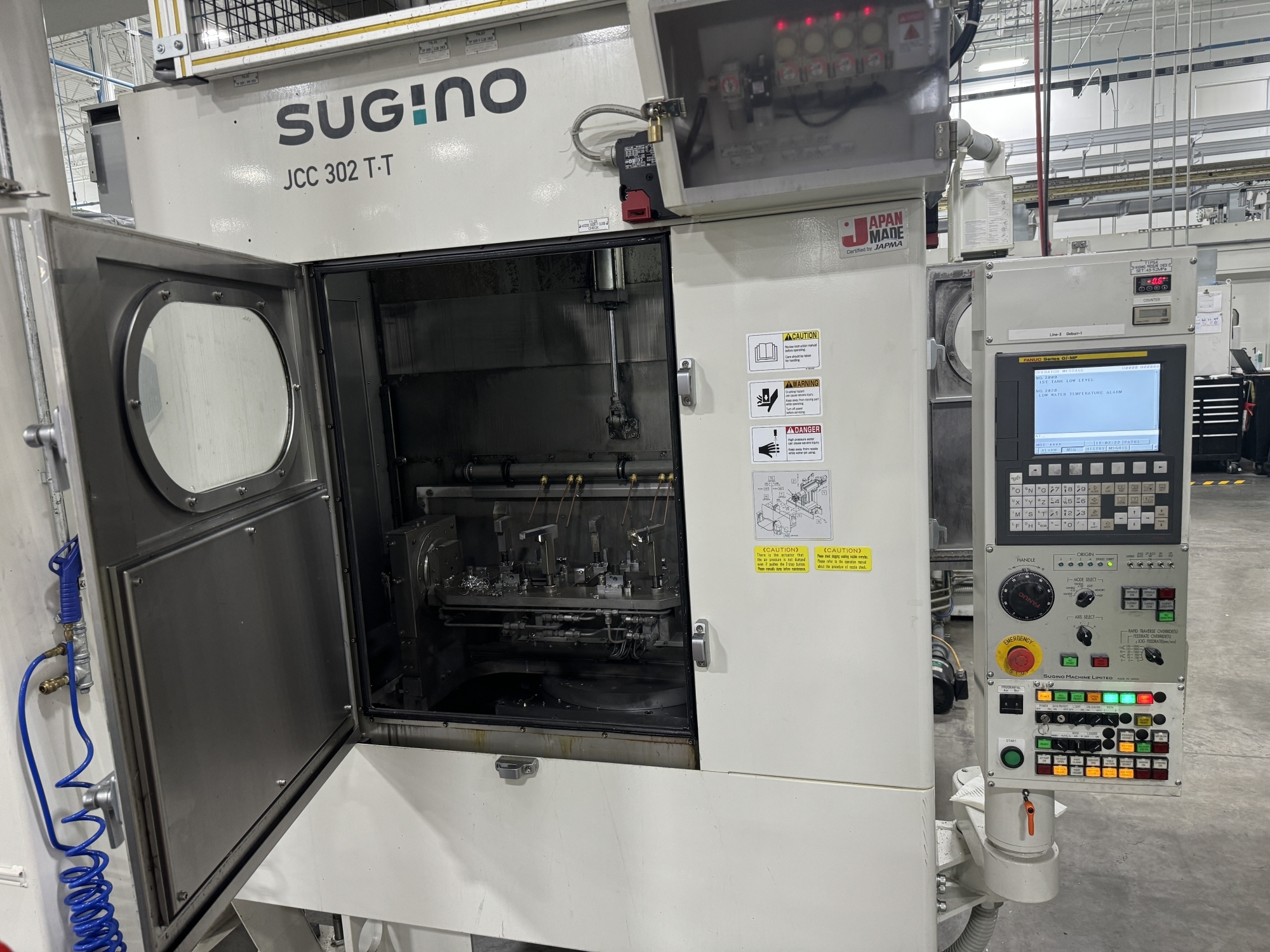

- (2) SUGINO JCC-W6650 CNC Turret Type High Pressure Washing & Deburring Machine (2018): Fanuc Series Oi-MF Control, HP Water Deburring - Variable Up to 7,250 PSI, Sugino OEM Tri-Plex Plunger Pump, 0.08 mm Positioning, Turntable, 6-Tool Turret, 650 mm X-Axis, 500 mm Y-Axis, 500 mm Z-Axis, 48 m/min Rapid Feed, Multiple Filtration Options to 5-10 Microns
- (1) SUGINO JCC-VCD55SNE CNC Vacuum Dryer (2018): Fanuc Oi-MF Control, 5.5 kW Vacuum Drying Pump, Omron F3SJ Safety Light Curtain, Signal Tower (3-Layers), Ethernet I/P, 4-Axis (X,Y,Z,A), Manual Pulse Generator
- (2) FANUC Robots: R30iB Controller, Control Pendant, Safety Guarding
- GROB: Integrated Gantry System
Line 2
- (8) GROB G326 Dual Spindle 5-Axis CNC Horizontal Machining Centers (2018 - 2021): Siemens Sinumerik 840 D CNC Controls, (2) HSK-A63 18,000 rpm Spindles per Machine, (2) 80 Pocket ATC per Machine, Independent Z-Axis, Independent X-Axis, XV-Axis, Spindle/Tool Seating, Spindle No Load Monitoring, Gantry Top Door Loading, 600 mm X-Axis, 655 mm Y-Axis, 750 mm Z-Axis, 700 mm Distance Between Spindles, 2.3 Seconds Chip-to-Chip Time, 1070 kg Max Table Load
- GROB SPC: Part Handling Transfer Station
- (2) SUGINO JCC-W6650 CNC Turret Type High Pressure Washing & Deburring Machine (2018): Fanuc Series Oi-MF Control, HP Water Deburring - Variable Up to 7,250 PSI, Sugino OEM Tri-Plex Plunger Pump, 0.08 mm Positioning, Turntable, 6-Tool Turret, 650 mm X-Axis, 500 mm Y-Axis, 500 mm Z-Axis, 48 m/min Rapid Feed, Multiple Filtration Options to 5-10 Microns
- (1) SUGINO JCC-VCD55SNE CNC Vacuum Dryer (2018): Fanuc Oi-MF Control, 5.5 kW Vacuum Drying Pump, Omron F3SJ Safety Light Curtain, Signal Tower (3-Layers), Ethernet I/P, 4-Axis (X,Y,Z,A), Manual Pulse Generator
- (1) FANUC Robot: R30iB Controller, Control Pendant, Safety Guarding
- GROB: Integrated Gantry System
Line 3
- (4) GROB G326 Dual Spindle 5-Axis CNC Horizontal Machining Centers (2018 - 2022): Siemens Sinumerik 840 D CNC Controls, (2) HSK-A63 18,000 rpm Spindles per Machine, 80 Pocket ATC, Independent Z-Axis, Independent X-Axis, Spindle/Tool Seating, Spindle No Load Monitoring, Gantry Top Door Loading, 600 mm X-Axis, 655 mm Y-Axis, 750 mm Z-Axis, 700 mm Distance Between Spindles, 2.3 Seconds Chip-to-Chip Time, 1070 kg Max Table Load
- GROB: Integrated Gantry System
