Sale Type: Private Treaty
Date: Complete
Preview: By Appointment
Address: Columbus, IN
Contact Name: Nick Gibbs
Email: Email Me
Description: MAG XS321 CNC Horizontal Machining Centers and associated Gantry Systems used to manufacture blocks and heads for 5.0-Liter Turbo Diesel V8. Machines are in excellent condition with very low (6,000-10,000) cutting hours. Gantry systems have room for six machines can be used with as few as two. 6,000 rpm Hi-Torque machines used for CGI blocks and 16,000 rpm machines for aluminum heads.
AUCTION DETAILS
Sold in Partnership With:
AVAILABLE ASSETS
CNC Horizontal Machining Centers

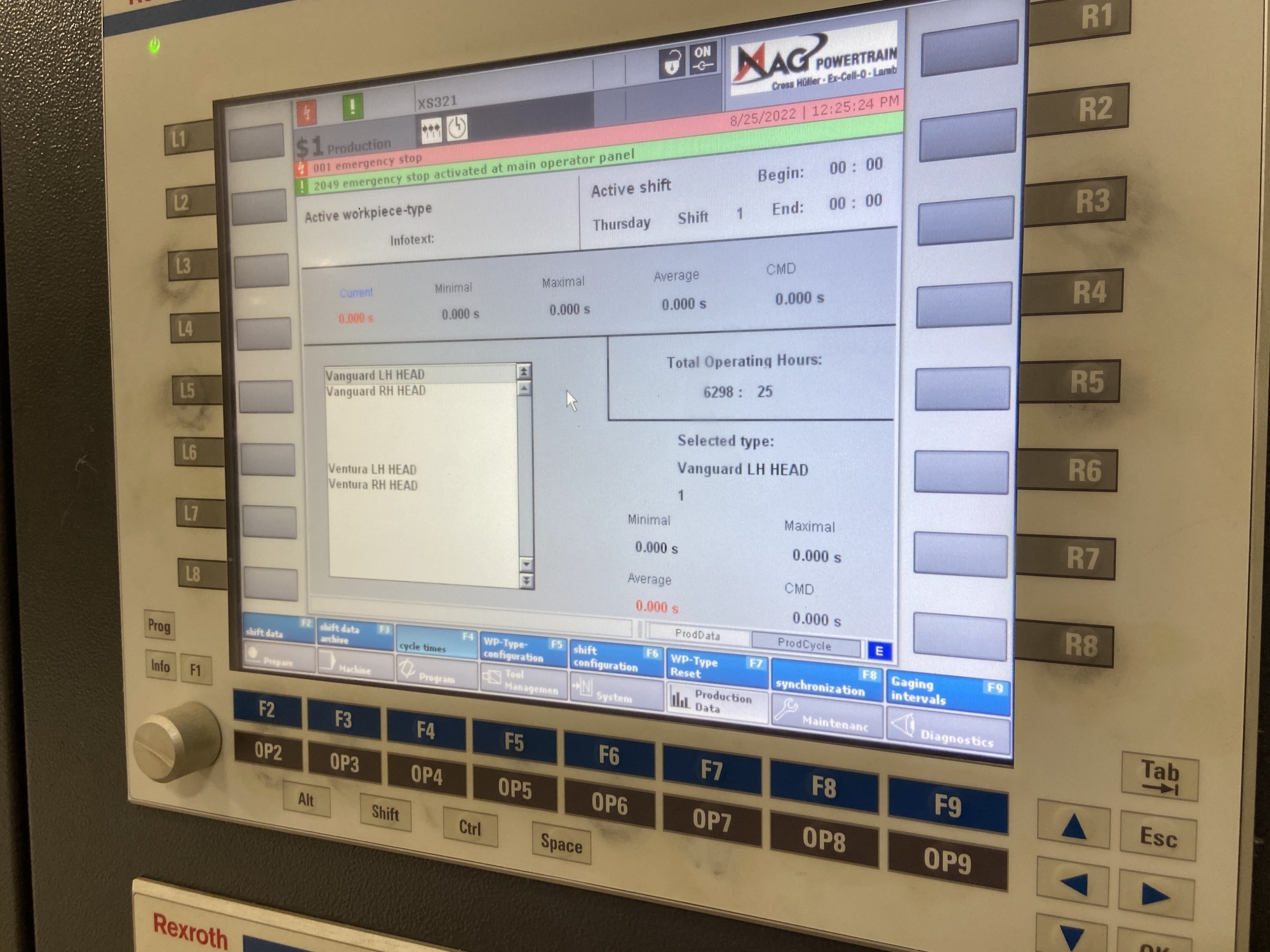

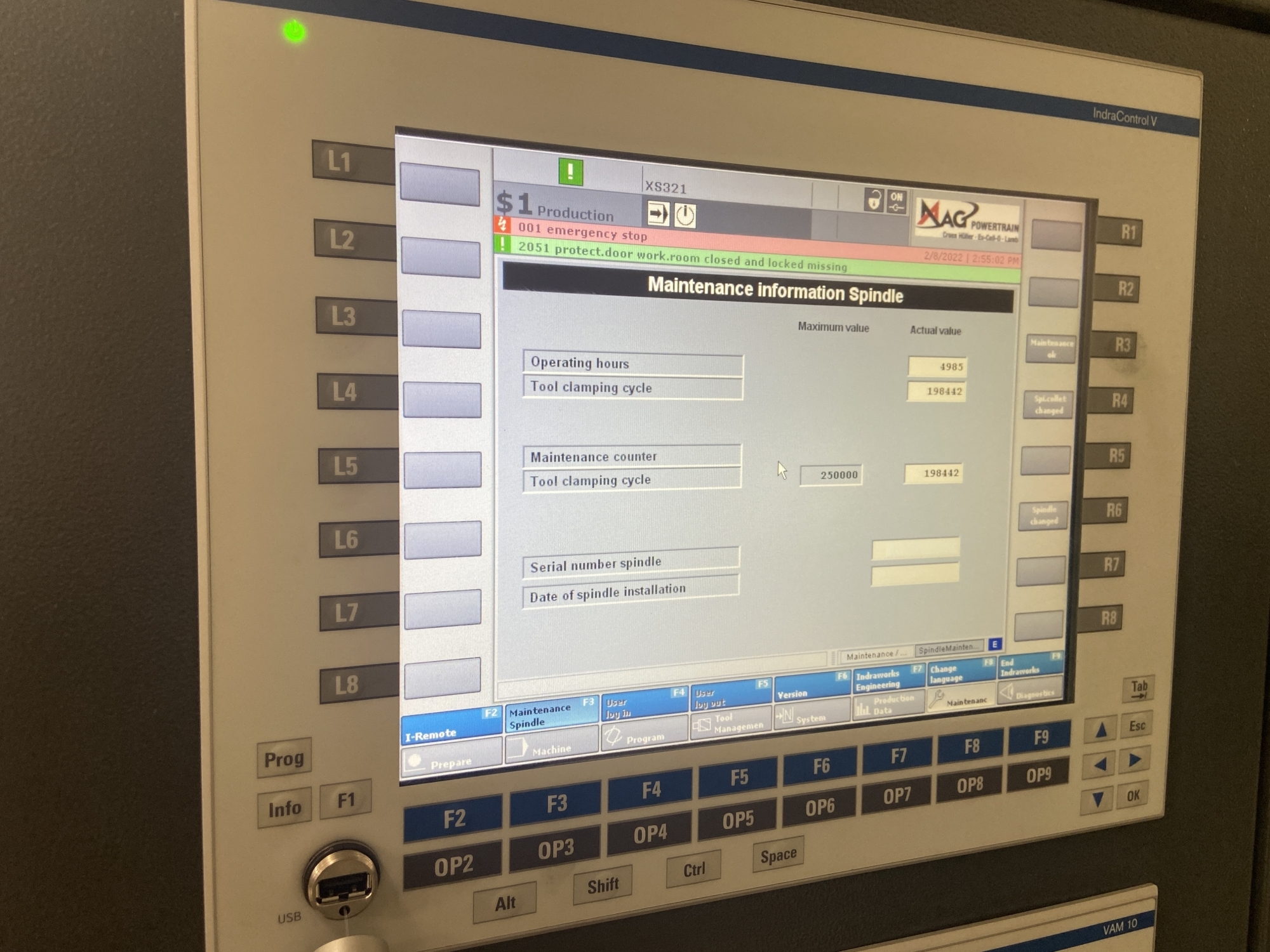

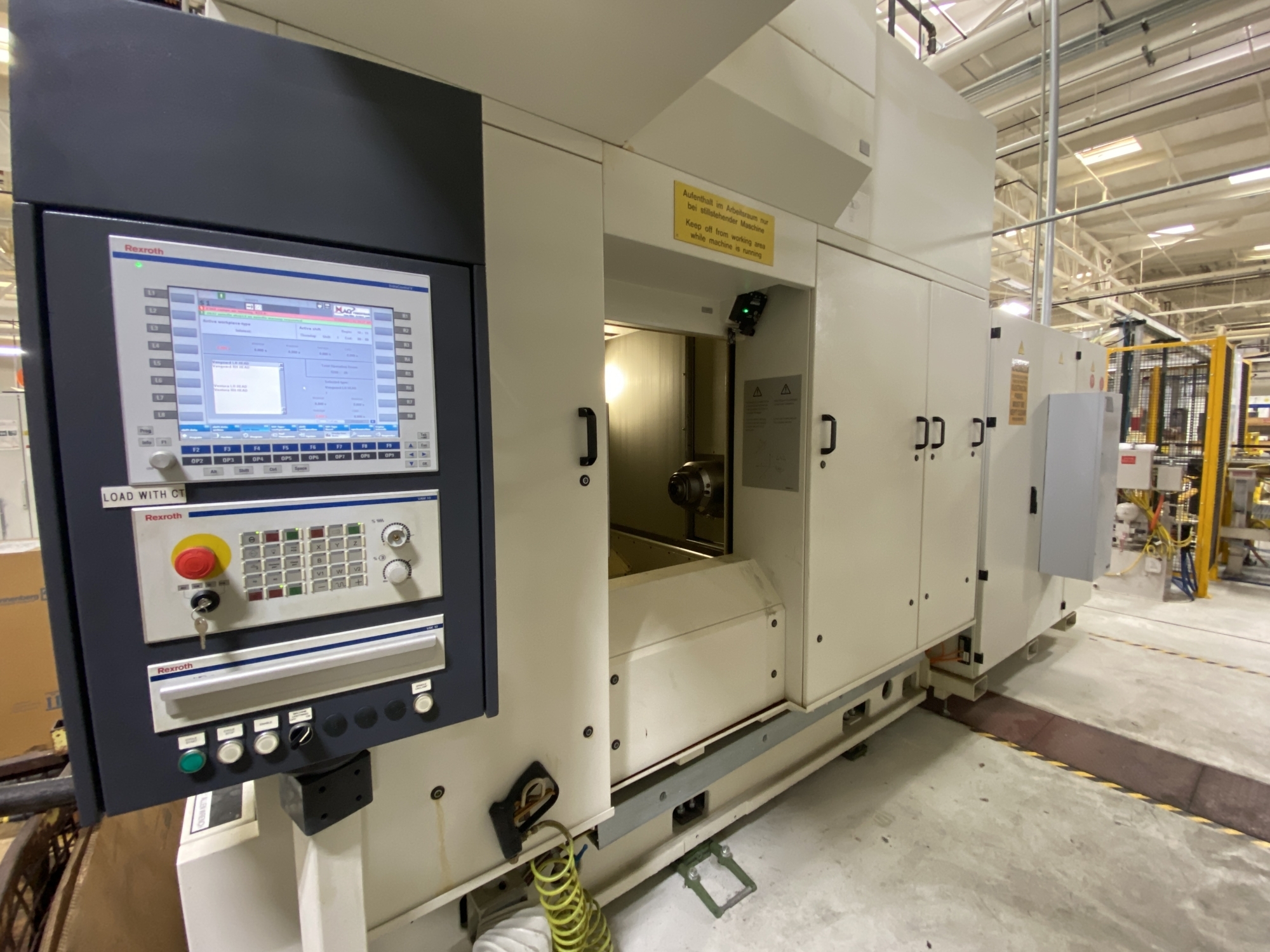

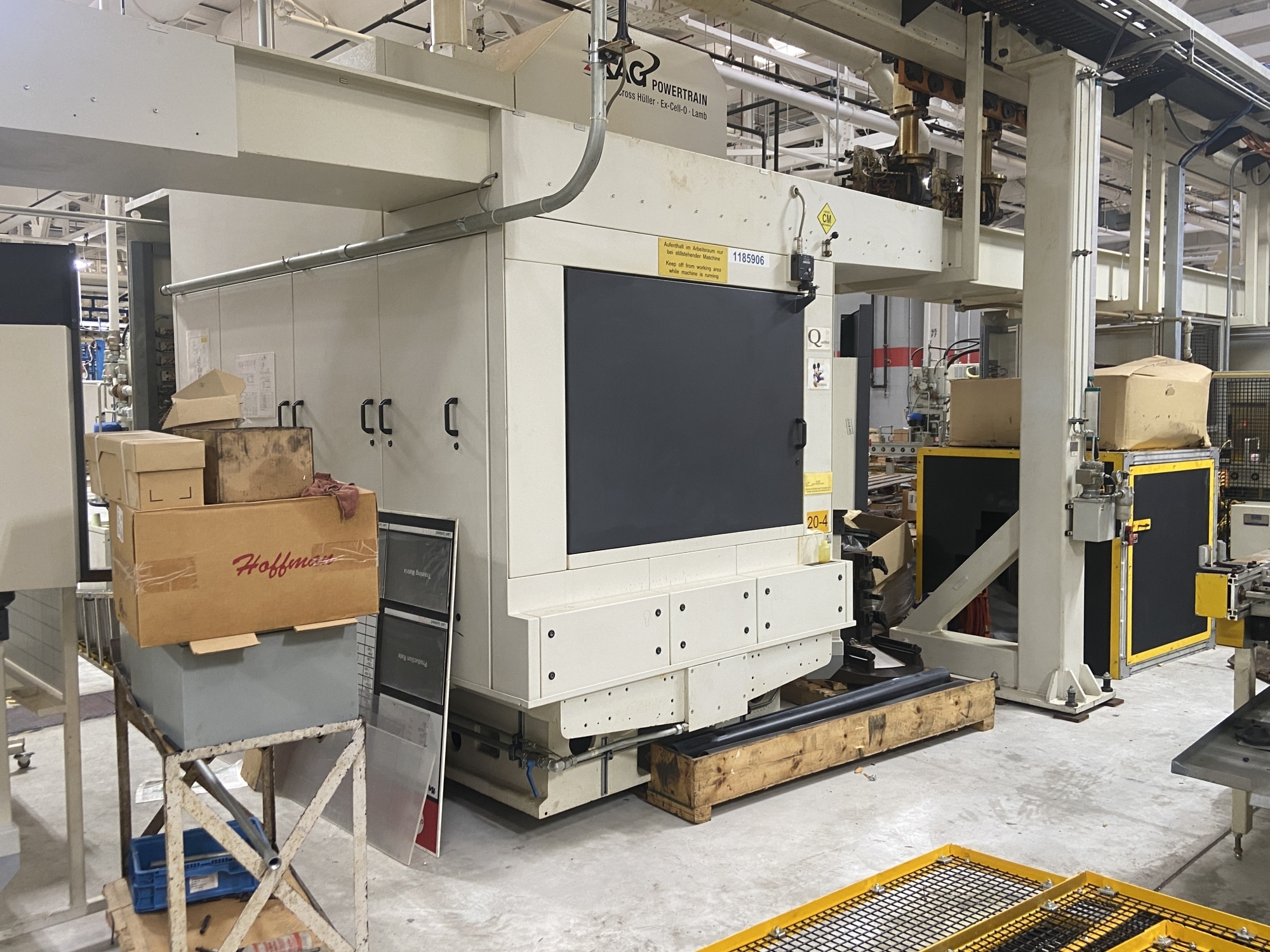

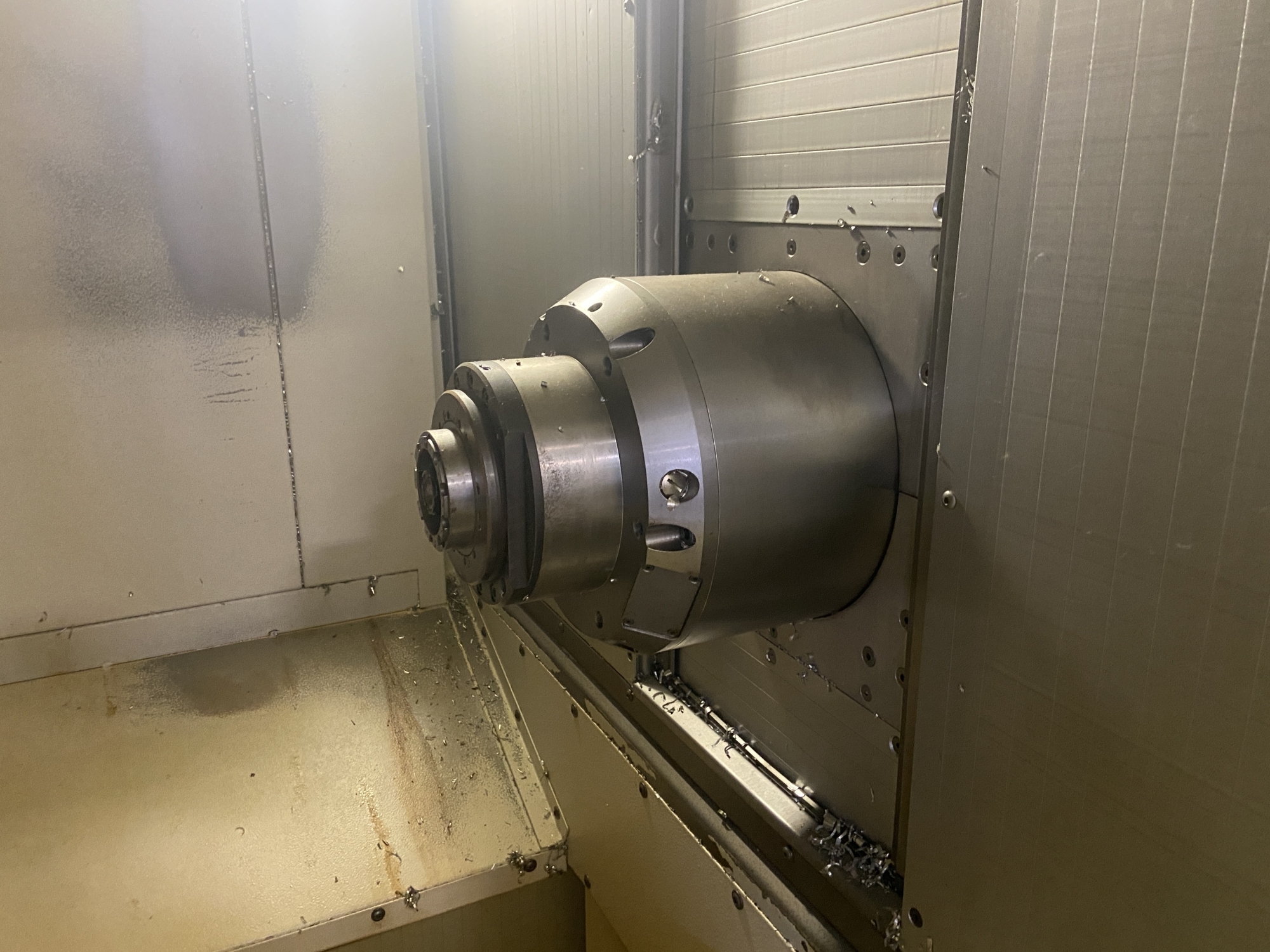

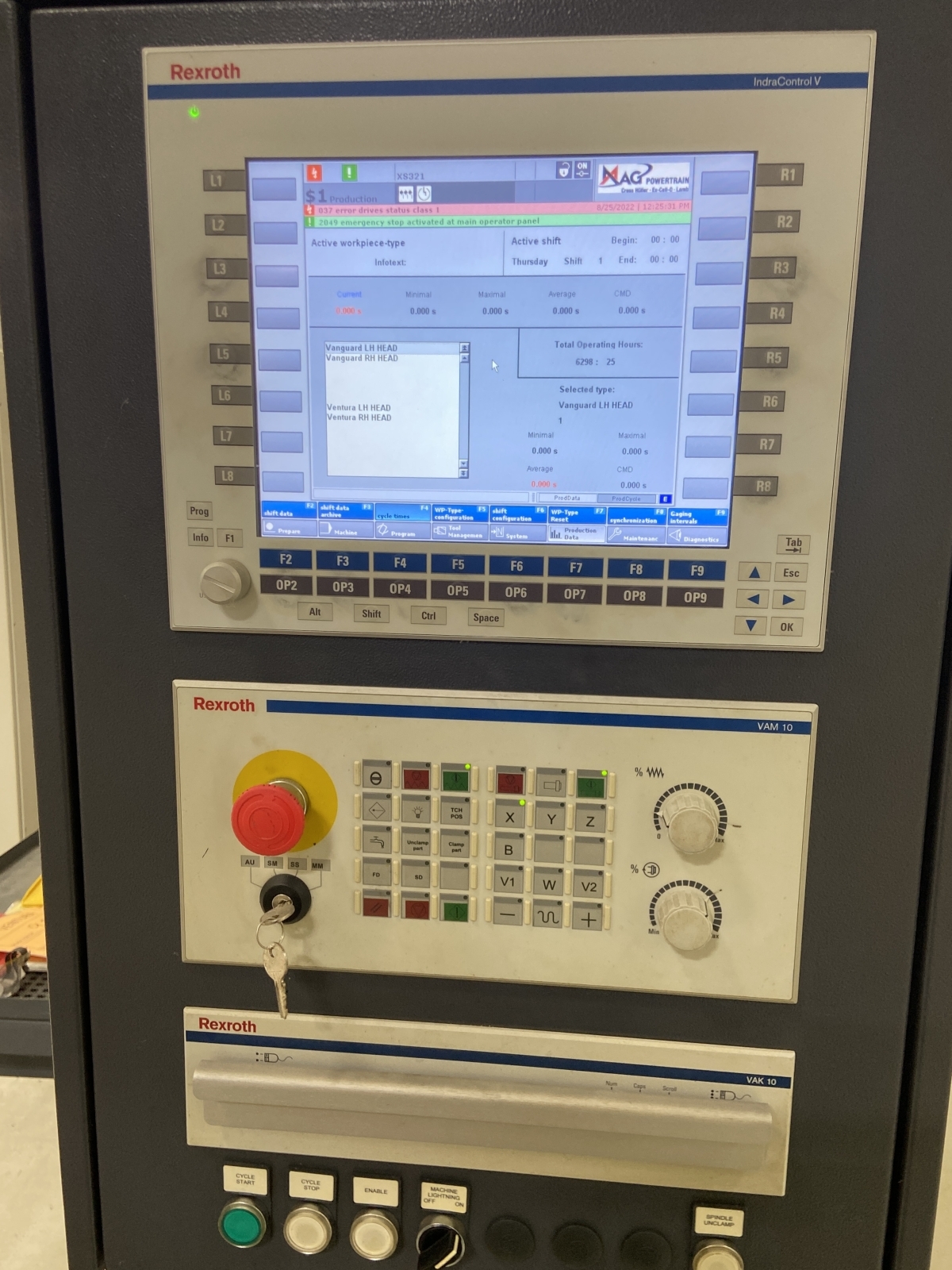

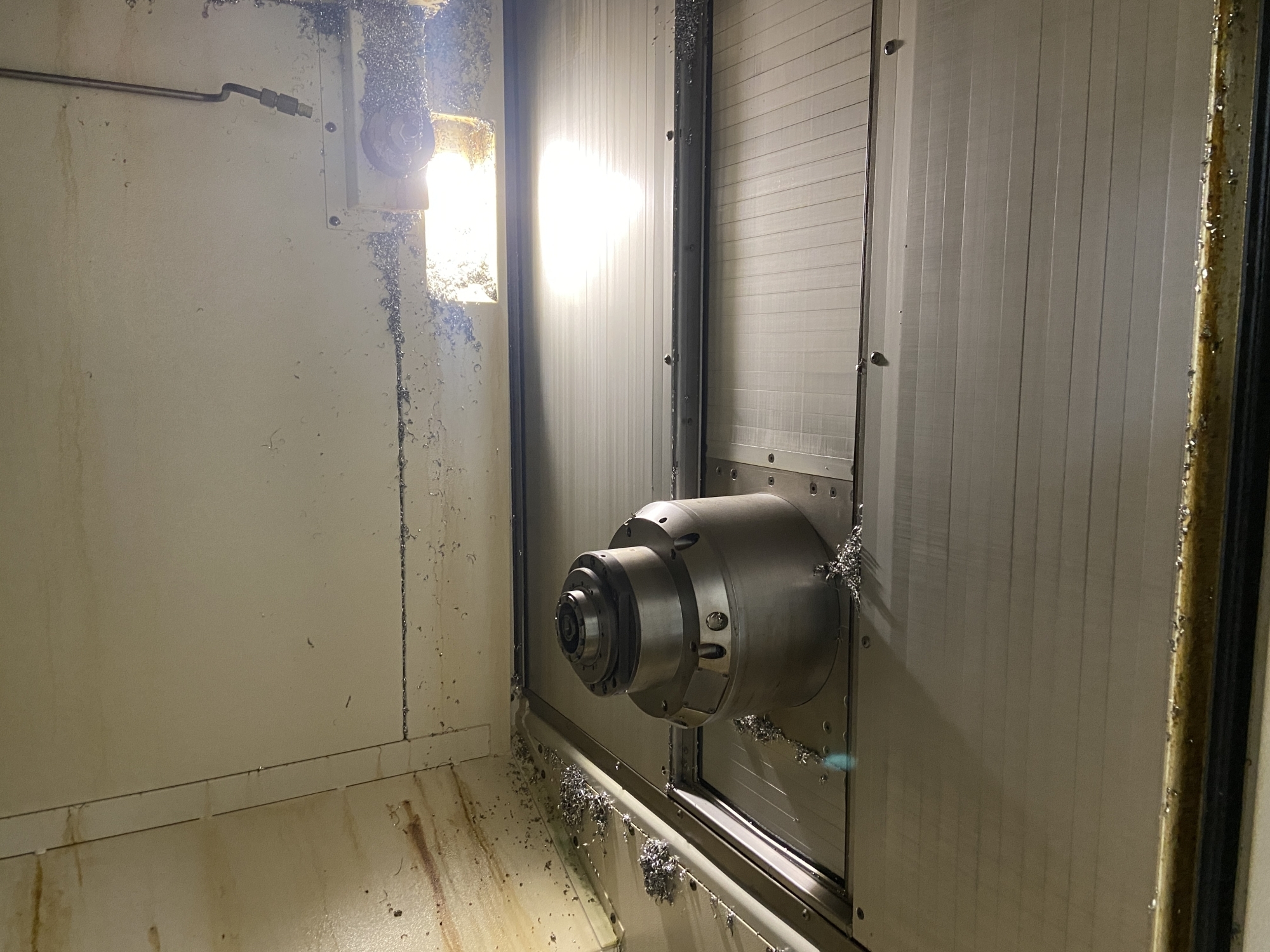

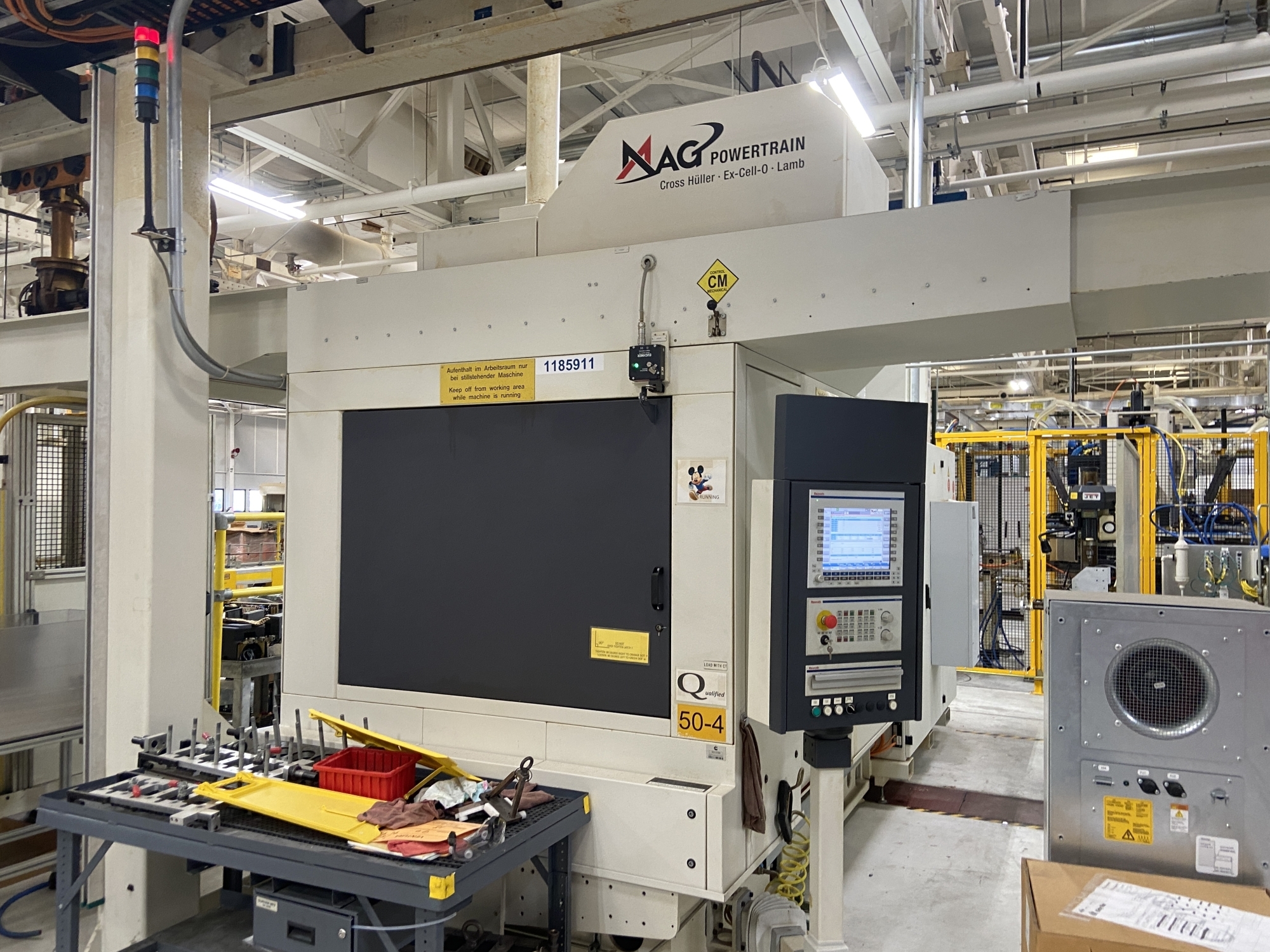

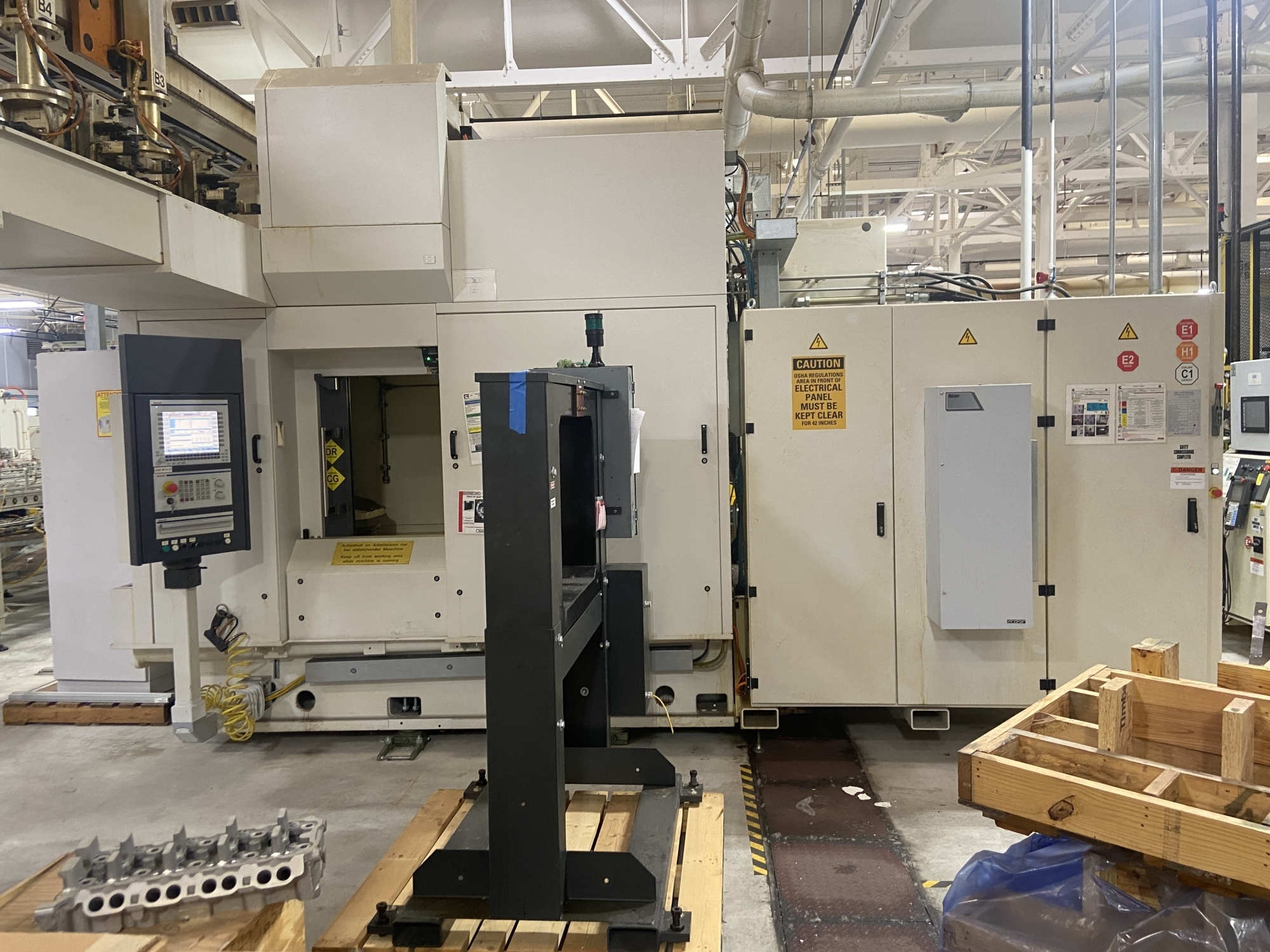

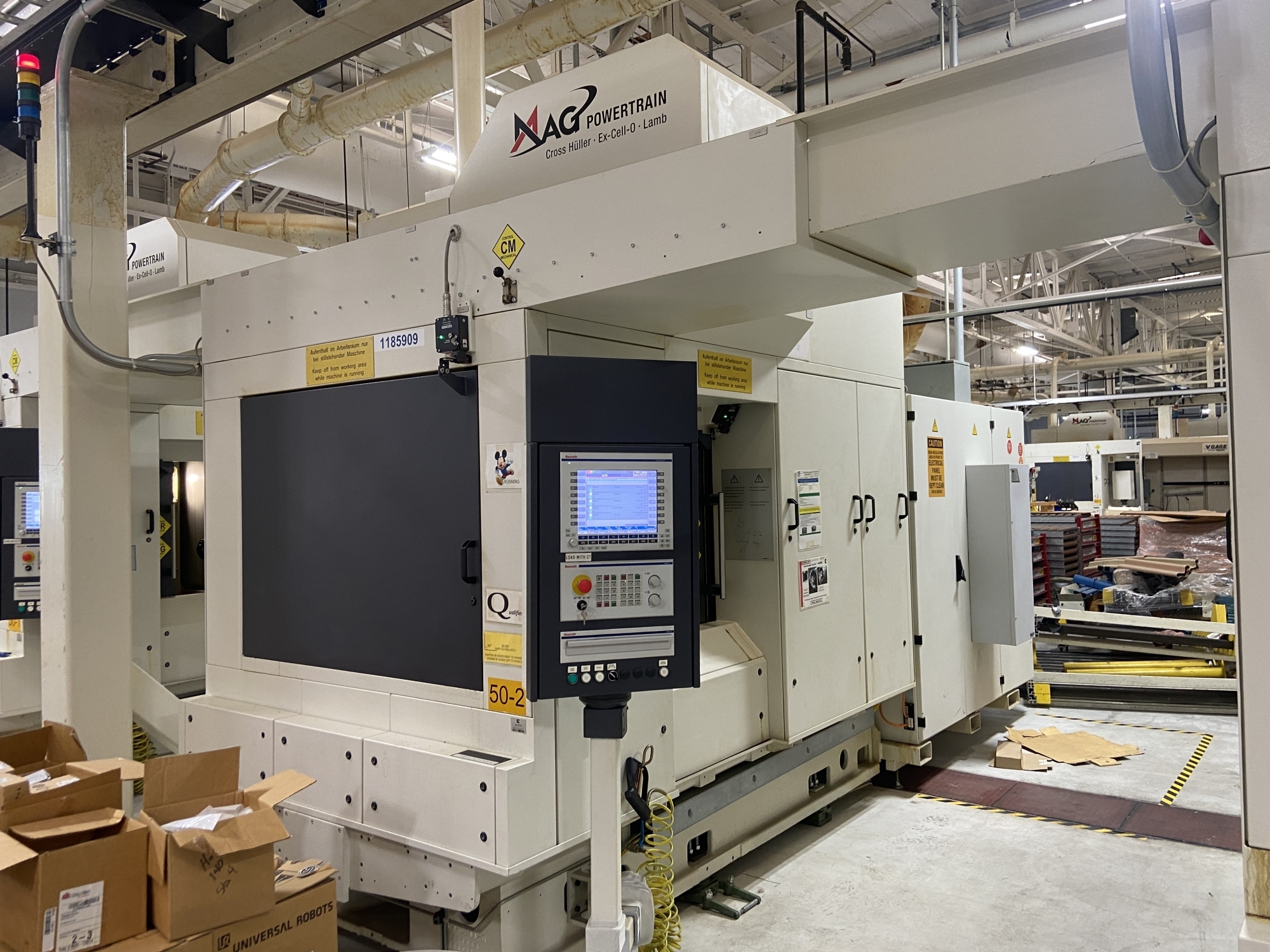

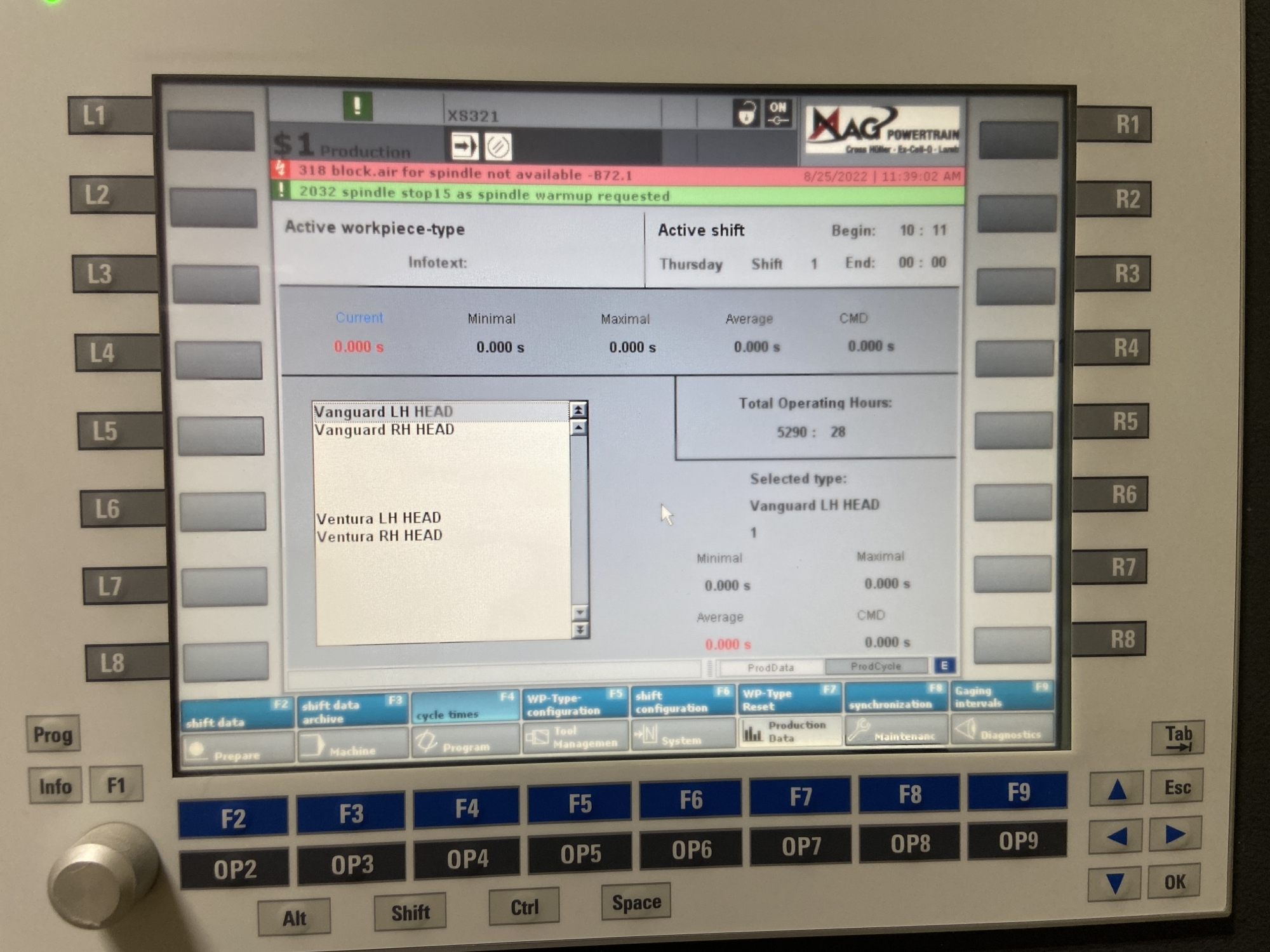

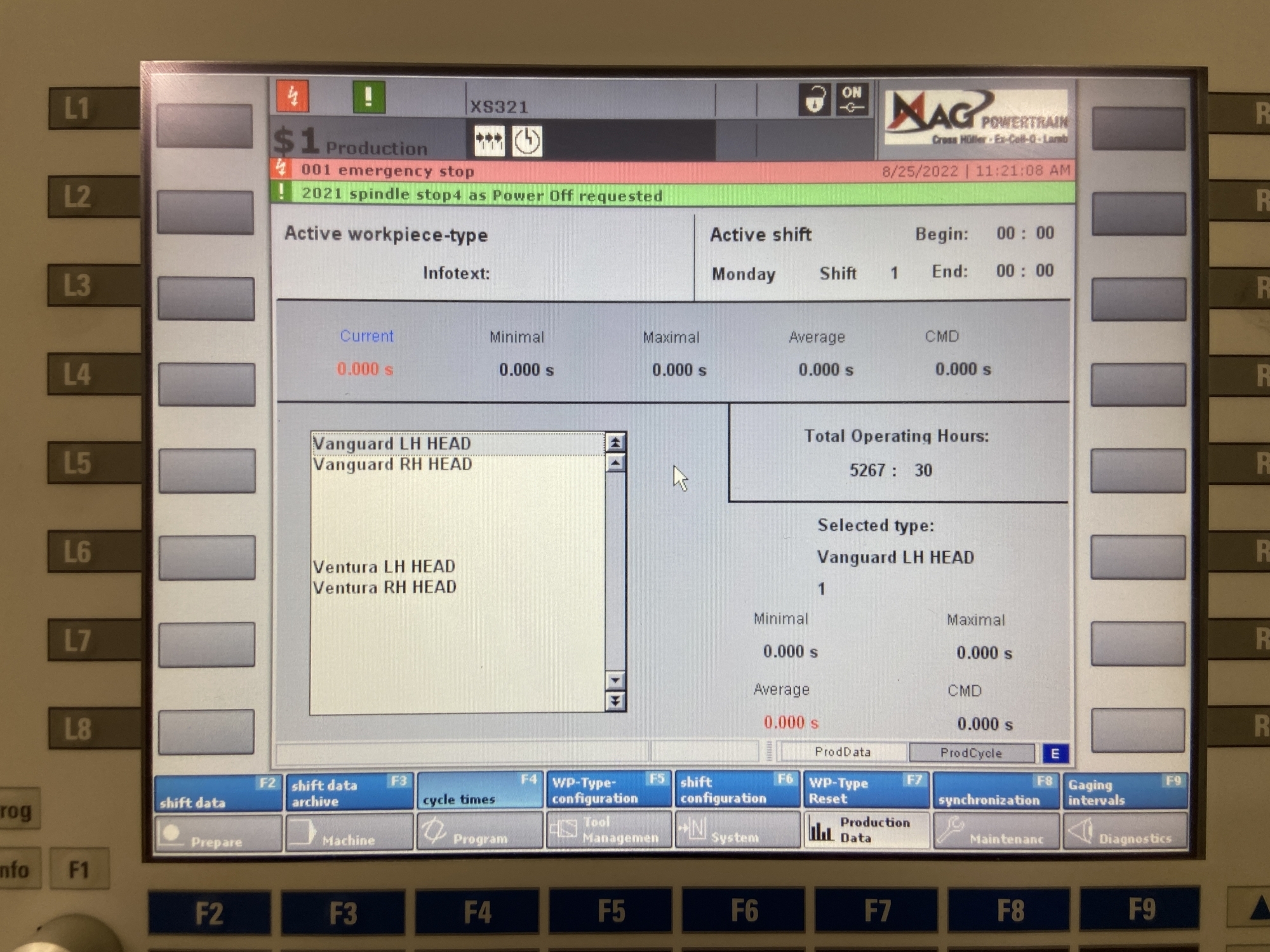

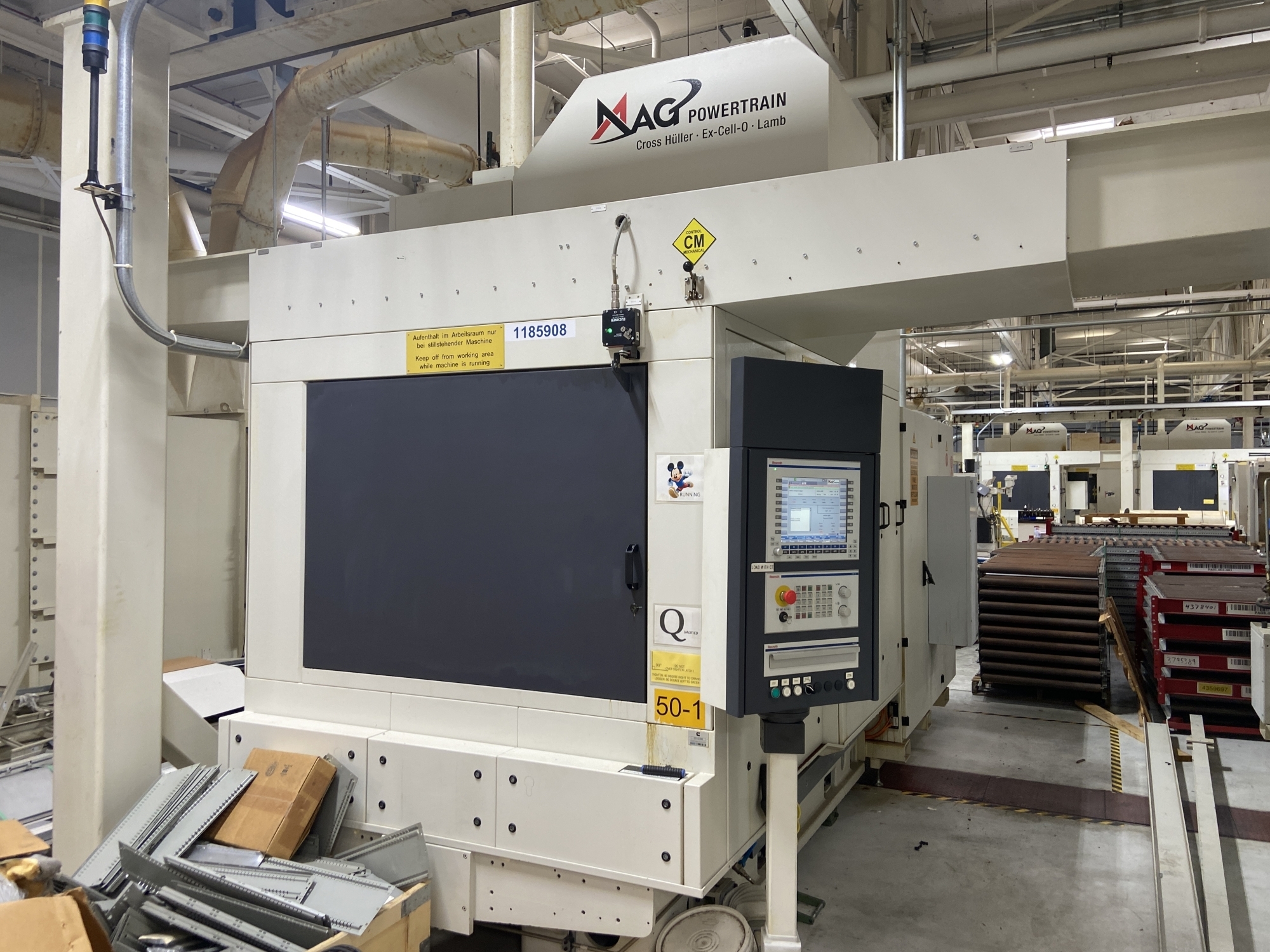

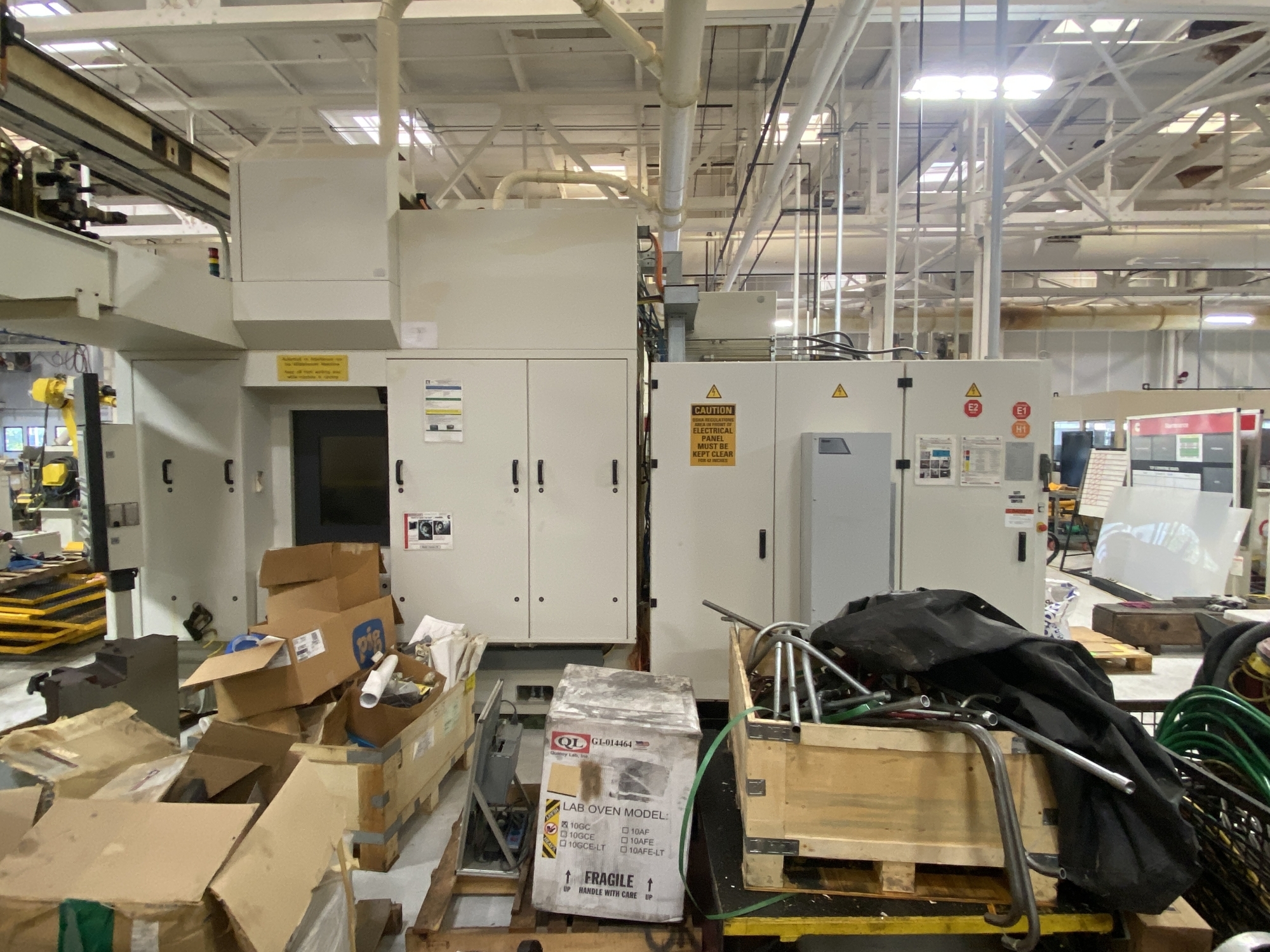

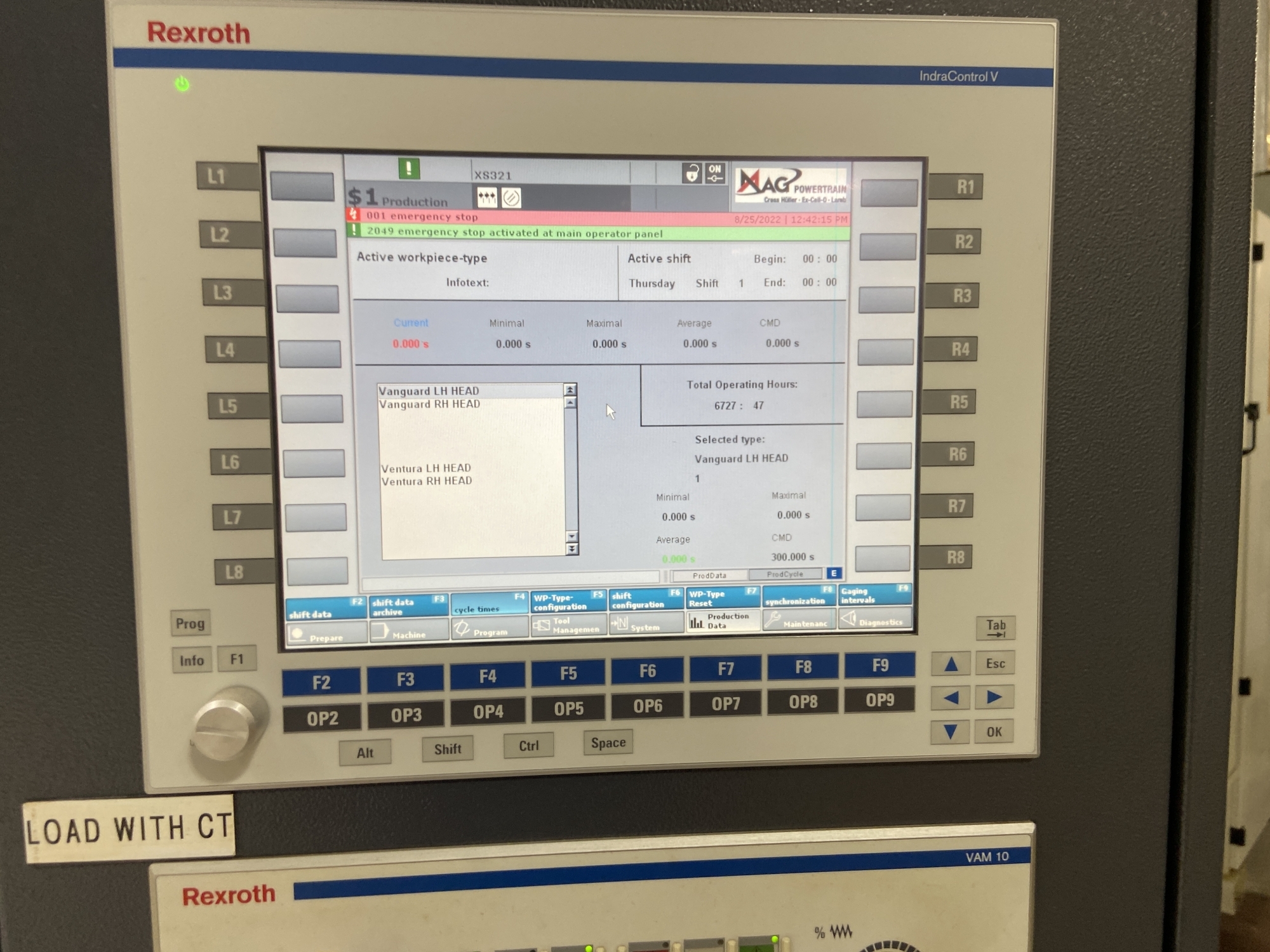

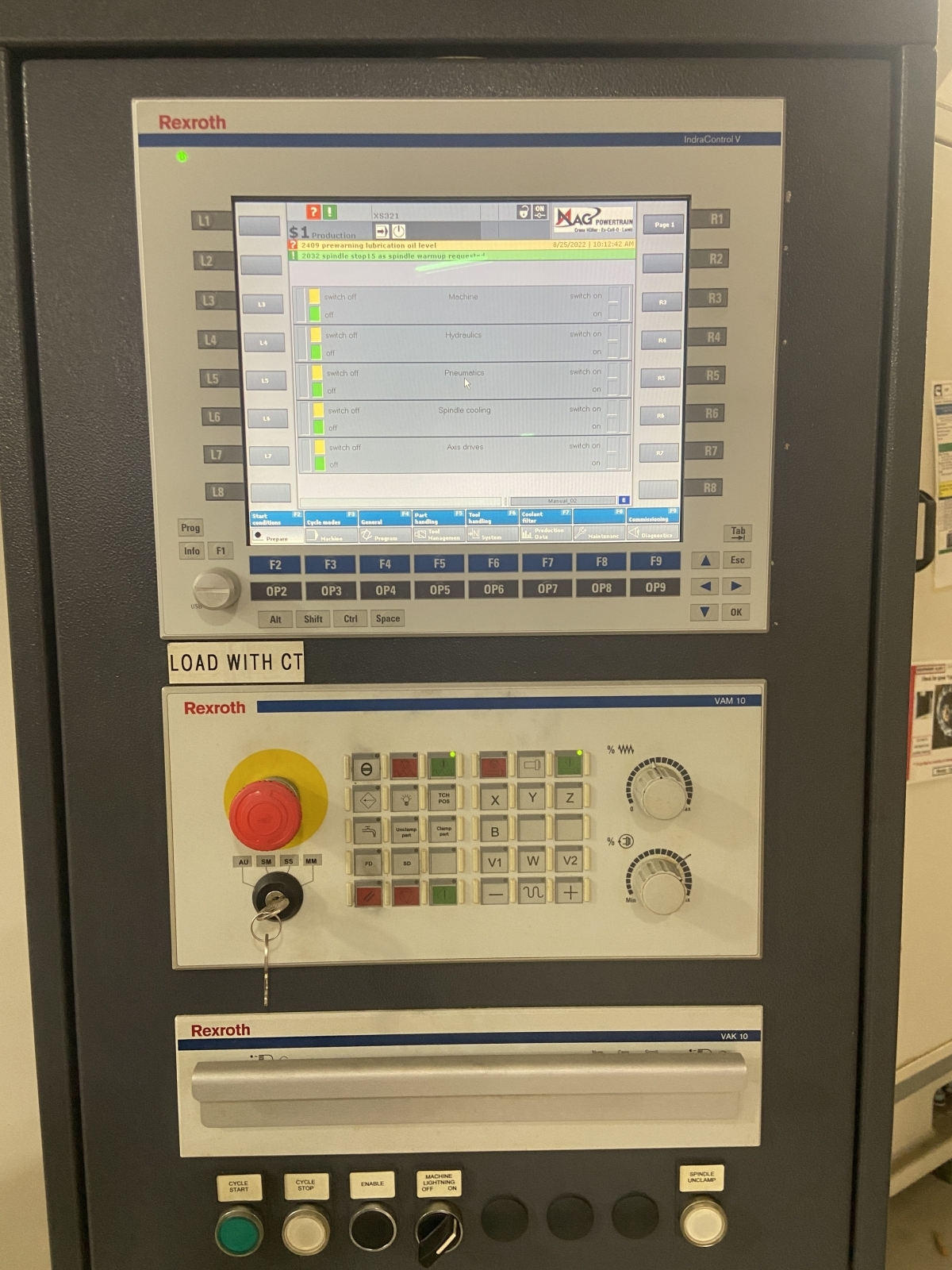

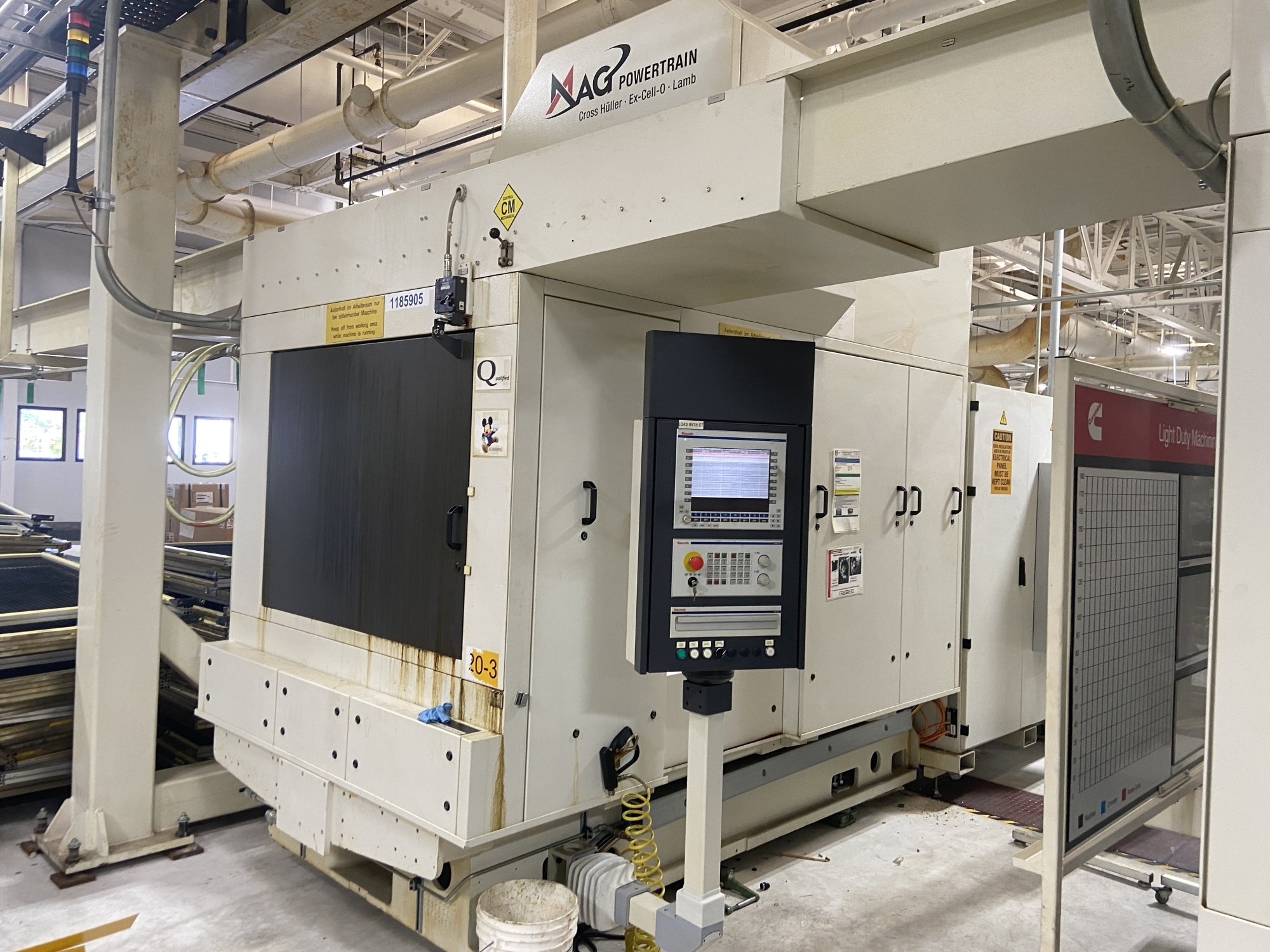

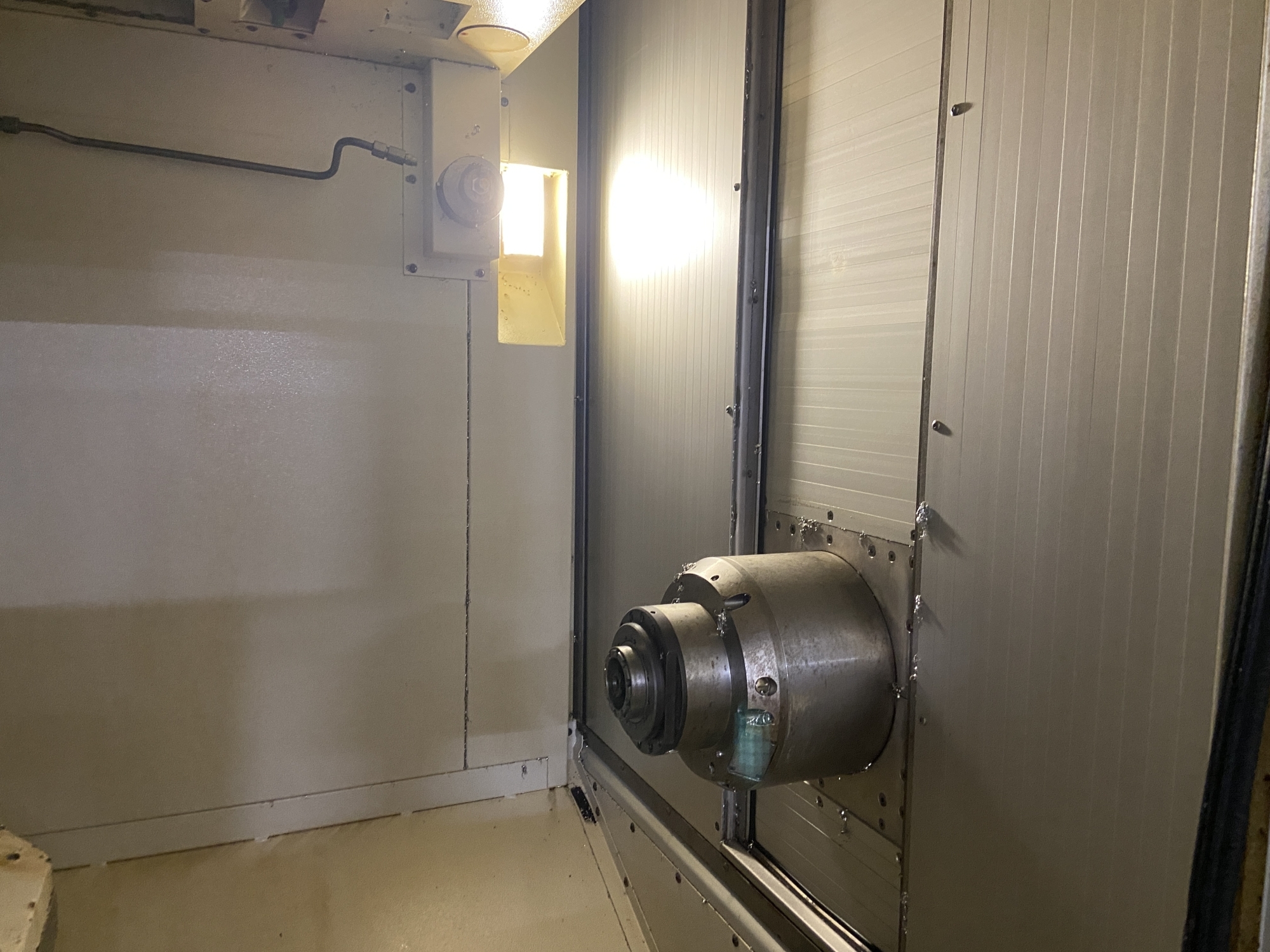

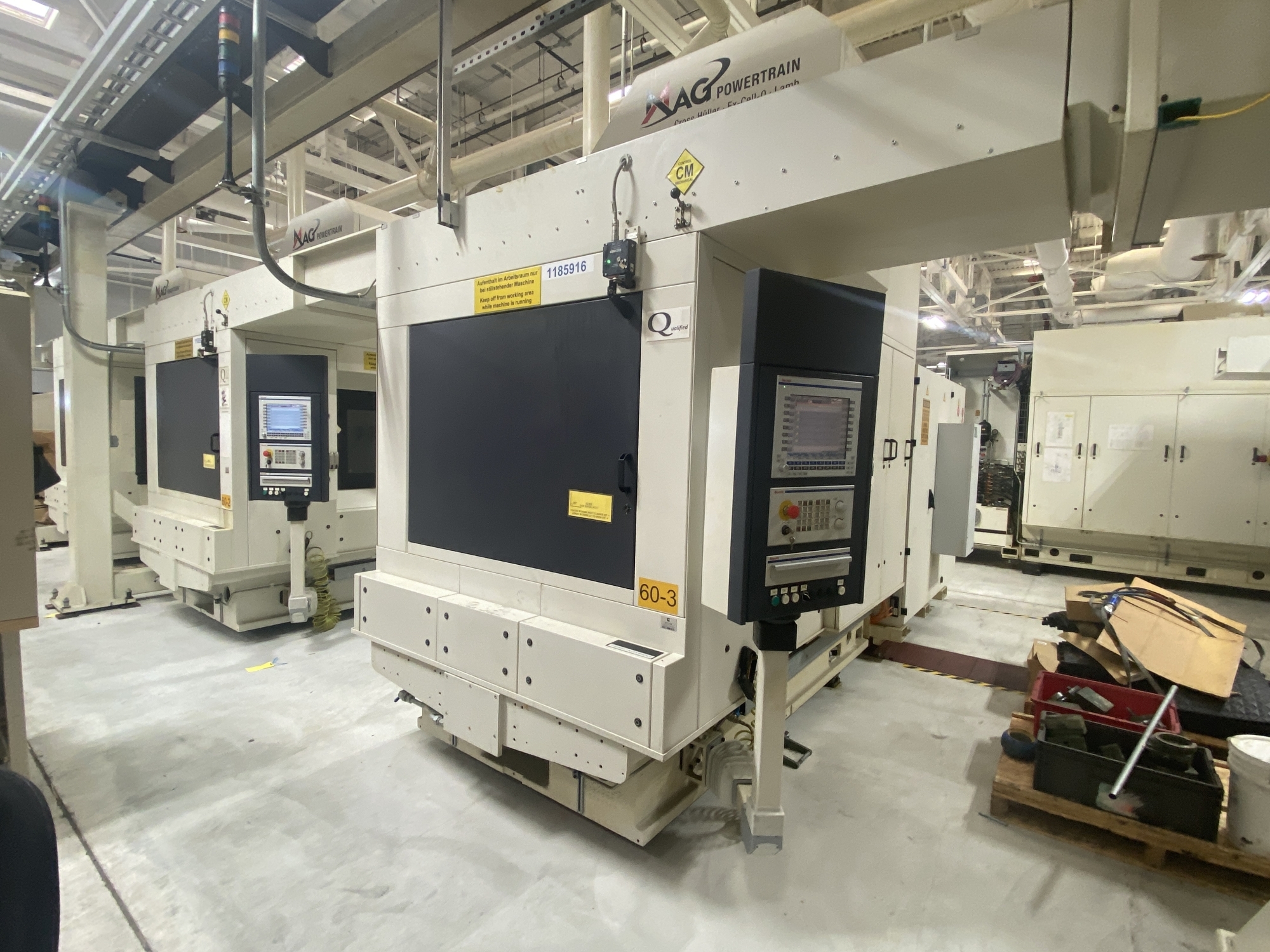

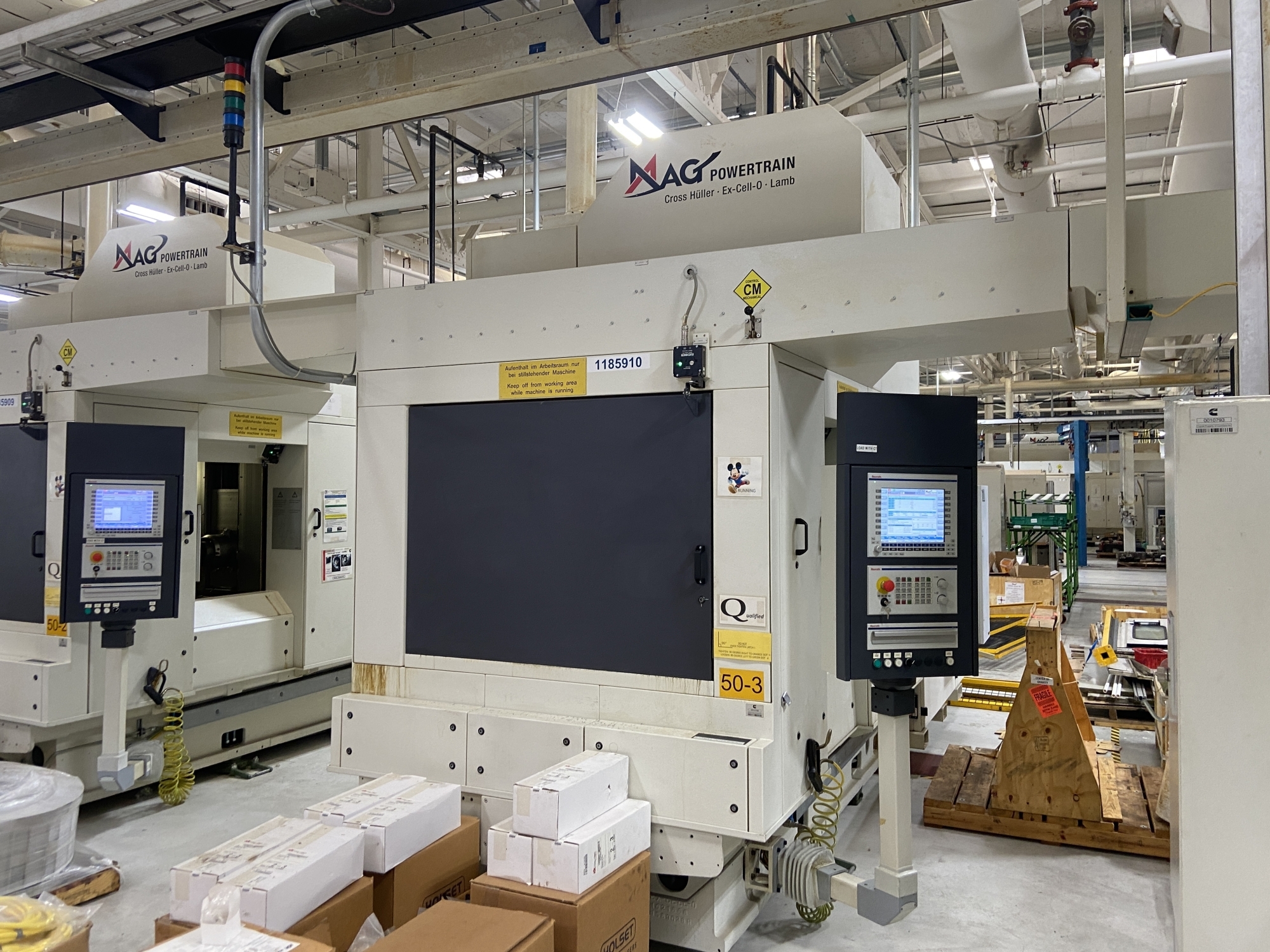

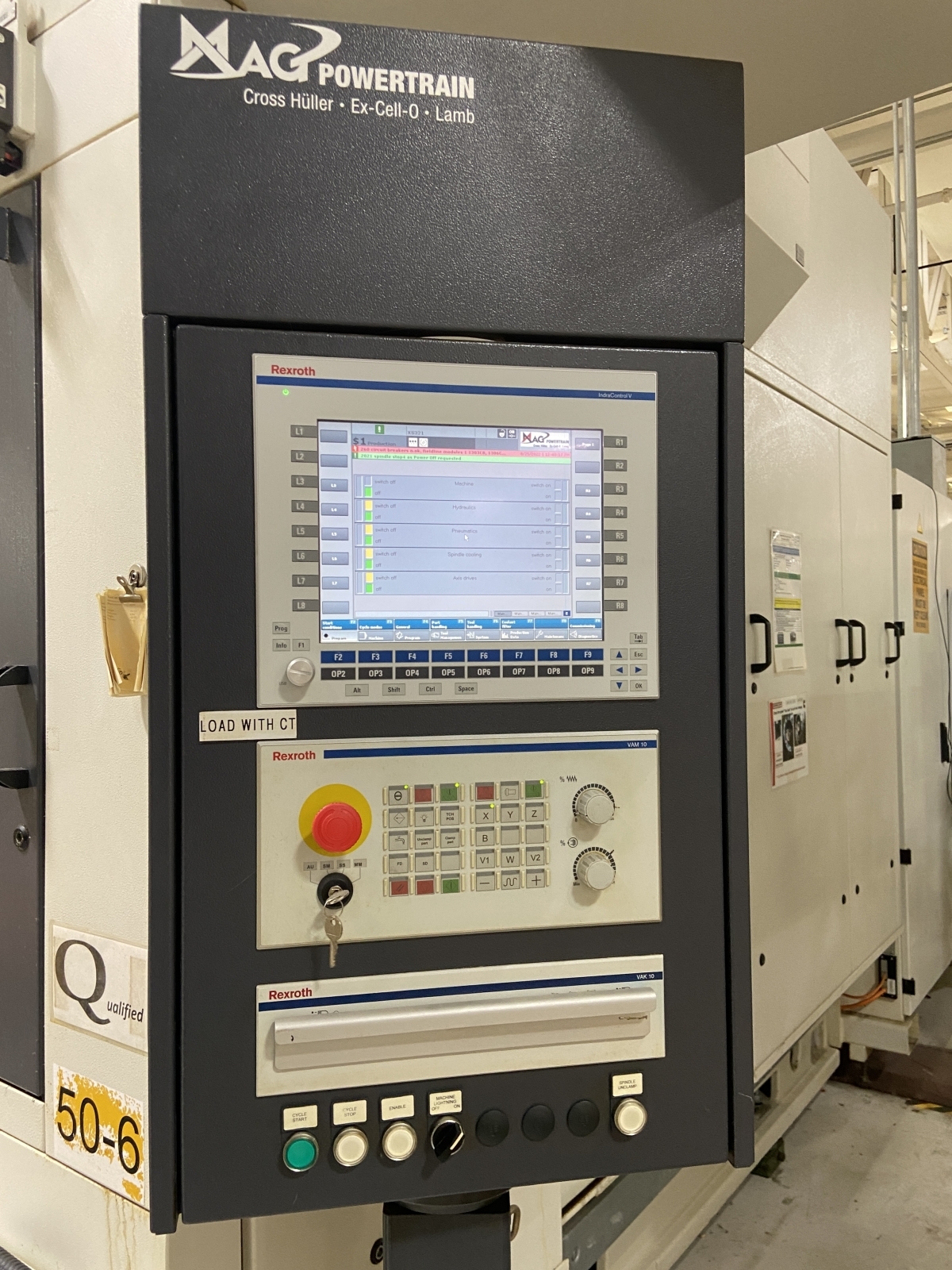

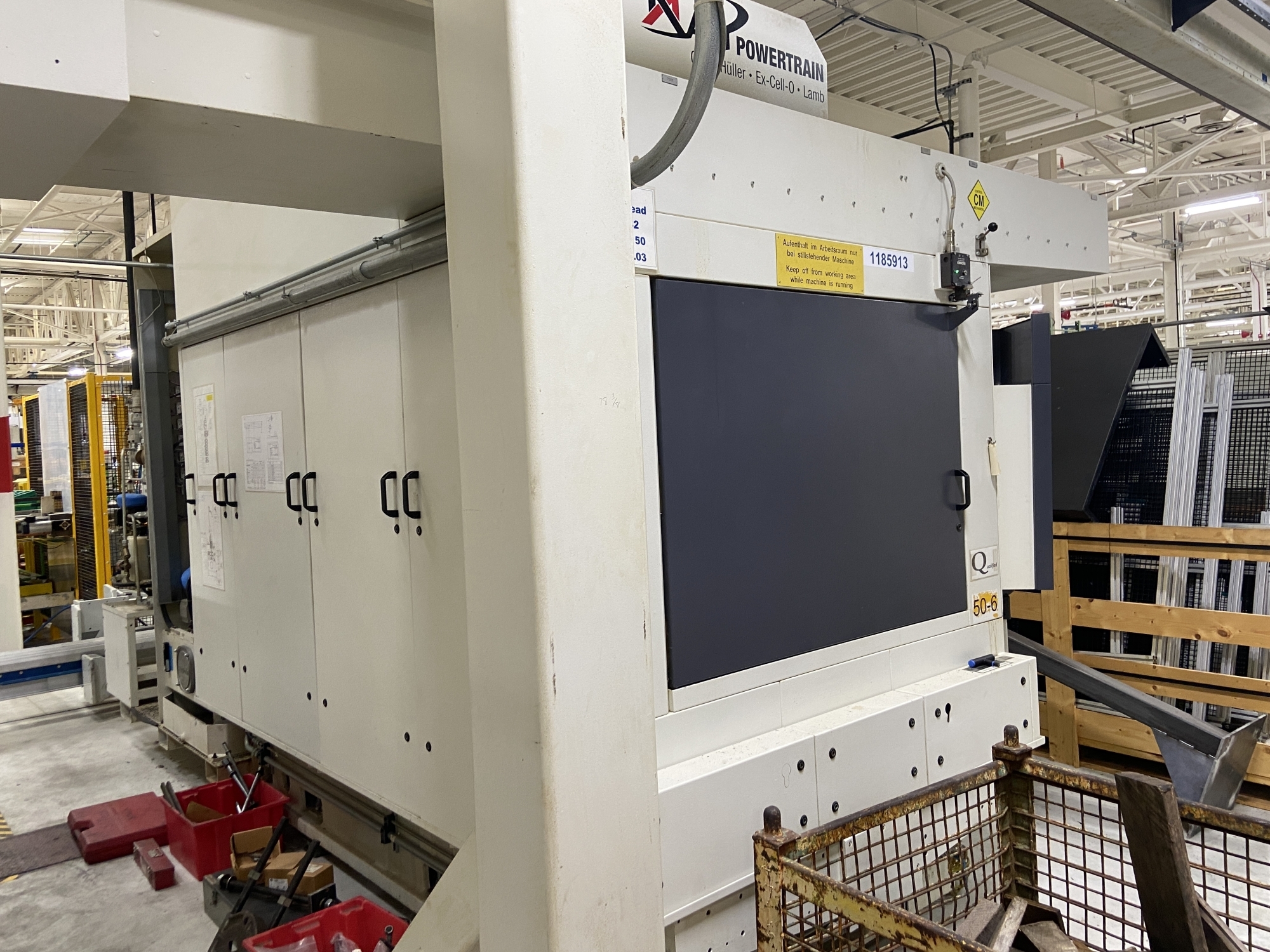

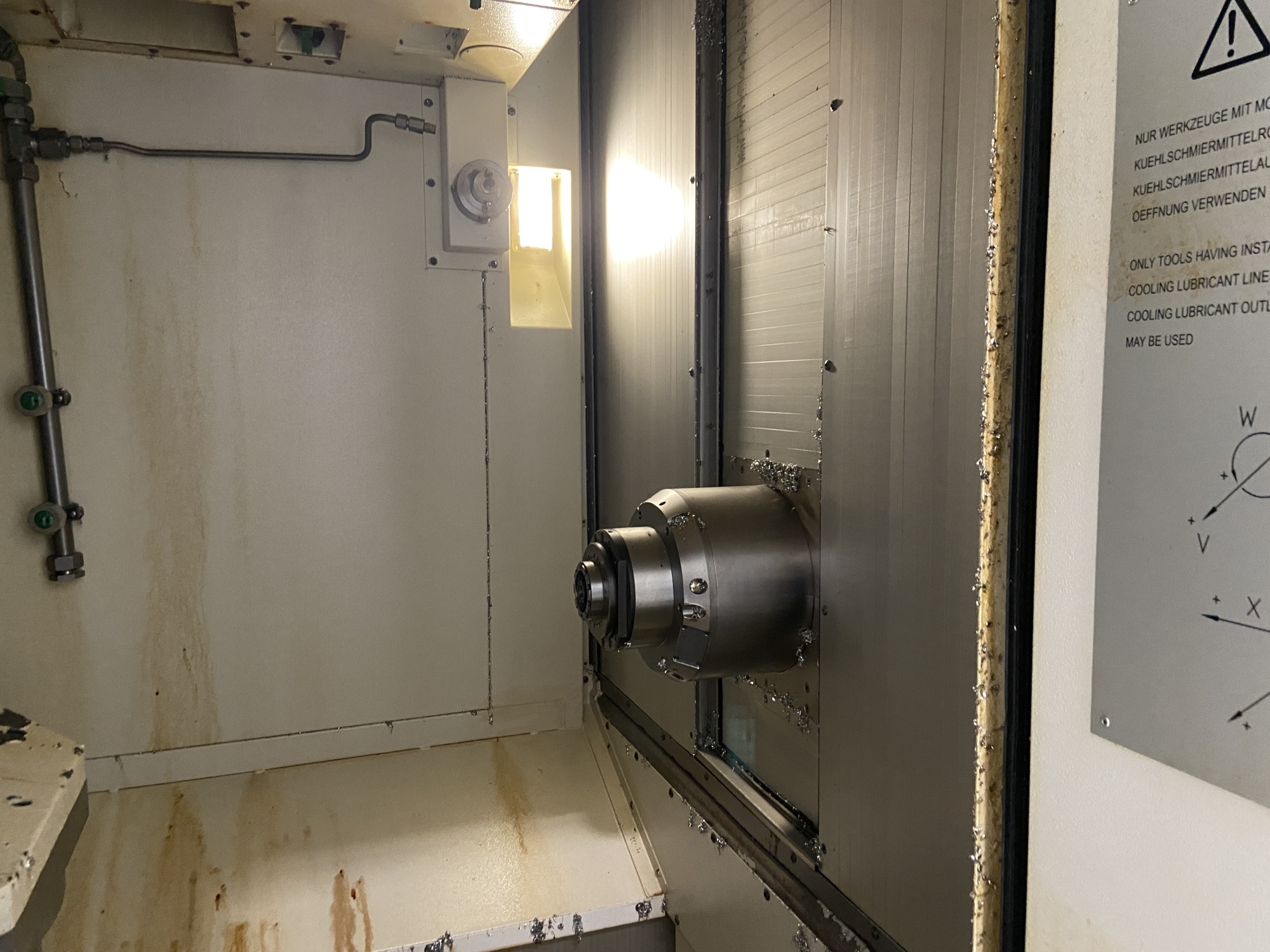

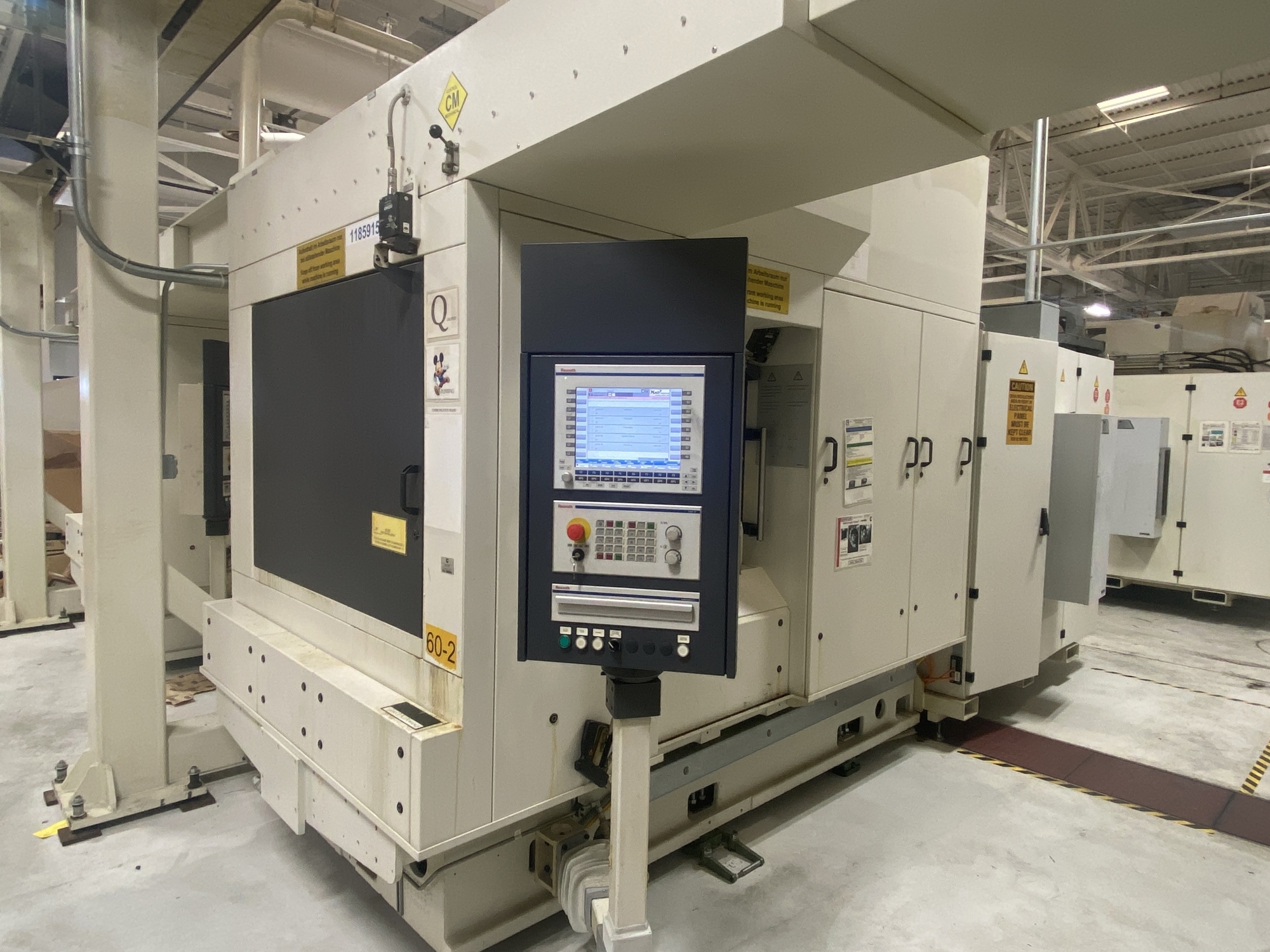

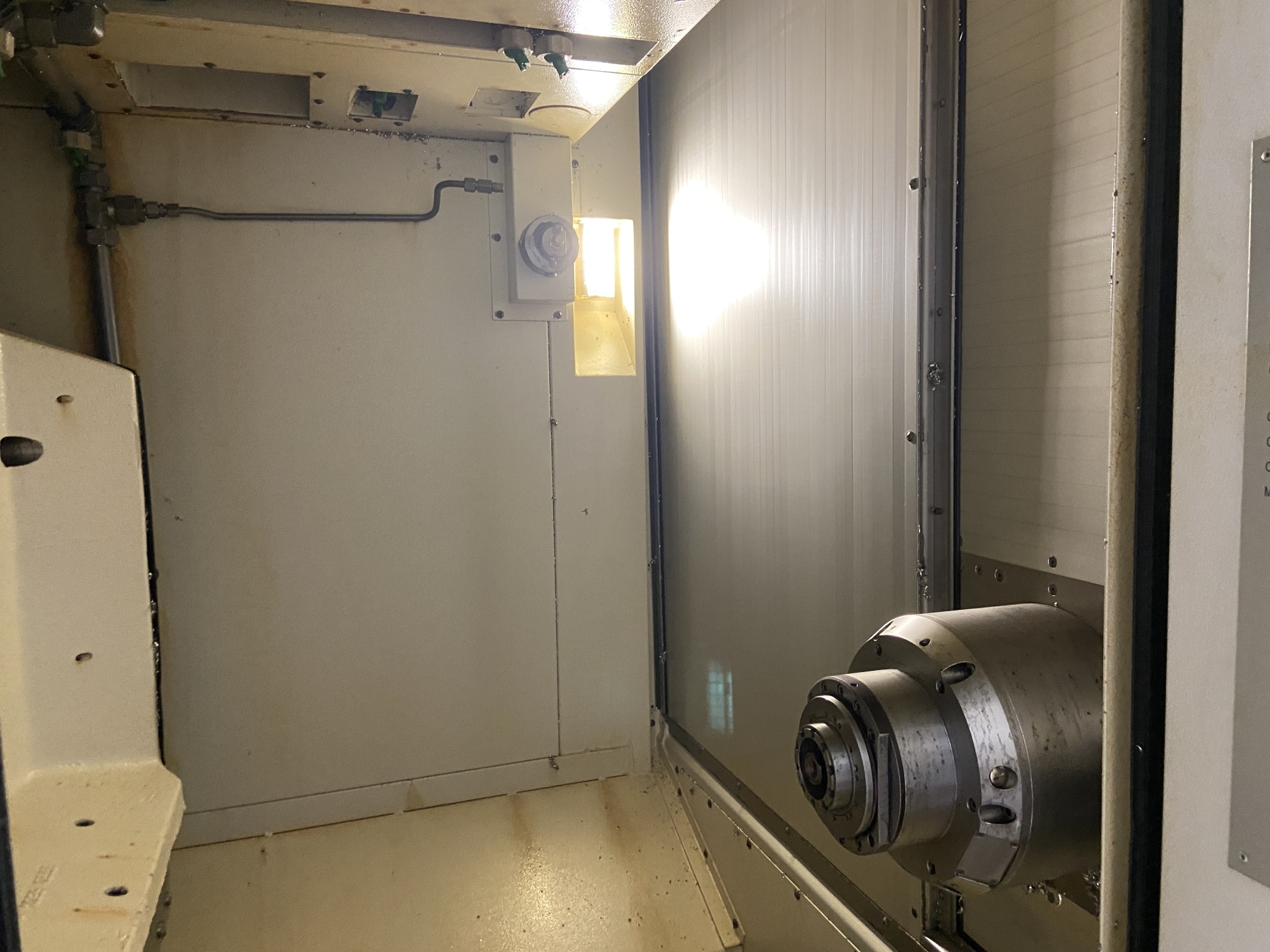

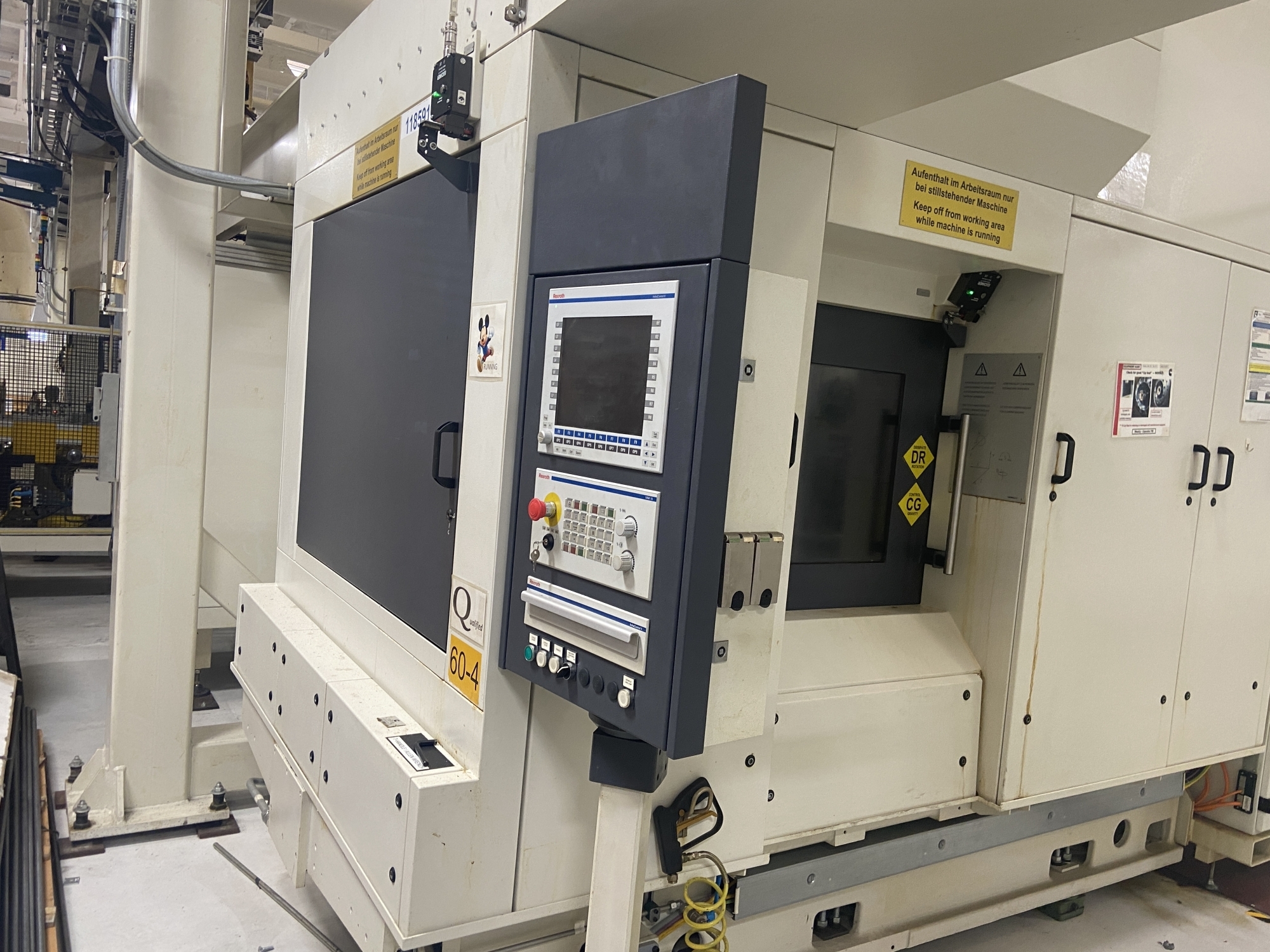

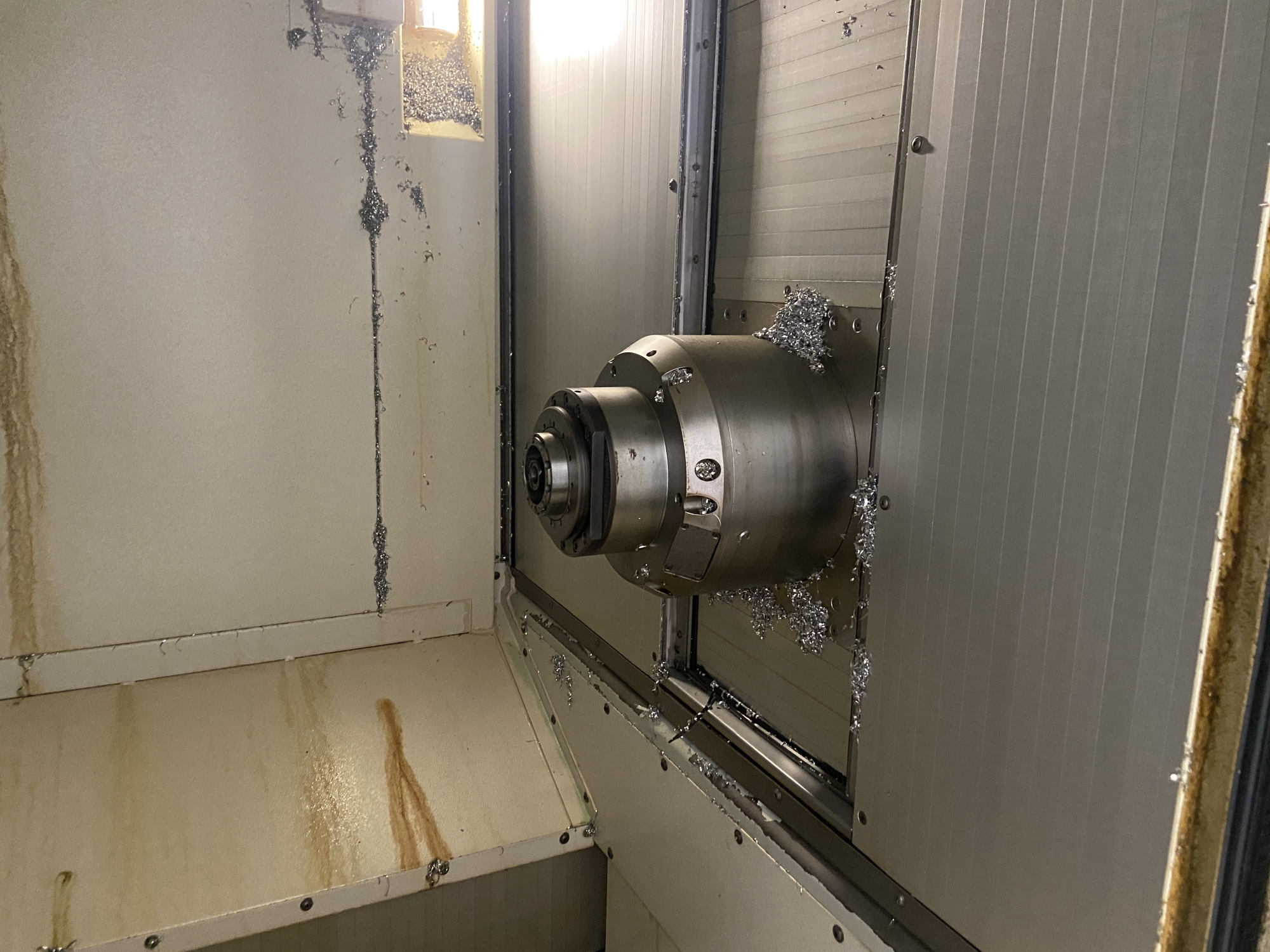

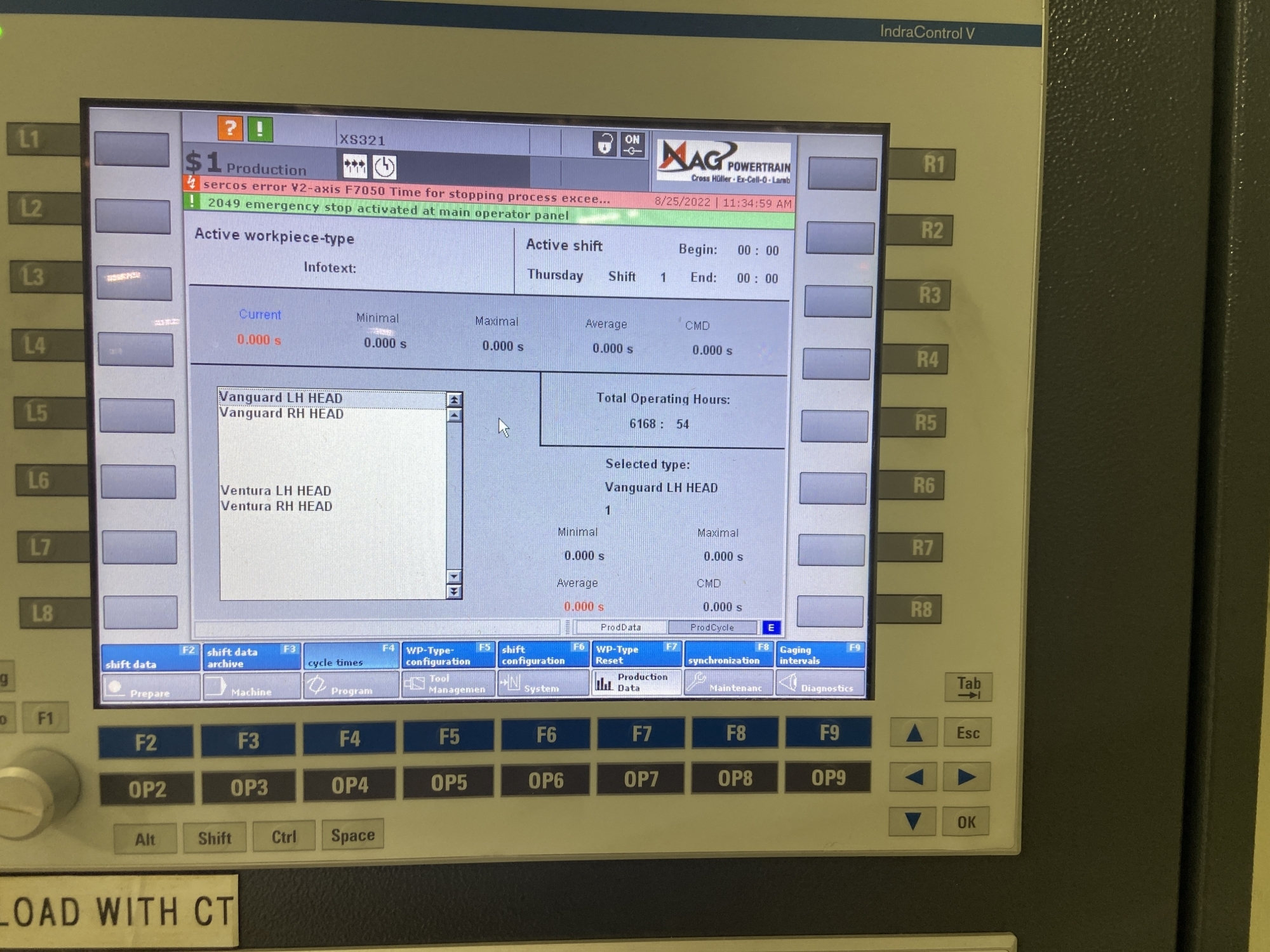

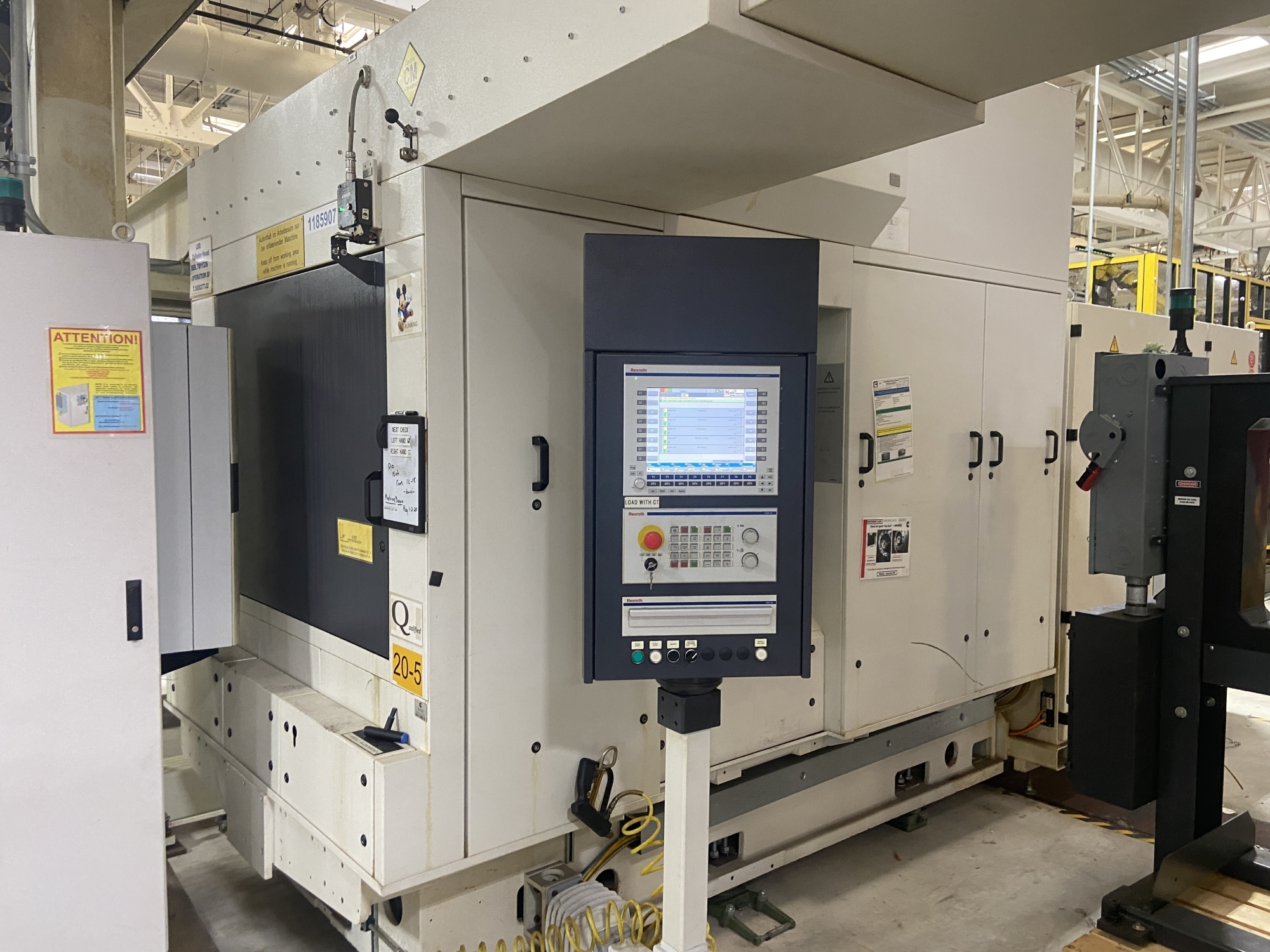

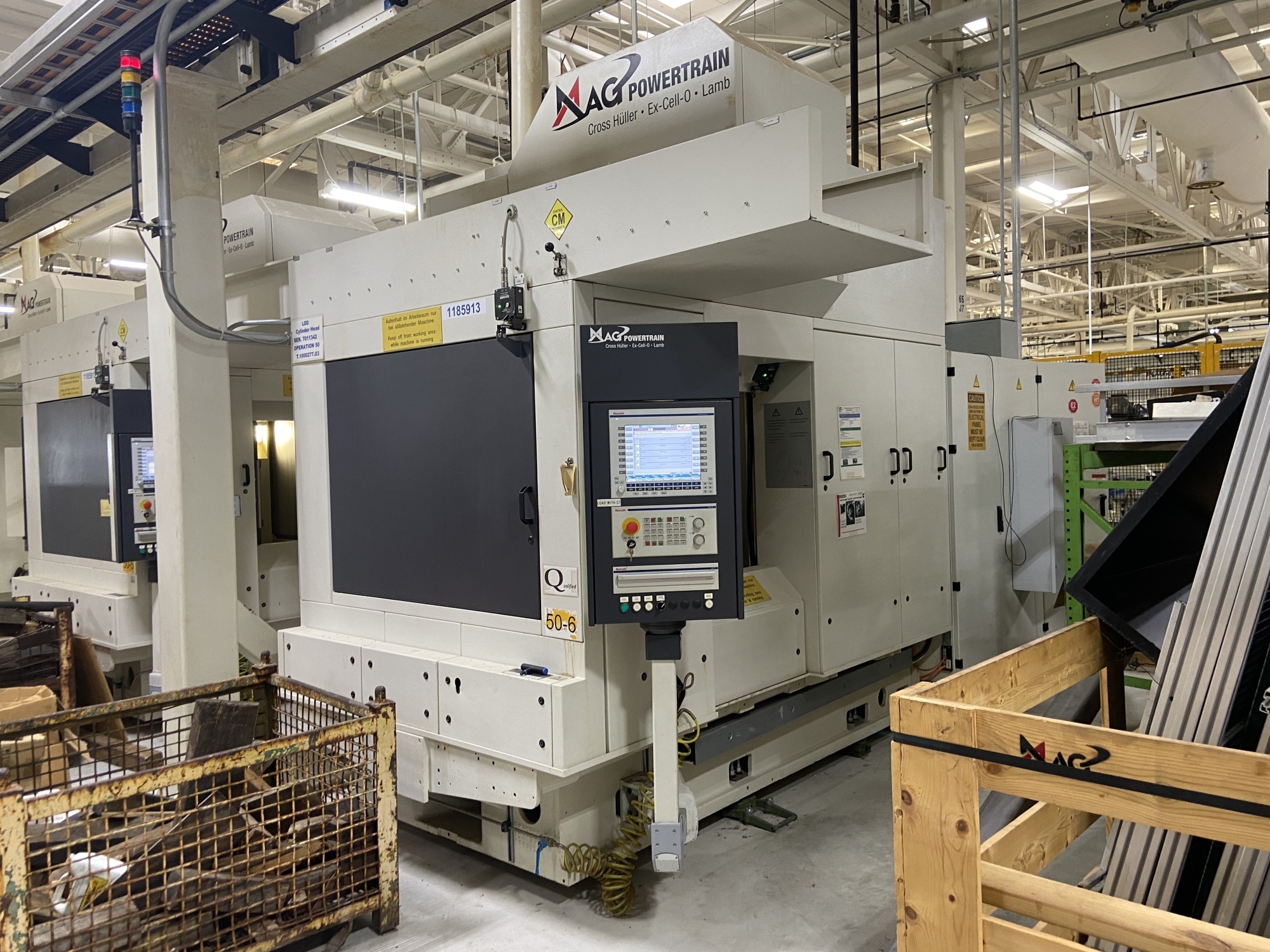

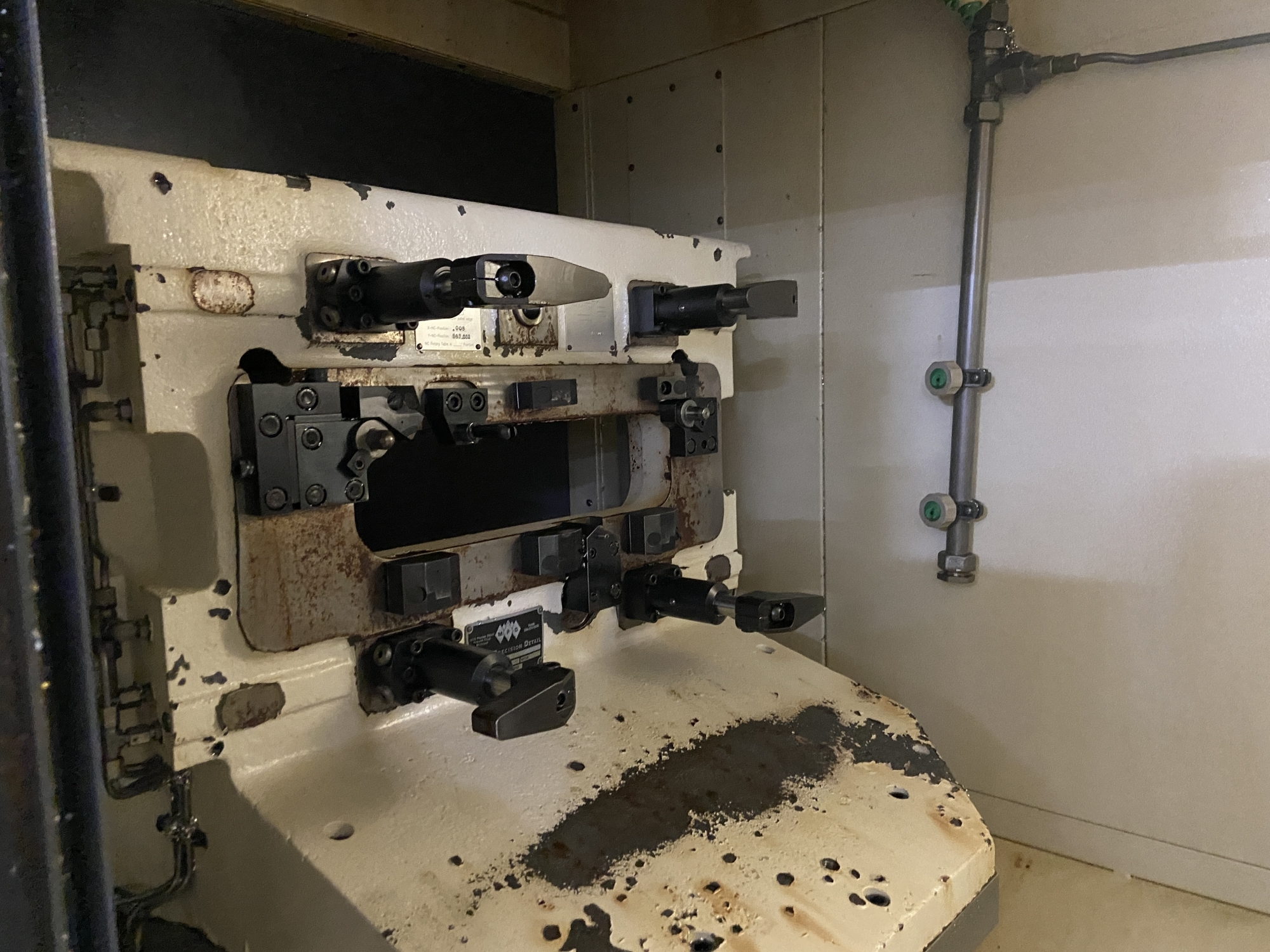

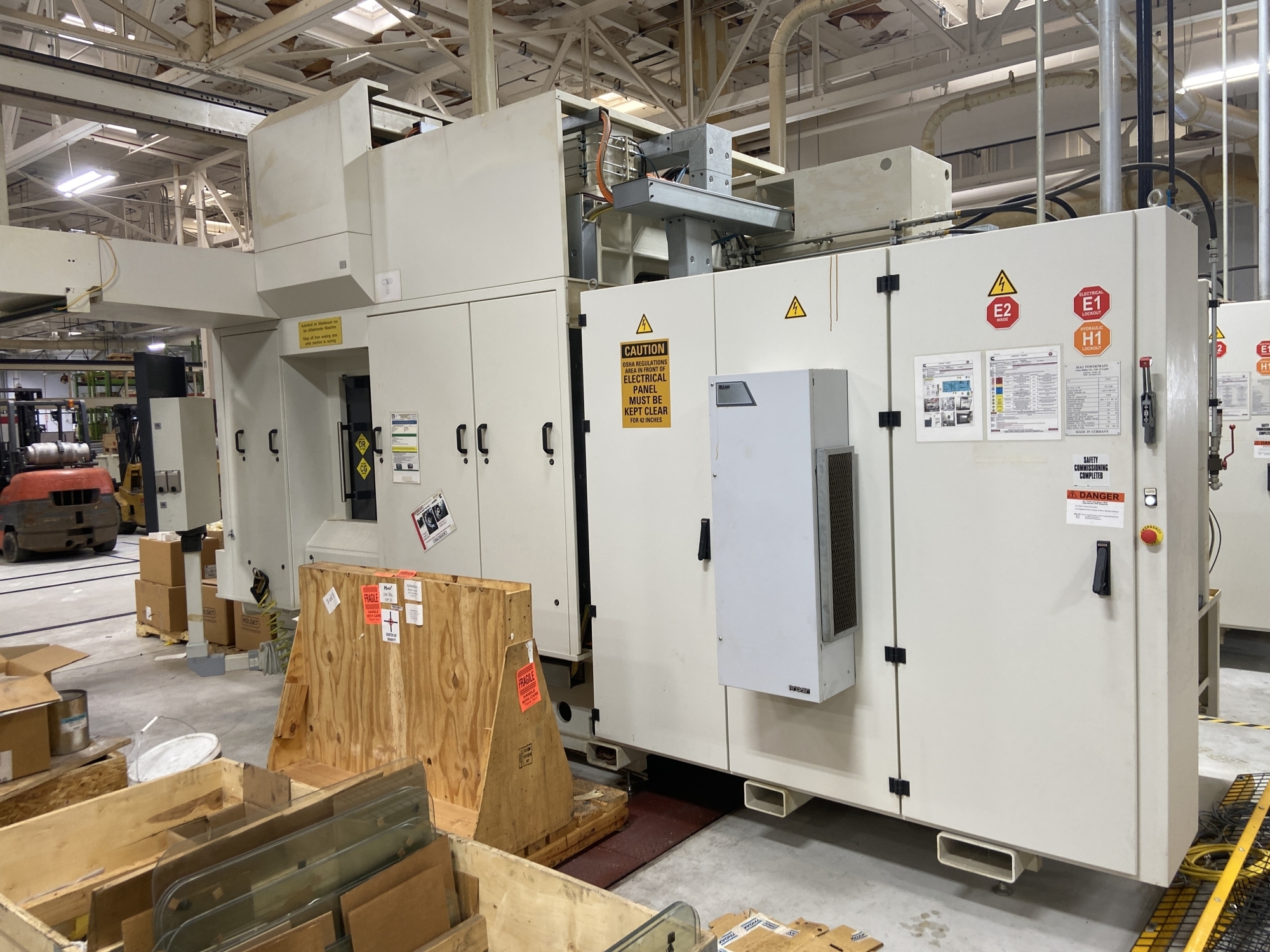

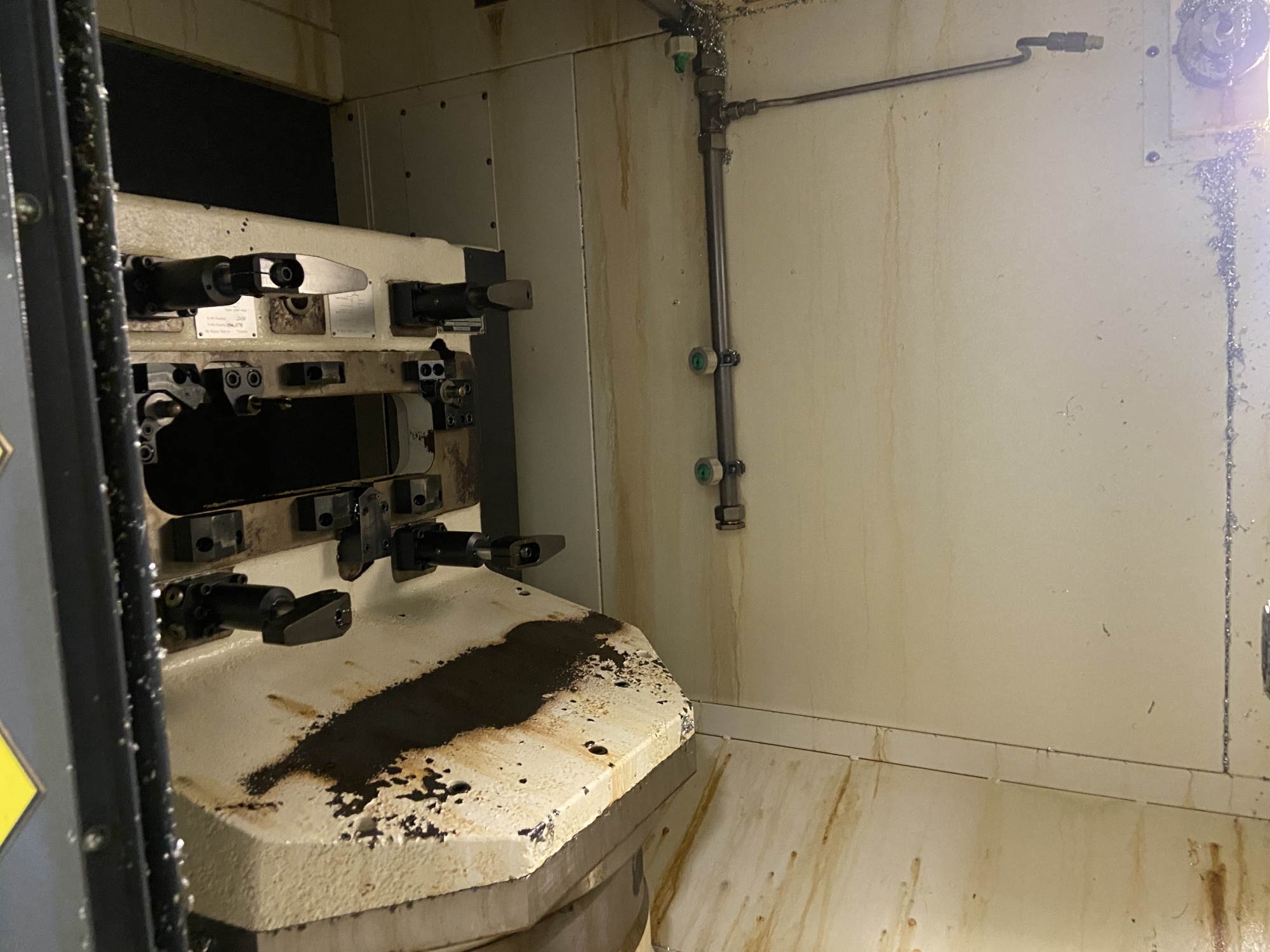

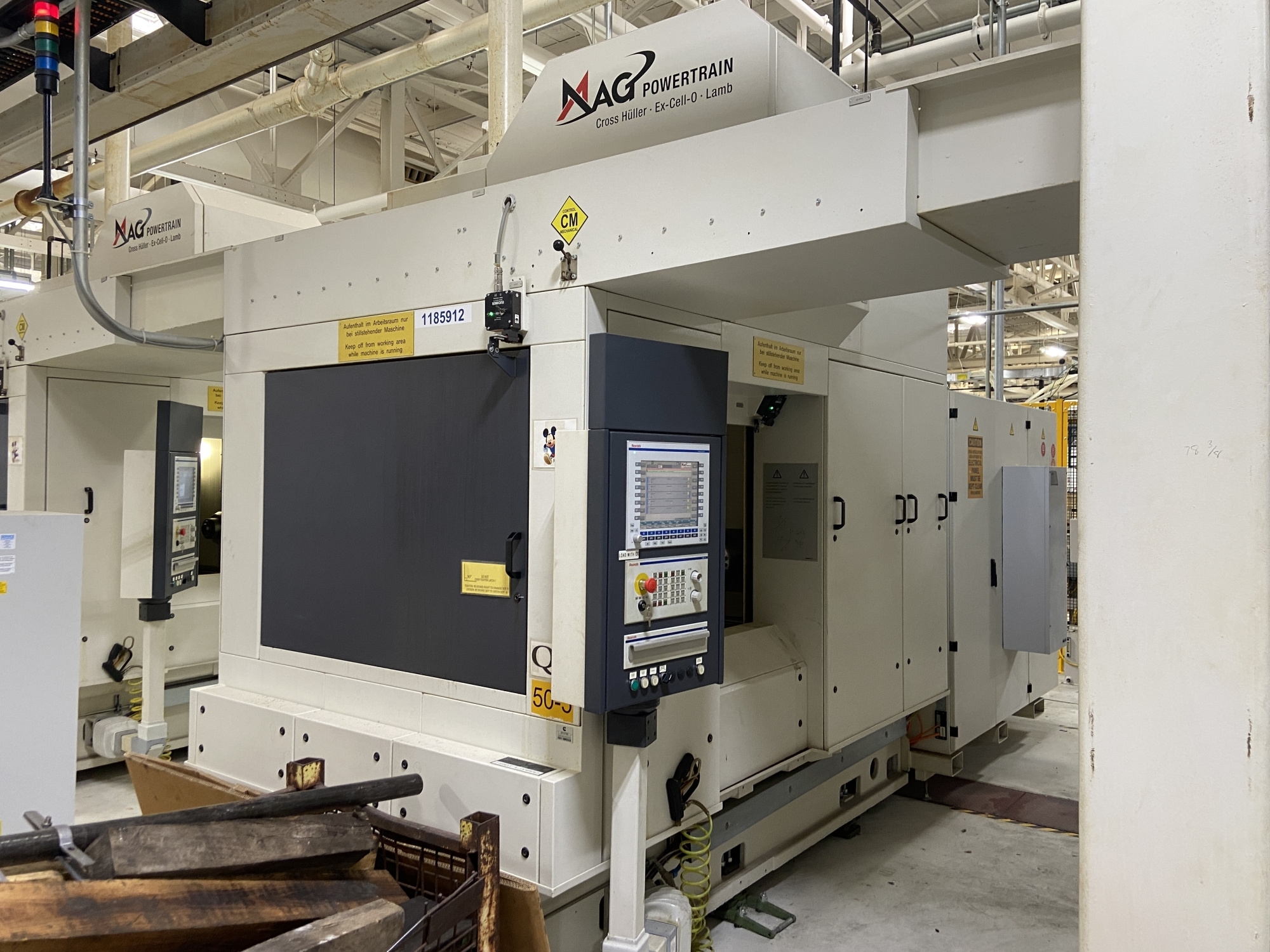

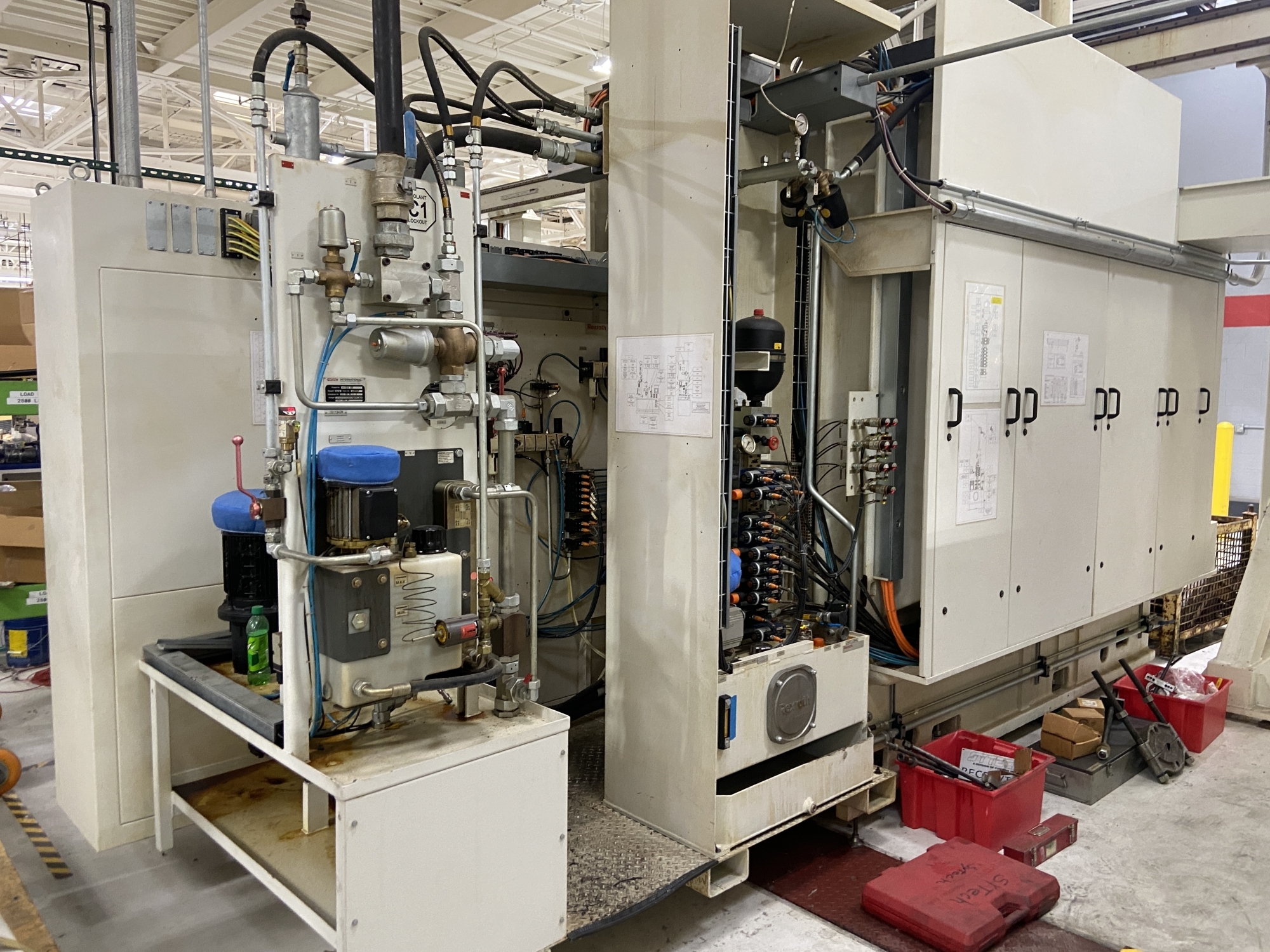

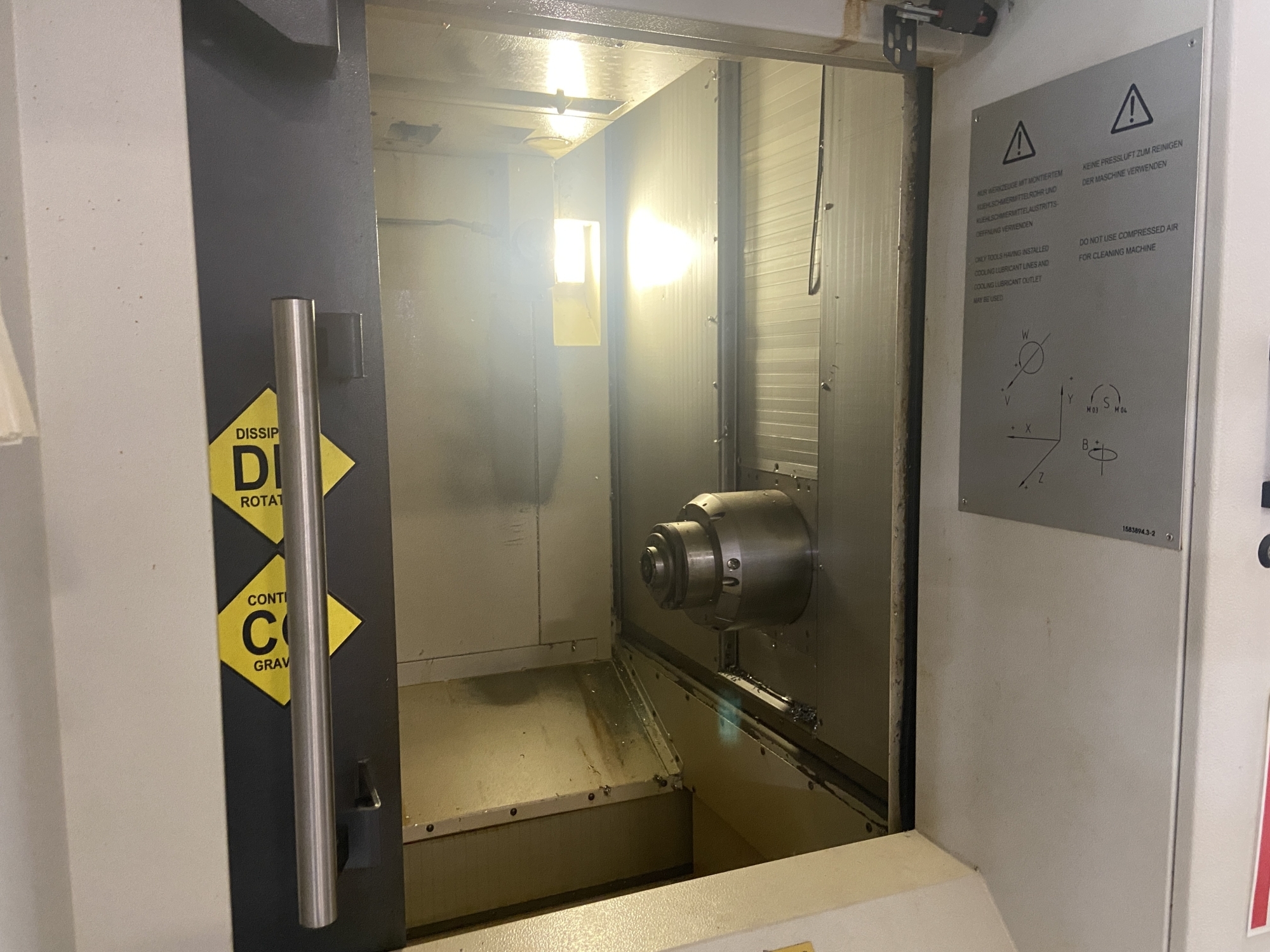

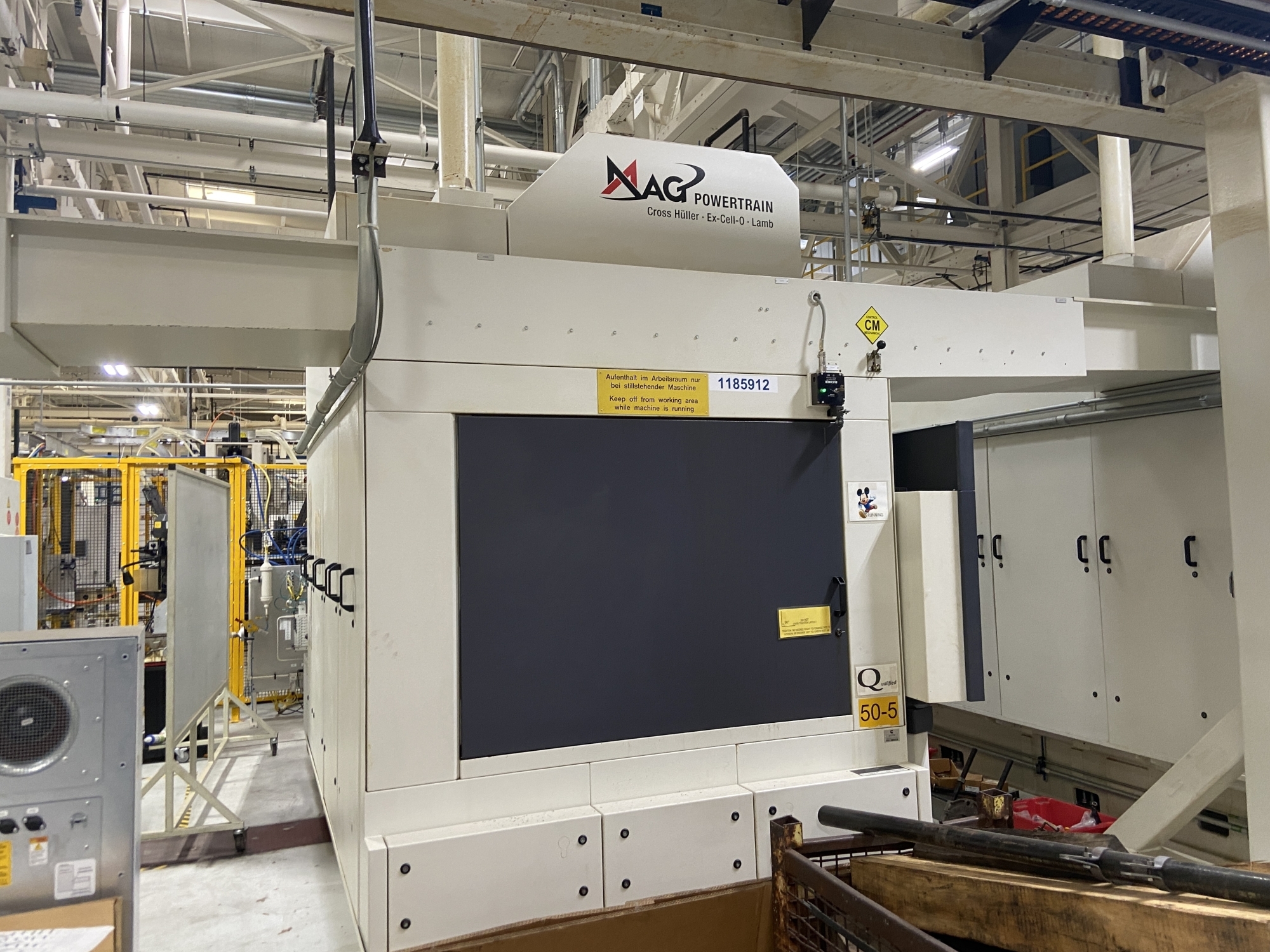

- (13) MAG XS321 CNC Horizontal Machining Centers: 2008 MAG XS321 (4) Axis Horizontal Machining Center, Rexroth IndraControl V CNC Controller, HSK-63 Spindle Taper, 16,000 RPM, 0.001 Deg B-Axis, 40 Tool Magazine, HP Coolant Thru Spindle, Tool Break Detection, Hydraulic Clamping, 800mm X-Axis, 710mm Y-Axis, 800mm Z-Axis, 500mm x 525mm Pallet, Overhead Gantry Load
- (5) MAG XS321 Heavy Machining CNC Horizontal Machining Centers: 2008 MAG XS321 (4) Axis Horizontal Machining Center, Rexroth IndraControl V CNC Controller, HSK-100 Spindle Taper, Hi-Torque 6,000 RPM Spindle, High Power X & Z Drive Units, 0.001 Deg B-Axis, 40 Tool Magazine, HP Coolant Thru Spindle, Hydraulic Clamping, 800mm X-Axis, 710mm Y-Axis, 800mm Z-Axis, 500mm x 525mm Pallet, Overhead Gantry Load. Note units disconnected from power.
Part Handling & Conveyance

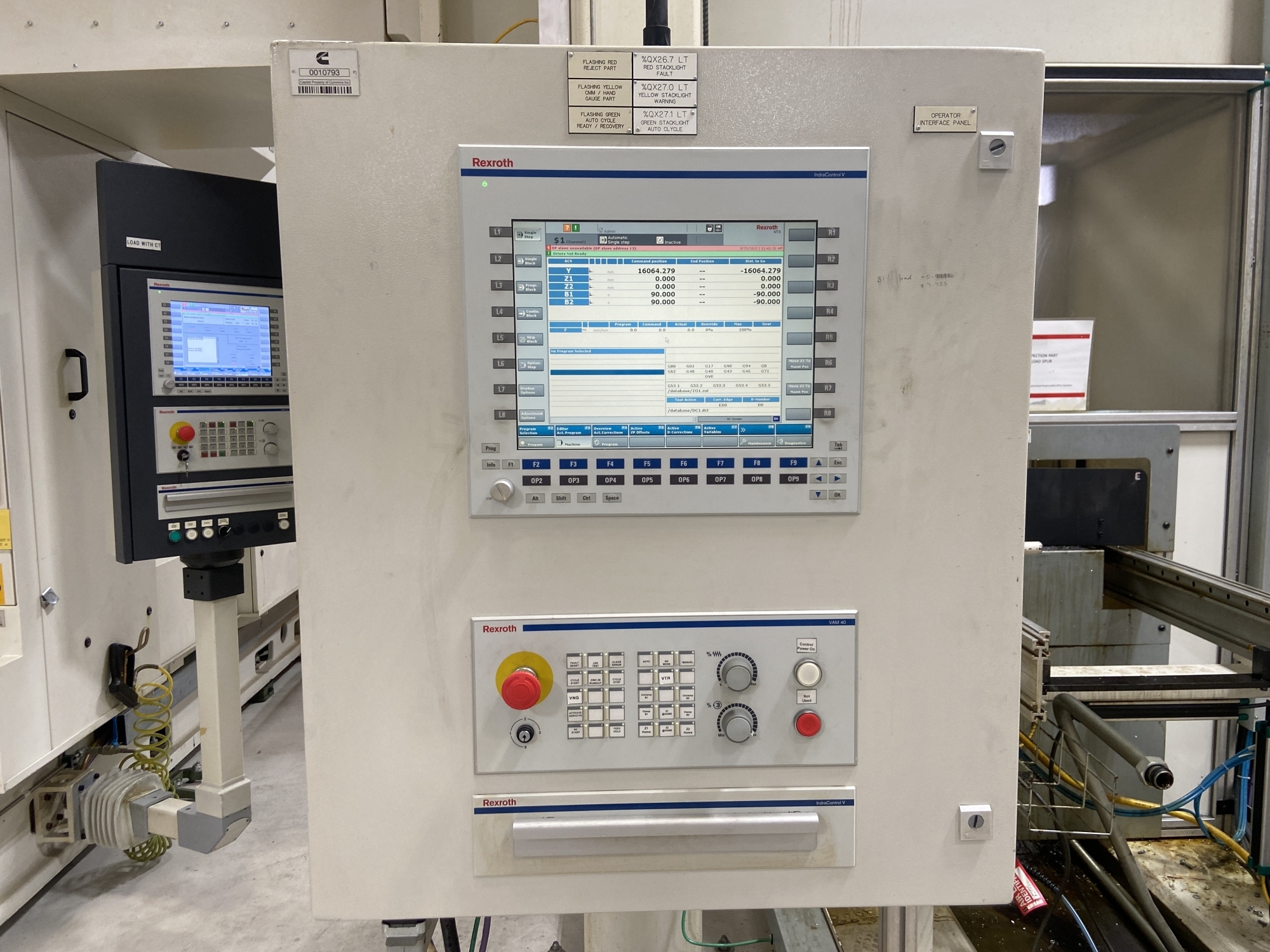

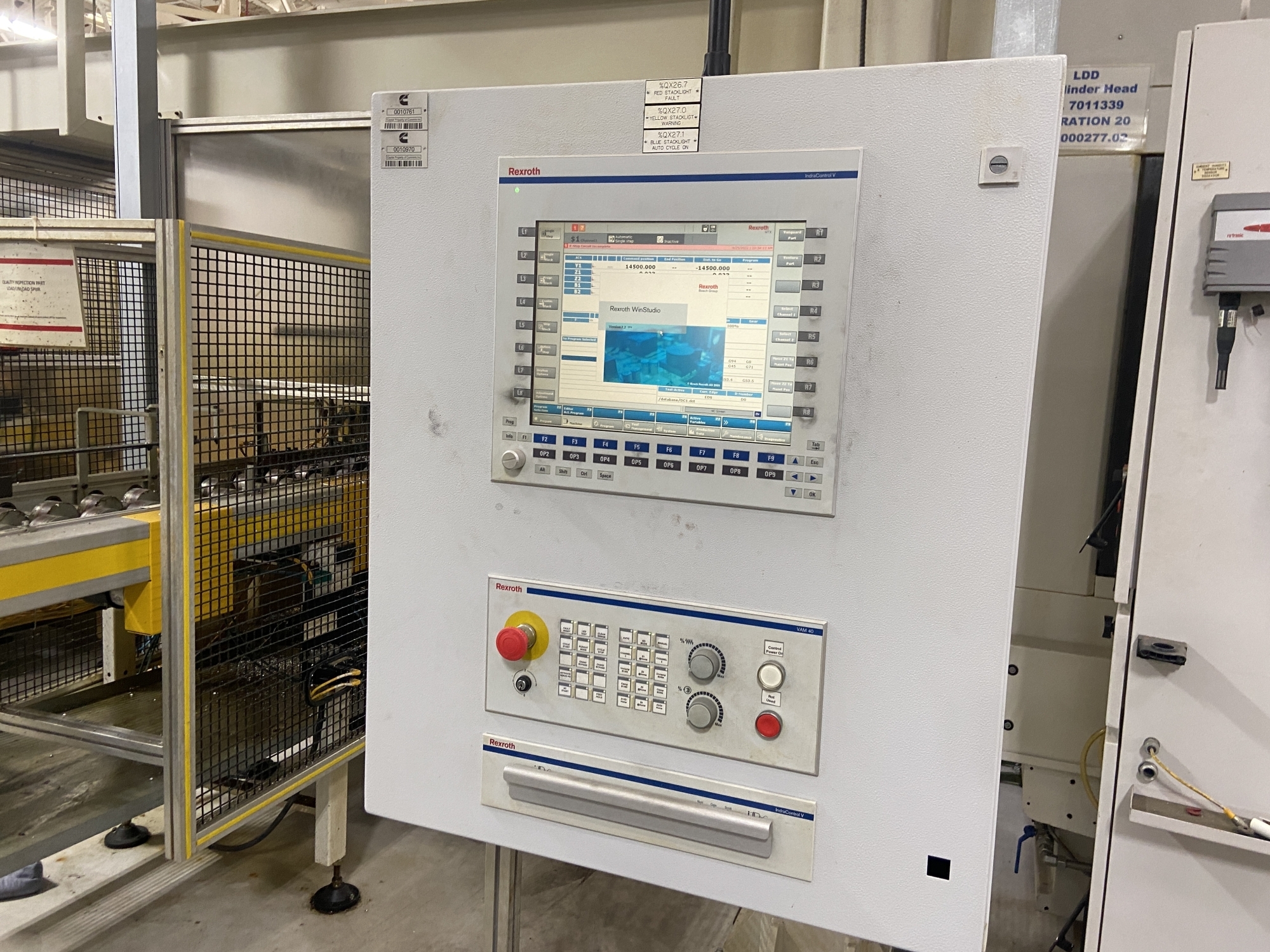

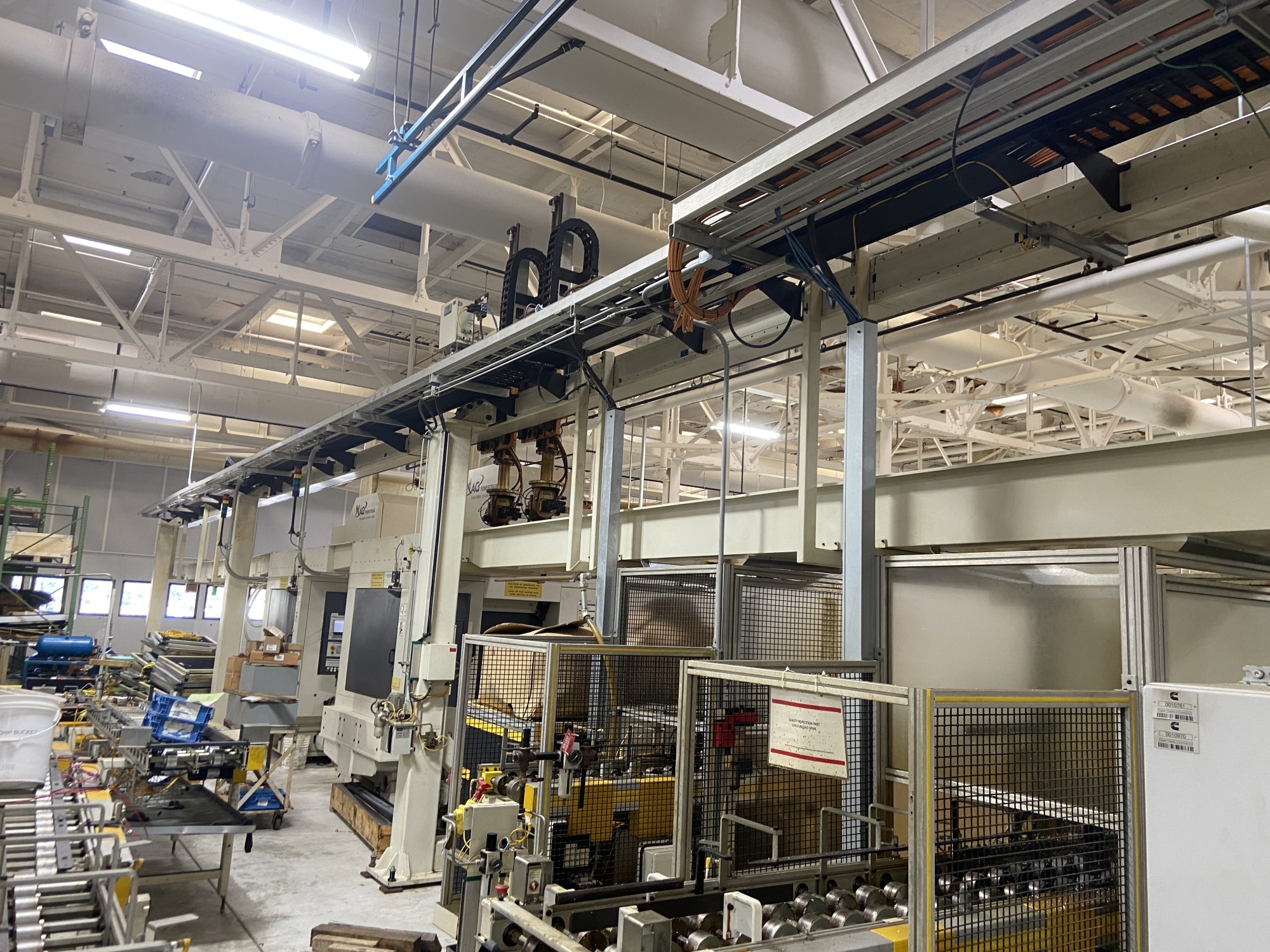

- (3) GUDEL Overhead Gantry Systems: Bosch Rexroth IndraV Controller, Durr Integration, Multiple Manipulator Arm Setups
