Negotiated Sale

Komatsu Mining West Milwaukee

Assets Surplus to Ongoing Operations of Major Mining Manufacturer

Sale Type: Private Treaty
Date: Ongoing
Preview: By Appointment
Address: 4400 W. National Ave. Milwaukee, WI
Contact Name: Nick Gibbs
Email: Email Me
Description: Large Capacity Gear Machinery, CNC Machine Tools, Heat Treat, Welding Equipment, Bridge & Jib Cranes

AUCTION DETAILS

Sold in Partnership With:

AVAILABLE ASSETS

Gear Machines, Keyseaters, Broaches, Hob Sharpener

  • Gleason-Pfauter P1200 CNC Gear Hobber / Gasher: S/N 29668 (New 2007), 47" Table Diameter, 11.8" Table Bore, 36" Tailstock Travel, 47.25" Max Gear Diameter, 20/30 Module, +30/-45 Deg Hob Head Swivel Range, with Siemens Sinumerik 840D CNC Control, Coolant System, Chip Conveyor, Arbor, Arbor Support, Swing Away Tailstock w/ Center, Milling Heads, Pendant Controller, Stacklight, Operator Platform
  • Gleason-Pfauter P1200G CNC Gear Grinder: S/N 29401 (New 2006), 49" Max Gear Diameter, 35 Max Module, 51" Axial Travel, with Tailstock, Grinding Spindle, Dresser, Work Spindle, Hoffman Coolant System, Hydraulic System (Note: Parts Machine)

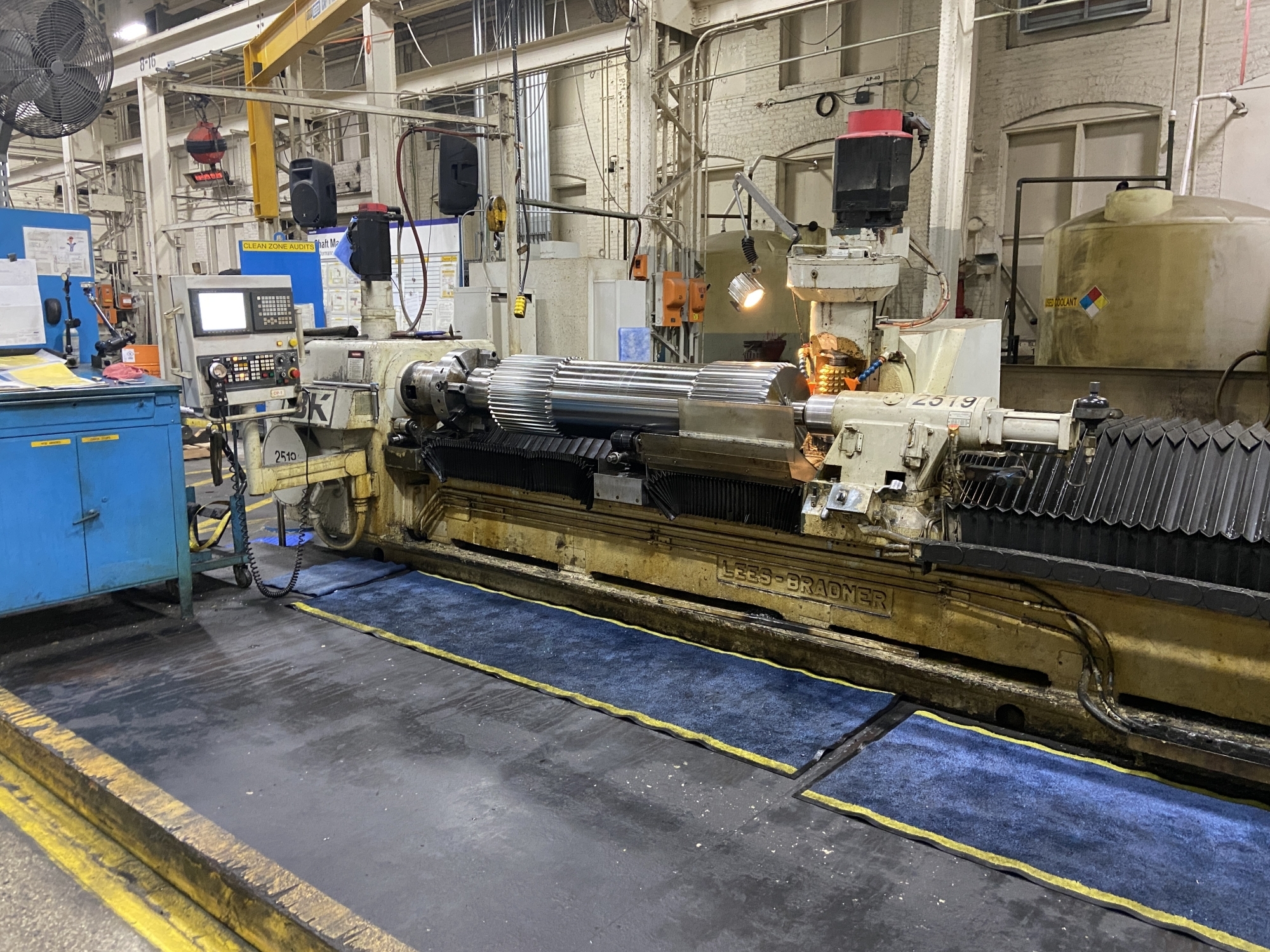

  • Bourn & Koch CNC Spline Hobber: S/N LERR27266 6238503 (New 2003), 22" Swing x 236 Centers, 5" Through Hole, with Fanuc 16iM CNC Control, 18" 4-Jaw Chuck, (2) Steady Rests, Chip Conveyor, Tailstock w/ Center, Pendant Controller

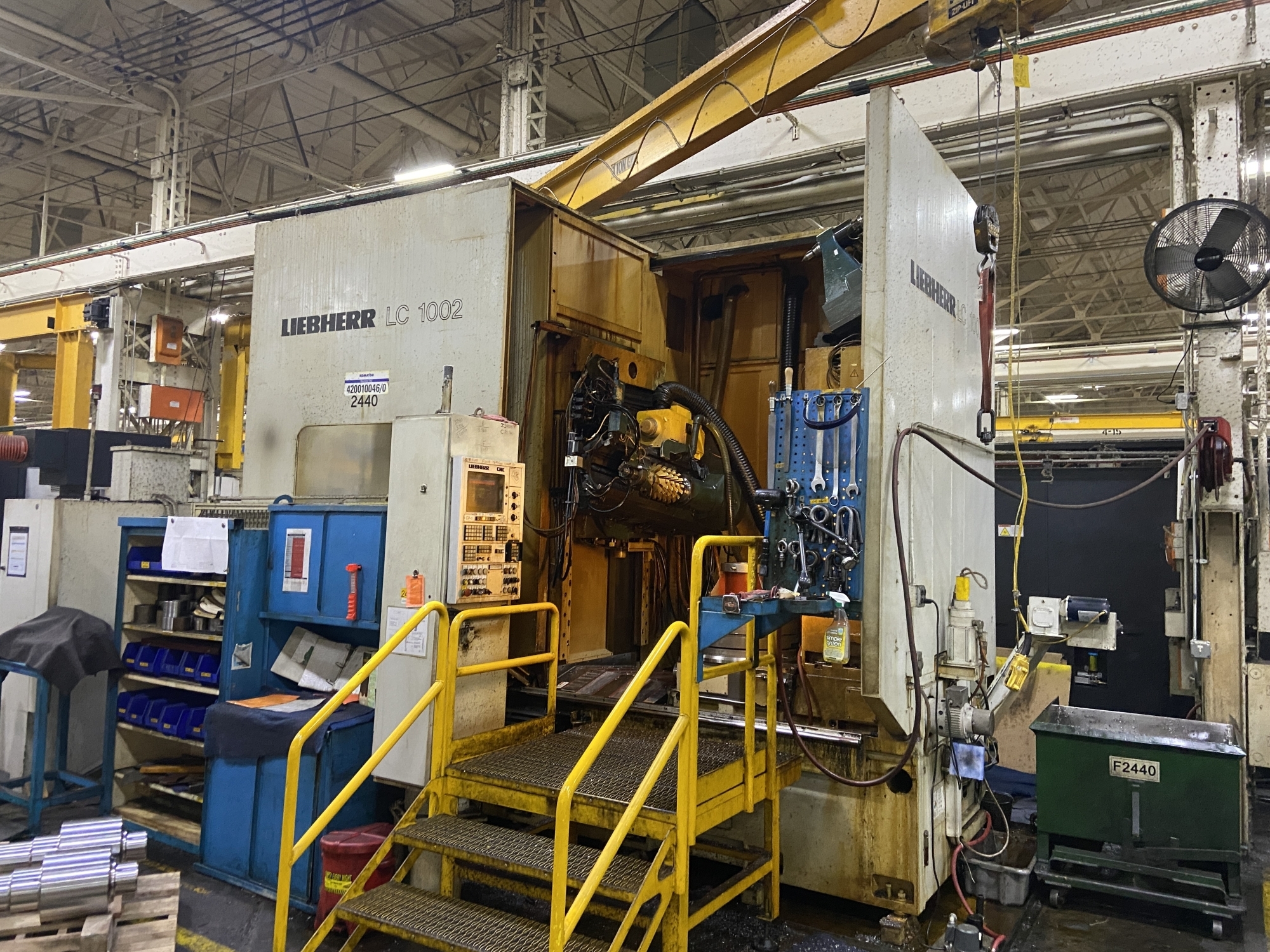

  • Liebherr LC 1002 6-Axis CNC Gear Hobber: S/N 1103/3 (New 1991), 28" Table Diameter, 68" Column, 39.4" Max Pitch Diameter, 9.44" Hob Diameter, 11.8" Max Hob Length, 1.5 DP, 16 Module, with Liebherr CNC Control, Extended Z-Travel, Flip Down Tailstock, Coolant System, Arbor, Arbor Support

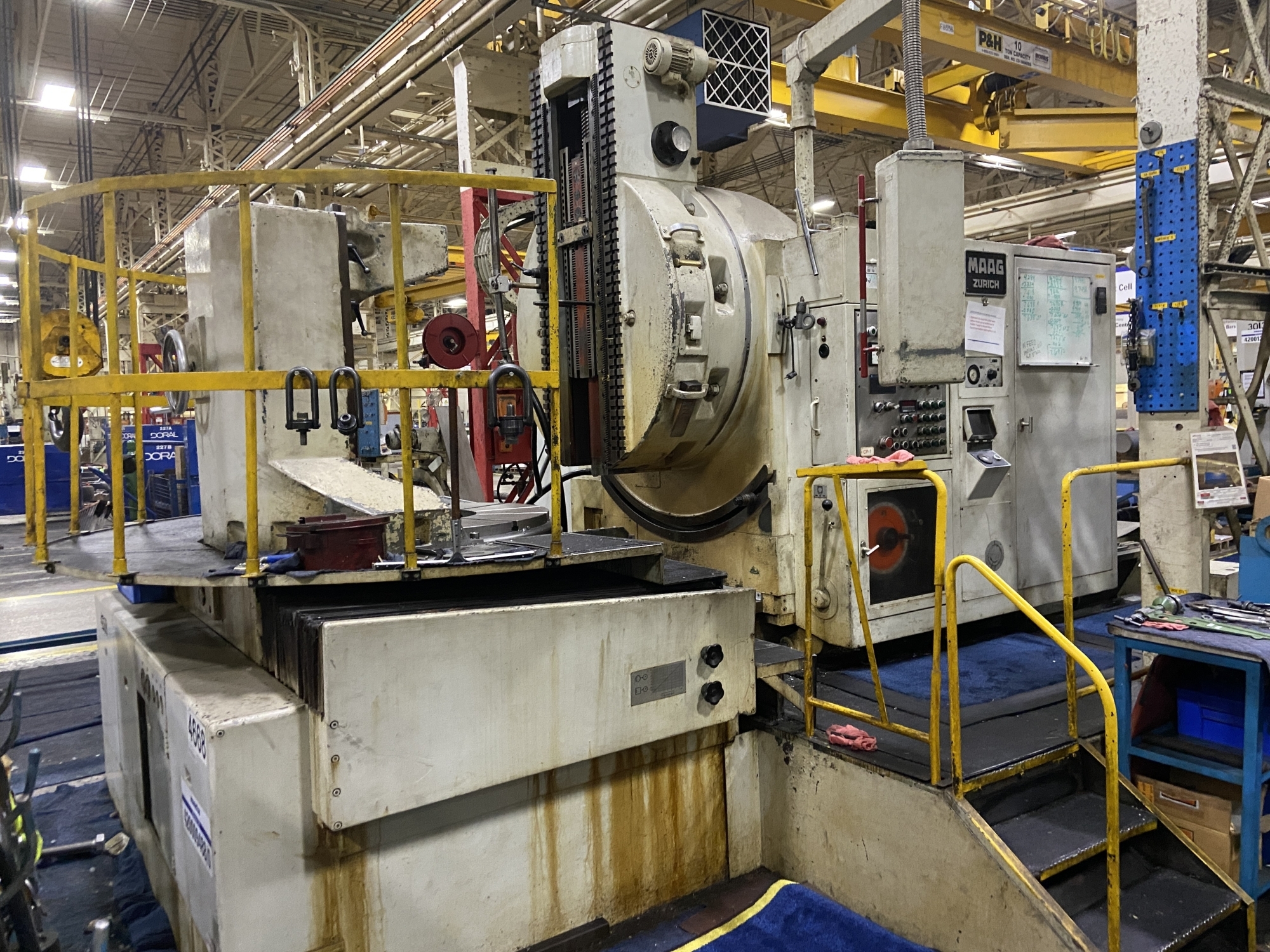

  • MAAG SH450/500S Gear Shaper: S/N 7636, 186" Diameter Sub Table, 69" Table Diameter, 50 Module, 27" Stroke, 23.5" Table Bore, with Updated Controller, B & R Panel PC Screen, Pendant Control, Change Gears, Transformer, Chip Conveyor

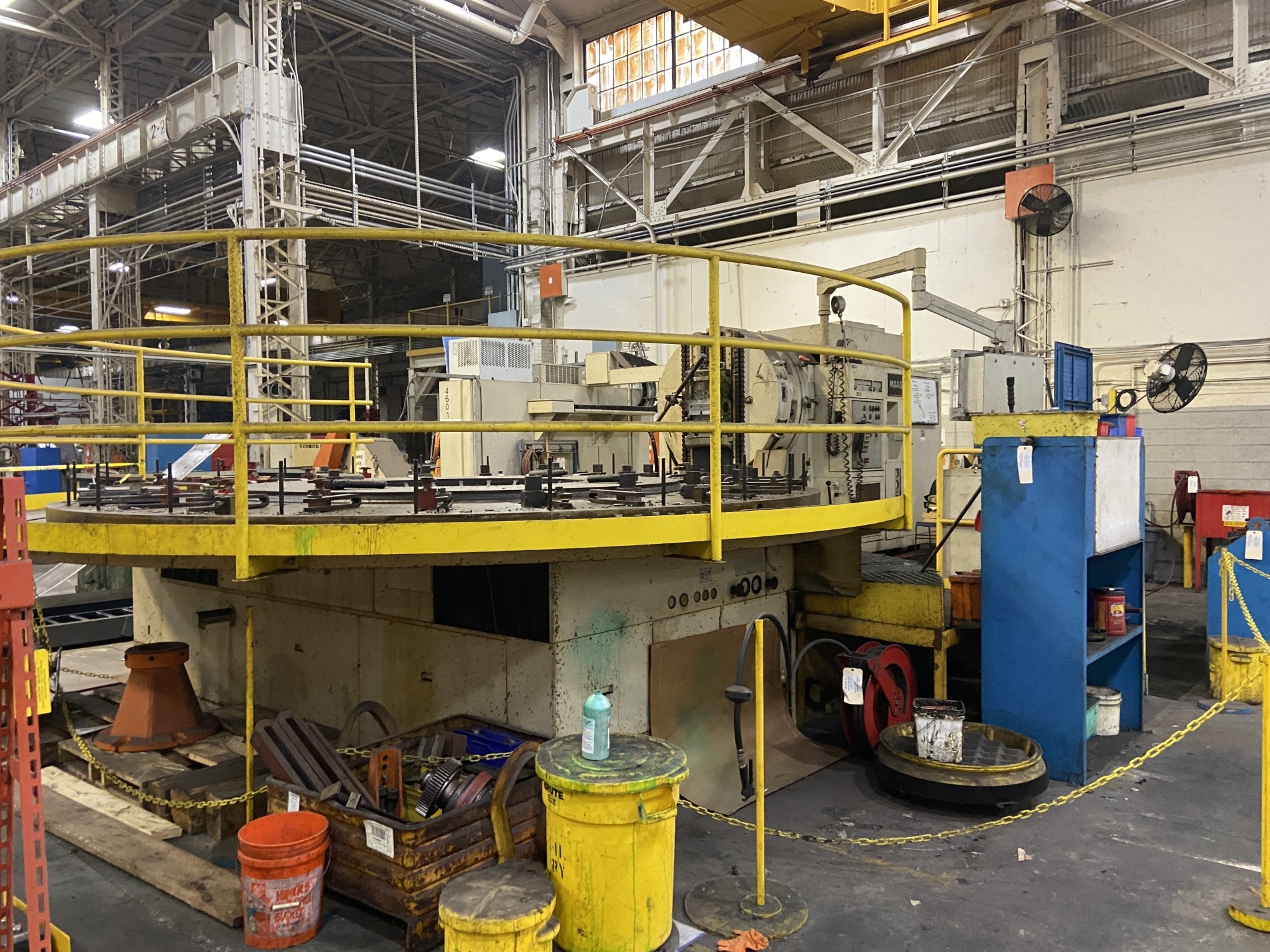

  • MAAG SH250/300S Gear Shaper: S/N 6576, 121" Max External Gear Diameter, 129" Max Internal Gear Diameter, 16.5" Table Bore Diameter, 27.5" Max Stroke, with Steady Rest w/ Top Center, 43" T-Slotted Table, Transformer, Chip Conveyor, Change Gears, Pendant Control
  • MAAG SH250/300S Gear Shaper: S/N 7667, 121" Max External Gear Diameter, 129" Max Internal Gear Diameter, 16.5" Table Bore Diameter, 27.5" Max Stroke, with Steady Rest w/ Top Center, 43" T-Slotted Table, Transformer, Chip Conveyor, Change Gears, Pendant Control
  • Liebherr ET1250 Internal Gear Gasher: S/N FN140512 (New 1979), 43" Diameter T-Slotted Table, Climb and Conventional Hobbing, Hydraulic System, Chip Conveyor, Mist Collector, Transformer
  • Fellows 36Z-13 Gear Shaper: S/N 34678 (New 1975), 22" Riser, 13" Extended Stroke, Spur Guide, Trabon Lube, Coolant Pump, Change Gears, 2-Cut Cycle, 460/3/60
  • Ingersoll Gear Gasher: S/N NA, 42" T-Slotted Table, 45" Axial Travel, 160" Maximum Diameter, (2) 24" Cutters, Pendant Control, Hydraulic System, Chip Conveyor, Extra Cutters
  • Mitts & Merrill Fromag E CNC 150/1800 Keyseater: S/N 53867 (New 1993), 90" Column Travel, 11.6" Tool Post, 70.86" Keyway Length, 15.75" to 63" Range of Bores, 112" Table Diameter, with Fromag Commander EL30-4 CNC Control
  • Mitts & Merrill Fromag E CNC 150/1250 Keyseater: S/N 56722 (New 1990), 90" Column Travel, 7" Tool Post, 59" Keyway Length, 9.84" to 29.5" Range of Bores, 60" Table Diameter, with Fromag Commander EL30-4 CNC Control, Chip Conveyor
  • Klingelnberg AGW 302 Broach Sharpener: S/N 3675 (New 1978; Rebuilt 2007), 12" Max Hob Diameter, 24" Max Centers, Allen Bradley Panelview 600, Full Enclosure, Tailstock w/ Center, Stacklight, Mist Collector, Coolant System, Extra Arbors, Index Plates, Change Gears, Rebuilt by North East Technologies in 2007
  • Oil Gear Horizontal Broach: S/N 176883, 72" Stroke, Coolant Pump, Puller, Hydraulic System
  • Colonial HAS75-90 75-Ton Horizontal Broach: S/N H5772-0169, 90" Stroke, Retriever, Coolant Pump, Puller

Machine Tools

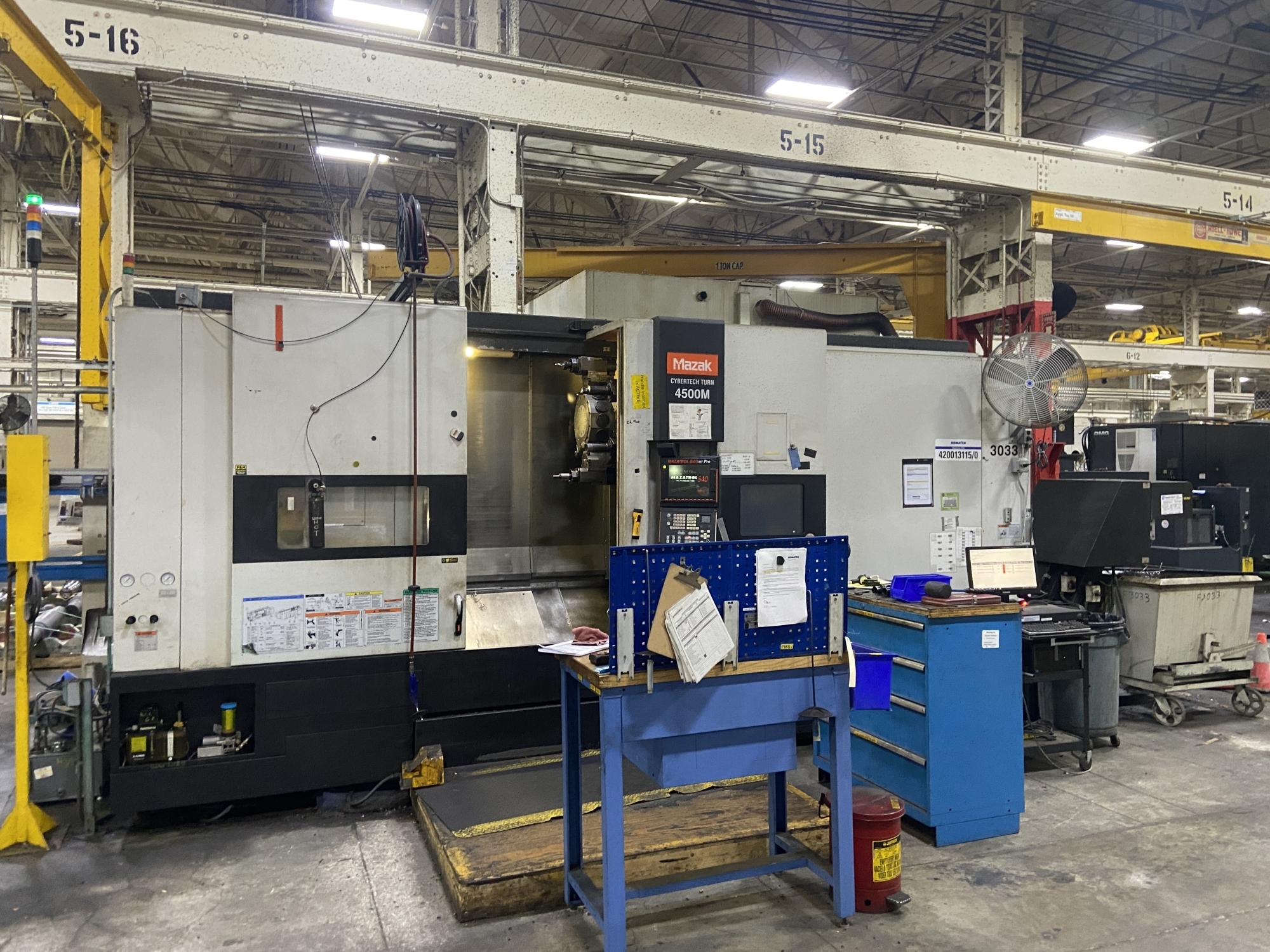

  • Mazak Cybertech Turn 4500M CNC Milling & Turning Center: S/N 193533 (New 2007), 33.9" Max Swing, 80" Max Machining Length, with Live Tooling, 12-Position Turret, Mazatrol 640MT Pro CNC Control, SMW Autoblok 20" 3-Jaw Chuck, SMW Autoblok Programmable Steady Rest, Tailstock w/ Center, High-Pressure Coolant System, Chip Conveyor
  • Mazak Integrex E-410H CNC Milling & Turning Center: S/N 1840513 (New 2007), 24" Max Swing, 120" Max Machining Length, with Mazatrol 640M Pro CNC Control, 40-Position ATC, 15" 3-Jaw Chuck, Tailstock w/ Center, SMW Autoblok Programmable Steady Rest, Renishaw Probe, High-Pressure Coolant System, Chip Conveyor, Chiller

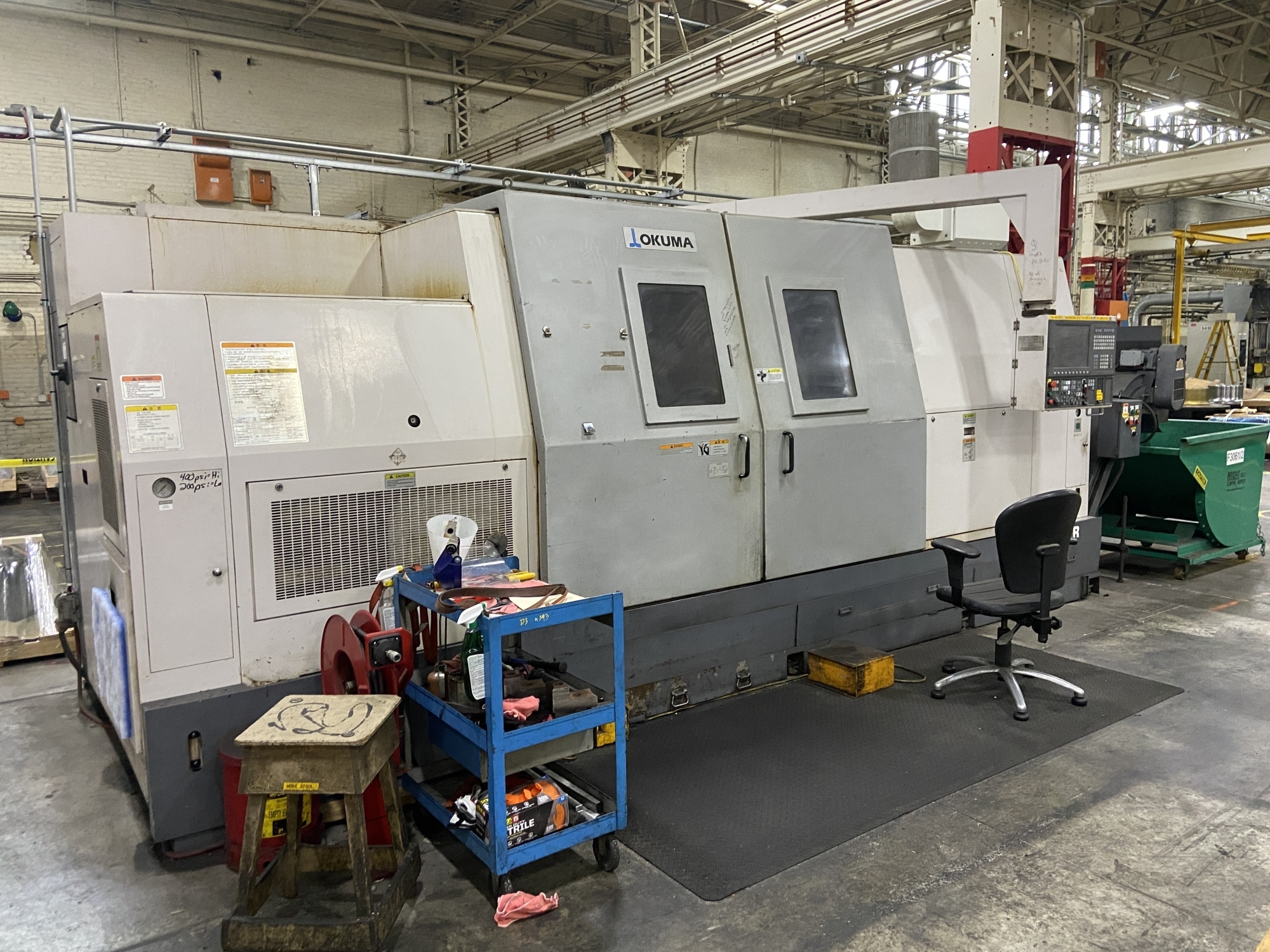

  • Okuma LB45II-M-R CNC Milling & Turning Center: S/N 138480 (New 2008), Okuma OS-P200L CNC Control

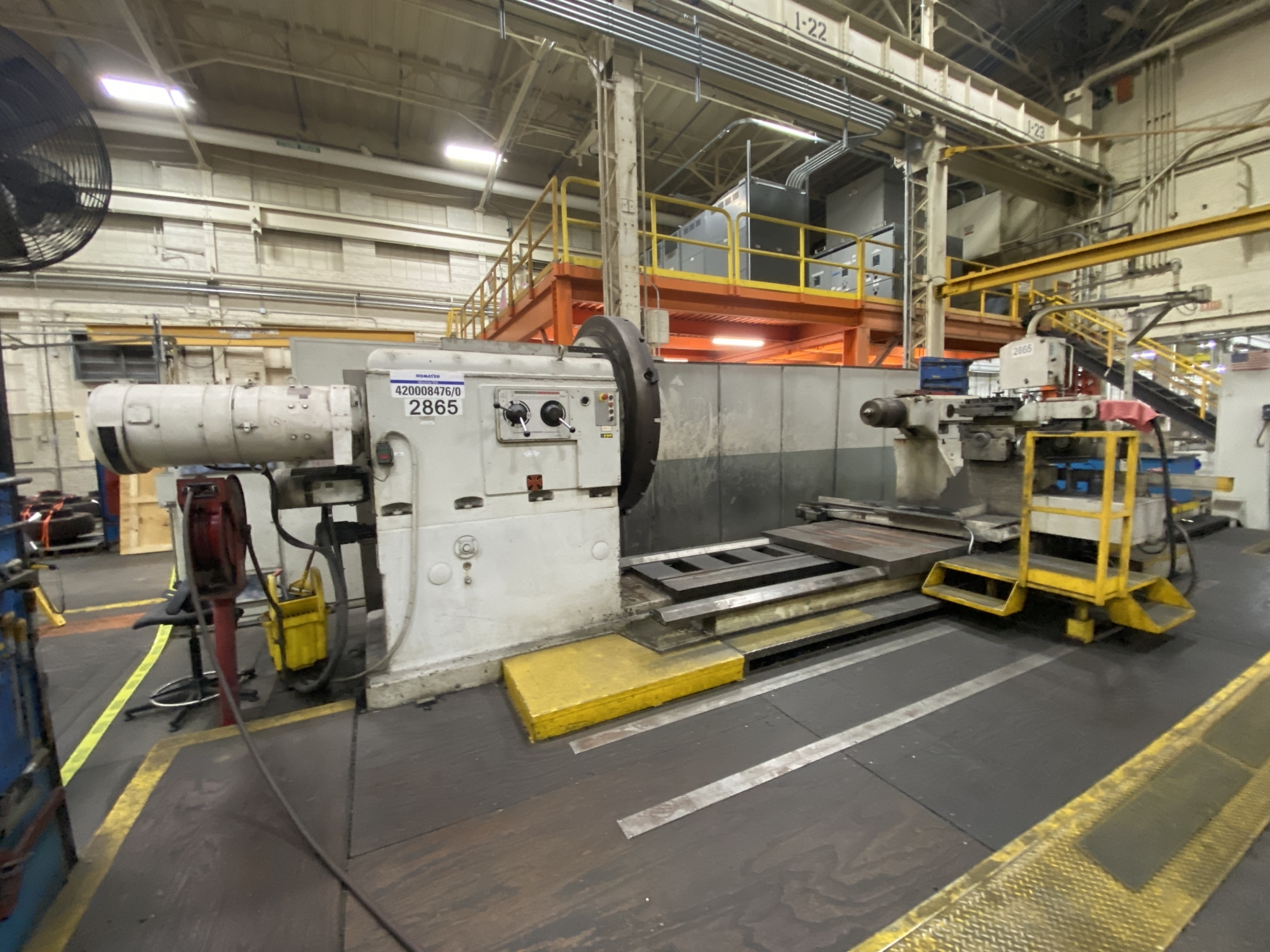

  • Ravensburg H85 Flat Bed Drum Lathe: S/N 8907, 100" Swing Over Bed, 80" Swing Over Crosslide, 64" Faceplate w/ Center 4-Jaw, Tailstock with Center, Schneider Electric PLC, Newall Digital Readout, Chip Conveyor, Tool Post

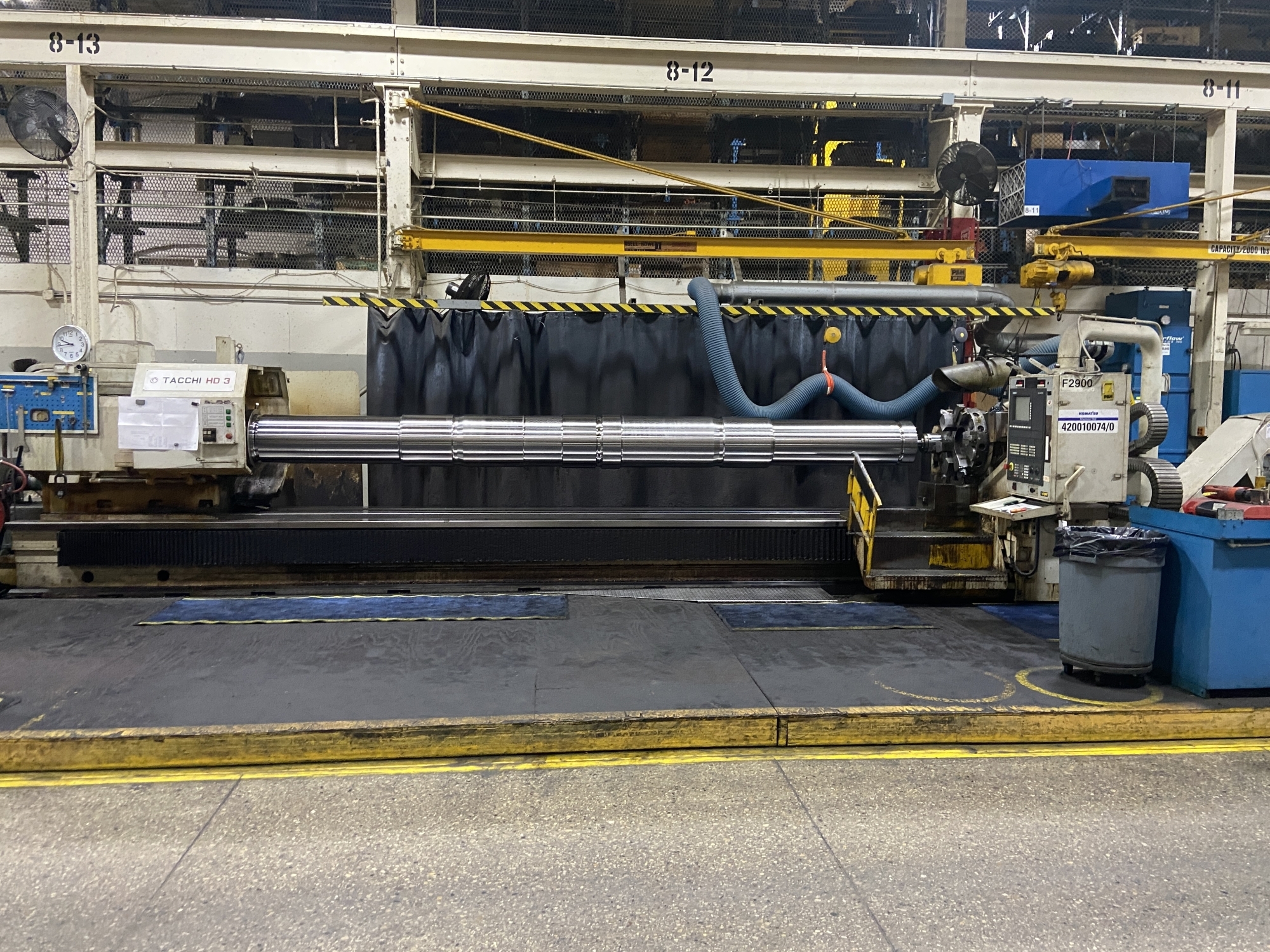

  • Tacchi HD3 CNC Lathe: S/N 6757 (New 2001), 48" Swing x 253" Centers, with Siemens 840C CNC Control, Tailstock w/ Center, 6-Position Turret, 3-Way Bed, Operator Saddle, 30" & 21" Steady Rests, 36" Face Plate w/ 4-Jaw Chuck, Chip Conveyor

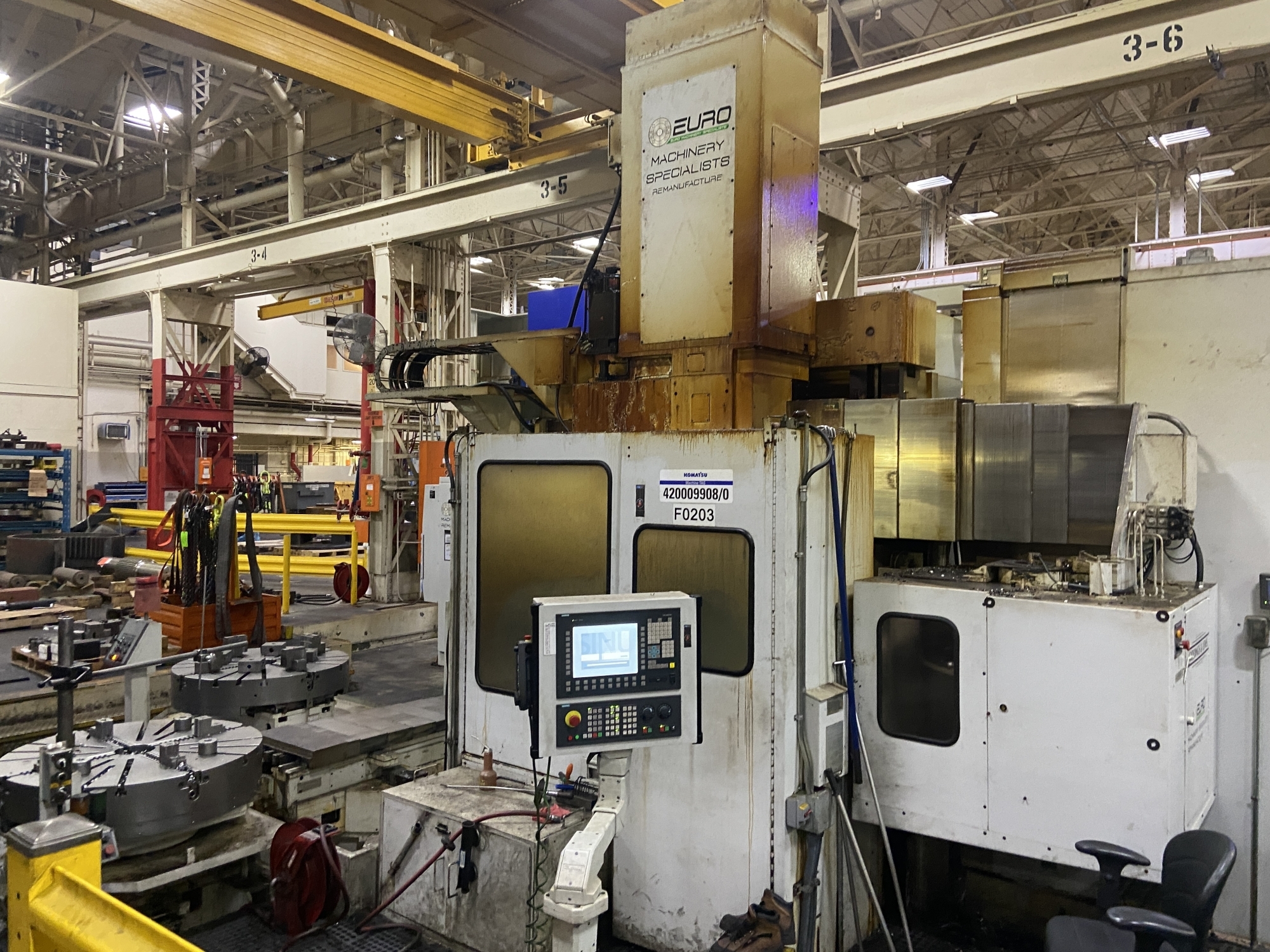

  • Giddings & Lewis VTMC-1200 CNC Vertical Turning Center (Remanufactured by Euro Machinery Specialists): S/N 512-328-92, (2) 48" Diameter Pallets, with Siemens Sinumerik 840D CNC Control, 45-Position ATC, Pallet Changer, Heidenhein DRO, Renishaw Probe, Chip Conveyor, Coolant System, Pendant Control, Coolant Through Spindle

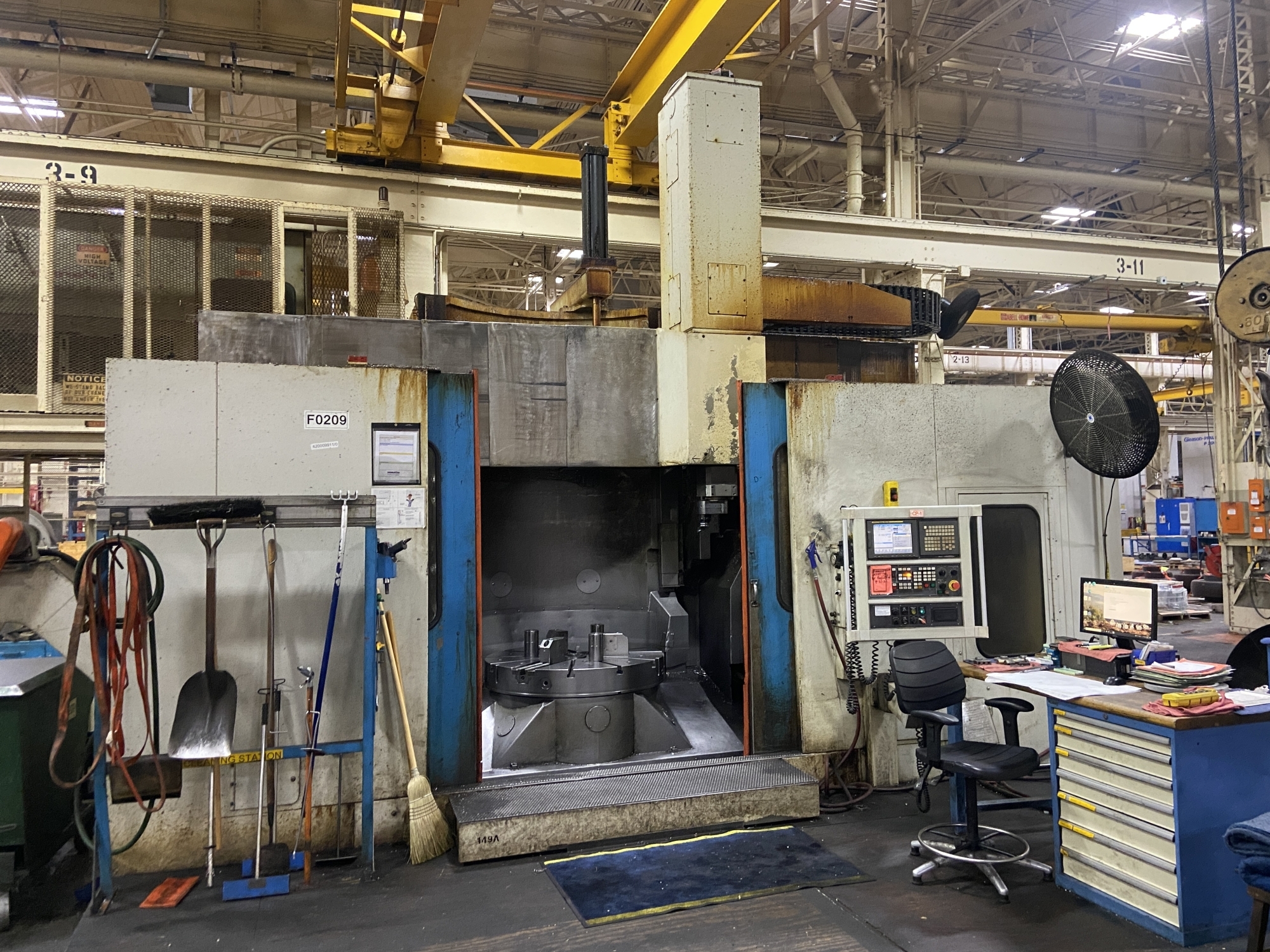

  • Giddings & Lewis VTC-1250 CNC Vertical Turning Center: S/N NA, 48" 3-Jaw Table, with Fanuc 160i-TB CNC Control, 20-Position ATC, Coolant System, Chip Conveyor, Hydraulic System

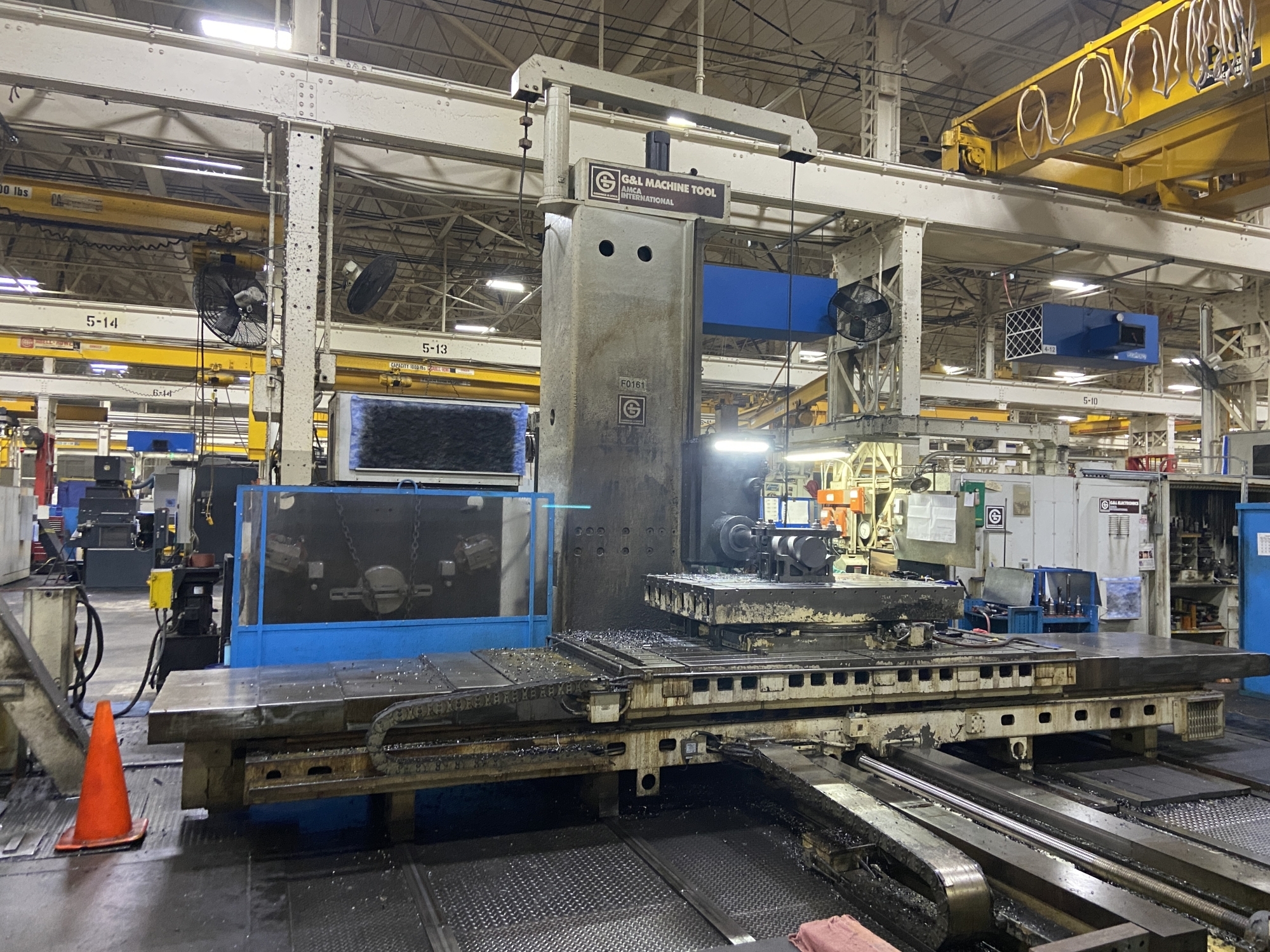

  • Giddings & Lewis PC-40 4" CNC Horizontal Boring Mill: S/N 450-1133, 4" Spindle, 76" x 48" Table, Travels: X-116"; Y-72"; Z-76", W-30", with Giddings & Lewis CNC Control, Chip Conveyor, Flood Coolant, Telescoping Way Covers
  • Giddings & Lewis G50 5" CNC Horizontal Boring Mill: S/N 450-1199, 5" Spindle, 122" x 60" Table, 72" x 48" Indexing Rotary Table, Travels: X-96"; Y-106"; Z-36"; W-50", with Giddings & Lewis CNC Control, Chip Conveyor, Coolant System, Chiller

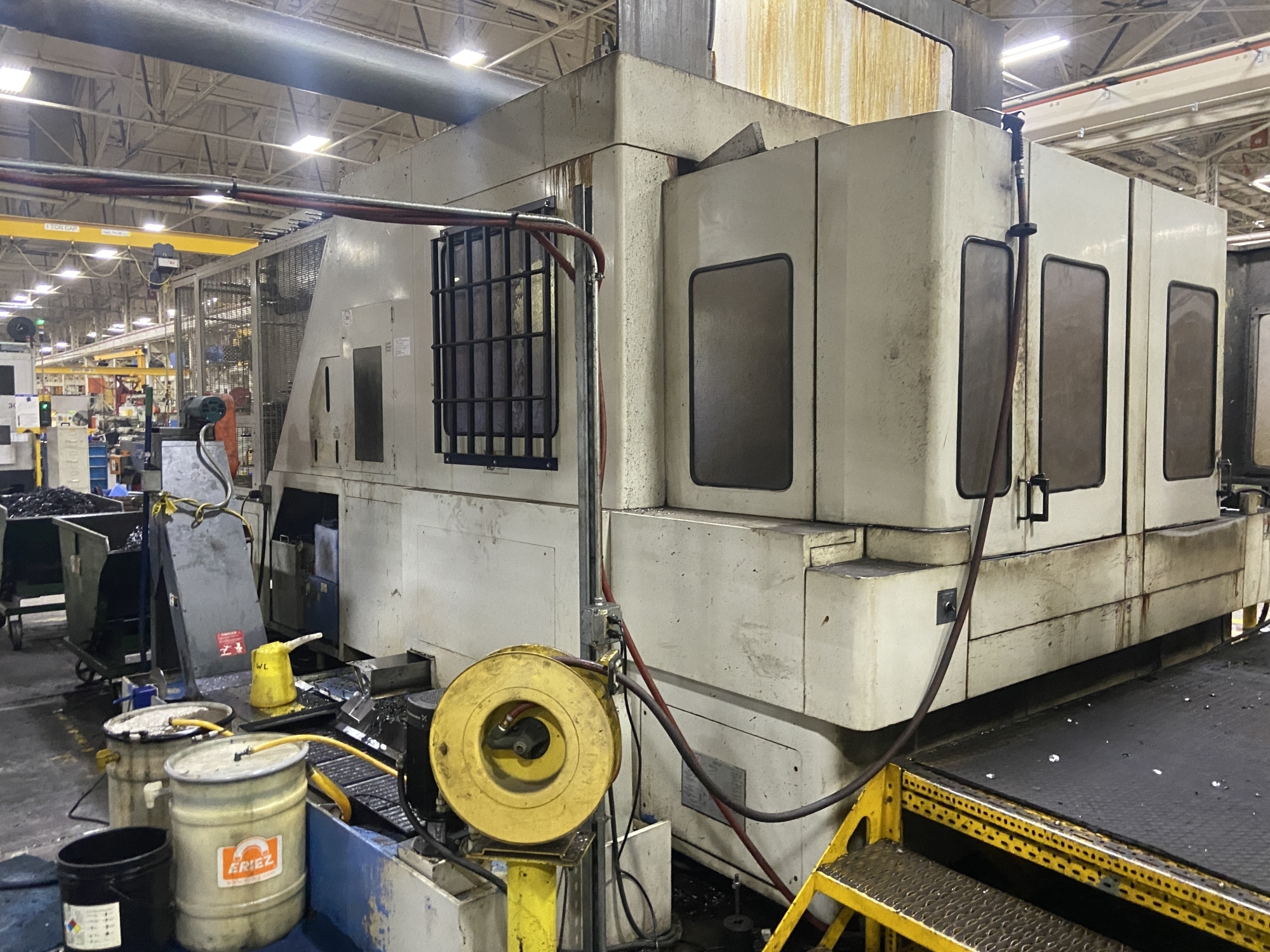

  • Mazak FH-880 CNC Horizontal Machining Center: S/N 131421, (2) 31.5" x 31.5" Pallets, 1-Degree Pallet Indexing, Travels: X-51.18"; Y-43.31"; Z-39.37", CAT 50 Taper, with Mazatrol M Plus CNC Control, 80-Position ATC, Chip Conveyor, Coolant System

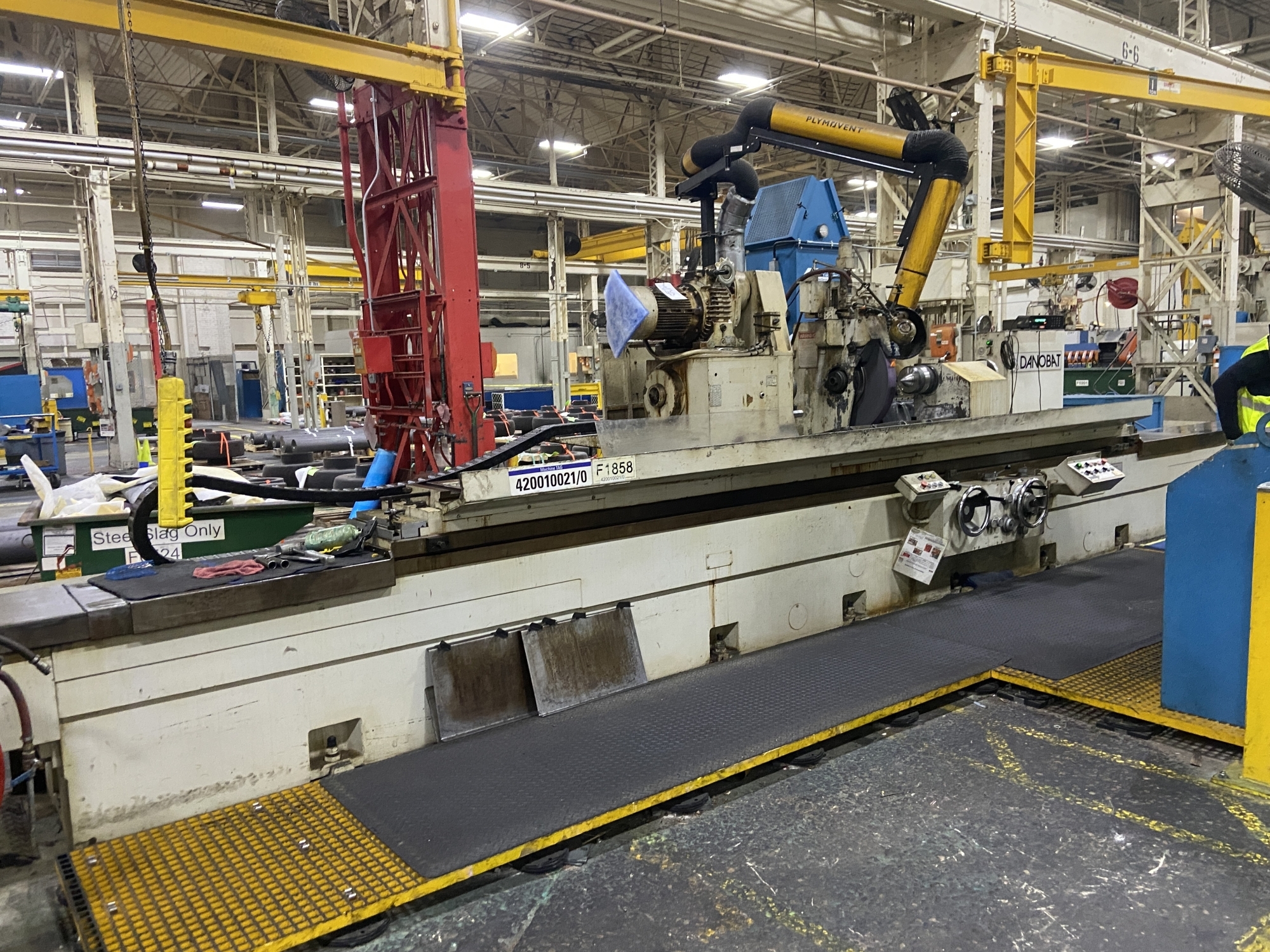

  • Danobat RU 4000-P Cylindrical Grinder: S/N 185, 26" Swing x 157" Centers, 30" Diameter x 4" Wide Wheel, with Headstock w/ Center, Tailstock w/ Center, Over Wheel Dresser, Variable Speed, Digital Readout, Worklight, Plunge Feed, Rapid Advance, Coolant System w/ Paper Filtration
  • Bryant Internal Grinder: S/N R-15617, 0.375" to 12" Grinding Stroke, 90" Extended Bridge, with Tilt Down Dresser, Grinding Spindle, 20" 3-Jaw Chuck, 10" Steady Rest, Coolant System, Hydraulic System, Worklight

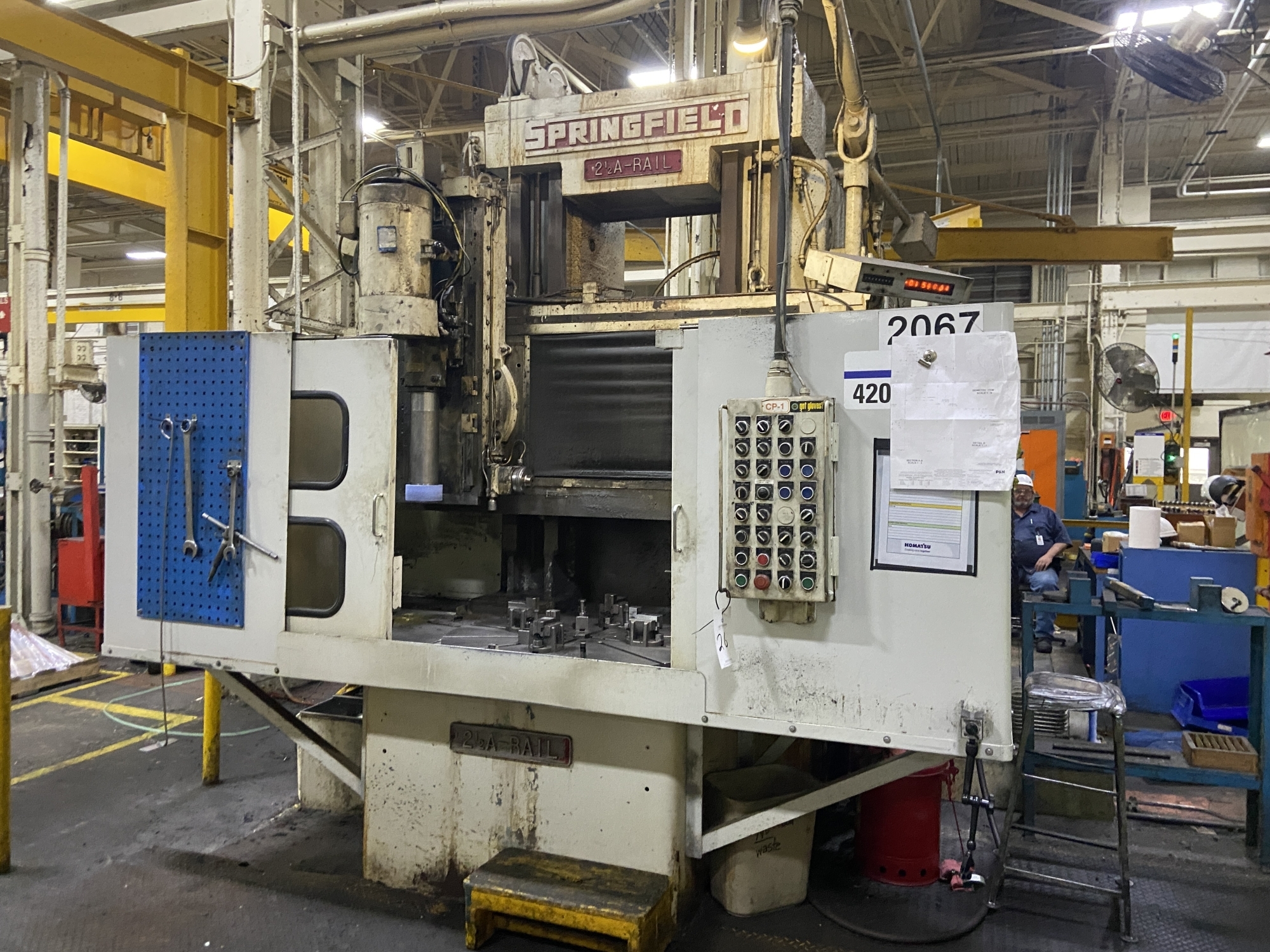

  • Springfield 2-1/2A-Rail ID Grinder: S/N 74048 (New 1977), 42" Table, , 36" Vertical Travel, with ID Spindle, Dresser, Pendant Control, Digital Readout

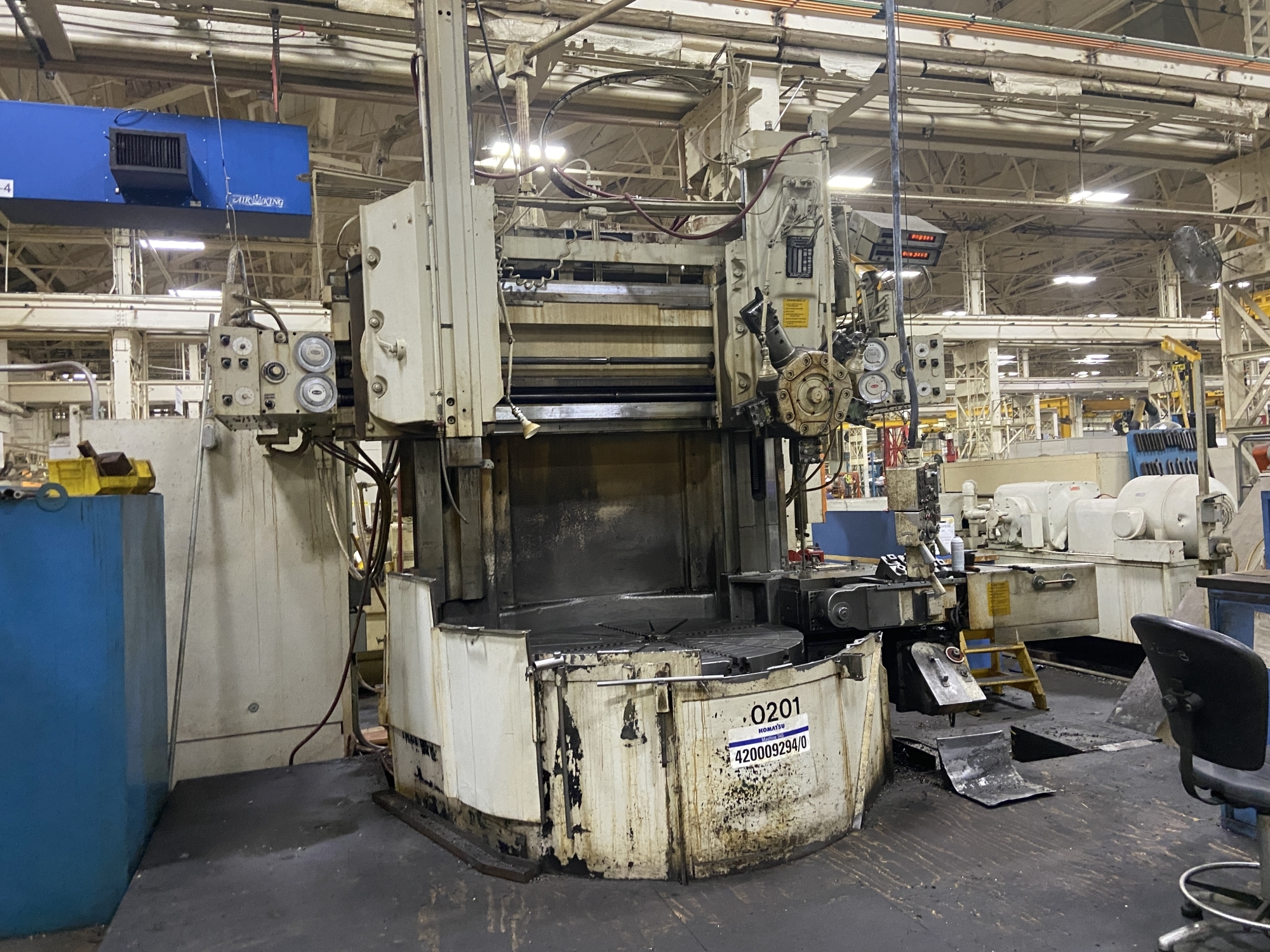

  • Bullard Dynatrol 56" Vertical Turret Lathe: S/N 31784 (New 1967), 36" Under Rail, with Side & Ram Heads, 5-Position Turret, 56" Table 4-Jaw, 75-HP Motor, Chip Conveyor, Hydraulic System, Coolant System

Heat Treat, Welding, Shot Blast

  • Ransome #1200-P Welding Positioner: S/N 7532906, 120,000-lb
  • 15' x 14' Ransom SHD Welding Manipulator: S/N 6332903, Lincoln Idealarc DC-1000 & Lincoln Idealarc AC-1200 Welder Power Supplies

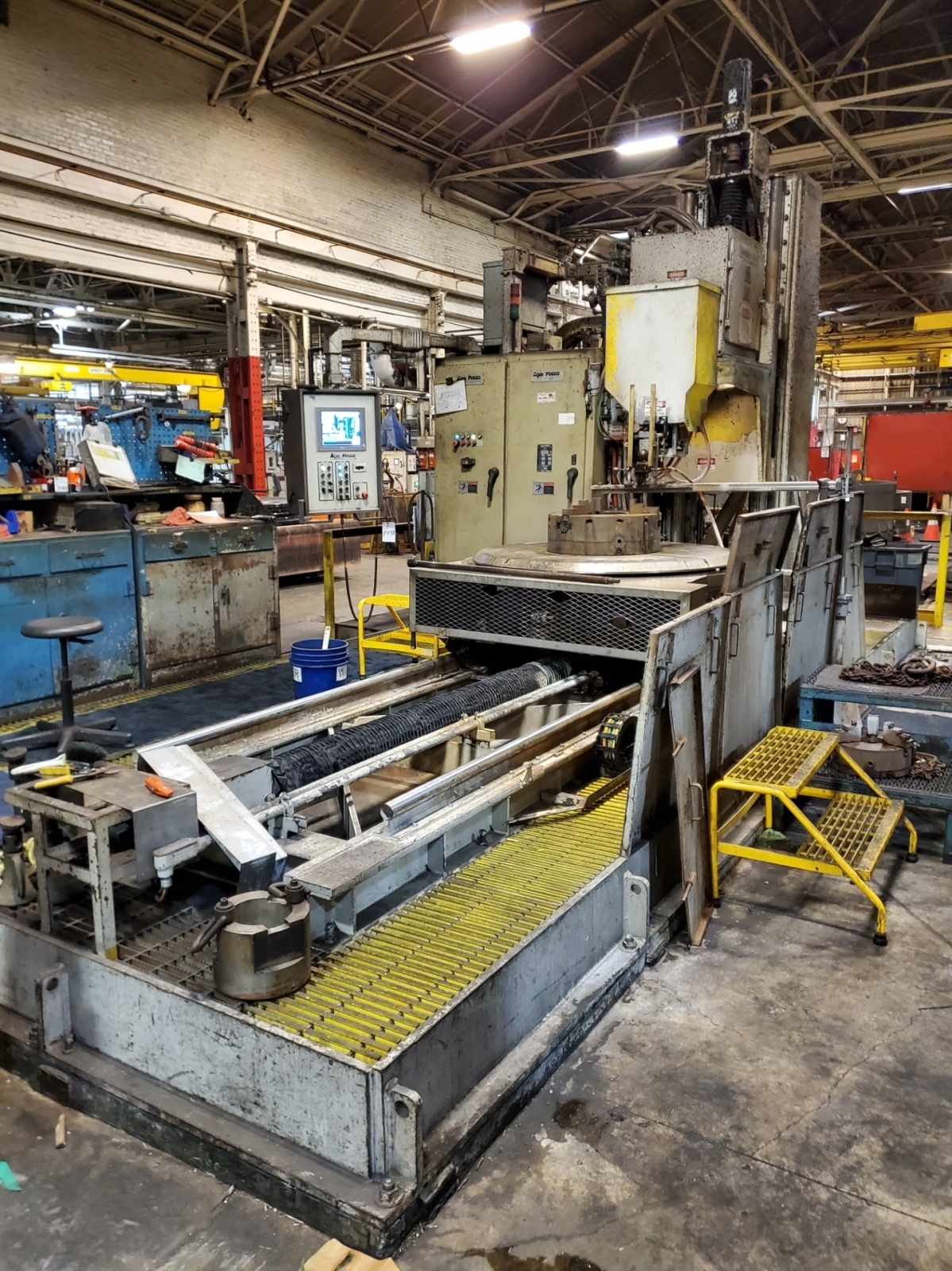

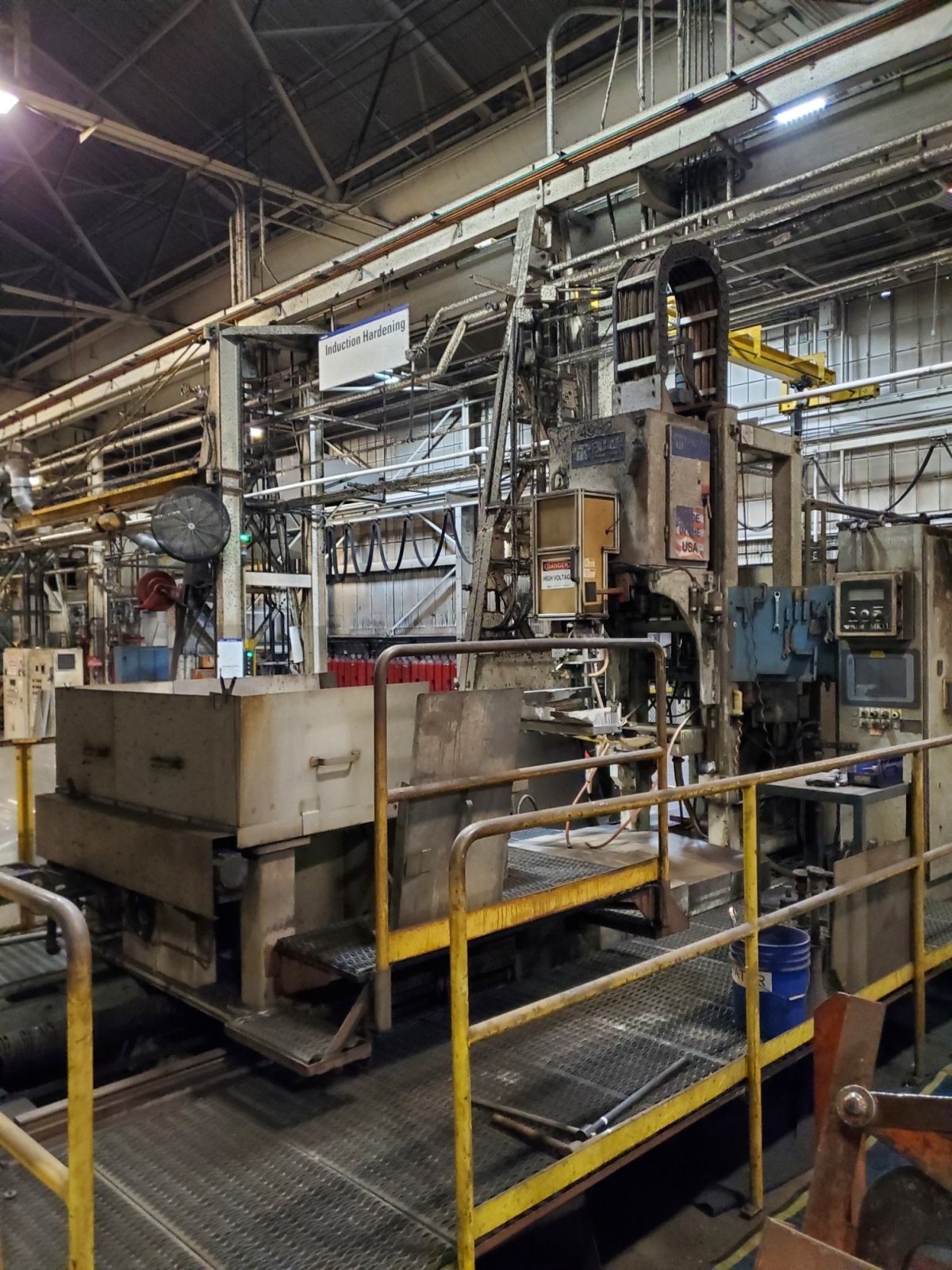

  • Ajax-Tocco Induction Hardener/Scanner: S/N 73-1114-61, 150-KW Pacer S10 Power Supply, 54" Diameter Table w/ 24" 3-Jaw Chuck
  • Pillar Induction Hardener/Scanner: 53" Dimeter Table, MK 11 Power Supply
  • AKO Induction Hardener: S/N M220969, Pillar MK 11 Power Supply

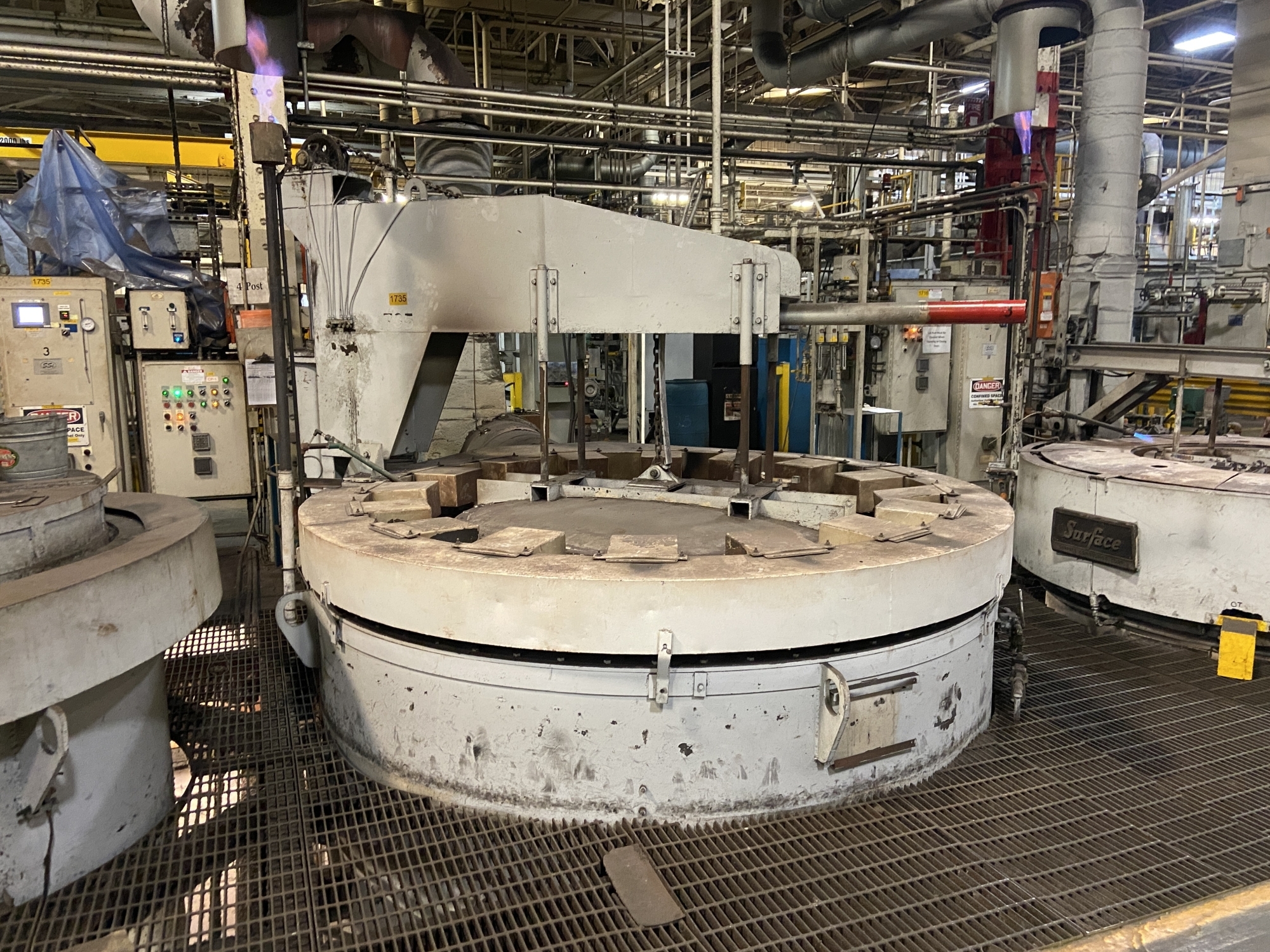

  • Surface Combustion #36-72-36 Prolectric Allcase Gas Furnace: S/N BC-40811-1.SX-11760, Temperature Range: 1400° to 1750°F, Max Load: 7,000-Lb @ 1600°F
  • Surface Combustion #36-72-36 Prolectric Allcase Gas Furnace: S/N BC-41725-01 SX-11422, Temperature Range: 1400° to 1750°F, Max Load: 7,000-Lb @ 1600°F
  • BCP Rotary Shot Blast Machine: S/N 1263, Table Diameter: 120", Table Capacity: 10,000-Lb, (2) Shot Wheels, 460 Volt
  • Engineered Abrasives #4848 Shot Peen: S/N EA190
  • Lindberg Type 6048 Carburizing Pit Furnace: SN 18328
  • Lindberg / SSI Type 6048-VRT Carburizing Pit Furnace: S/N 19897
  • Atmosphere Systems Open Fire Tip Up Gas Furnace: Temperature Range: 950° to 1200°F
  • Atmosphere Systems Open Fire Tip Up Gas Furnace: Temperature Range: 1100° to 1600°F
  • 24 x 60 Salt Bath Furnace, 1650°F
  • 24 x 60 Salt Bath Furnace, 1650°F
  • Oil Quench Tank: Loading/Unloading Transfer Cart For Tip Up Furnaces
