13 Litre CGI Engine Block Flexible Machining System

13 Litre CGI Engine Block Heller Flexible Machining System Surplus to Navistar

Discover a rare opportunity to acquire top-tier CNC machining equipment with the 13 Litre CGI Engine Block Heller Flexible Machining System, surplus to Navistar. This state-of-the-art system, housed in a pristine facility, includes premium CNC horizontal machining centers with low operating hours and extensive maintenance, repair, and overhaul (MRO) support. Whether you're looking to purchase the entire line or individual machines, this is an excellent chance to enhance your manufacturing capabilities with well-maintained, high-performance equipment.


Large Capacity Heller Machining Center Liquidation Sale - heller2Features: Equipment no longer needed for continuing operation. Average hours 7,200. Over $2.5mm in MRO included. Pristine facility. All pre-auction offers considered, complete line or individual machines. (4) 2011 HELLER MCH 400 PC CNC Horizontal Machining Centers, (2) 2011 HELLER MCH 350 PC CNC Horizontal Machining Centers, (3) 2011 HELLER MCD 450 D CNC Horizontal Machining Centers, (2) 2011 HELLER MCH 400 D CNC Horizontal Machining Centers, (1) 2009 GROB BZ 800 CNC Horizontal Machining Center, plus other equipment.

Download Brochure


Equipment List:

Complete CGI Engine Block Flexible Machining System

Location: Navistar Big Bore Diesel| 485 Short Pike Rd SW | Huntsville, AL 35824

(4) 2011 HELLER MCH 400 PC CNC Horizontal Machining Centers: Siemens Sinumerik 840D CNC Control, 50 Tool ATC, HSK 100 Spindle Taper, Optical Renishaw OMI-2, Balluff Chip Readers, Heller IPM, Through Spindle Coolant, Hydraulic Clamping, Chiller, Chip Conveyor, Tool Break Detection, 0.001 NC Table B-Axis, 228 mm Maximum Tool Diameter, 1400 mm X, 1000 mm Y-Axis, 1250 mm Z-Axis, 1000mm x 800mm Pallets, 6000 RPM, 1146 Nm Spindle Torque, 60 kW Spindle Power ***U-Axis Machining on One Machine

(2) 2011 HELLER MCH 350 PC CNC Horizontal Machining Centers: Siemens Sinumerik 840D CNC Control, 50 Tool ATC, HSK 100 Spindle Taper, Optical Renishaw OMI-2, Balluff Chip Readers, Heller IPM, Through Spindle Coolant, Hydraulic Clamping, Chiller, Chip Conveyor , Tool Break Detection, 0.001 NC Table B-Axis, 228 mm Maximum Tool Diameter, 1250 mm X, 1000 mm Y-Axis, 1000 mm Z-Axis, 800 mm x 800mm Pallets, 6000 RPM, 1146 Nm Spindle Torque, 60 kW Spindle Power

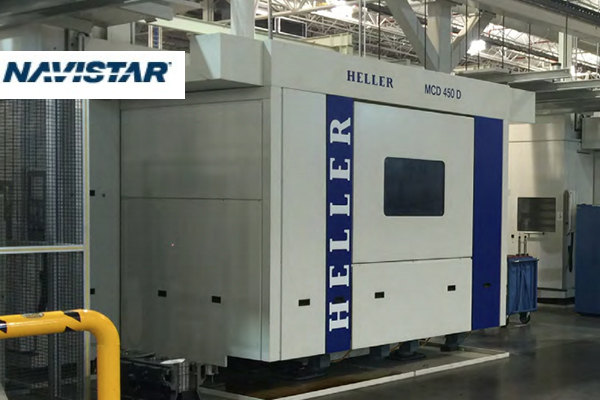

(3) 2011 HELLER MCD 450 D CNC Horizontal Machining Centers: Siemens Sinumerik 840D CNC Control, 50 Tool ATC, HSK 100 Spindle Taper, Optical Renishaw OMI-2, Balluff Chip Readers, Heller IPM, Through Spindle Coolant, Hydraulic Clamping, Chiller, Chip Conveyor, Tool Break Detection, A-Axis, 228 mm Maximum Tool Diameter, 1400 mm X, 1000 mm Y-Axis, 1250 mm Z-Axis, Direct Load, 6000 RPM, 821 Nm Spindle Torque, 43 kW Spindle Power

(2) 2011 HELLER MCH 400 D CNC Horizontal Machining Centers: Siemens Sinumerik 840D CNC Control, 50 Tool ATC, HSK 100 Spindle Taper, Optical Renishaw OMI-2, Balluff Chip Readers, Heller IPM, Through Spindle Coolant, Hydraulic Clamping, Chiller, Chip Conveyor, Tool Break Detection, 0.001 NC Table B-Axis, 228 mm Maximum Tool Diameter, 1400 mm X, 1000 mm Y-Axis, 1400 mm Z-Axis, Direct Load, 6000 RPM, 821 Nm Spindle Torque, 43 kW Spindle Power

2009 GROB BZ 800 CNC Horizontal Machining Center: Siemens Sinumerik 840D CNC Control, 77 Tool ATC, HSK 100 Spindle Taper, Through Spindle Coolant, Hydraulic Clamping, Chiller, Chip Conveyor , Full B-Axis, 1400 mm X, 1000 mm Y-Axis, 1140 mm Z-Axis, 800 mm x 800mm Pallets, 7200 RPM


Other Equipment:

  • HELLER TRS 4000 Transfer System Unit
  • HELLER TRS 4000 VS Transfer System Unit
  • DURR EcoClean Washer
  • DURR EcoFlex Washer
  • SIEMENS Sinumerik 840D Components
  • HSK 100 Tooling
  • POSITECH Material Handling System
  • Wash Assembly System
  • Marposs In-Line Gage
  • REINHART INDUSTRIAL Leak Test
  • Replacement parts for HELLER, GROB, DURR, POSITECH, ALFING & MARPOSS


Gibbs Machinery Company

Don't miss out on this exclusive opportunity to secure surplus CNC machining systems from Navistar. Whether you need a single machine or an entire production line, Gibbs Machinery offers flexible purchasing options, including pre-auction offers. Contact us today to discuss your equipment needs, schedule a visit to inspect the machinery, or submit an offer. Join our mailing list to stay updated on upcoming auctions and new inventory.
