AVAILABLE ASSETS

CNC GEAR GRINDERS

2019 REISHAUER RZ160 CNC GEAR GRINDER: Siemens Sinumerik 840D Solution Line Control, Reishauer Precision Drive, Reishauer Operating Software, Additional Work Spindles (C1 & C2 Axis), Pivoting Dressing Unit (C4 Axis), CNC Tailstock on Both Work Spindles (W1 & W2 Axis), Reishauer VM25RZ Wheel Balancing System, Collet Chucks, Measuring Stylus, Laser, PV50 Filtra-System Coolant Filtration System, Koolant Koolers AV1-1001-M Chiller, RP-2002 Fire Suppression System, 0-162mm Gear Outside Dia., 0.5-4mm Module, +/- 48 Deg. Swivel Angle, 180mm Max. Grinding Stroke, 490mm Max. Shaft Length, 3000 min-1 Max. Work spindle Speed, 30 kg Max. Workpiece Weight, 100 m/s Max. Grinding Speed, 275 Max. Grinding Wheel O.D., 125mm / 160mm Face of Grinding Wheel, w/Felsomat FRC 600 Robotic Load System, 3-Station Staging Rests, Pendant Control, Fanuc LR Mate 200iD Robot, w/R-30ib Controller Type A05B-2651-B021

2016 REISHAUER RZ160 CNC GEAR GRINDER: Siemens Sinumerik 840D Solution Line Control, Reishauer Precision Drive, Reishauer Operating Software, Additional Work Spindles (C1 & C2 Axis), Pivoting Dressing Unit (C4 Axis), CNC Tailstock on Both Work Spindles (W1 & W2 Axis), Reishauer VM25RZ Wheel Balancing System, Collet Chucks, Measuring Stylus, Laser, PV50 Filtra-System Coolant Filtration System, Koolant Koolers AV1-1001-M Chiller, RP-2002 Fire Suppression System, 0-162mm Gear Outside Dia., 0.5-4mm Module, +/- 48 Deg. Swivel Angle, 180mm Max. Grinding Stroke, 490mm Max. Shaft Length, 3000 min-1 Max. Work spindle Speed, 30 kg Max. Workpiece Weight, 100 m/s Max. Grinding Speed, 275 Max. Grinding Wheel O.D., 125mm / 160mm Face of Grinding Wheel, w/Felsomat FRC 600 Robotic Load System, 3-Station Staging Rests, Pendant Control, Fanuc LR Mate 200iD Robot, w/R-30ib Controller Type A05B-2651-B021 Felsomat SN216319

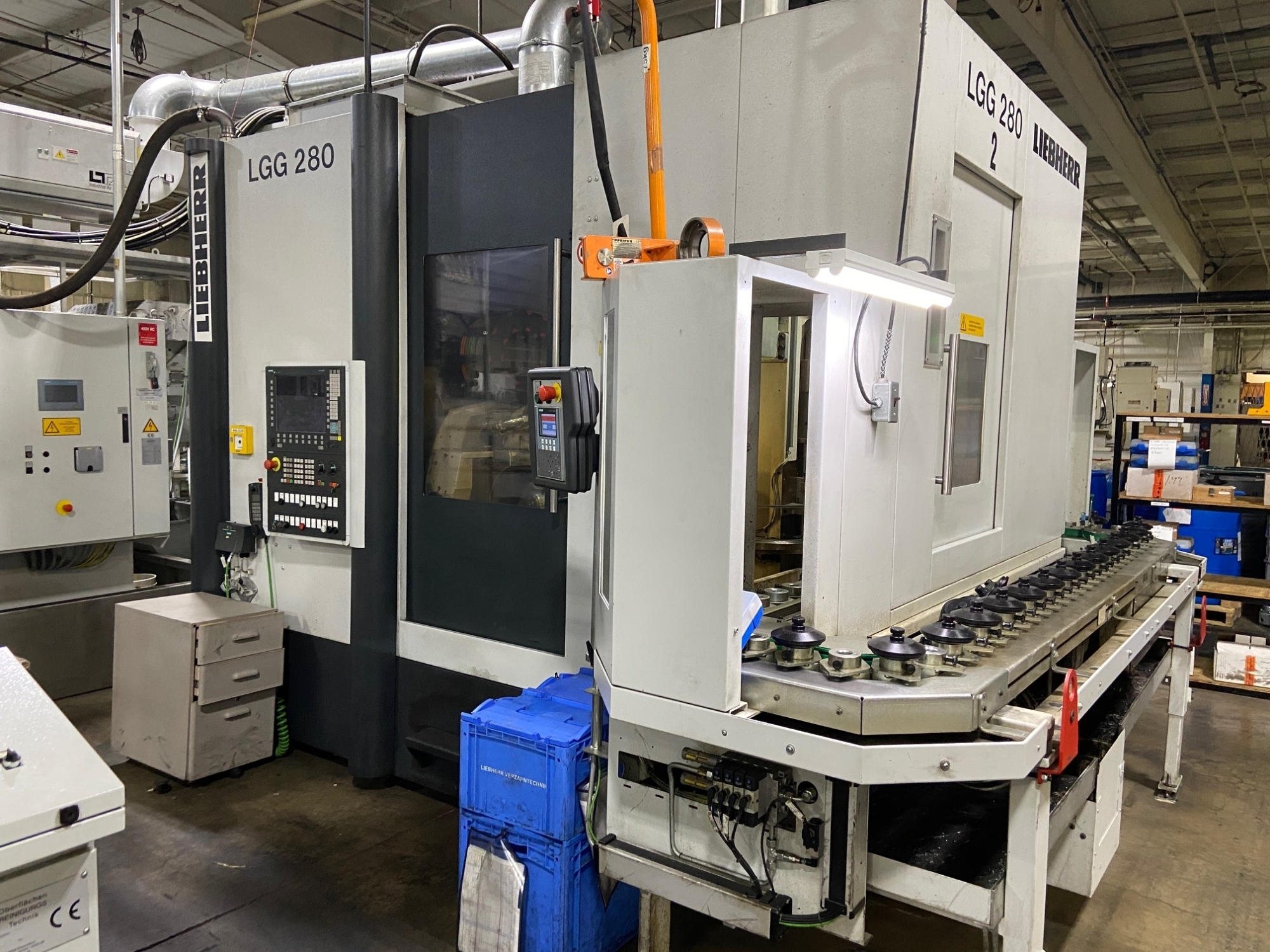

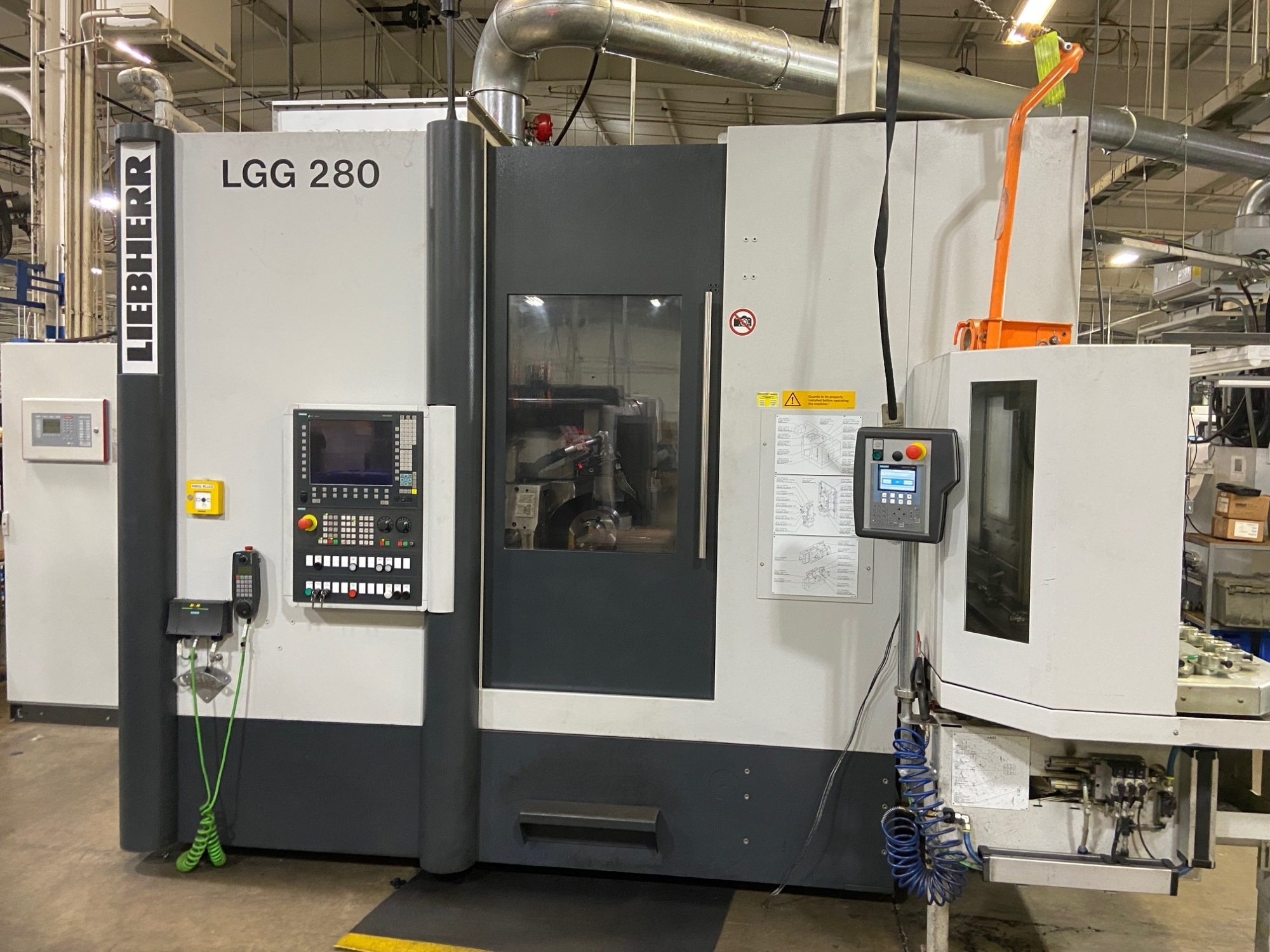

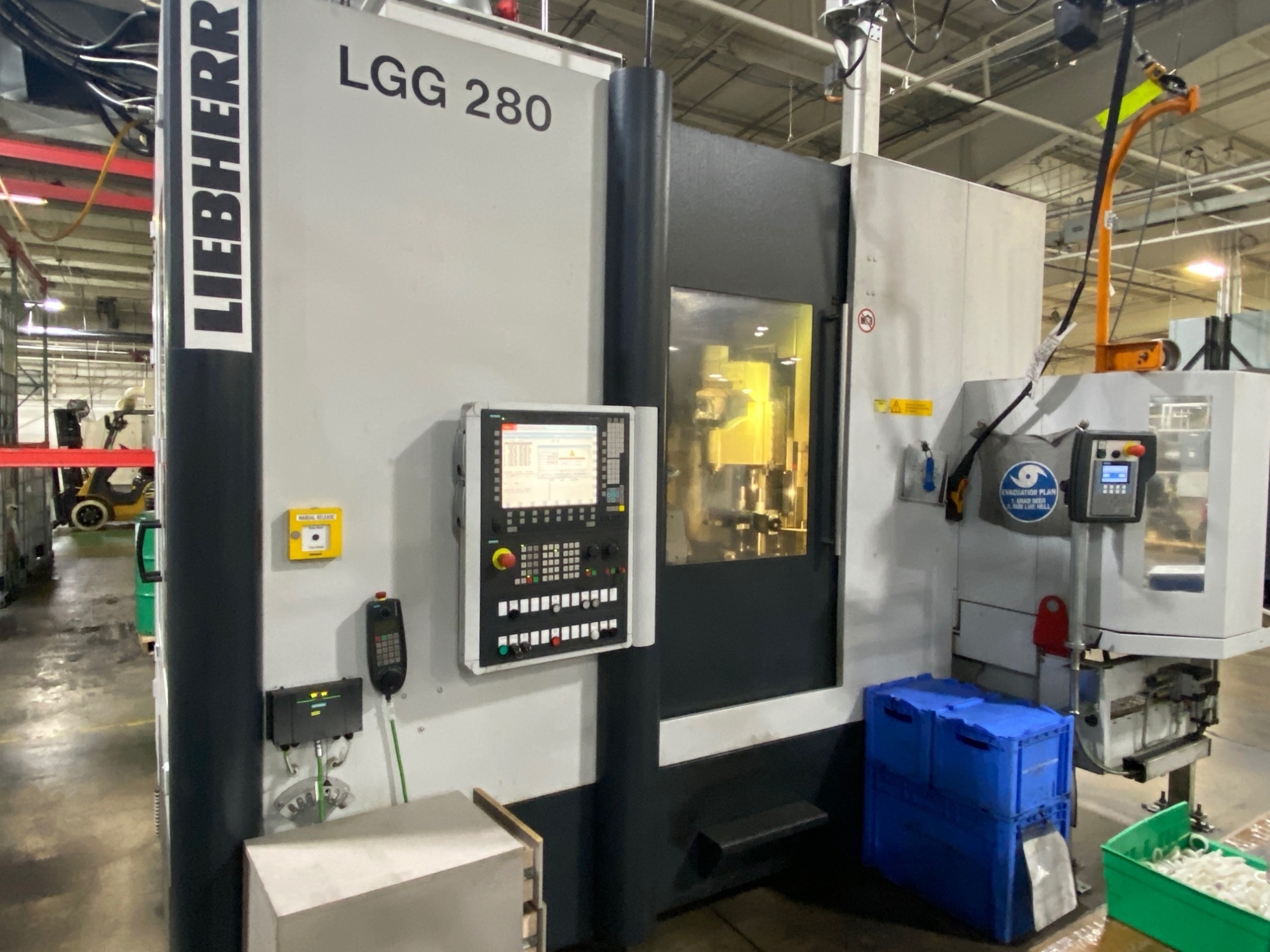

2017 LIEBHERR LGG 280 CNC GEAR GRINDER: S/N 8043, 480/277 V, 3 Phase, 60HZ, Flood Coolant, Carousel Load Table, Siemens Simatic HMI, Siemens 840D Solutions Line Control, Renishaw LP2 Probe, 180 Deg. Auto Load Arm, Sinumerik HT2 Pendant Controller, Dresser, Panel A/C, LTA Industrial Air Cleaning, Jib Crane, Stack Light, Minimax FMZ 5000 Extinguishing System, 6mm Module, 280mm Workpiece Dia., 660mm Axial Travel, 230mm Shift Travel, 10,000 min-1 Grinding Spindle Speed, 206/320mm Tool Dia., 160mm Tool Length

2016 LIEBHERR LGG 280 CNC GEAR GRINDER: S/N FN8030, 480/277 V, 3 Phase, 60HZ, Flood Coolant, Carousel Load Table, Siemens Simatic HMI, Siemens 840D Solutions Line Control, Renishaw LP2 Probe, 180 Deg. Auto Load Arm, Sinumerik HT2 Pendant Controller, Dresser, Panel A/C, LTA Industrial Air Cleaning, Jib Crane, Stack Light, Minimax FMZ 5000 Extinguishing System, 6mm Module, 280mm Workpiece Dia., 660mm Axial Travel, 230mm Shift Travel, 10,000 min-1 Grinding Spindle Speed, 206/320mm Tool Dia., 160mm Tool Length., w/Hoffman Mdl. UBF300/K Filtration System (S/N 01011349)

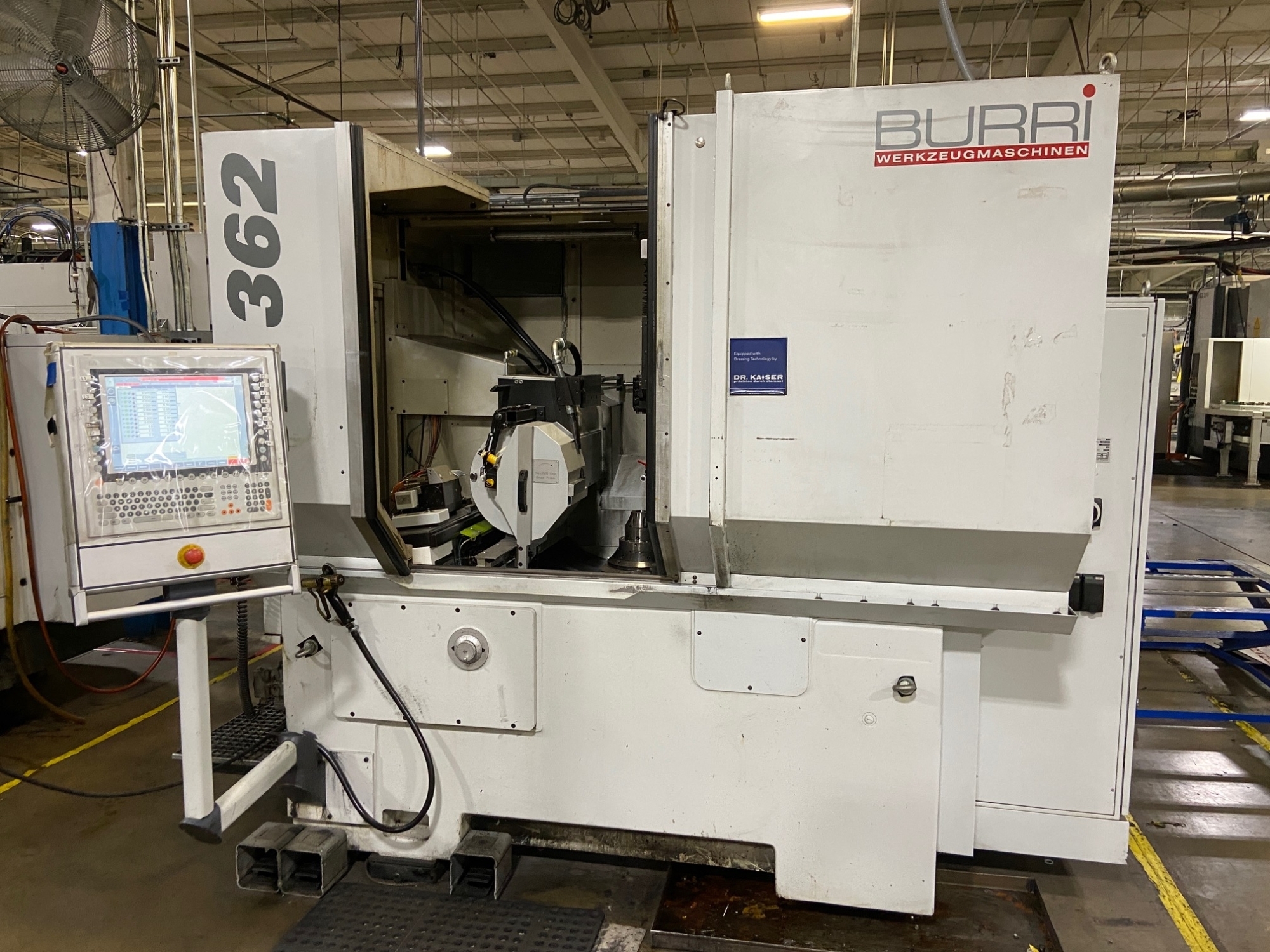

2013 BURRI BZ362 CNC GEAR GRINDER: S/N 362027, 480/60/3, B & R Burri CNC Control, Dr. Kaiser Dresser, Tailstock, w/Center, Wheel Hubs, Hyd. System, Chiller Unit, Coolant System, Schunk Workholding, Part Sensor Arm, 360mm Max. Workpiece Dia., 0,5-7mm Module, 6-999 Teeth, +/- 45 Deg Helix Angle, 556mm Max. Workpiece Length, 175mm Workslide Travel, 350mm Max. Wheel Dia.

2001 REISHAUER RZ400 CNC GEAR GRINDER: S/N 75301, Siemens Sinumerik Control, Balance System BM24RZ Wheel Balancer, Dresser, Coolant System, Tailstock, w/Center, Felsomat Loader, 400mm Workpiece Dia., 8 Module

CNC GEAR HOBBERS

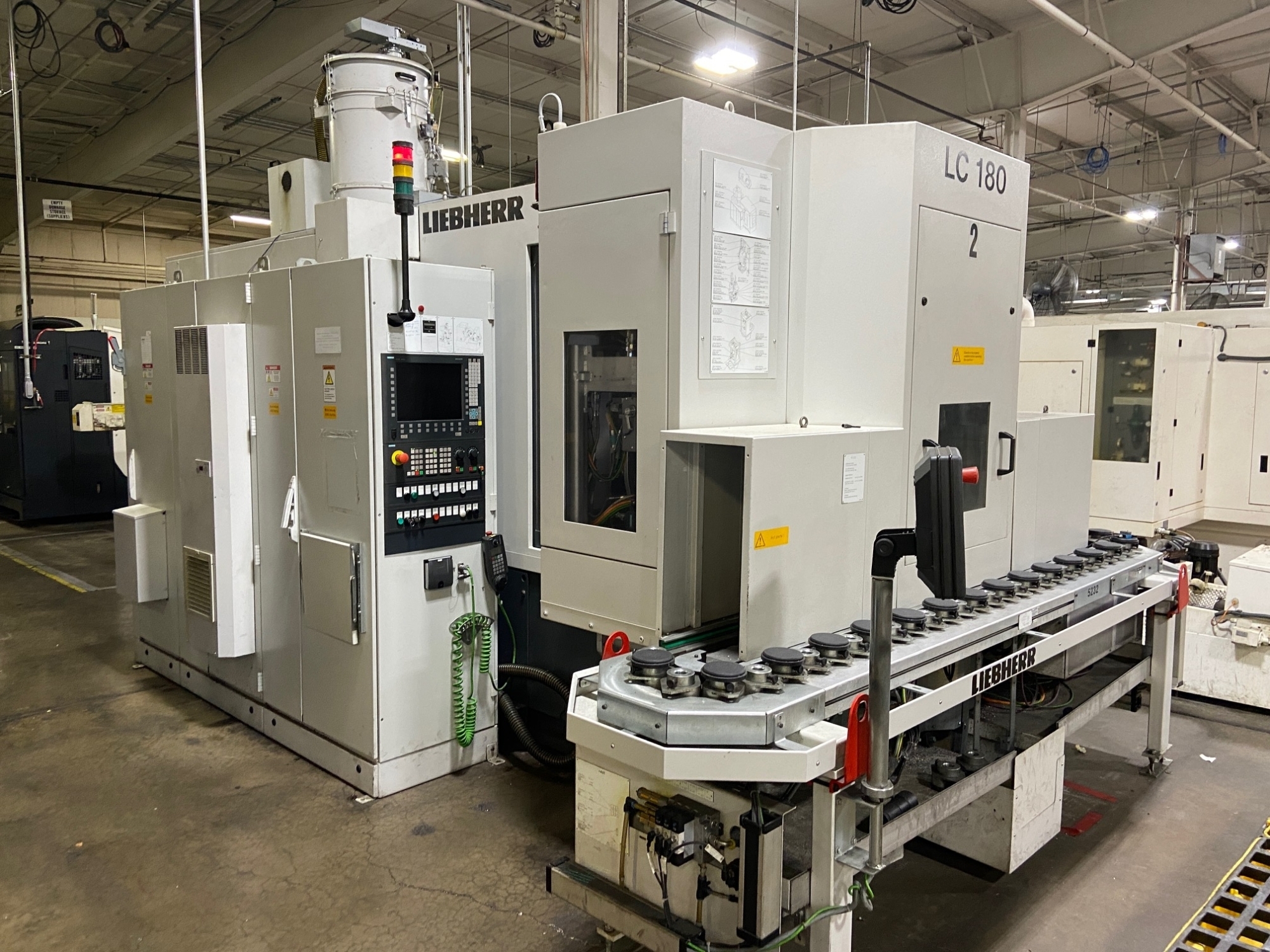

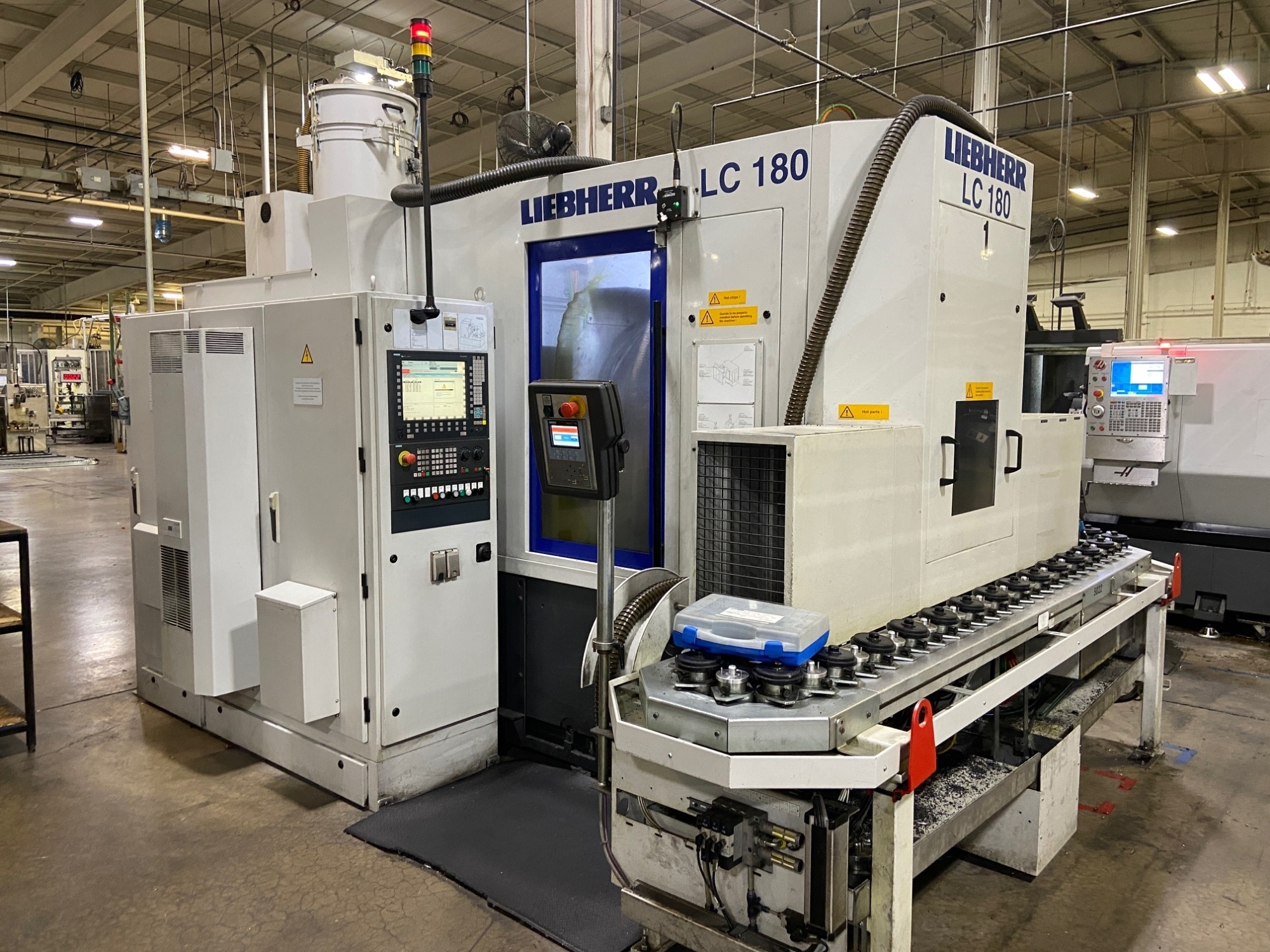

2016 LIEBHERR LC 180 CNC GEAR HOBBER: S/N FN 5232, Siemens 840D CNC Control, Simatic HMI Pendant, 180 deg. Loader, Load Table, Hob Arbor, Arbor Support, Chamfer Station, Hyd. System, Hydac Chiller Unit, Chip Conveyor, Dust Collector, Stack Light, 3mm Module, 180mm Max. Workpiece Dia., 180mm Shift Travel, 90mm Hob Dia., 213mm Clamp Length, 6,000 min-1 Hob Speed

2011 LIEBHERR LC 180 8-Axis CNC GEAR HOBBER: S/N FN 5022, Siemens 840D CNC Control, Simatic HMI Pendant, 180 deg. Loader, Load Table, Hob Arbor, Arbor Support, Arbor Chamfer for Loader, Hyd. System, Hydac Chiller Unit, Chip Conveyor, Dust Collector, Stack Light, 3mm Module, 180mm Max. Workpiece Dia., 180mm Shift Travel, 90mm Hob Dia., 213mm Clamp Length, 6,000 min-1 Hob Speed

2005 GLEASON-PFAUTER P60 CNC GEAR HOBBER: S/N 29517, Siemens Sinumerik Control, 80mm Workpiece Dia., 460mm Max. Workpiece Length, 2.5mm Module, 320mm Axial Travel, 160mm Hob Length, Gleason Chamfer Cell, Gantry System, Chip Conveyor, Dust Collector, Coolant System, EWAB Load Table

CNC TURNING CENTERS

2018 DMG MORI NLX2500/700 5-Axis CNC TURNING CENTER: S/N NL257180608, Celos CNC Controller + MAPPS V, Tool Management System, ERGOline Touch, Tool Presetter, Digital Tailstock, w/Center, Thermal Displacement, Twelve Tool Turret, Chip Conveyor, Foot Control, 8” Chuck, Steady Rest, w/Coolant, Oil Chiller and Hyd. Unit, 460mm Max. Turning Dia., 728mm Max. Turning Length, 80mm Bar Work Cap., 920mm Swing Over Bed, 13,269 Hours, 3627 Processing Hours, 220/60/3

2018 DMG MORI NLX2500/700 5-Axis CNC TURNING CENTER: S/N NL257180607, Celos CNC Controller + MAPPS V, Tool Management System, ERGOline Touch, Tool Presetter, Digital Tailstock w/Center, Thermal Displacement, Twelve Tool Turret, Chip Conveyor, Foot Control, 8” Chuck, Steady Rest, w/Coolant, Oil Chiller and Hyd. Unit, 460mm Max. Turning Dia., 728mm Maximum Turning Length, 80mm Bar Work Cap., 920mm Swing Over Bed, 13,695 Hours, 4,435 Processing Hours, 220/60/3

2018 DMG MORI NLX2500/700 CNC TURNING CENTER: S/N NL257181142, Celos CNC Controller + MAPPS V, Tool Management System, ERGOline Touch, Tool Presetter, Digital Tailstock w/Center, Thermal Displacement, Twelve Tool Turret, Chip Conveyor, Foot Control, 8” Chuck, Steady Rest, Oil Chiller and Hyd. Unit, 460mm Max. Turning Dia., 728mm Max. Turning Length, 80mm Bar Work Cap., 590mm Swing Over Bed, 220/60/3

2018 DMG MORI NLX2500/700 CNC TURNING CENTER: S/N NL257181141, Celos CNC Controller + MAPPS V, Tool Management System, ERGOline Touch, Tool Presetter, Digital Tailstock w/Center, Thermal Displacement, Twelve Tool Turret, Chip Conveyor, Foot Control, 8” Chuck, Steady Rest, Oil Chiller and Hyd. Unit, 460mm Max. Turning Dia., 728mm Max. Turning Length, 80mm Bar Work Cap., 590mm Swing Over Bed, 8850 Hours, 1560.1 Processing Hours, 220/60/3

2018 DMG MORI NLX2500/700 CNC TURNING CENTER: S/N NL257181110, Celos CNC Controller + MAPPS V, Tool Management System, ERGOline Touch, Tool Presetter, Digital Tailstock w/Center, Thermal Displacement, Twelve Tool Turret, Chip Conveyor, Foot Control, 8” Chuck, Steady Rest, Oil Chiller and Hyd. Unit, 460mm Max. Turning Dia., 728mm Max. Turning Length, 80mm Bar Work Cap., 590mm Swing Over Bed, 8728 hours, 1729.6 Processing Hours, 220/60/3

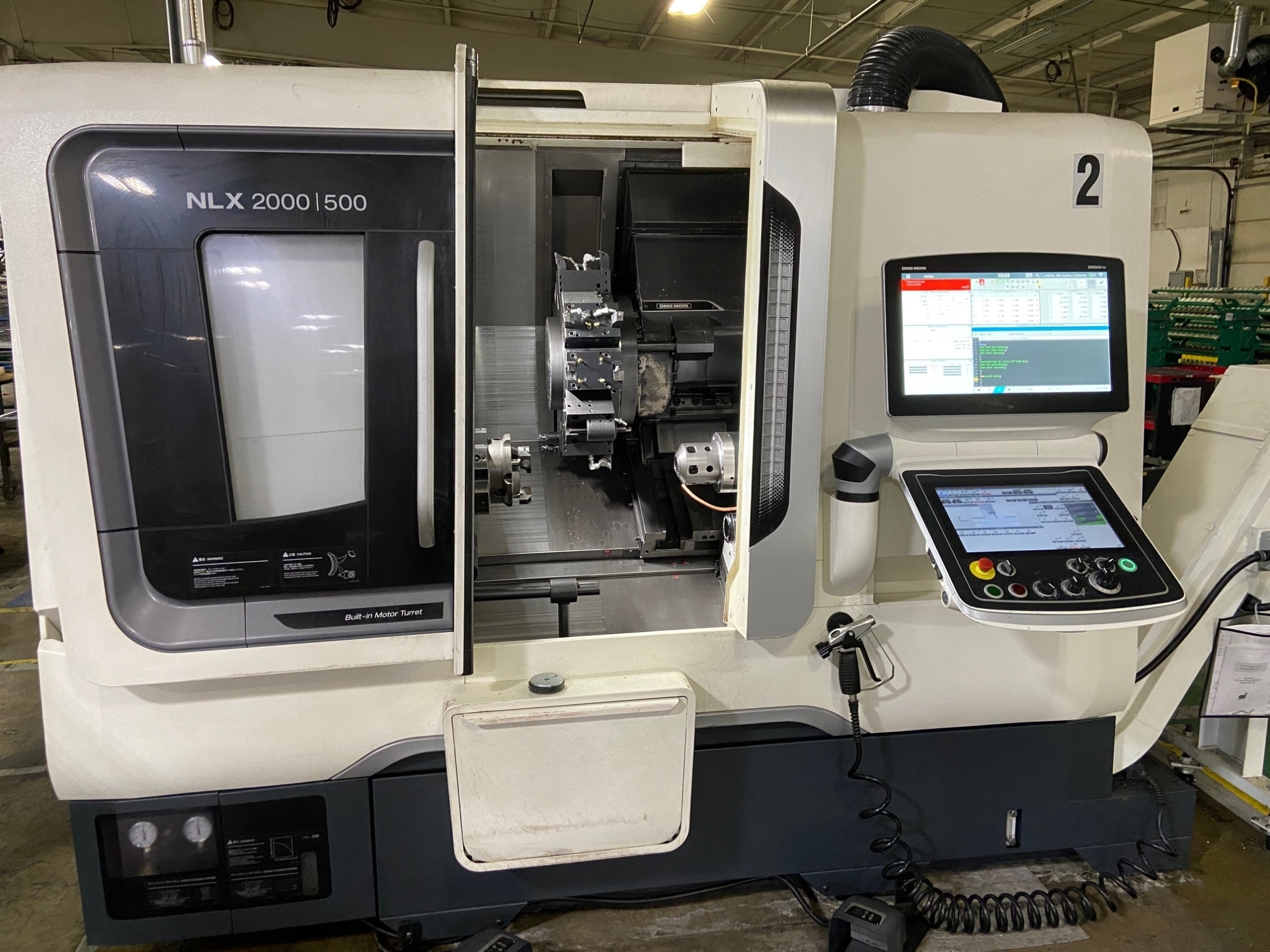

2017 DMG MORI NLX2000sY/500 CNC TURNING CENTER: S/N NL203170707, Live Tooling, Y-Axis, 25” Swing, 14.4” Max Turning Dia., 20.07” Max Turning Length, 2.55” Bar Work Cap., 10.24” X-Axis, 22.83” Z-Axis, 5,000RPM, 12 Station Turret, 6” Chuck, Collet Chuck on Sub Spindle

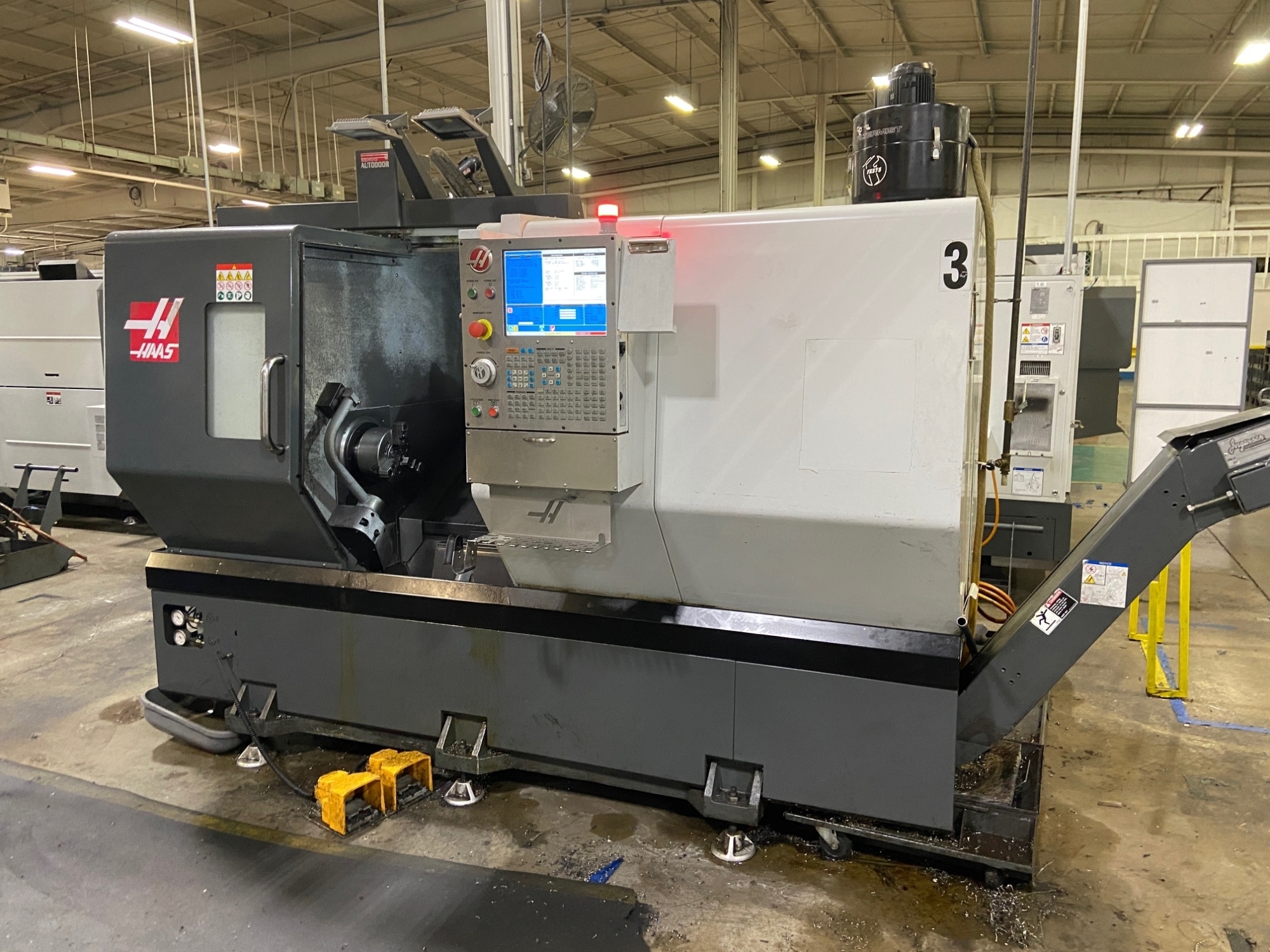

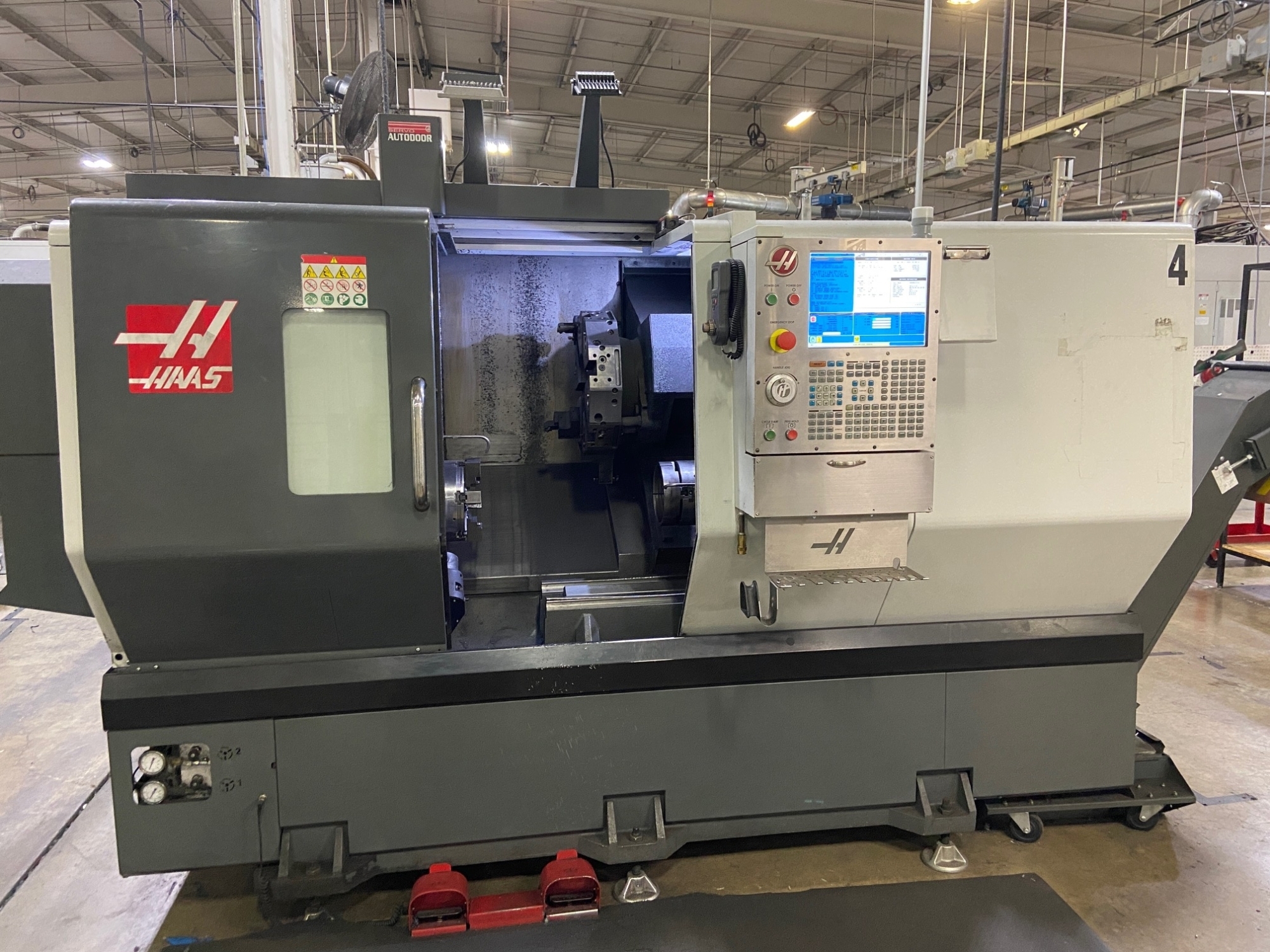

2016 HAAS DS30 CNC TURNING CENTER: S/N 3106704, Haas CNC Control, (2) 8” Chucks, 12 Station Single Turret, 18” Max Cutting Dia., 12.5” X-Axis 23” Z-Axis 23,040 Hours, Chip Conveyor, Tool Eye

2015 HAAS DS30 CNC TURNING CENTER: S/N 3103442, Haas CNC Control, (1) 10” 6 Jaw Chuck, (1) 8” Collet Chuck, 12 Station Single Turret, 18” Max Cutting Dia., 12.5” X-Axis 23” Z-Axis 5,672 Hours, Chip Conveyor, Tool Eye

2015 HAAS DS30 CNC TURNING CENTER: S/N 3103409, Haas CNC Control, (2) 8” Chucks, 12 Station Single Turret, 18” Max Cutting Dia., 12.5” X-Axis 23” Z-Axis Chip Conveyor, Tool Eye

2013 HAAS ST30 CNC TURNING CENTER: S/N 3096551, Haas CNC Control, 12 Station Turret, Chip Conveyor, Tool Eye, Tail Stock, Mist Collector, Foot Pedal, Chuck, 31.75” Swing Over Front Apron, 20.75” Swing Over Cross Slide, 21” Max. Cutting Dia., 26” Max. Cutting Length, 3” Bar Cap., 30” Between Centers, 12.5” X-Axis Travel, 26” Z-Axis Travel, 30 hp, 3400 rpm, 7570 Hours

2012 HAAS ST20 CNC TURNING CENTER: S/N 3091501, 6” Chuck,12 Station Turret, Tail Stock, Mist Collector, Chip Conveyor, 9.3” X-Axis 21” Y-Axis

CNC HORIZONTAL MACHINING CENTERS

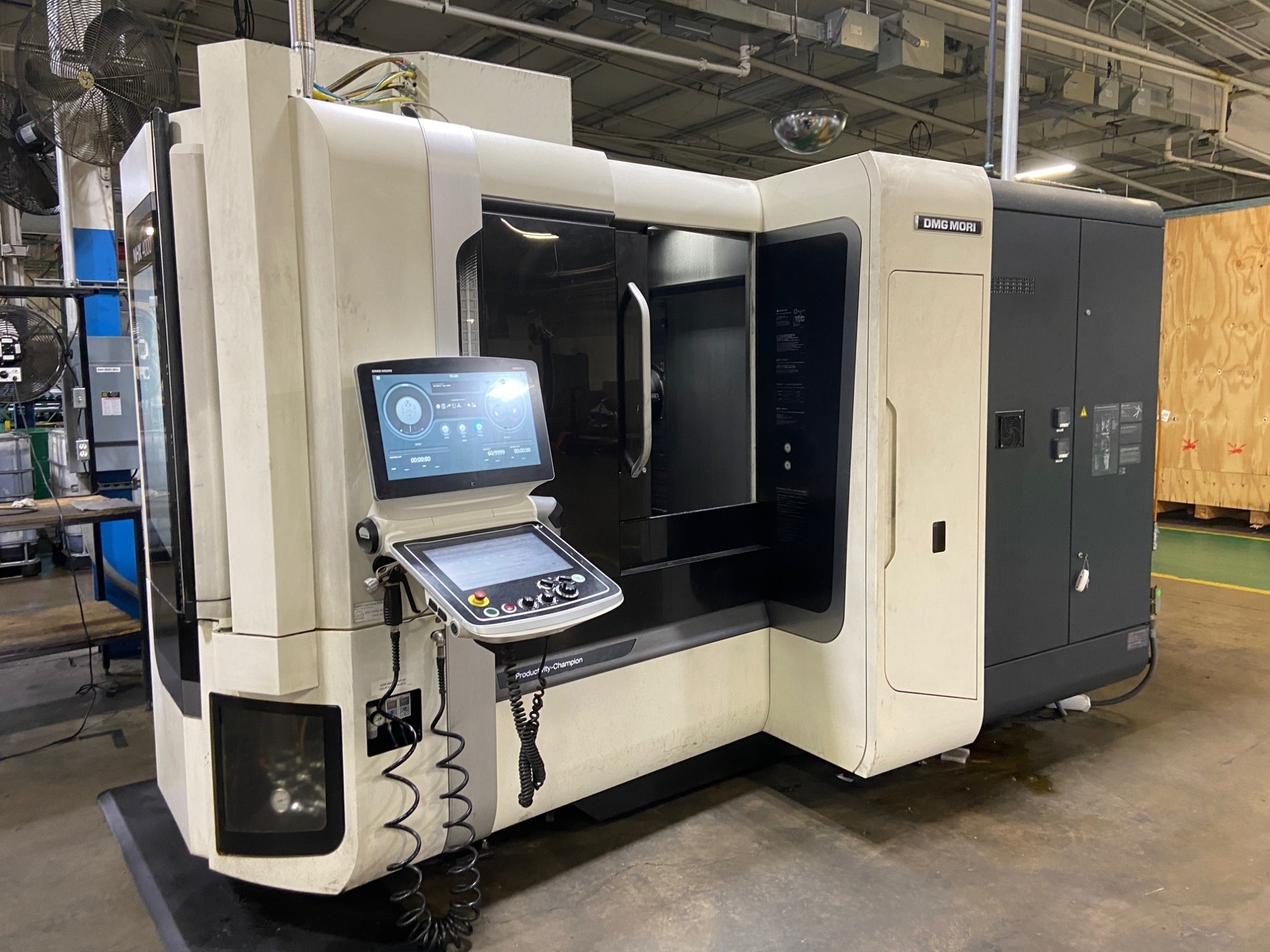

2018 DMG MORI NHX4000 CNC HMC: S/N NHX41180707, 15,000 RPM 40 ATC, 11,914 Processing hours, DMG Mori ERGOline Control, Dual 15.75” x 15.75” Pallets, Hyd. Clamping, Mist Collector, Chip Blaster, Tool Break Detection, 22.05” X-Axis, 22.05” Y-Axis, 25.98” Z-Axis, 880lb Pallet Load Cap., 40 Taper

2017 DMG MORI NHX4000 CNC HMC: S/N NHX41170701, 15,000 RPM 48 ATC, 6580.2 Processing hours, DMG Mori ERGOline Control, 15.75” x 15.75” Pallet, Hyd. Clamping, Mist Collector, Chip Blaster, Renshaw OMP-60 Probe System, 22.05” X-Axis, 22.05” Y-Axis, 25.98” Z-Axis, 880lb Pallet Load Cap., 40 Taper

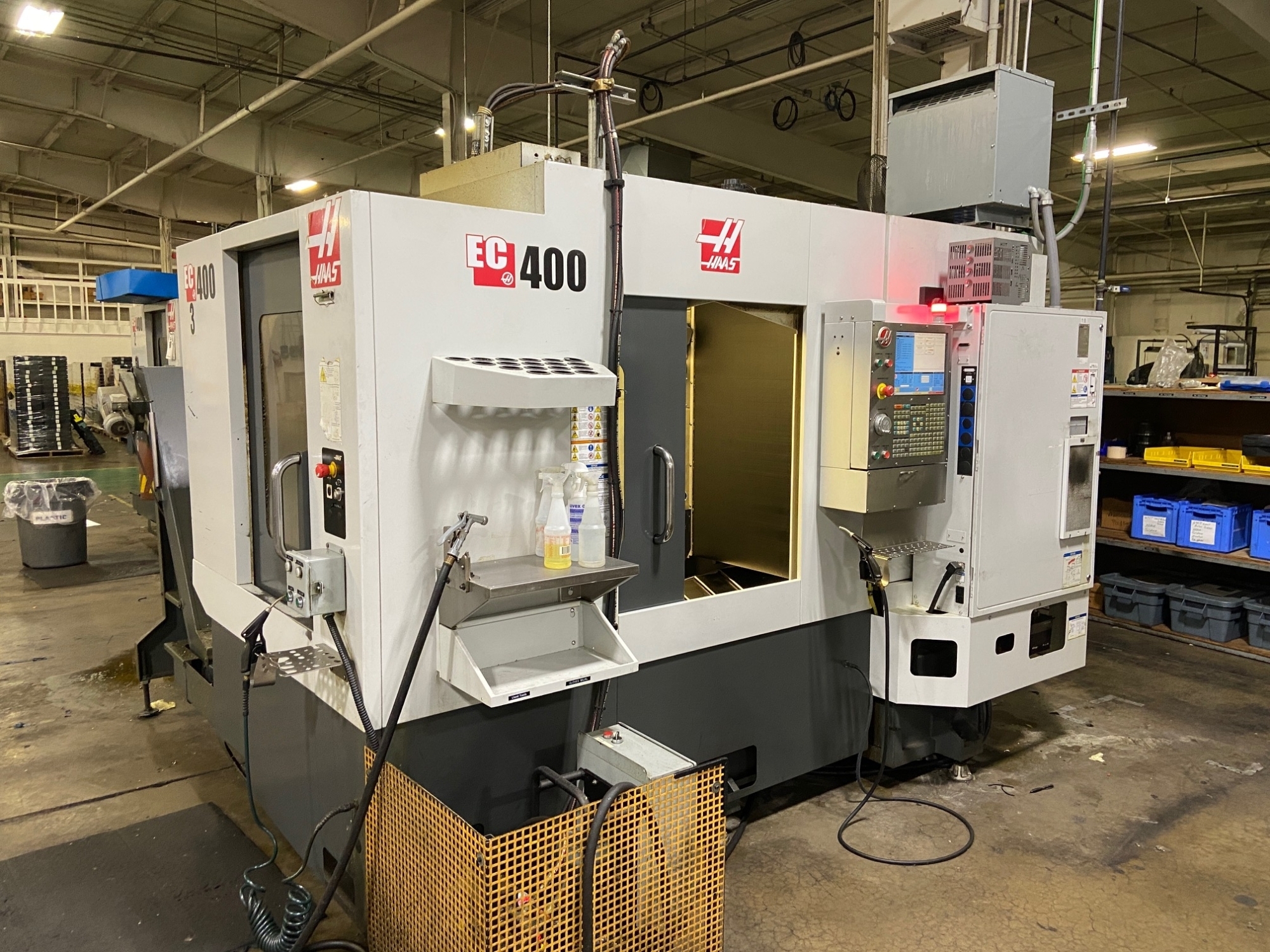

2014 HAAS EC 400 CNC HMC: S/N 2054464, Haas CNC Control, 15.75” x 15.75 Dual Pallets, Hyd. Clamping, Renshaw Probe, 40 Taper, 40 ATC, 20” X-Axis 20” Y-Axis 20” Z-Axis Coolant, 1620 Hours

2012 HAAS EC 400 CNC HMC: S/N 2053716, Haas CNC Control, 40 Taper, 24 ATC, 20” X-Axis 20” Y-Axis 20” Z-Axis 15.75” x 15.75” Dual Pallets, Hyd. Clamping, Renshaw Probe, Coolant System, 14,806 Hours

CNC CYLINDRICAL GRINDERS

2018 GEIBEL & HOLTZ SCHLEIFTECHNIK RS 600 CU CNC CYLINDRICAL GRINDER: S/N 304267 1018, Siemens Sinumerik 840D Solutionline Control, Marposs P7 Gaging System, Siemens Pendant, Headstock, Tailstock, w/Center, Steady Rest, Coolant System, Deltatherm Chiller, Paper Filtration, Compensating Dresser, 550mm Wheel

2012 GEIBEL & HOLTZ SCHLEIFTECHNIK RS 600 CU CNC CYLINDRICAL GRINDER: S/N 303685, Siemens Sinumerik Control, Marposs P7 Gaging System, Siemens Pendant, Headstock, Tailstock, w/Center, Marposs Unimar Finger Gage, Coolant System, Gantry Loader, Hyfra Chiller, Paper Filtration, GEA Delbag Mist Collector, Compensating Dresser, Door Interlock, Stack Light, Transformer, 15” Swing, 24” Wheel Dia., 30” Distance Between Centers

INSPECTION EQUIPMENT

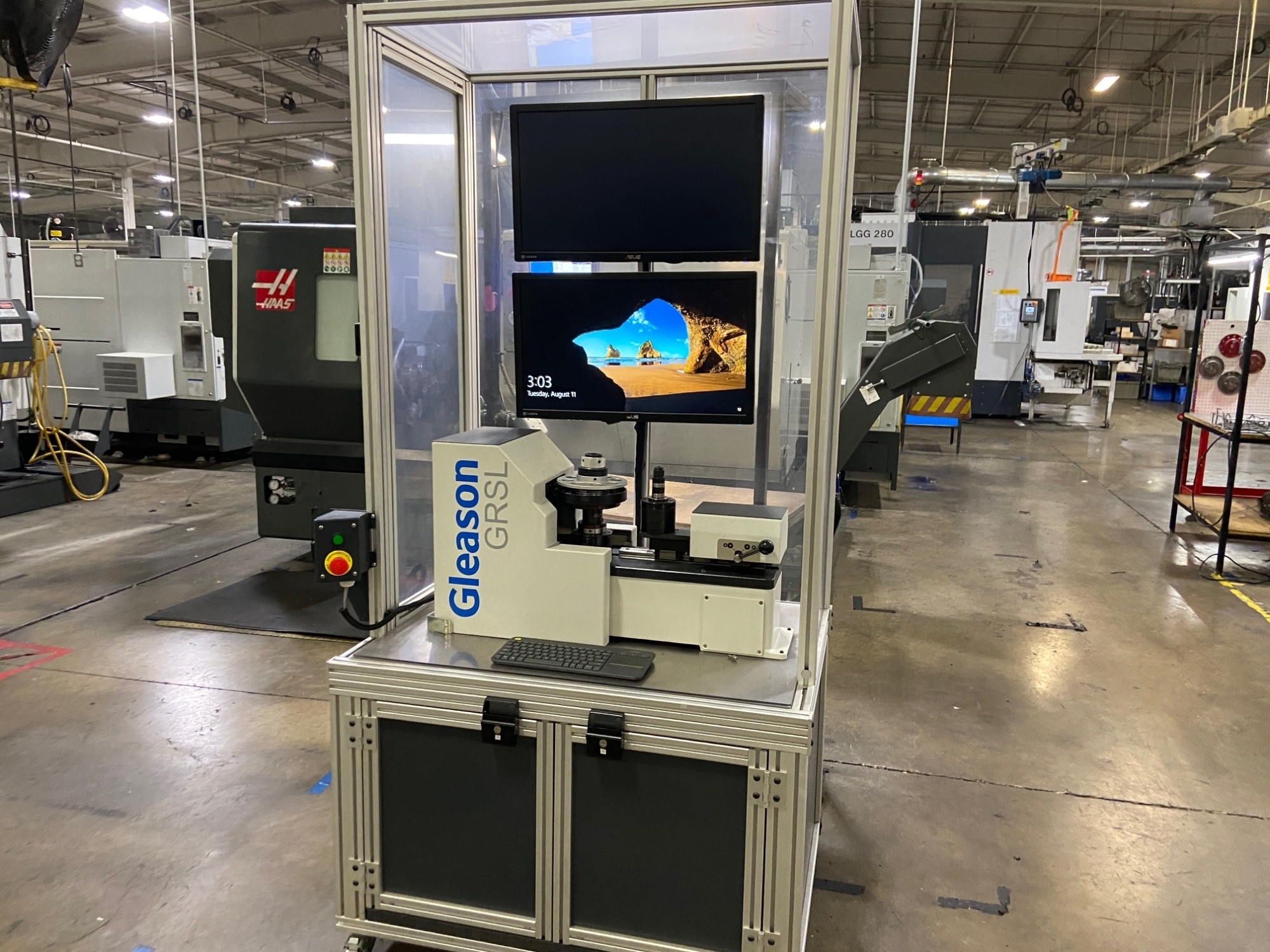

2019 GLEASON GRSL GEAR ROLLING SYSTEM w/ LASER: S/N 7611, Non-Contact Index & Profile Inspection, Gleason GAMA/WIN-ROLL Software Interfaces, ISO, DIN, and AGMA Analysis Charting, Dual Monitor, Work holding, 0.4-7.2 Module, 10” Max. Gear Dia.

2019 GLEASON GRS2 DOUBLE FLANK GEAR ROLLER SYSTEM: S/N 7613, 12.6” Max. Part OD, 50 lbs. Max. Part Weight, 1.25-10” External Measuring Range, 2.5-10” Internal Measuring Range, GMS Double Flank Test Analysis Software for Total Composite Variation, Worst Tooth-to-Tooth Variation, Average Tooth-to-Tooth, Functional DOP Calculation, Nick Detection

2018 PREMETEC PRECISION SHAFT MEASURING MACHINE: S/N P09305, Mrecording and Marking: Laser Marking System, Headstock, w/Center, Tailstock, w/Center, Premetec Rotoware Software System, (2) Probes, Keyence Laser Follower, 15” Center Distance, Printer, Full Enclosure

2018 MAHR MARSHAFT SCOPE 750 PLUS OPTICAL MEASURING MACHINE: S/N 2324, CE Mark, Headstock, w/Center, Tailstock, w/Center, Laser Measure Followers, Probe, Canon Printer, MarWin EasyShaft Software, Auto Measuring Procedure, Matrix Camera, Servomotor Drives, Telecentric Precision Lens, 0.01 to 0.0001 Angle Resolution (degrees) 750mm Measuring Range Length

2017 MAHR MARSHAFT SCOPE 750 PLUS OPTICAL MEASURING MACHINE: S/N 5361508, CE Mark, Headstock, w/Center, Tailstock, w/Center, Laser Measure Followers, Probe, Canon Printer, MarWin EasyShaft Software, Auto Measuring Procedure, Matrix Camera, Servomotor Drives, Telecentric Precision Lens, 0.01 to 0.0001 Angle Resolution (degrees) 750mm Measuring Range Length

2017 PREMETAC TWO STATION FINAL MEASUREMENT SYSTEM: Three Simatic TOUCH HMI’s, Headstock & Tailstock Station 1, Measurement of LeaF/Dlank/Runout, 180 Deg. Gantry Load from Conveyance, Station 2, Bearing and Sprocket Measurement, Dia./Runout/Axial Width Measurement, Panasonic LPM Laser Marker, Zebra GK40t Label Printer, Stack Light, ULT LAS300 Dust Collection

2006 ZEISS CONTROURA G2 10-12-XT COORDINATE MEASURING MACHINE: S/N 200611500500, w/Zeiss Vast XT Contact Scanning Sensor Probe, 12 Probes, 61” x 52” Granite Surface Plate

2017 ZOLLER SMART CHECK 450 TOOL PRESETTER: S/N Smart 450X00063

2017 HAIMER VWk7/1S-S HEAT SHRINK TOOL SETTER: S/N 17020327

(2) UNITE-A-MATIC 8600-VC GEAR CHECKERS

UNITEe-A-MATIC 8600-15 GEAR CHECKER

2018 MITUTOYO LH-600d DIGITAL LINEAR HEIGHT GAUGE: S/N 30046 1106

BRINELL DLC-3100 HARDNESS TESTER: S/N LB1835

2018 CLARK CM-ARS10K HARDNESS TESTER: S/N CM 116 297

BUHLER E9 300g 1000gHV MICRO HARDNESS TESTER: S/N 13709 0518 131655

MZM STEREO MICROSCOPE

ALSO INCLUDED: Granite Surface Plates, Micrometers, Calipers, Height Gauges, Bore Gauges and Other Misc. Inspection Equipment

SUPPORT EQUIPMENT

2018 EXTRUDE HONE ECLINE 1A-1500-48-P-M ELECTRO: Chemical deburring machine, S/N M1071

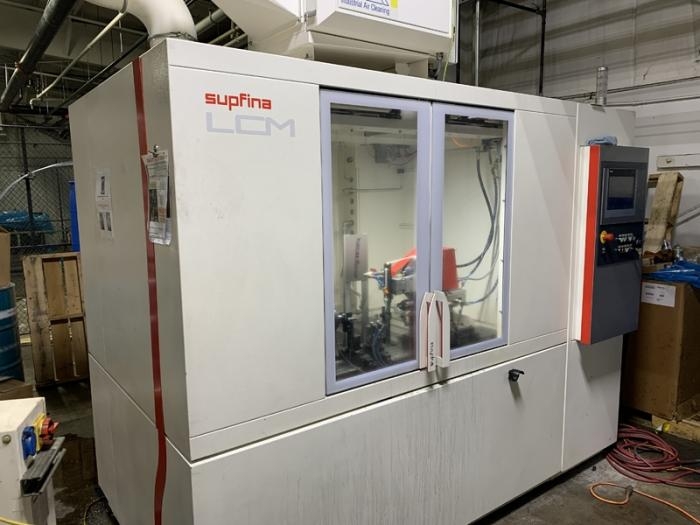

2018 SUPFINA LCM CNC FINISHING MACHINE: S/N 760055, LTA Dust Collector, Driven Headstock, w/Center, Tailstock, w/Center, Coolant System, Work Light, Siemens Control, Two Work Rests, 18” Swing, 30” Centers

2017 Wauseon robotic deburring Cell, Siemens Simatic HMI, Fanuc RobotM10iA, w/Fanuc R30iB controller (S/N F193980), Teach Pendant 2 Wheel Baldor Grinder, Cincinnati Fan Dust Collector

2017 EWAB CONVEYOR SYSTEM: 13 Automatic Computer Controlled Load stations, Estimated 115 Feet Long, Proximity Switches, Transformer, 7 Buffer Tracks, Siemens Simatic HMI’s

2017 RANSOHOFF 001 007 159 & 168 PARTS WASHER: S/N 5802, Siemens Simatic HMI, Ewab Engineering Conveyance System, Three Heat Units, Guarding, Light Curtain, 14” x 8” Part Opening, 460/60/3, Cat 5E

2012 REINLUNGS L103 PARTS WASHER: 36” Basket Dia.

OIL GEAR XL-12 HORIZONTAL HOLE BROACH: S/N 48628

RAUSCH RS3/800 VERTICAL BROACH: S/N 3766, Coolant System, Operator’s Platform, CE Mark, Transformer, 3 Ton, 800mm Stroke
